6 hole steel slab storage rack for granite marble

6-Hole Granit Slab Lagerregal for Heavy Stone Storage

What Is a 6-Hole Granite Slab Lagerregal?

A 6-hole granite slab storage rack is a heavy-duty steel storage system designed to organize granite, marble and other compatible stone materials within a defined storage area.

The six-hole configuration provides multiple support-position options. This gives stone factories more flexibility than a completely fixed storage arrangement.

Instead of using one support position for every material, the rack can be arranged according to the selected model, stone dimensions and daily storage requirements.

This type of rack is especially useful for:

• Granite fabrication shops
• Marble workshops
• Stone warehouses
• Stone distributors
• Countertop fabrication areas
• Construction material suppliers
• Natural stone storage areas

The number of holes is only one part of the selection process. Buyers should also compare rated capacity, maximum slab height, load width, overall rack dimensions and the actual stone being stored.

Technische Daten

How Does the 6-Hole Storage Configuration Work?

The six-hole design provides multiple positions for arranging the rack support configuration.

This is useful when a stone business handles materials with different sizes or storage requirements.

For example, a workshop may need to separate:

• Different granite colors
• Marble pieces
• Countertop materials
• Customer orders
• Different slab sizes
• Materials waiting for fabrication

A more organized rack arrangement can make materials easier to identify and reduce unnecessary movement around the storage area.

The selected support arrangement should always remain compatible with the rack model, material dimensions and rated capacity.

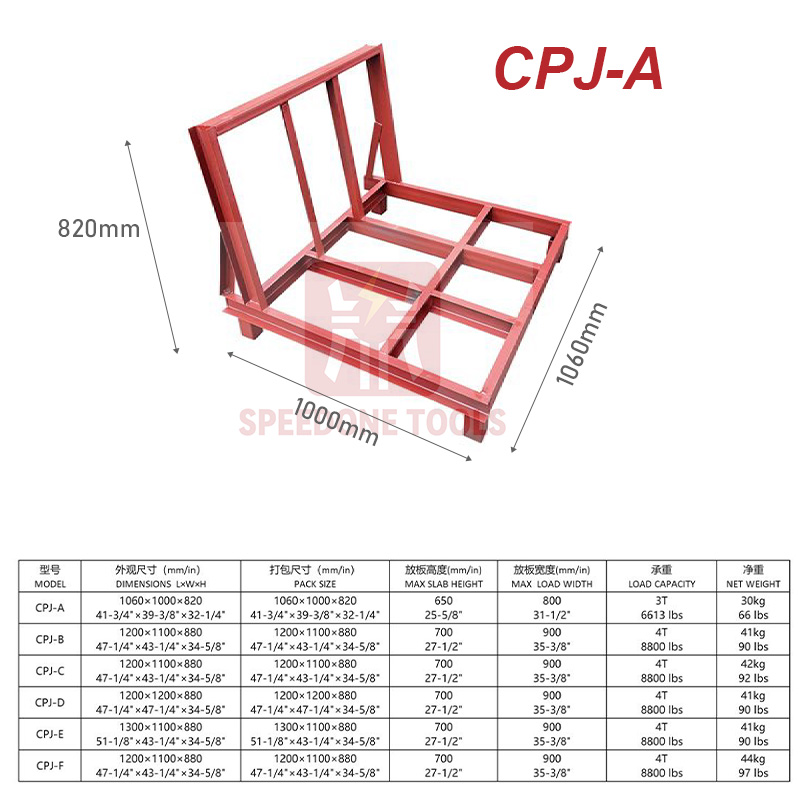

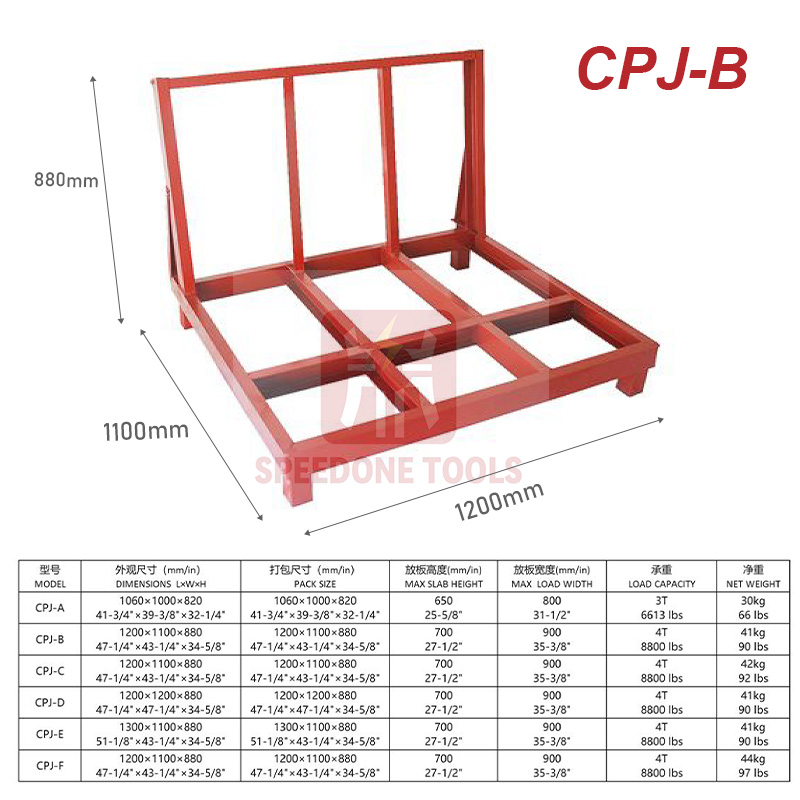

Speedone CPJ-A and CPJ-B granite slab storage rack configurations

CPJ-A to CPJ-F: How to Choose the Right Model

The CPJ series includes six configurations. The main differences are overall dimensions, rated load capacity, maximum slab height, maximum load width and net weight.

CPJ-A is the more compact option in the listed series.

CPJ-B through CPJ-F provide the higher 4T rated capacity together with the larger listed slab-height and load-width limits.

Heavy-Duty Storage for Granite and Marble

Granite and marble require a different storage approach from ordinary palletized goods.

Stone materials are heavy and can also be vulnerable to edge damage if they are not stored and handled correctly.

A dedicated stone rack helps create a defined storage position and keeps materials organized within the workshop or warehouse.

The CPJ series uses steel construction for professional stone-storage applications.

For facilities that also store porcelain materials, Speedone’s heavy-duty porcelain storage rack provides another option for compatible panel storage.

Steel Construction for Industrial Stone Storage

Stone storage equipment may be exposed to dust, repeated loading and regular workshop use.

For this reason, structural strength and surface protection are important buying considerations.

The Speedone CPJ series uses steel construction intended for industrial applications.

When requesting a quotation, buyers should confirm:

• Required rack model
• Storage environment
• Surface-treatment requirements
• Material dimensions
• Expected total load
• Installation conditions

3T vs. 4T Granite Slab Storage Rack

The most obvious capacity difference in the CPJ series is between CPJ-A and the other models.

Buyers should not automatically choose the 4T model if the smaller CPJ-A already meets the actual storage requirement.

Likewise, a 3T rack should not be used where the expected total load exceeds its rated capacity.

Storage Safety and Load Management

A stone storage rack is only one part of the complete storage system.

Safe use also depends on:

• Total material weight
• Stone dimensions
• Load distribution
• Support arrangement
• Floor condition
• Loading method
• Unloading method
• Operator procedures

The total applied load should remain within the rated capacity of the selected CPJ model.

Stone should be arranged so that unnecessary shifting is minimized.

The rack should also be placed on a suitable supporting surface with enough working clearance around it.

For another frame configuration used with marble and compatible panel materials, Speedone also offers a Marmorplatten-Rahmenlösung.

6-Hole Granite Slab Storage Rack vs. Fixed Storage Rack

The six-hole design is useful where a workshop regularly stores different stone groups or changes the material mix.

Anti-Tip Considerations for Stone Storage

Stone storage safety should be considered as a complete system.

The rack, stored stone, support arrangement and loading procedure all affect stability.

Where an additional stabilization solution is required, Speedone’s slab rack corner wedges anti-tip safety system can be considered for suitable vertical panel storage applications.

The use of any additional stabilization product should still match the actual rack and operating conditions.

How a Granite Slab Storage Rack Improves Workshop Organization

Storage equipment affects more than where the stone sits.

Poorly organized material can increase:

• Material-search time
• Repeated slab movement
• Congestion in the storage area
• Unnecessary handling
• Difficulty identifying customer orders

A clearly defined rack system gives different stone groups a more organized location.

This can be useful for fabrication workshops, distributors and warehouses working with multiple materials at the same time.

Before installing the rack, buyers should measure both the rack footprint and the working space needed around it.

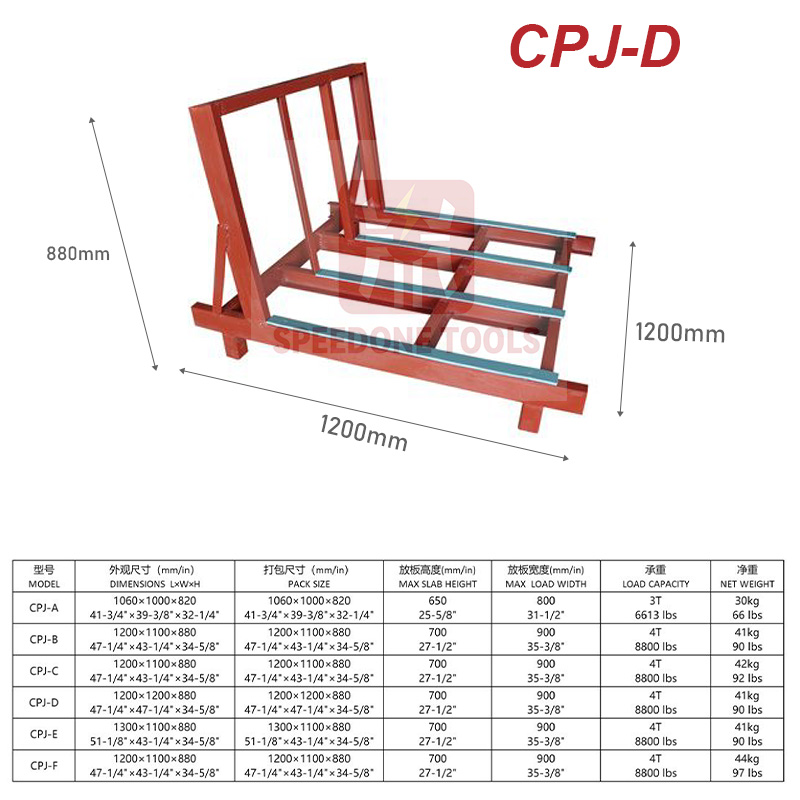

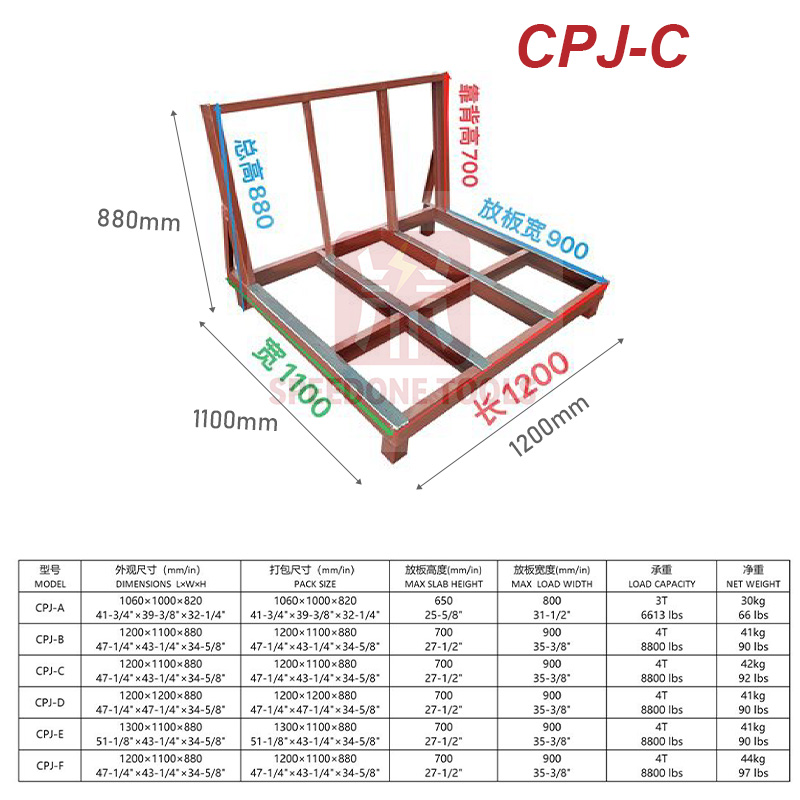

Speedone CPJ-C and CPJ-D heavy-duty stone storage rack configurations

Suitable Applications

Integrating the Rack into Your Stone Handling Workflow

A slab storage rack should be planned together with the way material moves through the factory.

Before installation, consider:

Receiving → Storage → Slab Selection → Handling → Cutting → Fabrication → Finished Product Storage

The rack location should provide enough space for the equipment and procedures used during loading and unloading.

For facilities that prefer a galvanized storage configuration, Speedone’s galvanized slab storage rack with timber-ready ground rails provides another storage option.

When Should You Choose a Different Slab Rack?

The CPJ 6-hole series is designed around a specific dimensional and load range.

A different rack should be considered if your project requires:

• Larger slab dimensions
• Higher total storage capacity
• A different rack layout
• More adjustable support positions
• A galvanized configuration
• Storage designed specifically for countertops

For a more adjustable configuration, Speedone’s galvanized adjustable slab rack with flip pole technology provides another option.

For applications requiring substantially higher storage capacity, buyers can also review the heavy-duty galvanized slab rack.

For smaller granite pieces and countertop-oriented storage, the countertop slab storage rack may be more suitable.

How to Choose the Correct Granite Slab Storage Rack

Start with the stone rather than the rack.

Before requesting a quotation, prepare the following information:

• Maximum stone dimensions
• Maximum expected total load
• Typical material type
• Required storage width
• Available floor space
• Required working clearance
• Preferred CPJ model
• Loading and unloading method
• Required surface treatment
• Order quantity
• Destination country or port

This information makes it easier to select the correct rack and avoids choosing equipment based only on appearance or outside dimensions.

Quality and Pre-Order Checks

Warum Speedone wählen?

Speedone supplies professional stone-storage and material-handling equipment for fabrication shops, warehouses and distributors.

For the CPJ series, model selection should be based on measurable storage requirements rather than product appearance alone.

A practical selection process is:

Stone Dimensions → Total Load → Required Storage Width → CPJ Model → Floor Space → Handling Method → Surface Treatment

CPJ-A provides the listed 3T capacity with a more compact dimensional range.

CPJ-B through CPJ-F provide the listed 4T capacity together with the larger 700 mm slab-height and 900 mm load-width limits.

If your storage requirements fall outside these ranges, a different slab rack should be selected rather than exceeding the listed specifications.

Häufig gestellte Fragen

Was ist ein 6-Loch-Granitplatten-Ablagegestell?

A 6-hole granite slab storage rack is a heavy-duty stone storage system that provides multiple support-position options for organizing compatible granite, marble and other stone materials.

Wie hoch ist die Tragfähigkeit des CPJ-Granit-Ablagegestells?

CPJ-A has a listed rated capacity of 3T / 6613 lbs. CPJ-B, CPJ-C, CPJ-D, CPJ-E and CPJ-F have listed rated capacities of 4T / 8800 lbs.

What is the difference between CPJ-A and the other CPJ models?

CPJ-A measures 1060 × 1000 × 820 mm, has a maximum listed slab height of 650 mm, a maximum load width of 800 mm and a rated capacity of 3T. CPJ-B through CPJ-F provide a listed maximum slab height of 700 mm, maximum load width of 900 mm and rated capacity of 4T, while their overall dimensions and net weights vary.

Can the rack store marble as well as granite?

The product is primarily presented as a granite storage rack, but compatible marble and stone materials may also be considered when their dimensions and weight remain within the selected model’s specifications.

How do I choose between CPJ-A and CPJ-F models?

Compare required load capacity, slab height, load width, external rack dimensions, available floor space and the way stone will be loaded and removed.

Welche maximale Plattenhöhe wird von der CPJ-Serie unterstützt?

CPJ-A has a listed maximum slab height of 650 mm / 25-5/8″. CPJ-B through CPJ-F have a listed maximum slab height of 700 mm / 27-1/2″.

What is the maximum load width?

CPJ-A has a listed maximum load width of 800 mm / 31-1/2″. CPJ-B through CPJ-F have a listed maximum load width of 900 mm / 35-3/8″.

Wie kann die Sicherheit beim Steinlagerung verbessert werden?

Keep the total load within the rack’s rated capacity, use a suitable supporting surface, organize stone consistently, provide sufficient working clearance and follow appropriate stone-handling procedures.

Is a 6-hole slab rack better than a fixed rack?

It depends on the storage requirement. A 6-hole configuration provides more support-position options, while a fixed rack may be suitable where material dimensions and storage arrangements remain consistent.

What information should I provide when requesting a quotation?

Provide the required quantity, preferred model, stone dimensions, approximate total load, available floor space, material type, loading method, required surface treatment and destination country or port.
