AJ-E Double-Sided Forklift A-Frame | Anti-Tip & 30T Capacity | AJ-E Rack
- Model Number : AJ-E
- Load capacity : 30 tons
- Net Weight : 255kg
Product Description
Double-Sided Forklift A-Frame Rack | 30T Workshop Slab Mover
Detachable Design | Anti-Tip Protection | Fork-Channel Base
Core Innovations:

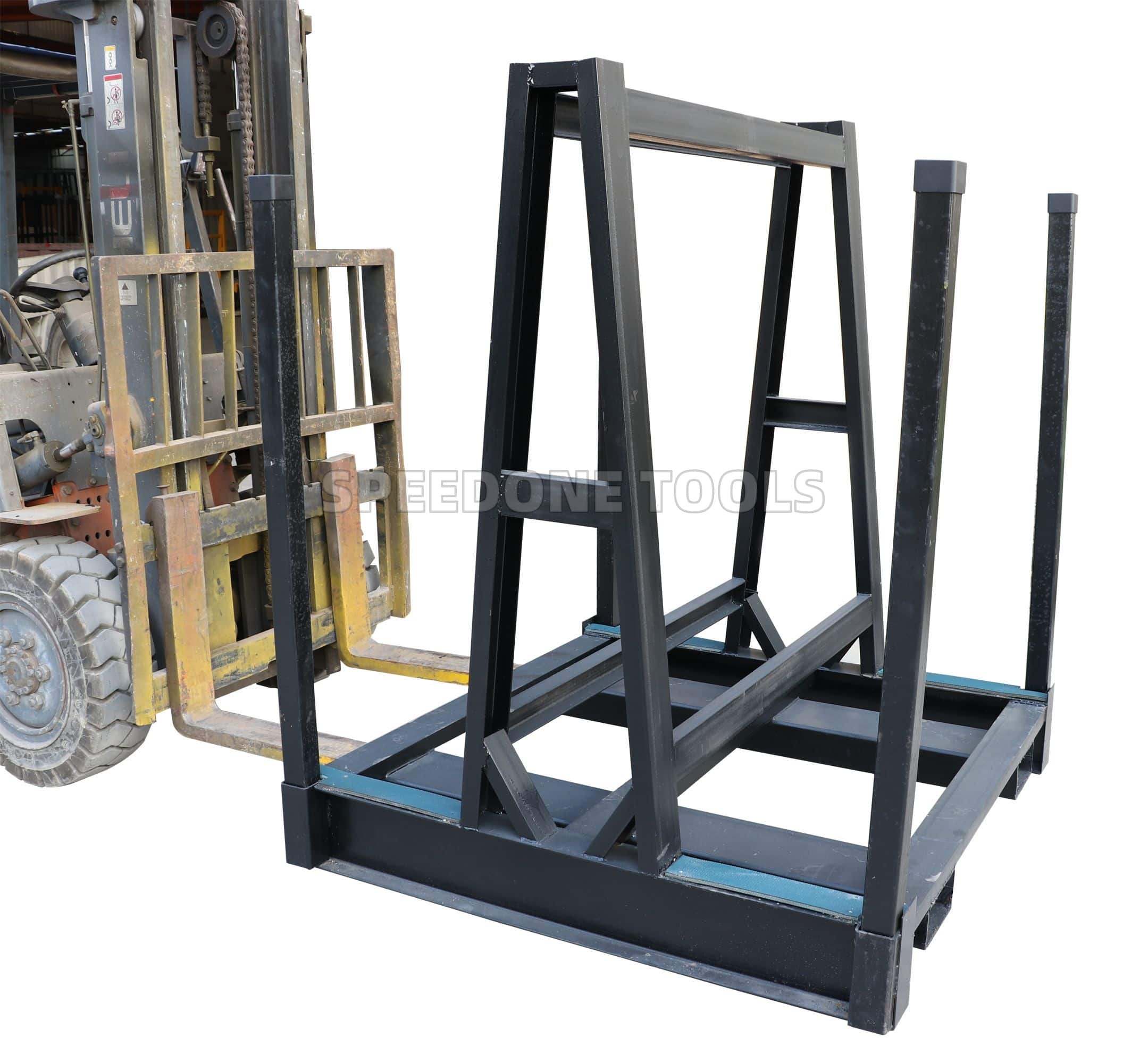

⚙️ FORK-ALIGNMENT BASE SYSTEM
-
Integrated square-tube channels guide forks perfectly (no misalignment)
-
Reinforced cross-bracing withstands 30-ton loads during abrupt stops
🛡️ QUADRUPLE ANTI-TIP COLUMNS
-
4 vertical posts lock slabs
-
Prevents lateral shift during sharp forklift turns

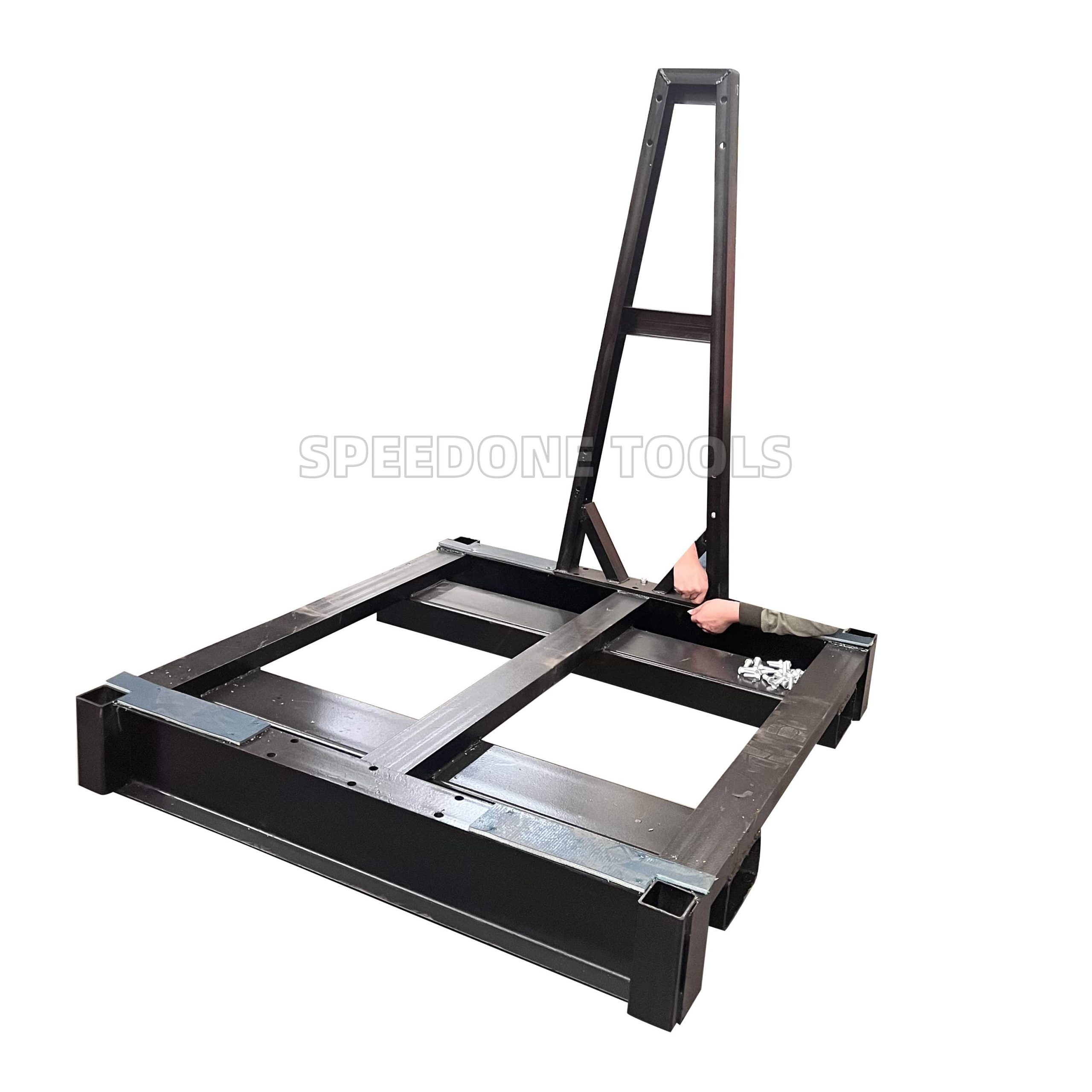

🔧 RAPID-DETACH A-FRAMES
-
Remove/reinstall A-frames in <5 minutes for space-efficient storage
-
Color-coded pins eliminate assembly errors

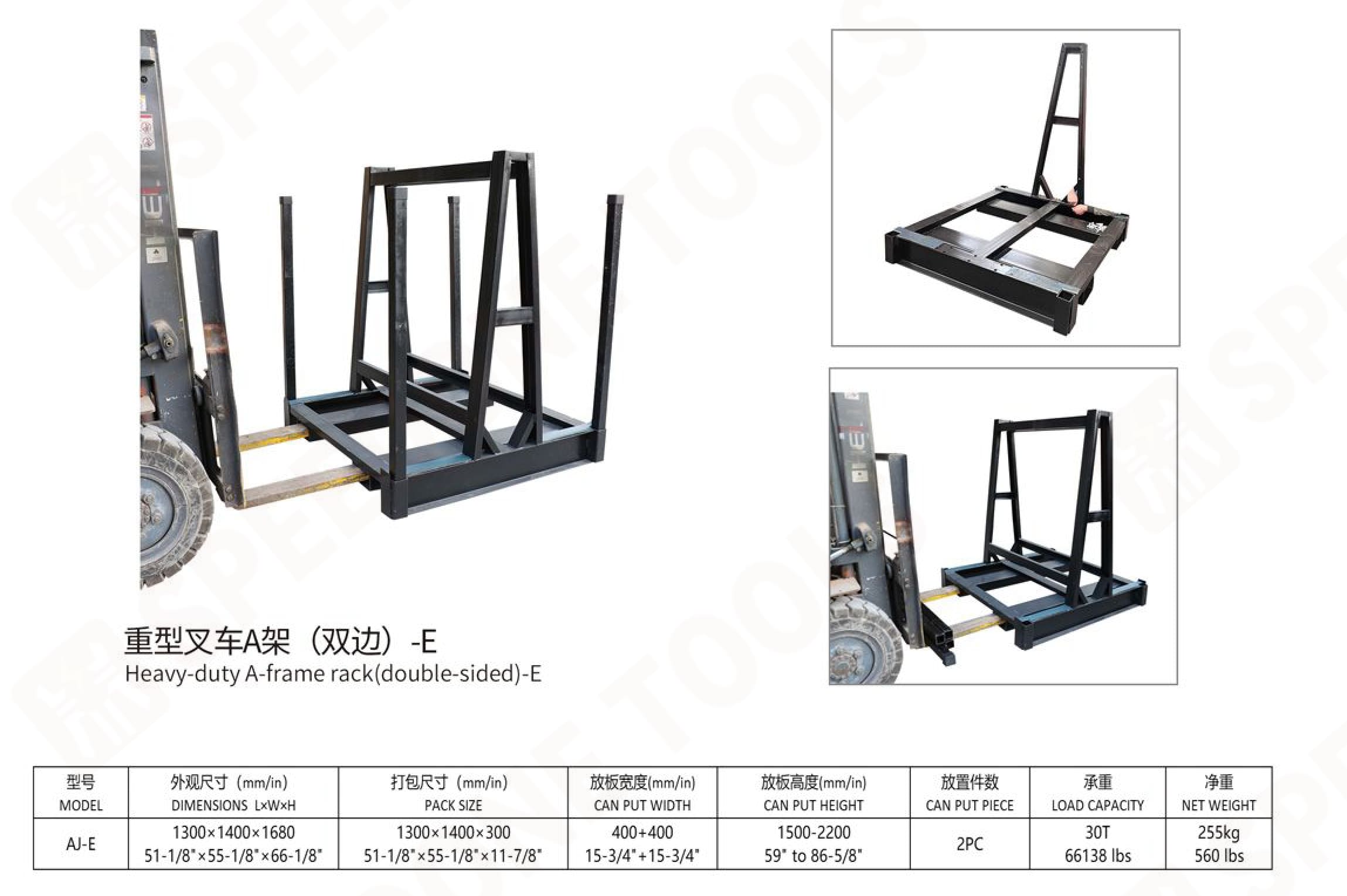

Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Load Capacity | 30 Tons | 66,138 lbs |
| Dimensions | 1300×1400×1680mm | 51.2″×55.1″×66.1″ |
| Fork Channel | 180×120mm | 7″×4.7″ |
| Slab Placement Width | 400+400mm/side | 15.75″+15.75″ |
| Slab Height Range | 1500-2200mm | 59″-86.6″ |
| Net Weight | 255kg | 560 lbs |
| Pack Size | 1300×1400×300mm | 51.2″×55.1″×11.8″ |
Structural Advantage:
✓ 100% welded base frame (no bolt failures)
✓ 40% faster slab transfers than single-sided racks
Triple Surface Protection
| Finish | Best For | Performance |
|---|---|---|
| Painted (Std) | Indoor workshops | Economical + color customization |
| Galvanized | Humid/dusty environments | 15-year salt-spray resistance |
| Powder-Coated | High-visibility facilities | Custom RAL colors + scratch-proof |
Anti-Tip Safety System
| Hazard | Our Solution |
|---|---|
| Slab sliding off forks | Fork-guide channels ensure perfect alignment |
| Load shifting during turns | 4-column bracing limits sway to <2° |
| Edge chipping | Radiused contact points + optional rubber pads |
