AJ-J Single-Sided H-Steel A-Frame Rack | Space-Saving Workshop Storage
- Model Number : AJ-H
Product Description

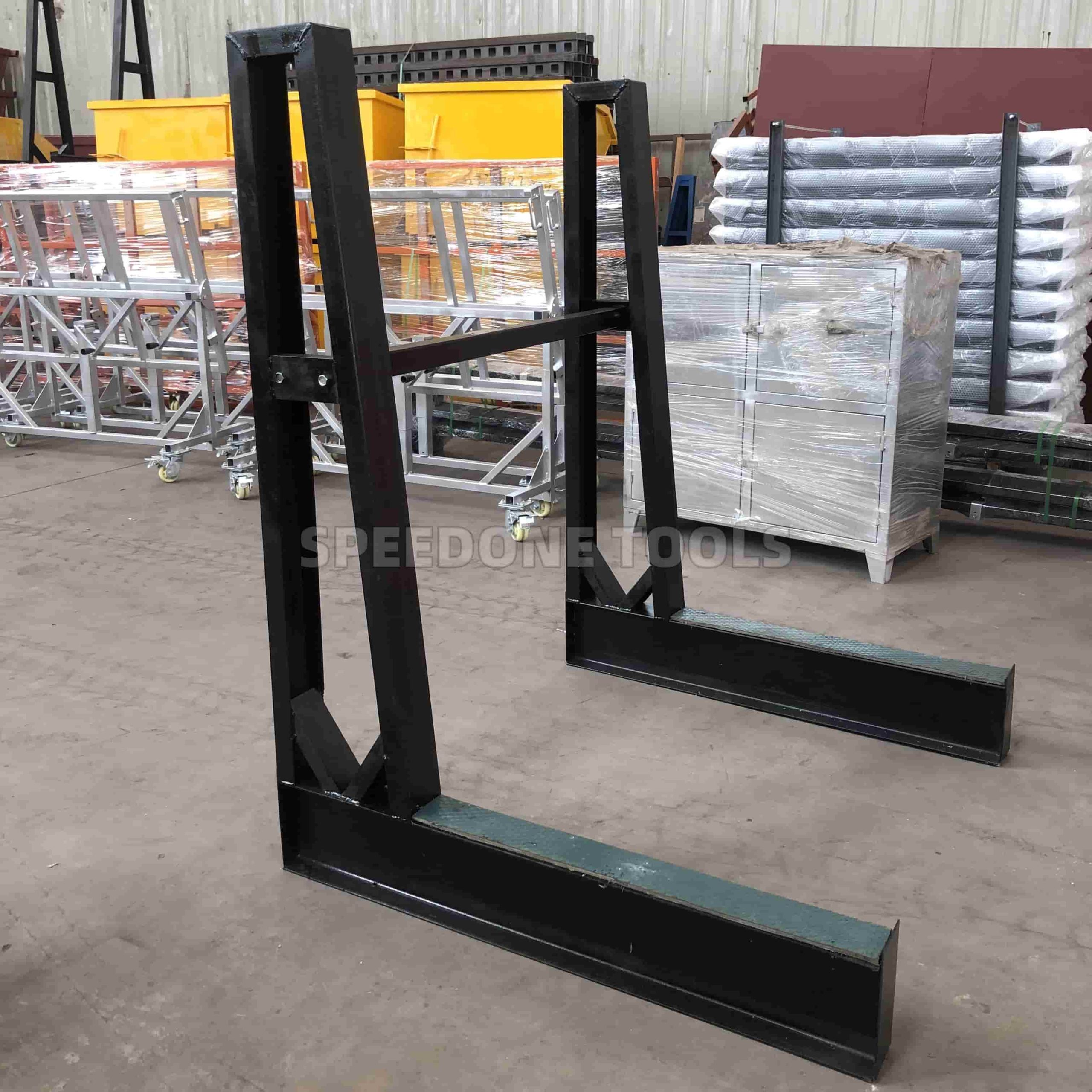

Single-Sided H-Steel A-Frame Rack | Space-Saving Workshop Storage
15T Capacity | Detachable Design | Triple Surface Protection
Industrial-Strength Engineering:
🏭 H-BEAM STRUCTURAL ADVANTAGE
-
Reinforced H-steel frame (4mm thickness) delivers 40% greater load stability vs standard racks
-
Certified for 15-ton loads (33,069 lbs) without deflection

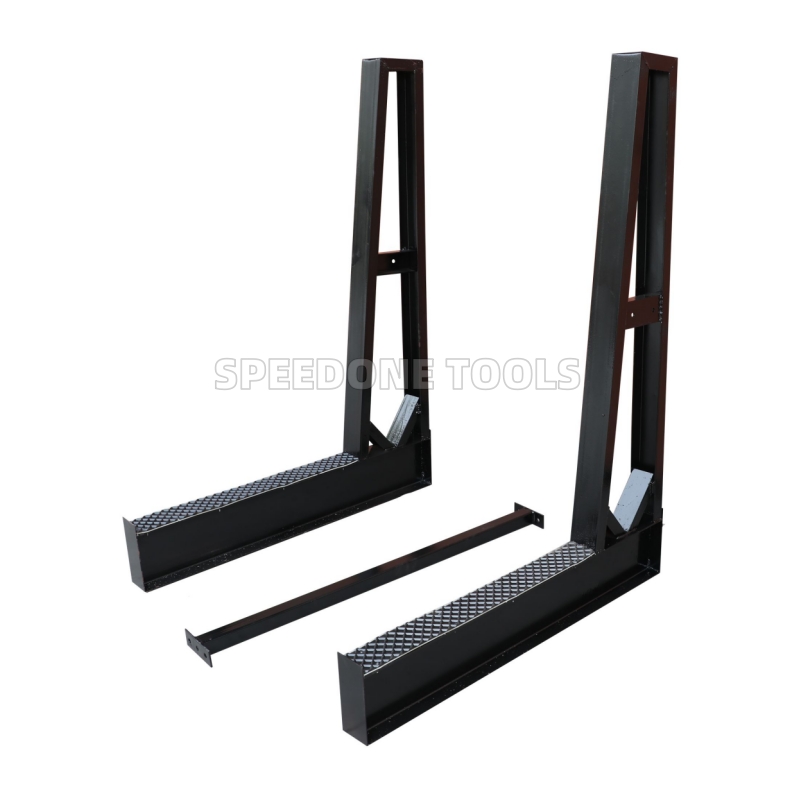

🔧 QUICK-DETACH LINK SYSTEM
-
Remove connecting rods in <90 seconds for 200mm-depth storage
-
Color-coded components enable foolproof reassembly
🌈 CUSTOM FINISH OPTIONS
-
Painted (Standard): Cost-effective + custom colors
-
Galvanized: Ultimate corrosion resistance (15+ years)
-
Powder-Coated: Premium RAL colors + scratch-proof finish

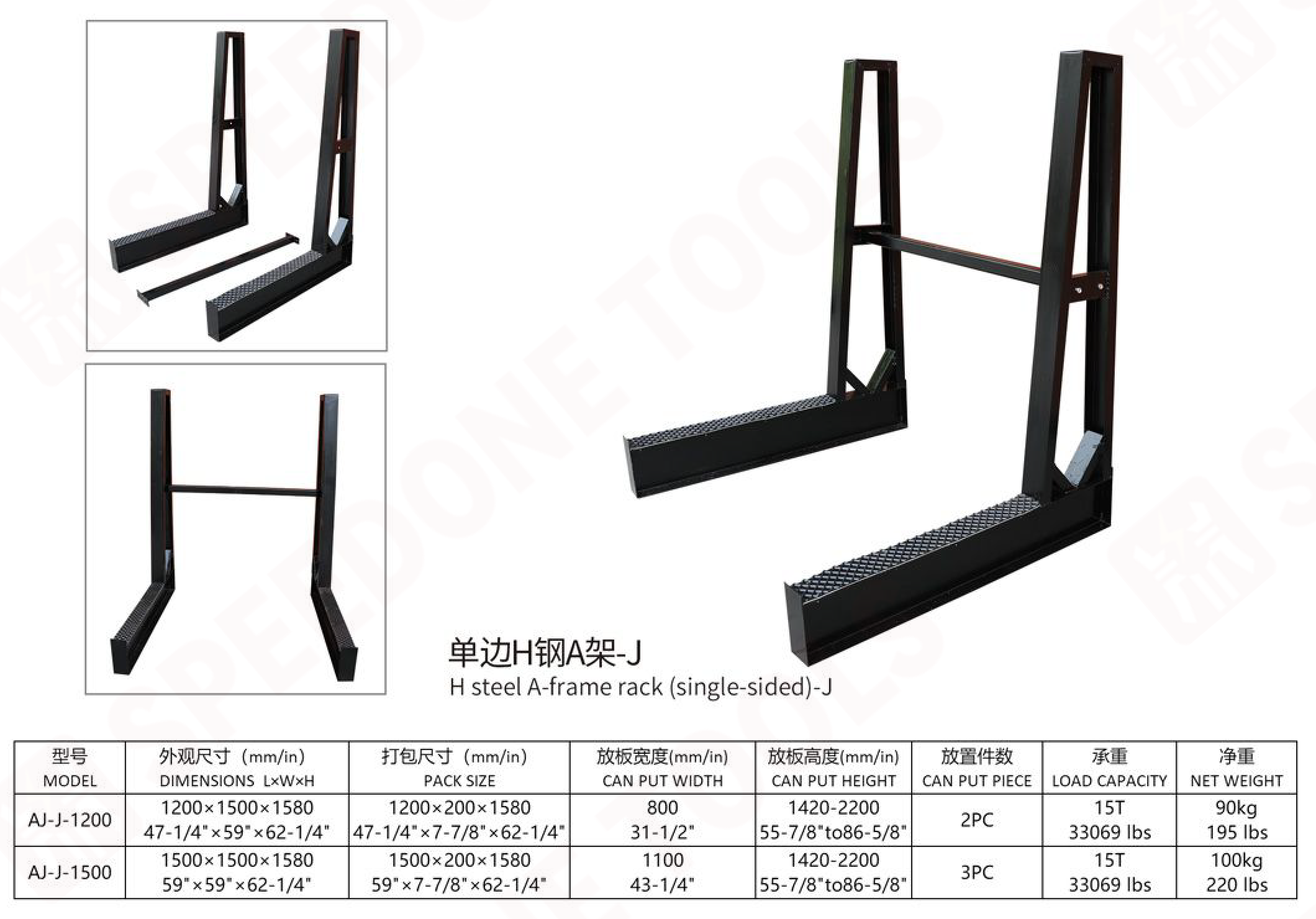

Technical Specifications
| Model | AJ-J-1200 | AJ-J-1500 |
|---|---|---|
| Dimensions | 1200×1500×1580mm | 1500×1500×1580mm |
| (47.2″×59″×62.2″) | (59″×59″×62.2″) | |
| Slab Capacity | 2 panels | 3 panels |
| Slab Width | 800mm (31.5″) | 1100mm (43.3″) |
| Slab Height | 1420-2200mm | 1420-2200mm |
| (55.9″-86.6″) | (55.9″-86.6″) | |
| Net Weight | 90kg (198 lbs) | 100kg (220 lbs) |
| Pack Depth | 200mm (7.8″) | 200mm (7.8″) |
Structural Advantage:
✓ 100% welded stress points (no bolt failures)
✓ 30% lighter than double-sided alternatives
Space-Smart Workshop Solution
1. Vertical Space Optimization
-
Stores flush against walls (200mm depth)
-
Clears 2.2m doorways when assembled
2. Material Versatility
-
Securely holds:
✓ Granite/marble slabs
✓ Glass shower enclosures
✓ Wooden doors/windows
✓ Acrylic solid surfaces
3. Safety Engineering
-
7° backward tilt prevents forward tipping
-
Non-skid rubber base pads (optional)
Triple Surface Defense
| Finish | Environment | Protection Level |
|---|---|---|
| Painted | Indoor workshops | 60μm epoxy coating |
| Galvanized | Coastal/humid areas | 100μm zinc layer |
| Powder-Coated | Showrooms & clean rooms | 80μm polyester (RAL) |
