AJ-O 90-Degree A-Frame Slab Rack with Adjustable Safety Poles | Detachable & High-Capacity | 30T Loading
- load-bearing : 20tons
- surface : Powder-Coated Painted Galvanized
- color : black red blue .......
Product Description
🏭 90-Degree A-Frame Slab Rack with Adjustable Safety Poles | Detachable & High-Capacity | 30T Loading

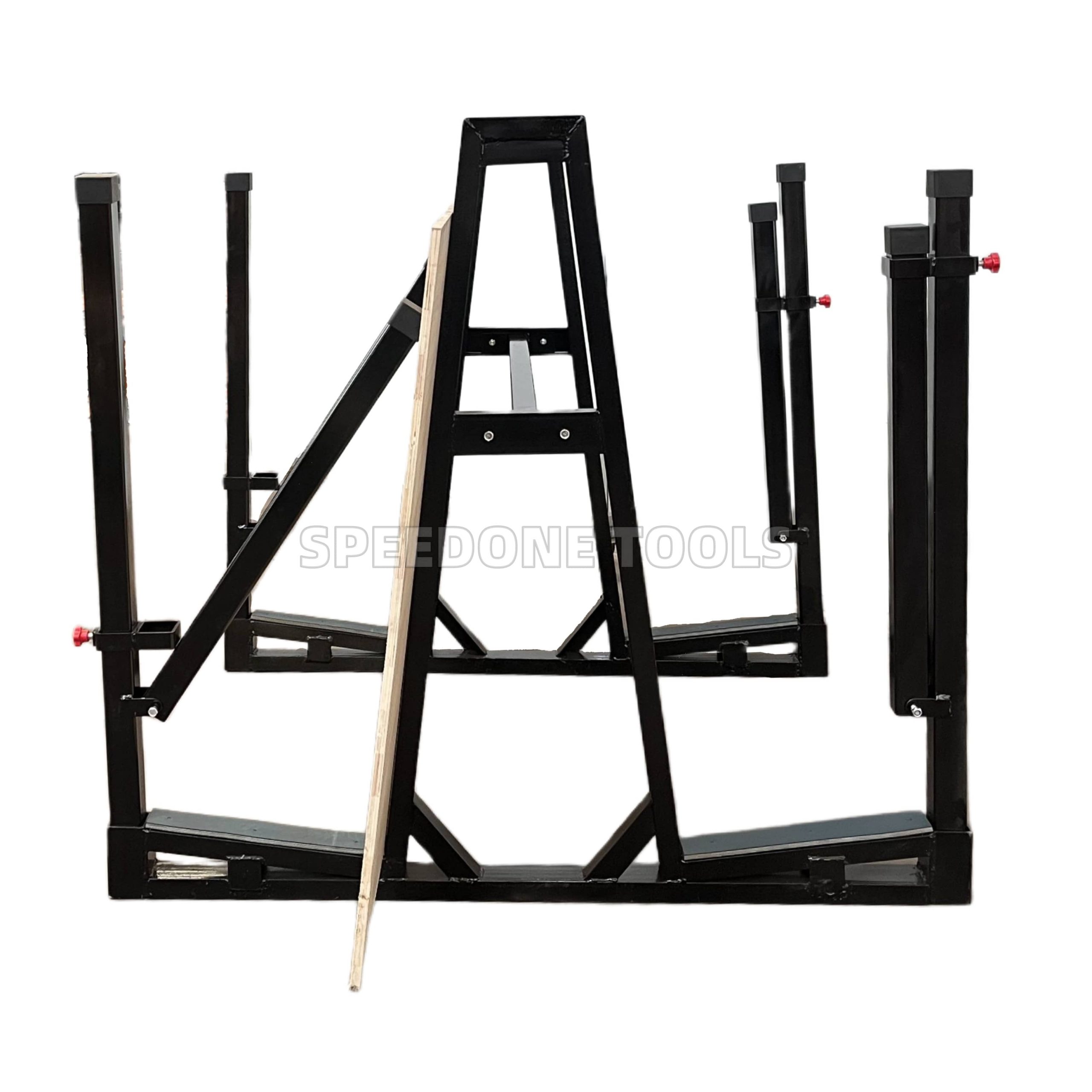

Advanced A-Frame Rack with 90° Base Design for Optimal Stability & Safety
Key Features:
🔹 90° ANGLED BASE WITH RUBBER PROTECTION
-
Unique 90° base design provides maximum floor contact and prevents rack shifting — 50% more stable than standard flat-base racks
-
Integrated rubber strips protect slab edges and prevent slipping during loading/unloading
🔹 ADJUSTABLE SAFETY POLES & PRESSURE BARS
-
Removable safety poles with multiple positioning holes allow custom angles for different slab thicknesses
-
Pressure bars can be adjusted to secure partial or full stacks — ideal for varying load heights

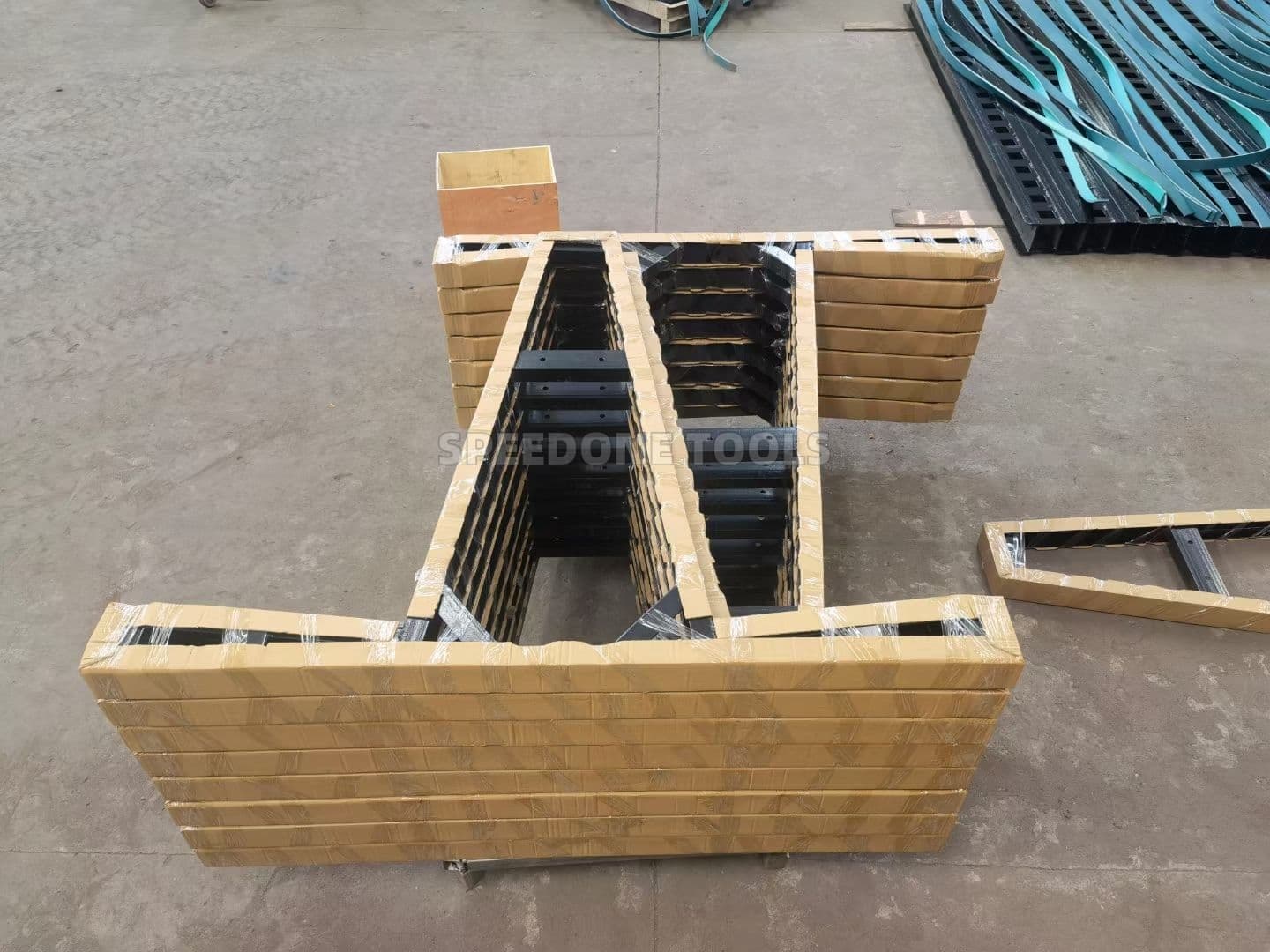

🔹 DETACHABLE CROSSBEAMS
-
Central link rods can be disassembled — reduces shipping volume by 45% for cost-effective export
-
Tool-free reassembly in under 10 minutes
🔹 HEAVY-DUTY CONSTRUCTION
-
60×60×3mm uprights provide superior structural integrity under full load
-
Supports 30 tons (66,138 lbs) — suitable for stone, glass, doors, windows, and panels
🔹 CUSTOM FINISHING & COLOR
-
Painted: Budget-friendly and customizable in any color
-
Galvanized: Excellent rust resistance for humid or outdoor use
-
Powder-Coated: Durable, scratch-resistant finish with RAL color options

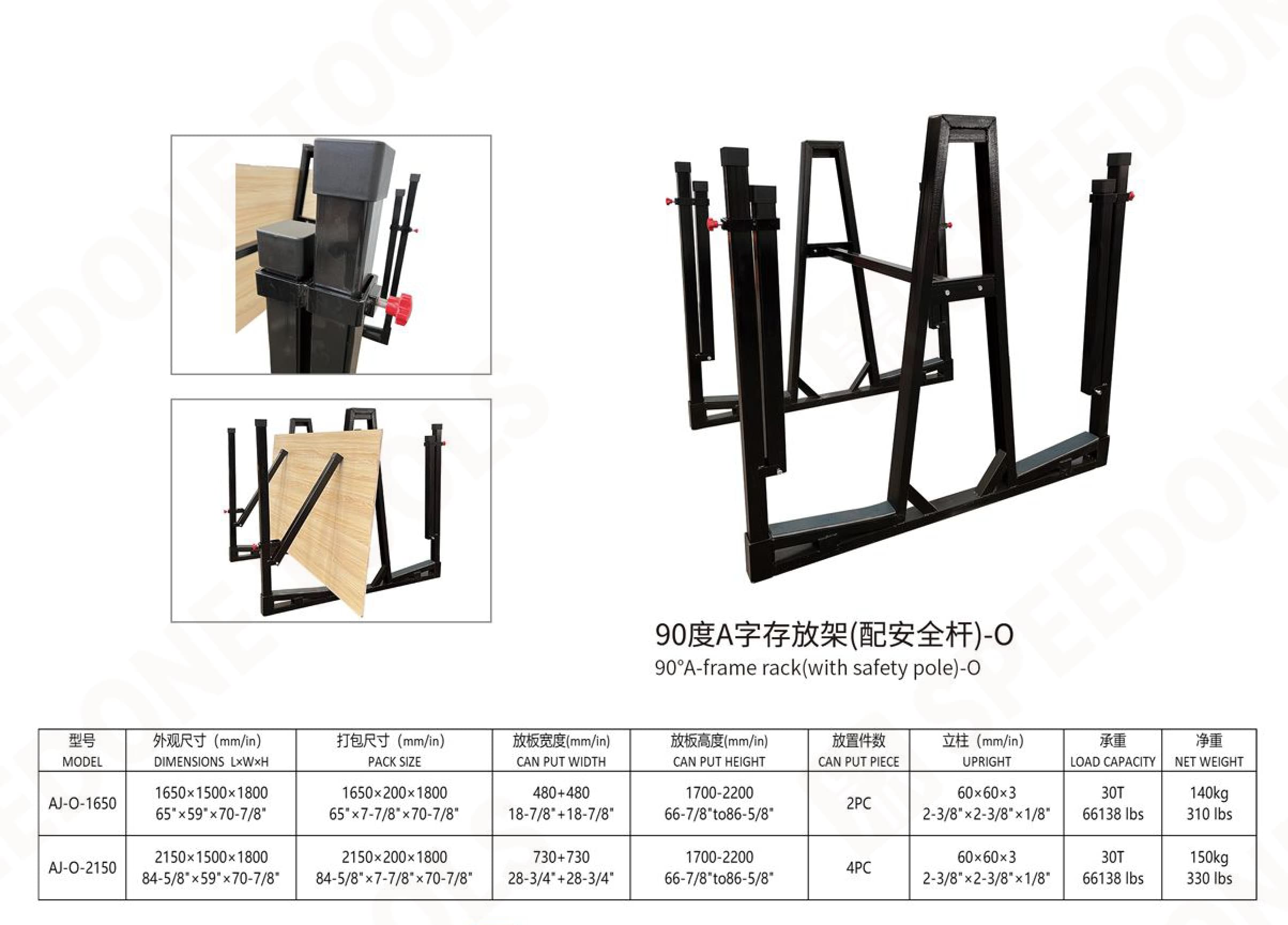

Technical Specifications
| Model | AJ-O-1650 | AJ-O-2150 |
|---|---|---|
| Dimensions | 1650×1500×1800mm | 2150×1500×1800mm |
| (65″×59″×70.9″) | (84.6″×59″×70.9″) | |
| Slab Width | 480+480mm/side | 730+730mm/side |
| (18.9″+18.9″) | (28.7″+28.7″) | |
| Slab Height | 1700-2200mm | 1700-2200mm |
| (66.9″-86.6″) | (66.9″-86.6″) | |
| Upright | 60×60×3mm | 60×60×3mm |
| Load Capacity | 30 Tons (66,138 lbs) | 30 Tons (66,138 lbs) |
| Net Weight | 140kg (310 lbs) | 150kg (330 lbs) |
| Pack Size | 1650×200×1800mm | 2150×200×1800mm |
Designed For:
-
Stone and countertop fabrication workshops
-
Glass and mirror processing facilities
-
Door and window manufacturers
-
Wood panel and building material storage
-
Warehouse and distribution centers
