AJ-S SPEEDONE 10# Double-Link A-Frame Rack | Customizable Wood Base System | 20T Capacity | Export-Optimized
- load-bearing : 20tons
- surface : Powder-Coated Painted Galvanized
- color : black red blue .......
Product Description
🏭 SPEEDONE 10# Double-Link A-Frame Rack | Customizable Wood Base System | 20T Capacity | Export-Optimized
Innovative A-Frame Rack with Modular Wood Base – Engineered for Versatility & Efficiency
Key Features of SPEEDONE AJ-S Series:
🔹 DOUBLE-LINK DETACHABLE DESIGN
-
Two removable central links enable compact shipping – reduces export volume by 50%
-
Tool-free reassembly in under 8 minutes with precision-engineered components
🔹 UPWARD-FACING CHANNEL BASE SYSTEM
-

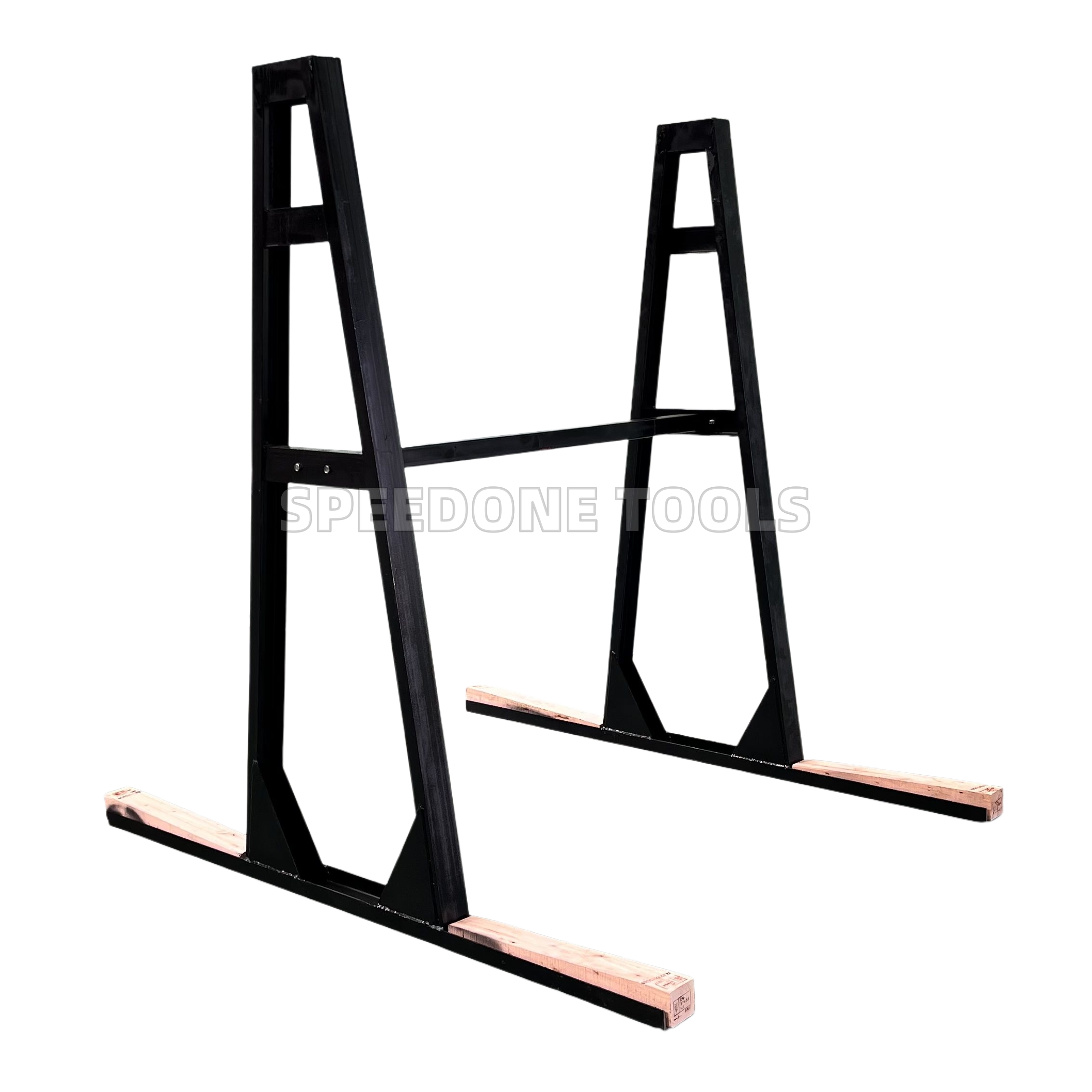

Unique open-channel design allows custom wood block placement (square or wedge-shaped)
-
Customer-supplied wood eliminates fumigation requirements and reduces costs
🔹 HEAVY-DUTY CONSTRUCTION
-
20-ton (44,092 lbs) capacity – reliably handles stone, glass, doors, and panels
-
Full-welded A-frames ensure structural integrity under maximum load
🔹 CUSTOM FINISHING OPTIONS
-
Painted: Economical solution with custom color matching
-
Galvanized: Ultimate corrosion resistance for harsh environments
-
Powder-Coated: Premium finish – protected with paper wrapping during shipment

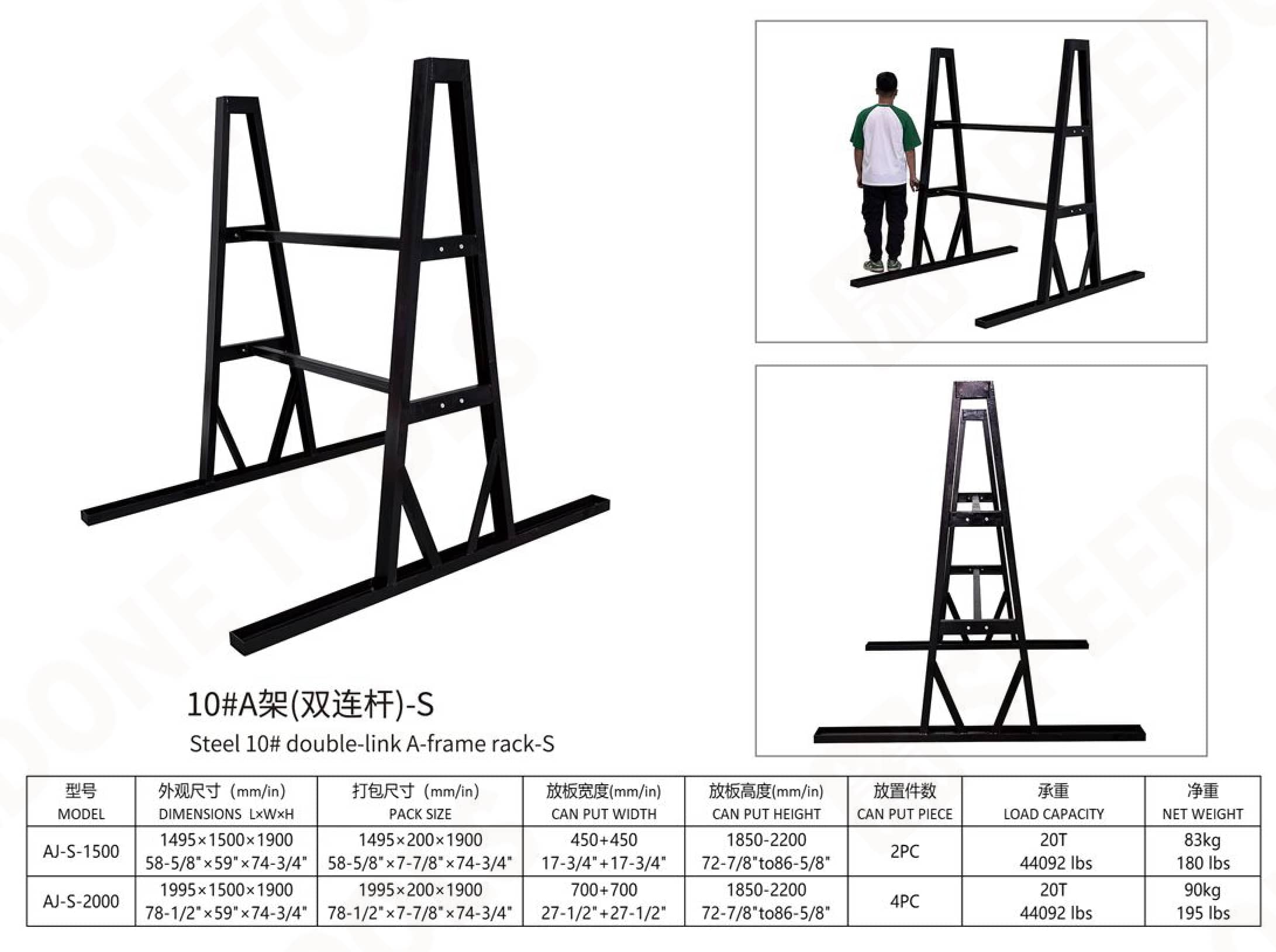

Technical Specifications
| Model | AJ-S-1500 | AJ-S-2000 |
|---|---|---|
| Dimensions | 1495×1500×1900mm | 1995×1500×1900mm |
| (58.6″×59″×74.8″) | (78.5″×59″×74.8″) | |
| Slab Placement Width | 450+450mm/side | 700+700mm/side |
| (17.7″+17.7″) | (27.6″+27.6″) | |
| Slab Height | 1850-2200mm | 1850-2200mm |
| (72.8″-86.6″) | (72.8″-86.6″) | |
| Load Capacity | 20 Tons (44,092 lbs) | 20 Tons (44,092 lbs) |
| Net Weight | 83kg (180 lbs) | 90kg (195 lbs) |
| Pack Size | 1495×200×1900mm | 1995×200×1900mm |
Perfect For Multiple Industries:
-
Stone and countertop fabrication workshops
-
Glass and mirror manufacturing facilities
-
Door and window production plants
-
Wood panel and building material storage
-
Warehouse and distribution centers
Packaging & Quality Assurance:
-

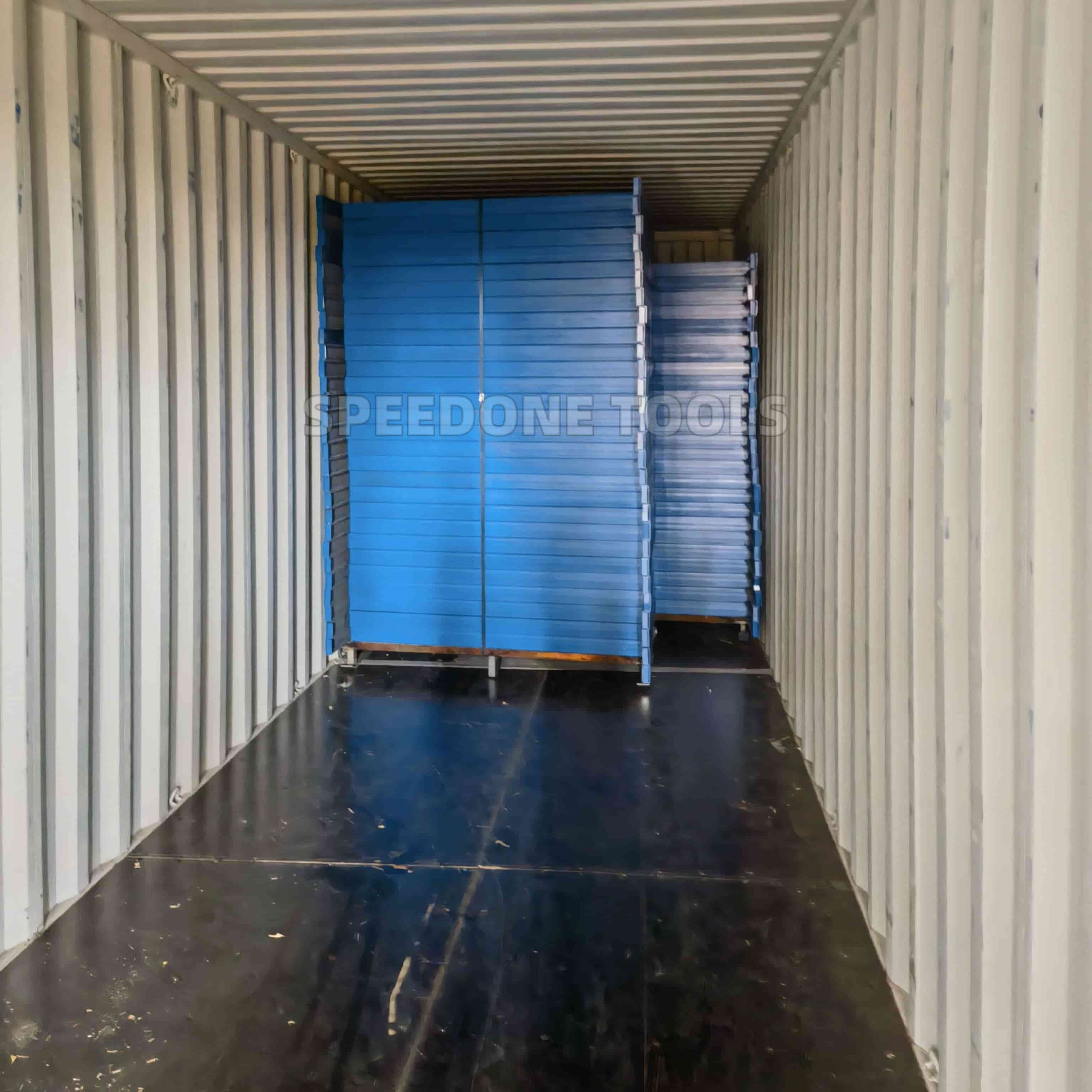

Knock-down (KD) packaging reduces shipping volume by 50%
-
Paper wrapping for powder-coated finishes ensures perfect delivery
-
VCI anti-rust film protection for all metal components
-
ISPM 15 compliant (no wood materials included)
-
CE-certified manufacturing standards
📩 Contact SPEEDONE for Custom Quotes, Technical Drawings & Bulk Order Discounts!
→ Custom sizes, colors, and configuration options available
→ OEM branding and logo customization services
→ Free CAD files available upon request
Why Choose SPEEDONE AJ-S Series:
✅ Cost-Effective: Use local wood blocks to avoid fumigation costs
✅ Space-Efficient: 50% smaller shipping volume saves freight costs
✅ Versatile: Accommodates square or wedge wood blocks as needed
✅ Durable: 20-ton capacity with premium surface treatments
