AJ-A Heavy-Duty A-Frame Truck Rack | Rotating Pressure System for Secure Stone & Panel Transport
- Material : Steel
- Feature : Corrosion Protection
- Weight Capacity : 30T
- Type : Vertical Type
- Brand Name : Speedone
Product Description
Heavy-Duty A-Frame Truck Rack | Rotating Pressure System for Secure Stone & Panel Transport
Detachable Design | Adjustable Pin Positions | 30T Capacity
Core Innovations:

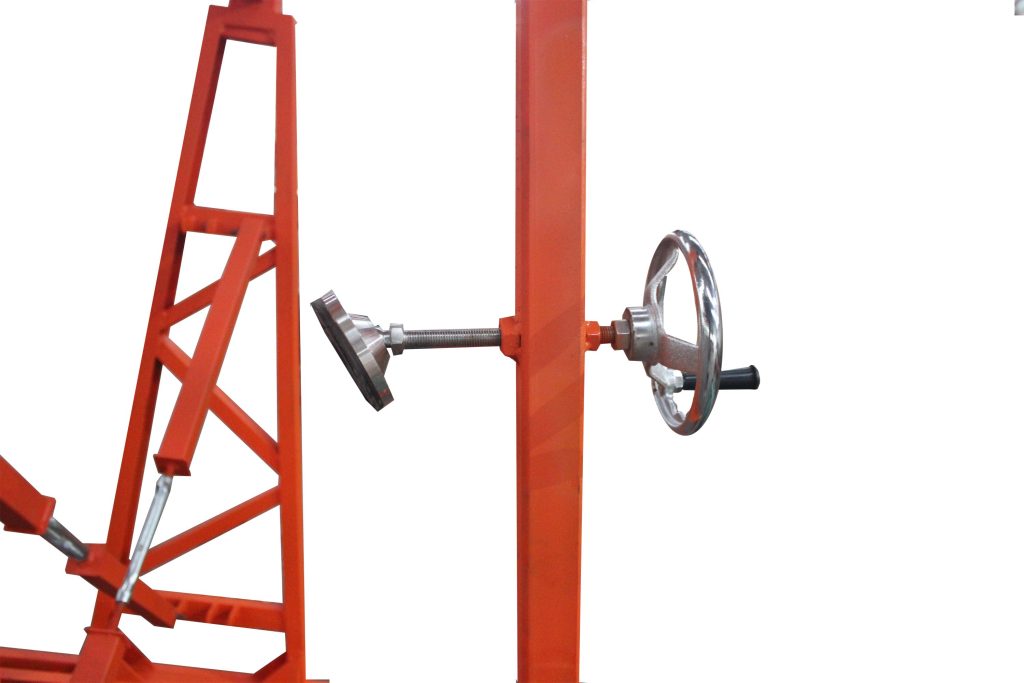

🔁 360° ROTATING PRESSURE PLATES
-
Automatically lock slabs at optimal angles during transit
-
Prevent forward/backward shifting (OSHA & EN 12195 compliant)

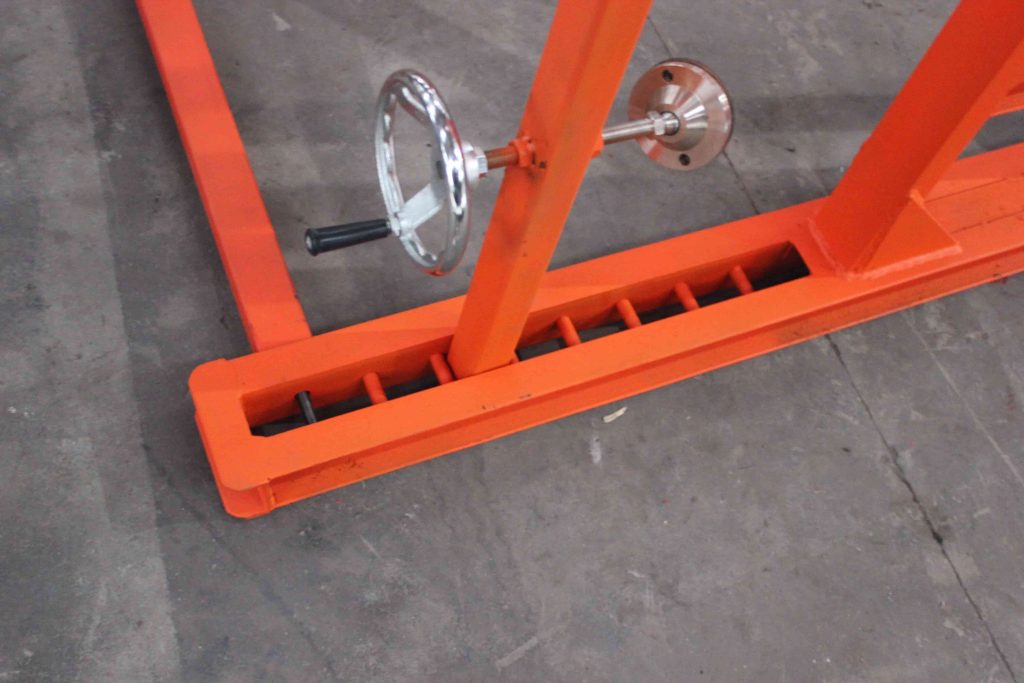

🔧 ADJUSTABLE PIN SYSTEM
-
9+ hole positions accommodate 5-770mm slabs (granite/glass/doors)
-
Tool-free reconfiguration in 3 minutes
-

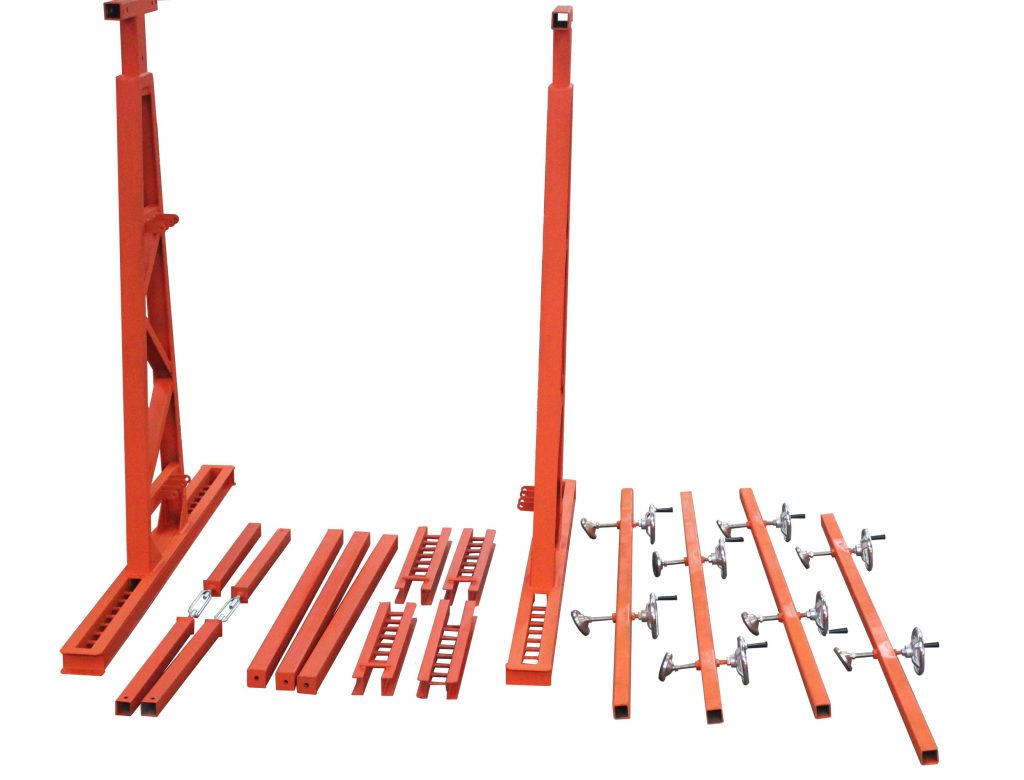

🚚 EXPORT-READY DISASSEMBLY
-
Modular frame packs flat: 2100×400×2150mm
-
40% container space savings vs. fixed racks
-
Technical Specifications (Model AJ-A)
| Parameter | Metric | Imperial |
|---|---|---|
| Load Capacity | 30 Tons | 66,138 lbs |
| Slab Width | 770×770mm | 30.25″+30.25″ |
| Max Slab Height | 1950mm | 76.75″ |
| Frame Dimensions | 2080×1500×2150mm | 81.9″×59″×84.6″ |
| Net Weight | 280kg | 617 lbs |
Material: S355JR Steel (5mm thickness)
Finish Options:
-
Galvanized (100μm zinc coating) – Best for coastal/humid climates
-
Powder-Coated (80μm) – Custom colors (yellow/black/blue)
-
Painted (60μm) – Most economical for indoor use
Why This Outperforms Standard Truck Racks
| Feature | Our AJ-A Rack | Competitors |
|---|---|---|
| Slab Stabilization | Rotating pressure plates | Static brackets |
| Corrosion Protection | Triple-finish options | Basic paint |
| Export Efficiency | Tool-free disassembly | Welded assembly |
| Max Capacity | 30 Tons (66,138 lbs) | 10-15 Tons |
