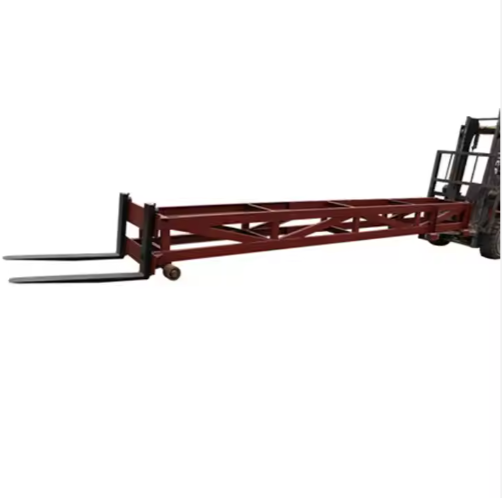

Forklift Jib Crane Boom Extended Arm for Loading and unloading container
- Model Number : JZXHC-L
- Dimensions (L×W×H) : 600 cm × 80 cm × 70 cm
- Load-capacity : 3.5tons 5tons
- Gross Weight : 560kg 610kg
- Brand Name : Speedone
Product Description
The extended boom fork teeth are used for loading and unloading containers.
| Model # | Dimension L*W*H |
Packing L*W*H |
Adjustable width range for 2 forks | Fork length | Fork hole size | Required Min forklift tonnage | Load capacity | GW | Surface finish |
| JZXHC-L-3.5T | 600x100x70 cm 236”x40”x28” |
510x115x75cm 200”x45”x30” |
0-100cm 0-40” |
95-117cm 37”-46” |
18x8cm 7”x3” |
3.5T | 3.5T | 560kg | Spray painted |
| JZXHC-L-5T | 600x100x70 cm 236”x40”x28” |
510x115x75cm 200”x45”x30” |
0-100cm 0-40” |
95-117cm 37”-46” |
18x8cm 7”x3” |
5T | 5T | 680kg | Spray painted |
Extended forks are a type of attachment specifically designed for forklifts to handle oversized loads, ensuring the safe pushing and pulling of pallets from the bottom of containers. Here is a detailed description, purpose, usage scenarios, and features of the product in English:
Product Description

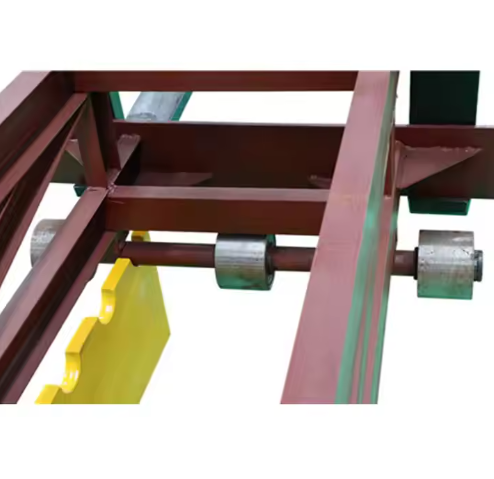

Extended forks are made of heavy-duty steel construction with a fork thickness that can reach up to 50 mm, ensuring stability and durability when carrying heavy loads. The design includes steel bars at the connection points to prevent slipping of the extended part of the fork during use, enhancing operational safety. Additionally, the extended forks are telescopic, with a maximum length of 2435mm, meeting the loading and unloading needs of goods of different lengths.
Purpose
Extended forks are mainly used for forklift operations, especially when handling oversized loads or operating in confined spaces. They effectively extend the forks to safely carry loads that are longer than the standard fork length, preventing damage to goods during handling.
Usage Scenarios
Extended forks are suitable for a variety of industrial and logistics environments, including but not limited to:
-
Lithium battery production and storage: Handling heavy battery components
-
Photovoltaic module manufacturing: Handling large-sized photovoltaic panels
-
Intelligent vertical warehouses and automated logistics storage systems: Used for picking and placing boxes/cartons
-

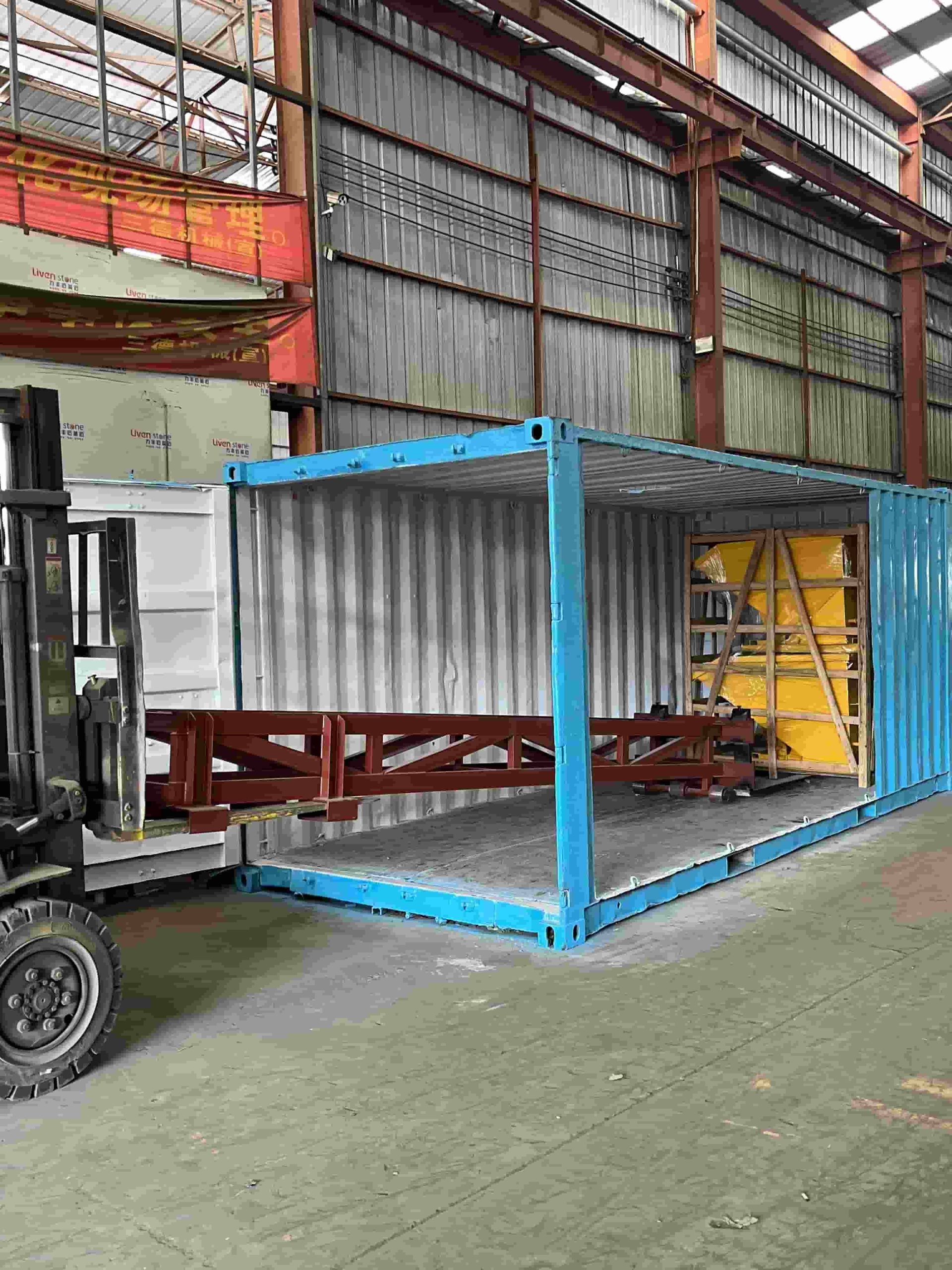

Scenarios where goods need to be transported inside containers, especially when the size of the goods exceeds the length of the standard forklift forks.
Features
-
High load capacity: Capable of carrying weights of several tons, meeting the handling needs of heavy battery components.
-
Multi-level telescopic design: Adapts to different pallet sizes, compatible with flexible production needs.
-
Precision positioning: Reduces the damage rate of components, with anti-slip and scratch-resistant designs to protect the surface of photovoltaic glass.
-
Compact structure: High integration, high storage density, fast picking and placing speed.
-
Flexibility: Flexible switching between single and double extension, strong adaptability.
