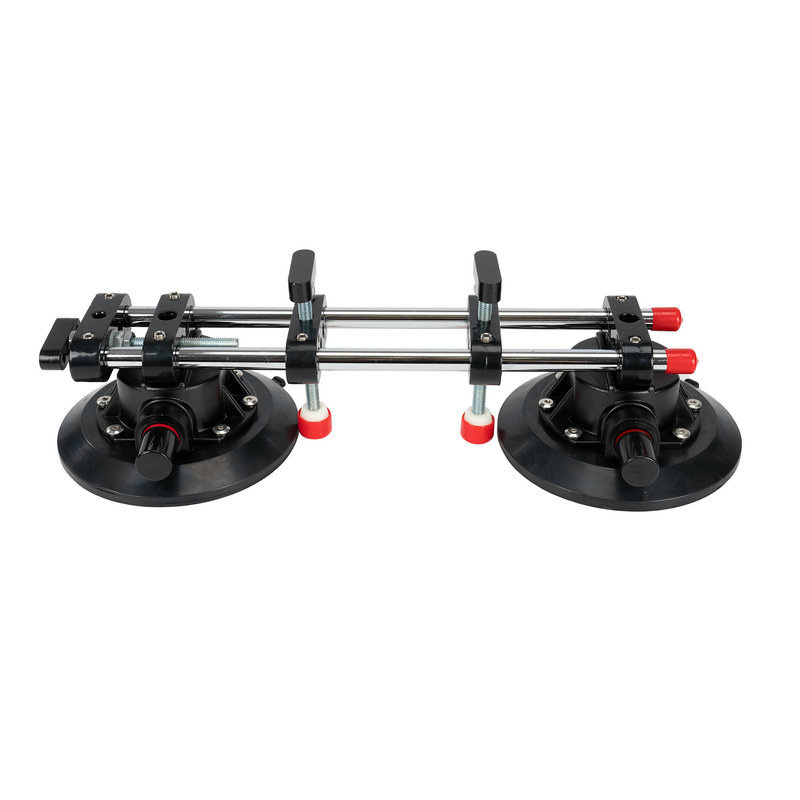

Worktop Seam Setter for Granite & Quartz Countertops

Heavy Duty Worktop Seam Setter for Granite & Quartz Countertop Joints

What Is a Worktop Seam Setter?

Product parameters

A worktop seam setter is a professional tool used to bring two countertop sections together and accurately align the joint between them.

Large kitchen worktops are often made from several sections. Long countertop runs, L-shaped kitchens, large islands, transportation limits, and restricted site access can all make a one-piece countertop impractical.

Once the sections are placed on the cabinets, they need to be joined accurately. This can be difficult with heavy granite or quartz because small adjustments are hard to make by hand.

A worktop seam setter gives installers better control over this final positioning process.

Why Use a Worktop Seam Setter?

A good countertop joint requires more than simply pushing two pieces together. The gap, horizontal position, and surface height all need to be checked before the adhesive cures.

Using a dedicated seam setter provides several practical advantages:

• Helps close gaps between worktop sections
• Improves countertop joint alignment
• Reduces difficult manual pushing and pulling
• Helps maintain the joint during bonding
• Provides better control for heavy stone worktops
• Supports more consistent installation results

This is especially useful for professional installers working with expensive granite, quartz, and marble countertops where the finished seam is clearly visible.

How Does a Worktop Seam Setter Work?

The exact mechanism depends on the model, but most seam-setting systems create secure gripping points on both sides of the countertop joint.

An adjustment mechanism then allows the installer to gradually bring the two sections together and fine-tune their position.

A typical installation process includes:

• Positioning both worktop sections
• Cleaning and checking the seam edges
• Dry fitting the countertop
• Attaching the seam setter
• Checking the gripping points
• Closing and aligning the joint
• Applying the required adhesive
• Holding the position during curing
• Removing the tool and finishing the seam

Adjustment should always be gradual. Avoid using excessive force, and always follow the working limits of the equipment.

Product display

Worktop Seam Setter for Granite Countertops

Granite is one of the most common materials for premium kitchen countertops, but its weight makes final positioning difficult.

Once a long granite section has been placed on the cabinets, moving it even a few millimeters by hand can require considerable effort.

A seam setter allows the installer to make smaller and more controlled adjustments without repeatedly lifting or pushing the entire countertop section.

It is particularly useful for:

• L-shaped granite countertops
• Long kitchen worktops
• Large granite islands
• Granite bar tops
• Commercial countertops
• Multi-section stone installations

Before seam adjustment begins, installers may need to position the stone using suitable handling equipment. The Speedone Professional Electric Tile Suction Cup with Automatic Vacuum Control provides a convenient option for handling compatible stone, porcelain, glass, and large-format materials.

Worktop Seam Setter for Quartz Countertops

Quartz worktops have many of the same installation challenges as granite. Large quartz sections are heavy, and visible joints require careful positioning.

Before bonding, installers should check the seam edges, countertop support, surface height, joint gap, and overall position of both sections.

A suitable seam setter can then be used to make the final adjustments and keep the worktop sections in the required position.

For moving or repositioning compatible panels before seam alignment, the Speedone Professional Electric Suction Cup for Glass, Stone and Porcelain Slab Handling can provide additional handling support.

Worktop Seam Setter vs. Manual Joint Alignment

Product usage instructions

Vacuum Gripping for Worktop Seam Alignment

Vacuum gripping is commonly used with smooth stone surfaces because it creates temporary attachment points without drilling into the finished countertop.

For reliable suction, the contact surface should be clean, dry, relatively smooth, and compatible with the suction pad.

For applications requiring a stable gripping point, Speedone’s Heavy Duty Fixed Suction Cup for Glass and Stone provides another option for compatible smooth stone and glass surfaces.

Before applying adjustment force, always check the vacuum connection. Dust, moisture, surface texture, contamination, or worn sealing components can reduce suction performance.

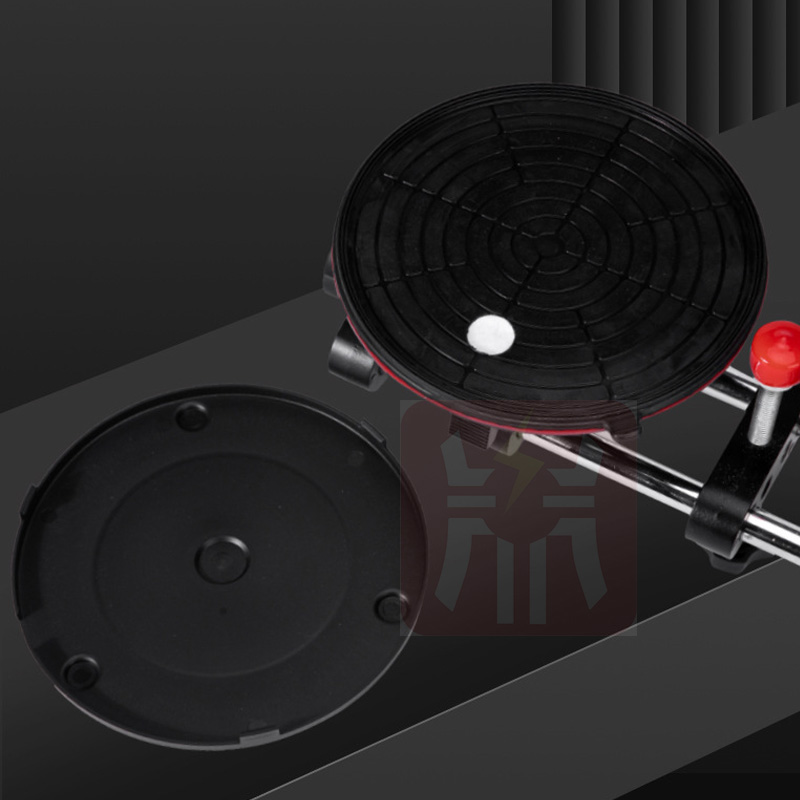

Worktop Seam Setter Components and Accessories

A complete seam-setting system may include more than the main adjustment mechanism.

Depending on the configuration, common components can include:

• Vacuum suction cups
• Connecting bars
• Adjustment screws
• Handles
• Mounting hardware
• Vacuum seals
• Replacement components

For compatible suction configurations, Speedone also offers an Aluminum Bar for Grabo Suction Cup, providing another accessory option for professional stone-handling setups.

Always confirm connection type, dimensions, load requirements, and intended use before combining different components.

Common Applications

Kitchen Worktops

Long kitchen countertops and L-shaped layouts often require two or more pieces to be joined on site. A seam setter helps installers make the final joint adjustment after the sections are placed.

Granite Countertop Joints

Heavy granite pieces can be difficult to move by hand. Controlled seam adjustment makes it easier to bring the two sections into the required position.

Quartz Countertop Joints

Quartz installations benefit from accurate seam closing and alignment, especially when the joint is located in a visible area of the kitchen.

Kitchen Islands

Large islands may require multiple stone sections because of slab dimensions, transportation limits, or access conditions. A seam setter helps with final positioning once the sections are installed.

Commercial Countertops

Hotels, restaurants, retail spaces, and other commercial projects may include several countertop joints. A repeatable seam-setting process can help installers maintain consistent results.

Heavy Stone Handling Before Seam Setting

A worktop seam setter is designed for precision adjustment rather than primary lifting.

Heavy countertop sections should first be transported and positioned using equipment suitable for their size, weight, material, and surface condition.

For suitable heavy-panel applications, Speedone’s Heavy Duty Suction Lifter for Glass, Stone and Porcelain Slabs can support the material-handling stage before seam alignment begins.

A practical installation workflow is:

Lift → Move → Position → Dry Fit → Align → Close Joint → Bond → Finish

Using the right equipment at each stage helps keep heavy material handling separate from precise seam adjustment.

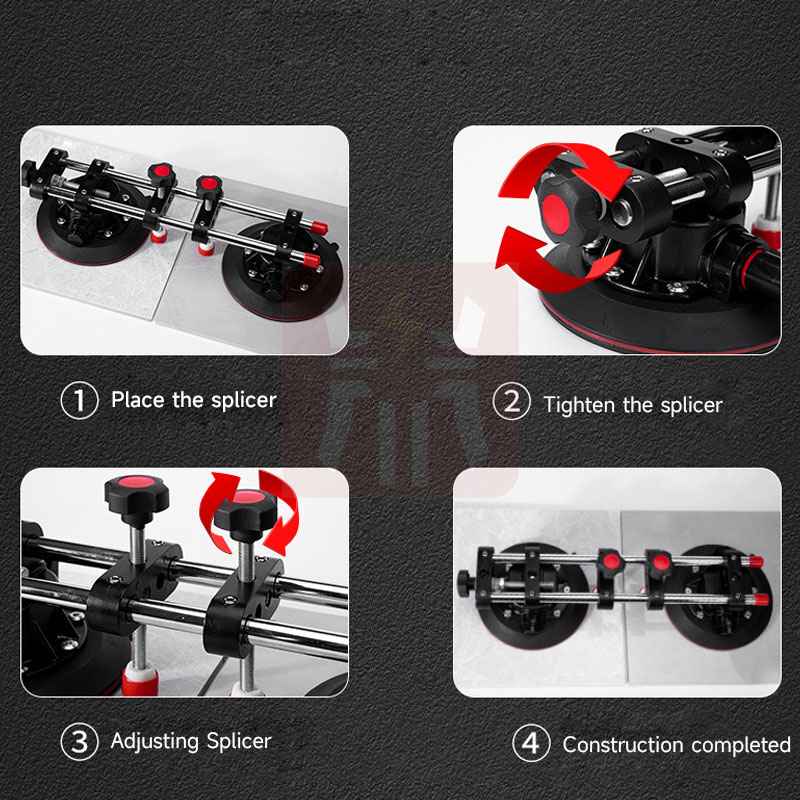

How to Use a Worktop Seam Setter

Prepare the Joint

Check both fabricated edges and remove dust, polishing residue, adhesive contamination, or other debris.

Dry Fit the Worktop

Place both sections in their approximate final positions before applying adhesive. This makes it easier to identify alignment or support problems.

Clean the Gripping Area

If vacuum suction is used, make sure the contact areas are clean and suitable for the suction pads.

Attach the Seam Setter

Position the gripping points on opposite sides of the seam and confirm that they are securely attached.

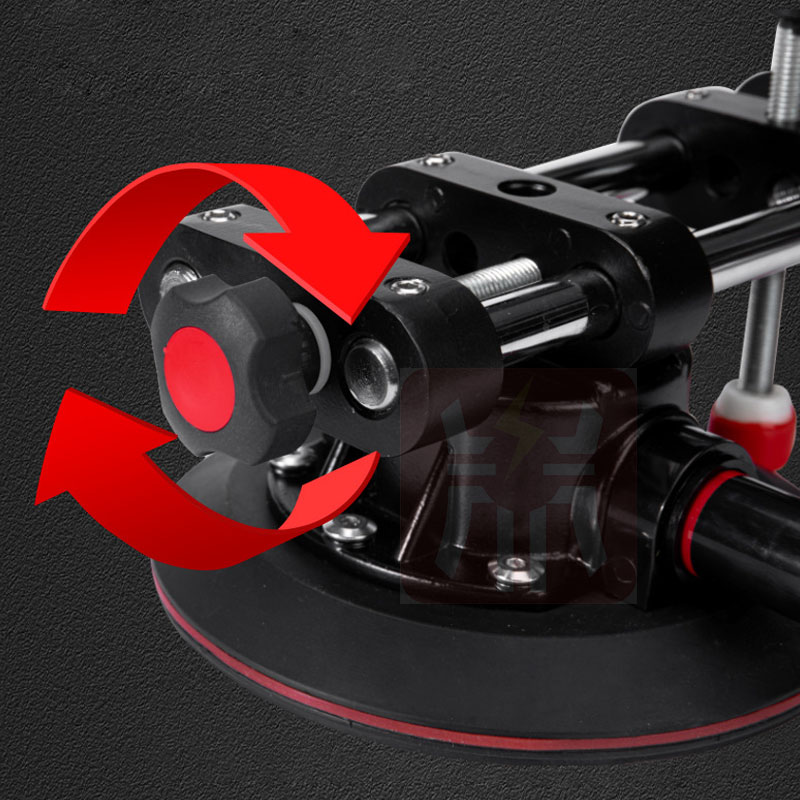

Close the Joint Gradually

Use the adjustment mechanism to bring the sections together slowly. Avoid sudden or excessive force.

Check the Alignment

Inspect the joint and check both the gap and the relative height of the two worktop surfaces.

Apply the Adhesive

Use the adhesive specified for the countertop material and follow the adhesive manufacturer’s instructions.

Maintain the Position

Keep the joint stable during the required curing period.

Remove the Tool

Once the seam is sufficiently stable, carefully release the seam setter and complete the final cleaning and finishing process.

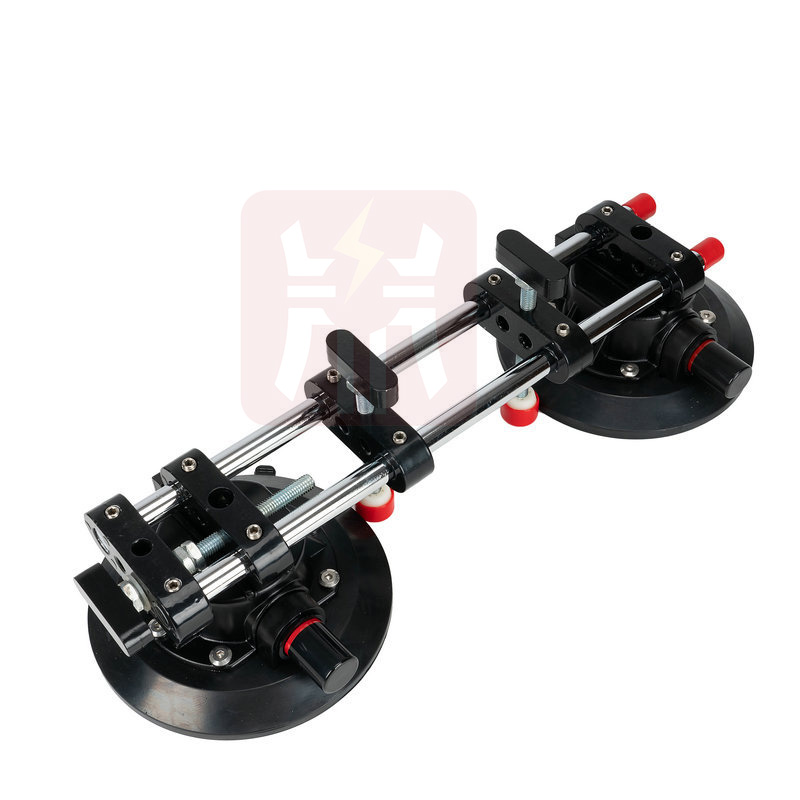

Product details presentation

How to Choose the Right Worktop Seam Setter

Material Compatibility

Check whether the tool is suitable for the materials you normally install, such as granite, quartz, marble, or engineered stone.

Gripping Method

If the setter uses vacuum suction, confirm that the countertop surface is suitable for reliable gripping.

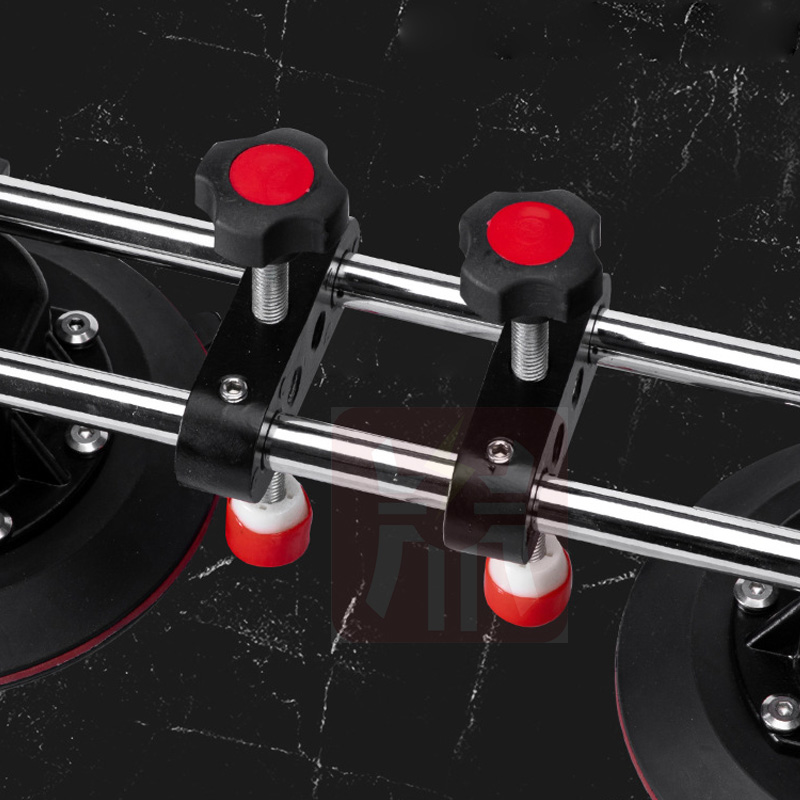

Adjustment Functions

Consider whether you need joint closing, horizontal adjustment, height adjustment, or a combination of these functions.

Adjustment Range

The available movement should match the typical joint gaps and positioning corrections encountered during installation.

Construction Quality

Professional equipment should be suitable for repeated workshop and job-site use.

Ease of Operation

Simple setup and controlled adjustment can save time when installers complete multiple countertop projects.

Accessories and Replacement Parts

For regular professional use, access to compatible suction pads, seals, connectors, and other components can make long-term maintenance easier.

Worktop Seam Setter vs. Seam Puller vs. Seam Clamp

Terms such as worktop seam setter, seam puller, seam clamp, countertop seam setter, and stone joint setter are sometimes used for similar products.

However, their actual functions may be different.

When choosing a tool, focus on the actual adjustment functions rather than the product name alone.

Common Worktop Seam Problems

Visible Gap Between Sections

A visible gap may be caused by poor positioning, incorrect edge preparation, or insufficient adjustment. Check the seam before applying additional force.

One Side Is Higher Than the Other

Height differences can come from cabinet level, countertop support, fabrication tolerances, or incorrect positioning. Identify the cause before making further adjustments.

The Suction Cup Loses Grip

Stop the adjustment if the suction point becomes unstable. Check the surface, seal, vacuum condition, and equipment compatibility before continuing.

The Worktop Moves During Curing

Movement before the adhesive has cured can affect the finished seam. Keep the sections in the required position for the recommended curing time.

Too Much Force Is Needed

If unusually high force is required, check the countertop position, support, seam edges, and surrounding obstacles. Do not simply force the sections together.

Why Choose Speedone?

Speedone develops professional equipment for stone, glass, porcelain, tile, and countertop fabrication and installation applications.

Our product range includes suction tools, heavy-duty panel lifters, handling accessories, and related equipment for professional workshops and installation teams.

• Professional stone and countertop solutions
• Equipment for granite, quartz, marble, porcelain, and glass
• Vacuum-based handling technology
• Heavy-duty product configurations
• Solutions for fabrication shops and installers
• OEM and ODM support
• Application-focused product development

For professional countertop installers, a worktop seam setter works best as part of a complete installation process that includes safe lifting, accurate positioning, controlled joint adjustment, and proper bonding.

Frequently Asked Questions

What is a worktop seam setter used for?

A worktop seam setter is used to help bring together, position, align, and, depending on the design, level two countertop sections during seam installation.

Can a worktop seam setter be used on granite?

Yes. A suitable seam setter can be used for granite worktops when the gripping system, adjustment mechanism, and working capacity are appropriate for the application.

Can it be used on quartz countertops?

Yes. Suitable models can be used for quartz countertop joints. Always check the surface condition and equipment requirements before use.

Does a worktop seam setter use suction cups?

Many professional seam-setting systems use suction cups to create temporary gripping points on smooth countertop surfaces. The exact design varies by model.

What is the difference between a seam setter and a seam puller?

A seam puller mainly brings two countertop sections together. A seam setter may also provide positioning or leveling adjustment. Some professional tools combine these functions.

Can a worktop seam setter lift a granite countertop?

A seam setter should not be treated as a lifting tool unless the manufacturer specifically rates it for that purpose. Heavy countertops should be moved with suitable lifting or handling equipment.

How can I achieve a better worktop seam?

Prepare the seam edges accurately, support the countertop correctly, dry fit both sections, make controlled adjustments, use the correct adhesive, and keep the joint stable during curing.
