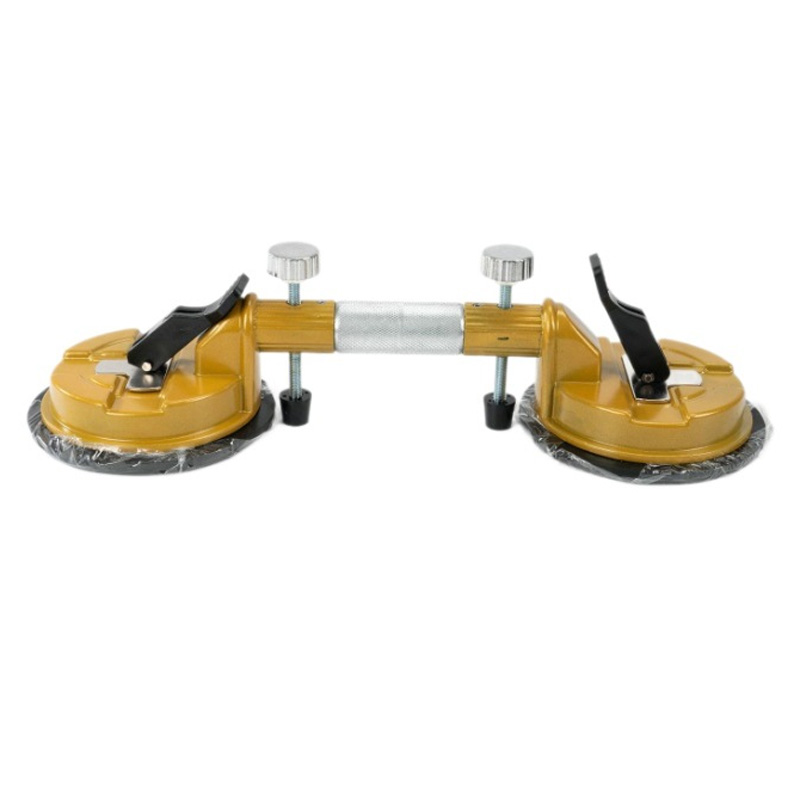

Heavy Duty Countertop Seam Setter for Granite & Quartz

Professional Countertop Seam Setter for Granite & Quartz Joint Alignment

What Is a Countertop Seam Setter?

Product parameter information

A countertop seam setter is a professional installation tool used to control the position of two adjacent countertop sections while they are being joined.

Large countertops are often made from several pieces because of slab dimensions, transportation limits, kitchen layouts, or restricted site access. Once the pieces are placed on the cabinets, they still need to be carefully aligned before adhesive is applied.

A seam setter makes this final adjustment easier by providing controlled movement instead of relying only on manual pushing and pulling.

It is commonly used for:

• Granite kitchen countertops
• Quartz countertops
• Marble vanity tops
• Kitchen islands
• Stone worktops
• Commercial counters
• Reception desks
• Multi-piece countertop installations

Why Use a Countertop Seam Setter?

A good countertop seam requires more than simply placing two pieces next to each other. The joint gap, horizontal position, and surface height all affect the final appearance.

Controlled Joint Closing

A seam setter allows the installer to bring the two pieces together gradually instead of applying uneven manual force.

Better Surface Alignment

Suitable models can help correct the position of the two countertop sections and, where supported, small height differences between them.

Less Manual Effort

Granite and quartz are heavy. Once they are resting on cabinets, even a small adjustment can be difficult. A dedicated tool reduces unnecessary manual repositioning.

More Stable Bonding

After the seam is aligned, the setter can help keep the sections in position while the adhesive cures.

More Consistent Results

Using a repeatable seam-setting process can help professional installers maintain more consistent quality across different projects.

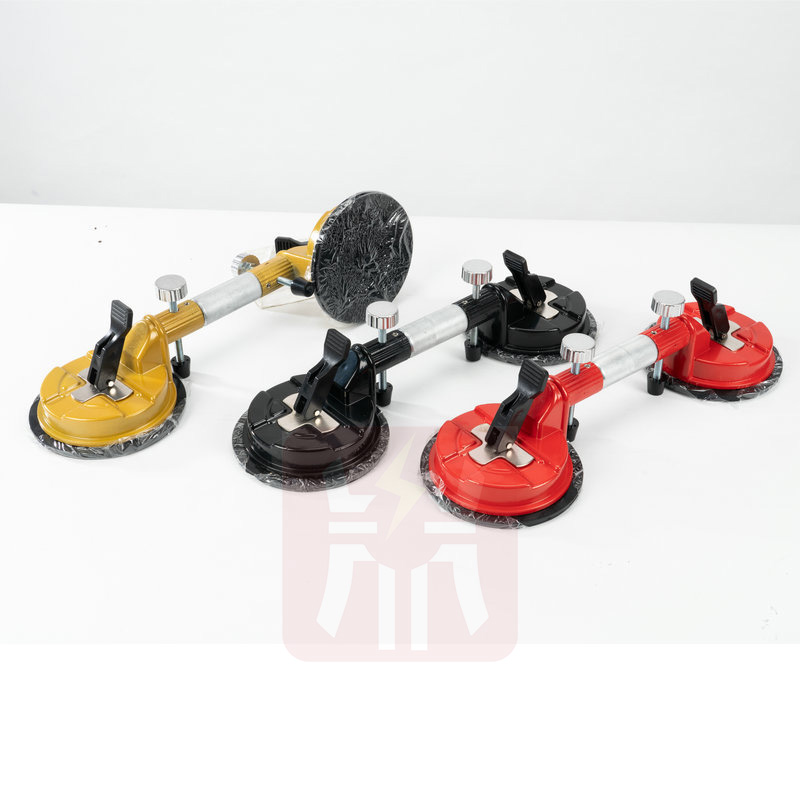

Product display

How Does a Countertop Seam Setter Work?

The exact design varies by model, but most systems create gripping points on both sides of the joint and connect them with an adjustment mechanism.

On smooth stone surfaces, vacuum suction cups are commonly used to create temporary attachment points without drilling into the countertop.

A typical working process includes:

• Prepare the countertop sections
• Inspect and clean the seam edges
• Dry fit the two pieces
• Attach the seam setter
• Check the gripping points
• Adjust the horizontal position
• Correct height differences if supported
• Apply the seam adhesive
• Maintain alignment during curing
• Remove the tool and finish the seam

Adjustments should always be made gradually and within the tool’s specified working capacity.

Countertop Seam Setter for Granite

Granite is one of the most common materials for seam-setting applications because of its weight and rigidity.

A long granite section can be difficult to move even before installation. Once it is positioned on the cabinets, small corrections become even harder to make by hand.

A granite countertop seam setter helps installers make controlled adjustments without repeatedly lifting or pushing the entire slab section.

Typical granite applications include:

• L-shaped countertops
• Large kitchen islands
• Granite bar tops
• Long countertop runs
• Commercial stone counters
• Multi-piece granite installations

Before precision seam adjustment begins, larger materials may first need to be moved into position. Speedone’s Professional Electric Tile Suction Cup with Automatic Vacuum Control provides a complementary handling solution for suitable porcelain, glass, and stone materials.

Countertop Seam Setter for Quartz

Quartz countertops also require accurate seam alignment, especially on large kitchen islands and long worktop runs.

Before bonding, installers should check:

• Seam edge quality
• Countertop support
• Horizontal position
• Surface height
• Adhesive clearance
• Condition of the gripping area

Once the sections are close to their final position, the seam setter can be used for finer adjustment.

For compatible material positioning before seam work, Speedone’s Professional Electric Suction Cup for Glass, Stone and Porcelain Slab Handling can support suitable installation and fabrication tasks.

Countertop Seam Setter vs. Manual Alignment

Vacuum Suction for Countertop Seam Setting

Vacuum suction is widely used in countertop installation because it creates temporary gripping points without drilling or permanently fastening the finished surface.

This method works best on clean, smooth, and compatible surfaces.

For applications requiring a stable gripping point, Speedone’s Heavy Duty Fixed Suction Cup for Glass and Stone provides another option for suitable stone and glass surfaces.

Before applying adjustment force, check:

• Surface cleanliness
• Surface smoothness
• Vacuum seal condition
• Working capacity
• Direction of applied force
• Material compatibility

Dust, moisture, rough textures, and worn sealing components can reduce vacuum performance.

Main Components of a Countertop Seam Setter

Depending on the design, a complete seam-setting system may include several components.

• Vacuum suction cups
• Connecting bars
• Pulling mechanisms
• Leveling components
• Adjustment screws
• Handles
• Mounting hardware
• Replacement pads and seals

For compatible suction configurations, Speedone also offers an Aluminum Bar for Grabo Suction Cup as an additional component for suitable professional setups.

Always check dimensions, connection type, working capacity, and intended use before combining different components.

Countertop Seam Setter vs. Suction Lifter

A countertop seam setter and a suction lifter may both use vacuum cups, but their main jobs are different.

For heavy glass, stone, and porcelain handling before seam installation, Speedone’s Heavy Duty Suction Lifter for Glass, Stone and Porcelain Slabs can support suitable lifting and positioning operations.

A practical countertop workflow is:

Lift → Move → Position → Dry Fit → Align → Set Seam → Bond → Finish

Where Is a Countertop Seam Setter Used?

Kitchen Countertops

Long kitchen countertops often require two or more sections, especially in L-shaped and U-shaped layouts.

Kitchen Islands

Large islands may need several slab sections because of slab dimensions, transportation restrictions, or site access.

Granite Fabrication Shops

Fabricators can use seam setters during dry fitting, assembly, and installation preparation.

Quartz Installation

Quartz countertops benefit from controlled joint closing and alignment when the seam is in a visible area.

Commercial Countertops

Hotels, restaurants, retail stores, reception areas, and commercial buildings may include long counters with multiple joints.

How to Use a Countertop Seam Setter

Prepare the Countertop Edges

Inspect both edges for chips, residue, or fabrication problems that may affect the joint.

Check the Support

Make sure both countertop sections are properly supported before precision adjustment begins.

Dry Fit the Pieces

Place the sections in their approximate final positions without adhesive and inspect the joint.

Clean the Gripping Areas

If the tool uses vacuum cups, clean and dry the contact areas before attachment.

Attach the Seam Setter

Position the gripping points on both sides of the joint and confirm secure attachment.

Close the Joint Gradually

Use the adjustment mechanism to move the sections together in small, controlled increments.

Check the Surface Level

Inspect the seam from several angles and correct height differences where the equipment supports leveling.

Apply Adhesive

Use an adhesive suitable for the countertop material and follow the adhesive manufacturer’s instructions.

Maintain Alignment

Keep the sections stable until the adhesive reaches the required curing stage.

Remove and Finish

Carefully release the setter and complete the final seam cleaning and finishing work.

How to Choose the Right Countertop Seam Setter

Material Compatibility

Choose a tool suitable for granite, quartz, marble, engineered stone, porcelain, or the materials your team regularly installs.

Gripping Method

Check whether the equipment uses vacuum suction, mechanical clamping, or another attachment method.

Horizontal Adjustment

A controlled pulling mechanism makes it easier to close the seam without excessive manual effort.

Leveling Capability

If a flush surface is important, choose a model that provides suitable vertical adjustment.

Adjustment Range

The available movement should match the typical seam gaps and corrections encountered during installation.

Working Capacity

Always check the rated working capacity and use the tool within the manufacturer’s limits.

Construction Quality

A professional tool should be durable enough for repeated workshop, transport, and job-site use.

Replacement Components

Access to replacement suction pads, seals, and other wear parts can make long-term maintenance easier.

Countertop Seam Setter vs. Seam Puller vs. Seam Clamp

Different suppliers may use different names for similar countertop tools. The most important point is the actual function of the product.

Common Countertop Seam Problems

Visible Gap Between Sections

If the seam does not close correctly, check the fabricated edges, countertop support, and initial positioning before applying more force.

Uneven Countertop Height

Height differences may come from cabinet level, support conditions, fabrication tolerances, or incorrect positioning.

Vacuum Cup Loses Grip

Stop the adjustment if the gripping point becomes unstable. Check the surface, suction pad, seal, and vacuum condition before continuing.

Too Much Force Is Required

Do not force the countertop sections together. Check for obstructions, edge problems, or incorrect support first.

Countertop Moves During Curing

Keep the sections stable until the adhesive has reached the required curing stage.

Why Choose Speedone?

Speedone develops professional equipment for stone, glass, porcelain, tile, and countertop handling applications.

Our product range includes electric suction cups, fixed suction systems, heavy-duty slab lifters, and compatible accessories that support professional fabrication and installation workflows.

• Professional stone and countertop handling solutions
• Equipment for granite, quartz, marble, porcelain, and glass
• Vacuum-based gripping technology
• Heavy-duty product configurations
• Solutions for fabrication shops and installation teams
• OEM and ODM support
• Application-focused product development

For professional installers, the best workflow separates heavy lifting from precision seam work. Move the material with suitable handling equipment, position it correctly, then use the seam setter for controlled final adjustment and bonding.

Frequently Asked Questions

What is a countertop seam setter?

A countertop seam setter is a professional installation tool used to help pull together, align, and, depending on the model, level adjacent countertop sections during seam installation.

Can a countertop seam setter be used on granite?

Yes. Suitable models can be used for granite countertops when the gripping system, surface condition, adjustment range, and working capacity match the application.

Can I use a countertop seam setter for quartz?

Yes. Suitable seam setters can be used for quartz countertops to help control seam closing, alignment, and positioning.

Does a countertop seam setter use suction cups?

Many professional models use vacuum suction cups to create temporary gripping points on compatible smooth countertop surfaces.

What is the difference between a countertop seam setter and a seam puller?

A seam puller mainly brings two countertop pieces together, while a seam setter may also provide additional alignment and leveling functions.

Can a countertop seam setter lift a stone slab?

A seam setter should not be used as primary lifting equipment unless the manufacturer specifically approves it for that purpose. Heavy slabs should be handled with suitable lifting equipment.

How do I choose a countertop seam setter?

Consider the countertop material, surface condition, gripping method, horizontal adjustment, leveling capability, adjustment range, working capacity, construction quality, and availability of replacement parts.
