Seamless Seam Setter for Granite & Quartz Countertops

Heavy Duty Seamless Seam Setter for Granite & Quartz Countertops

What Is a Seamless Seam Setter?

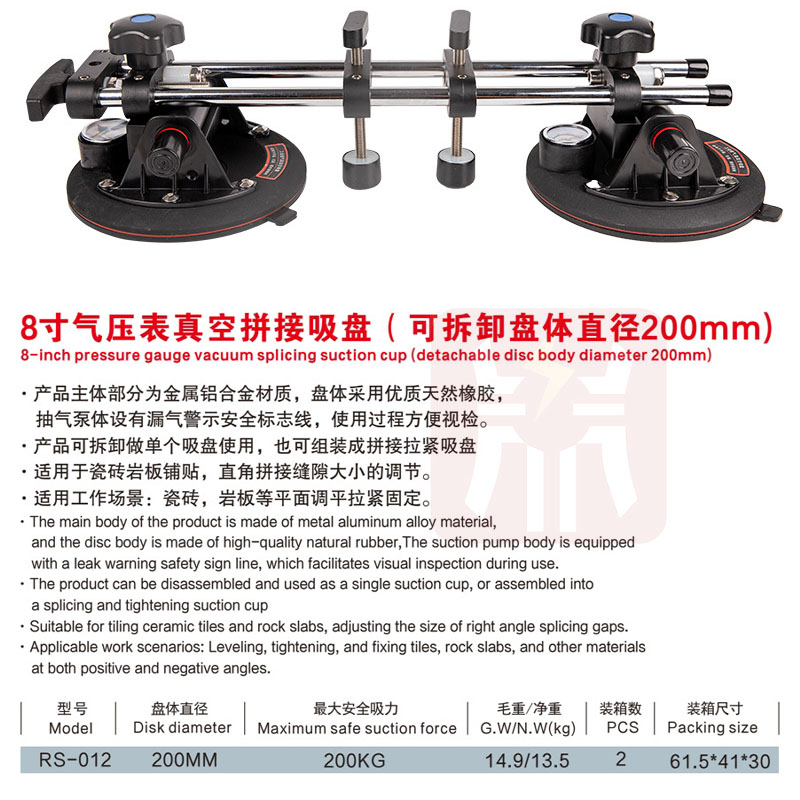

Product parameter information

A seamless seam setter is a professional countertop installation tool used to bring two stone sections into accurate alignment before and during bonding.

Although the word “seamless” is commonly used in product searches, the tool does not completely remove the physical joint between two separate pieces. Instead, it helps installers create a tighter, flatter, and less noticeable seam.

This makes the tool especially useful for granite, quartz, marble, engineered stone, and other premium countertop materials.

Typical applications include:

• Granite kitchen countertops
• Quartz kitchen islands
• Marble vanity tops
• L-shaped worktops
• Bar counters
• Reception counters
• Commercial stone installations

Why Use a Seamless Seam Setter?

Even well-cut countertop sections can look uneven if they are not positioned correctly during installation. Small gaps, height differences, or horizontal misalignment can make the finished joint more visible.

A professional seam setter gives installers better control over these final adjustments.

Tighter Joint Control

The tool helps bring neighboring countertop sections together in small, controlled movements instead of relying only on manual force.

Better Surface Alignment

Depending on the design, the setter can help correct small height differences so the two countertop surfaces sit more evenly.

Less Manual Repositioning

Heavy granite and quartz sections can be difficult to move once they are resting on cabinets. A dedicated seam setter reduces repeated pushing and pulling.

Stable Position During Bonding

Once the seam is properly aligned, the tool can help maintain the position while the adhesive cures.

More Consistent Results

Using the same controlled process across different projects can help installers achieve more repeatable seam quality.

How Does a Seamless Seam Setter Work?

Most professional seam setters use secure gripping points on both sides of the countertop joint. An adjustment mechanism connects these points and allows the installer to control the relative position of the two sections.

On smooth stone surfaces, vacuum suction cups are commonly used because they can grip the countertop without drilling or permanently modifying the surface.

A typical workflow is:

Position → Dry Fit → Attach → Pull Together → Level → Bond → Hold → Finish

Actual operation should always follow the manufacturer’s instructions and the working limits of the specific tool.

Seamless Seam Setter for Granite Countertops

Granite is one of the most common materials for professional seam-setting work. Its weight makes small adjustments difficult after the countertop has been placed on cabinetry.

A granite seamless seam setter helps installers make controlled corrections without repeatedly lifting the entire stone section.

It is especially useful for:

• L-shaped granite countertops
• Large kitchen islands
• Long granite worktops
• Granite bar tops
• Reception counters
• Commercial countertop projects

Before fine seam adjustment begins, stone sections may first need to be moved close to their final position. For suitable materials, Speedone’s Professional Electric Tile Suction Cup with Automatic Vacuum Control provides a practical handling option for porcelain, glass, and compatible stone surfaces.

Seamless Seam Setter for Quartz Countertops

Quartz countertops also require careful seam alignment, especially on long kitchen runs and large islands.

Before joining the sections, installers should check:

• Seam edge condition
• Countertop support
• Horizontal position
• Surface height
• Gripping area
• Adhesive clearance

Fine seam adjustment should begin only after both pieces are properly supported and approximately positioned.

For compatible material positioning before seam work, Speedone’s Professional Electric Suction Cup for Glass, Stone and Porcelain Slab Handling can support the handling stage.

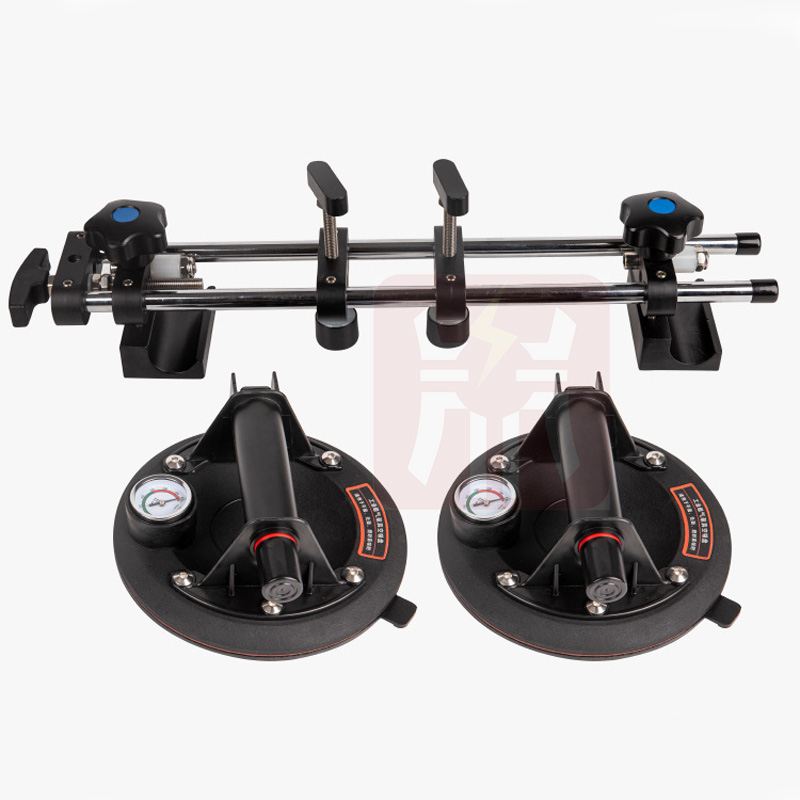

Product details

What Makes a Countertop Seam Look More Seamless?

A professional-looking seam depends on more than the seam setter alone. Good results come from accurate fabrication, stable support, correct positioning, suitable adhesive, and careful finishing.

Vacuum Technology in Seamless Seam Setters

Vacuum gripping is commonly used because it can create temporary attachment points on suitable smooth countertop surfaces without drilling.

Once the suction pads are securely attached on both sides of the seam, the adjustment mechanism can transfer controlled force between the two pieces.

For applications that require a stable individual suction point, Speedone’s Heavy Duty Fixed Suction Cup for Glass and Stone provides another option for compatible surfaces.

Before applying adjustment force, always check the suction condition. Dust, moisture, rough texture, worn pads, or damaged seals can reduce holding performance.

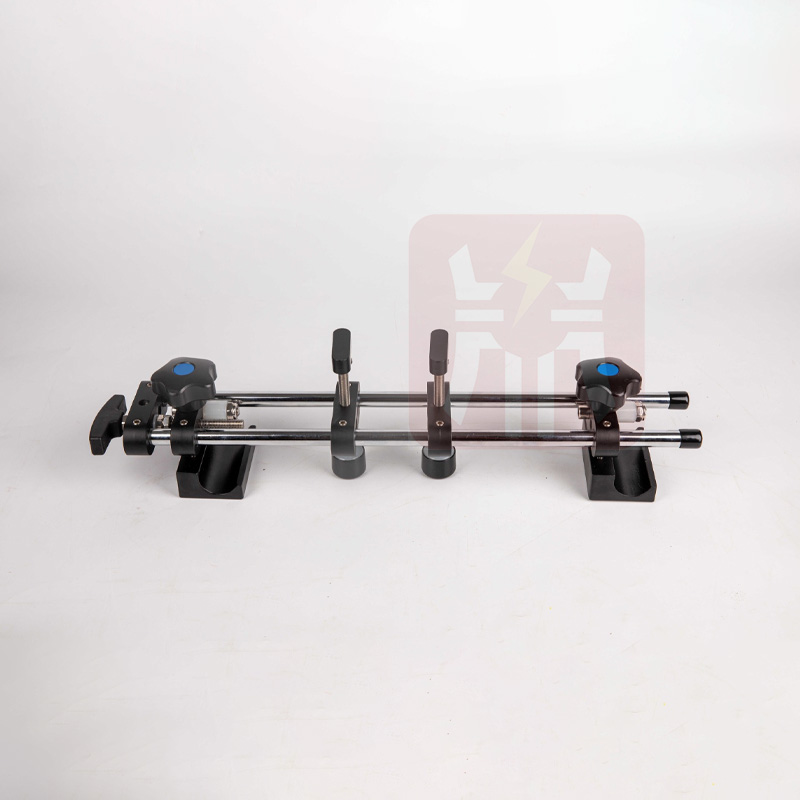

Main Components of a Seamless Seam Setter

A professional seam-setting system may include several parts working together.

• Vacuum suction pads
• Connecting bars
• Pulling mechanisms
• Fine adjustment screws
• Leveling components
• Handles
• Mounting hardware
• Replacement seals

For compatible suction setups, Speedone also offers an Aluminum Bar for Grabo Suction Cup for suitable professional handling and positioning applications.

Always confirm dimensions, connection method, working capacity, and force direction before combining components.

Seamless Seam Setter vs. Manual Alignment

Seam Setter vs. Suction Lifter

A seam setter and a suction lifter may both use suction cups, but they are designed for different tasks.

A suction lifter is mainly used to grip, lift, carry, and position materials. A seam setter is used for precision adjustment between countertop sections that are already supported close to their final position.

For suitable heavy glass, stone, and porcelain handling, Speedone’s Heavy Duty Suction Lifter for Glass, Stone and Porcelain Slabs can support the lifting and positioning stage before seam adjustment begins.

A practical workflow is:

Lift → Transport → Position → Dry Fit → Set Seam → Bond → Finish

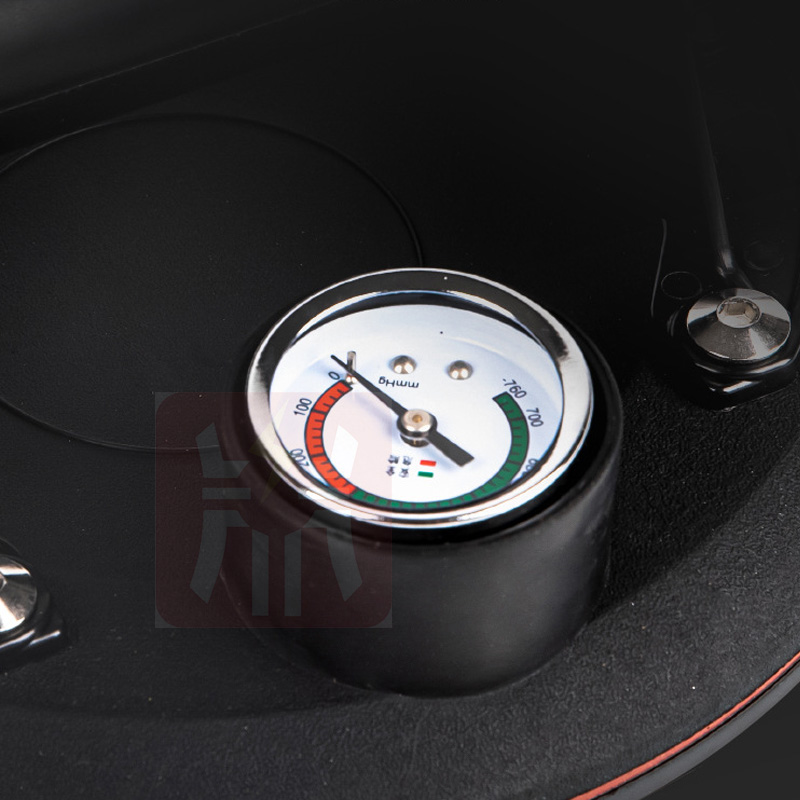

Pressure gauge display

How to Use a Seamless Seam Setter

Prepare the Seam Edges

Inspect both edges for chips, dirt, or irregularities that may affect the joint.

Check the Countertop Support

Both sections should be properly supported before fine adjustment begins.

Dry Fit the Countertop

Bring the pieces together without adhesive first. This helps identify positioning or fabrication problems early.

Clean the Suction Areas

Remove dust, moisture, polishing residue, and other contamination from the gripping areas.

Attach the Seam Setter

Place the suction pads on suitable areas on both sides of the seam and establish a secure grip.

Close the Joint Gradually

Apply controlled adjustment and avoid sudden or excessive force.

Check Surface Alignment

Inspect the seam and make small corrections if the two surfaces are not level.

Apply the Adhesive

Use an adhesive suitable for the countertop material and follow the manufacturer’s instructions.

Maintain the Position

Keep both sections stable while the adhesive reaches the required curing stage.

Release and Finish

Carefully remove the equipment and complete the final seam cleaning and finishing process.

How to Choose the Right Seamless Seam Setter

Material Compatibility

Check whether the tool is suitable for granite, quartz, marble, engineered stone, porcelain, or the materials you normally install.

Suction Pad Design

The gripping system should match the countertop surface and provide reliable contact.

Horizontal Adjustment

A controlled pulling mechanism helps manage the joint gap without excessive manual force.

Leveling Capability

If flush alignment is important, check whether the model provides suitable height adjustment.

Adjustment Range

The available movement should match the typical corrections required in your projects.

Construction Quality

Professional tools should be durable enough for repeated workshop and job-site use.

Replacement Parts

Easy access to suction pads, seals, and other wear parts can reduce downtime during long-term professional use.

Who Uses Seamless Seam Setters?

• Granite fabricators
• Quartz countertop installers
• Stone fabrication workshops
• Kitchen installation companies
• Countertop contractors
• Stone installation teams
• Commercial fit-out contractors
• Professional tool distributors

Product packaging

Why Choose Speedone?

Speedone develops professional equipment for stone, glass, porcelain, tile, and countertop handling applications.

Our product range covers different stages of material handling and installation, including electric suction equipment, fixed suction systems, heavy-duty panel lifters, and compatible accessories.

• Professional stone and countertop solutions
• Equipment for granite, quartz, marble, porcelain, and glass
• Vacuum-based gripping technology
• Heavy-duty configurations
• Solutions for fabrication shops and installation teams
• OEM and ODM support
• Application-focused product development

For professional countertop installers, the best seam results come from combining accurate fabrication, proper support, controlled adjustment, suitable adhesive, and careful finishing.

Frequently Asked Questions

What is a seamless seam setter?

A seamless seam setter is a countertop installation tool used to help pull together, align, and, depending on the design, level adjacent granite, quartz, marble, or compatible countertop sections.

Does a seamless seam setter make a countertop completely seamless?

No. It does not remove the physical joint between two separate pieces. It helps create tighter and more accurate alignment so the finished seam can be less noticeable.

Can a seamless seam setter be used for granite?

Yes. Suitable models can be used for granite countertops when the gripping system, surface condition, and adjustment range match the application.

Can it be used on quartz countertops?

Yes. Seam setters are commonly used for suitable quartz countertop joints to improve closing and alignment during installation.

Does a seamless seam setter use vacuum suction?

Many professional models use vacuum suction cups to create temporary gripping points on smooth countertop surfaces.

What is the difference between a seam setter and a suction lifter?

A seam setter is designed for precision joint adjustment between supported countertop sections. A suction lifter is mainly used to lift, carry, and position materials.

What affects the appearance of a countertop seam?

Edge fabrication, joint width, surface alignment, countertop support, adhesive selection, color matching, controlled positioning, and final finishing all affect the finished seam.
