Heavy Duty Seam Setter Tool for Granite & Quartz Countertops

Professional Seam Setter Tool for Granite & Quartz Countertop Installation

What Is a Seam Setter Tool?

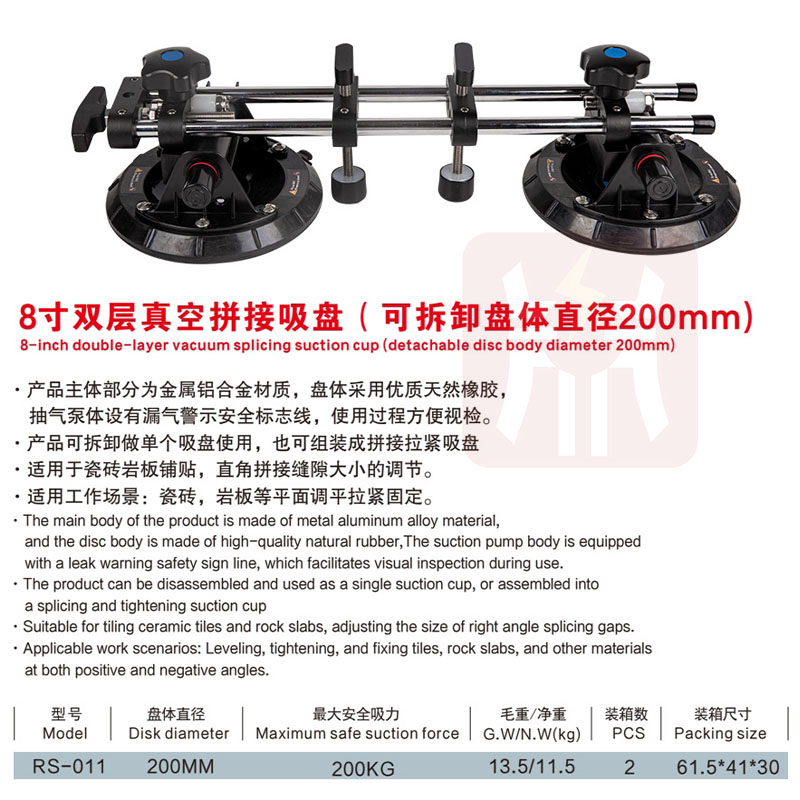

Product parameter information

A seam setter tool is a professional countertop installation tool used to bring two adjacent stone sections together and accurately adjust their position before and during bonding.

Large countertops are often made from several pieces because of slab dimensions, transportation limits, kitchen layouts, or restricted access to the installation site.

Once these pieces are placed on the cabinets or worktable, even a small adjustment can be difficult because granite and quartz sections are heavy.

A seam setter gives installers better control over this final adjustment instead of relying only on manual pushing and pulling.

Why Use a Professional Seam Setter Tool?

A clean countertop seam depends on accurate positioning. The two sections need to meet correctly, and their upper surfaces should remain properly aligned while the adhesive cures.

Using a professional seam setter provides several practical benefits:

• Helps close gaps between countertop sections
• Improves stone seam alignment
• Reduces difficult manual adjustment
• Helps maintain positioning during bonding
• Makes heavy granite and quartz easier to control
• Supports more consistent installation results

These advantages are especially important when working with high-value stone countertops where the finished joint is clearly visible.

How Does a Seam Setter Tool Work?

The exact design can vary, but most seam setters create secure gripping points on both sides of the countertop joint.

An adjustment mechanism then allows the installer to gradually pull the two pieces together and correct their relative position.

Depending on the model, the tool may support horizontal pulling, surface leveling, or both.

A typical working process includes:

• Prepare and position the countertop sections
• Clean and inspect the seam edges
• Dry fit both pieces
• Attach the seam setter
• Check the gripping points
• Gradually close the joint
• Adjust the countertop position
• Apply the specified adhesive
• Maintain alignment during curing
• Remove the tool and finish the seam

Always make adjustments gradually and use the equipment within its specified working capacity.

Seam Setter Tool for Granite Countertops

Granite is heavy and rigid, which makes small positional corrections difficult once the countertop is resting on the cabinets.

A granite seam setter tool helps installers make controlled final adjustments without repeatedly lifting or manually pushing the entire stone section.

Common applications include:

• L-shaped granite countertops
• Large kitchen islands
• Long countertop runs
• Granite bar tops
• Commercial stone counters
• Multi-piece countertop installations

Before precision seam adjustment begins, large stone sections may need to be moved into their approximate position. Speedone’s Professional Electric Tile Suction Cup with Automatic Vacuum Control provides a practical handling option for compatible stone, porcelain, tile, and glass materials.

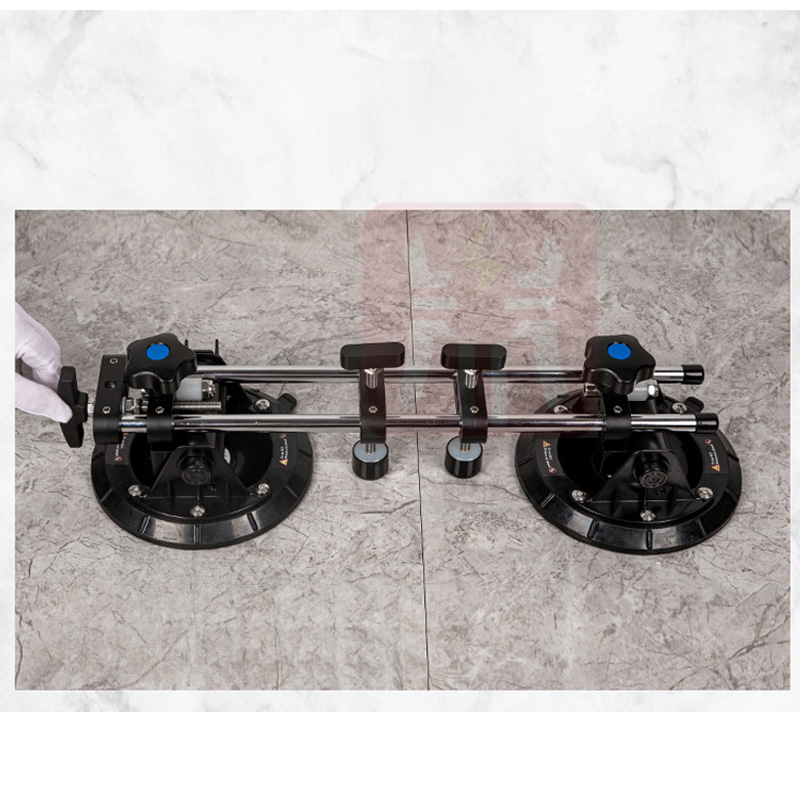

Product Usage Demonstration

Seam Setter Tool for Quartz Countertops

Quartz countertops have similar installation challenges. Large sections are heavy, and the finished seam often needs careful adjustment before bonding.

Before using the seam setter, installers should check:

• Seam edge preparation
• Horizontal position
• Surface height
• Countertop support
• Joint clearance
• Condition of the gripping area

After the sections are approximately positioned, the seam setter can be used for finer adjustment.

For handling compatible panels before seam alignment, the Speedone Professional Electric Suction Cup for Glass, Stone and Porcelain Slab Handling provides additional support for positioning stone and other smooth materials.

Vacuum Seam Setter Tool for Stone Countertops

Many professional seam-setting systems use vacuum suction cups because they can create temporary gripping points without drilling into the finished countertop.

This method works best on suitable smooth and non-porous surfaces.

Before applying adjustment force, check that the contact area is clean, dry, and suitable for the suction pad.

Vacuum holding performance can be affected by:

• Dust and debris
• Surface moisture
• Stone texture
• Surface contamination
• Worn suction pads
• Damaged sealing components

For applications requiring a stable suction point, Speedone’s Heavy Duty Fixed Suction Cup for Glass and Stone provides another option for compatible smooth stone and glass surfaces.

Main Components of a Seam Setter System

A complete seam-setting system can include several components depending on the product design.

• Vacuum suction cups
• Connecting bars
• Adjustment screws
• Adjustment handles
• Mounting hardware
• Replacement suction pads
• Vacuum seals

For compatible suction configurations, Speedone also supplies an Aluminum Bar for Grabo Suction Cup, providing an additional accessory option for professional stone and panel handling setups.

Before combining different components, always confirm their connection type, dimensions, working capacity, and intended application.

Seam Setter Tool vs. Suction Lifter

A seam setter and a suction lifter may both use vacuum technology, but they are designed for different jobs.

For large stone sections that need to be moved before seam adjustment, Speedone’s Heavy Duty Suction Lifter for Glass, Stone and Porcelain Slabs can support suitable lifting and positioning applications.

A practical countertop installation workflow is:

Lift → Move → Position → Dry Fit → Align → Close Seam → Bond → Finish

Where Is a Seam Setter Tool Used?

Kitchen Countertops

Long kitchen countertops and L-shaped layouts often require several stone sections. A seam setter helps make the final adjustment when these sections are joined on site.

Kitchen Islands

Large islands may require more than one slab because of material size, transportation, or site access. Controlled seam adjustment helps create a better joint between the sections.

Granite Fabrication

Stone fabrication shops can use seam setters during countertop assembly, dry fitting, and final installation preparation.

Quartz Installation

Quartz countertops benefit from controlled joint closing and alignment, especially when the seam is located in a highly visible area.

Commercial Countertops

Hotels, restaurants, retail stores, and other commercial projects may include long countertop runs with several joints. A repeatable seam-setting process can help improve installation consistency.

Product application scenarios

How to Use a Seam Setter Tool

Prepare the Countertop

Make sure both sections have been correctly cut and finished before installation.

Clean the Seam Area

Remove dust, polishing residue, moisture, and other contaminants from the working area.

Dry Fit Both Sections

Place the countertop pieces in their approximate final positions without adhesive and inspect the joint.

Prepare the Suction Area

If vacuum suction is used, clean the areas where the suction pads will be attached.

Attach the Seam Setter

Position the gripping points on opposite sides of the seam and make sure they are securely attached.

Close the Seam Gradually

Use the adjustment mechanism to move the sections together in small, controlled increments.

Check the Alignment

Inspect the joint from different angles and check both horizontal position and surface height.

Apply the Adhesive

Use an adhesive suitable for the countertop material and follow the adhesive manufacturer’s instructions.

Maintain the Position

Keep both sections stable while the adhesive reaches the required curing stage.

Remove and Finish

Carefully release the seam setter and complete the final seam cleaning and finishing process.

How to Choose the Right Seam Setter Tool

Countertop Material

Choose a tool suitable for the materials you commonly install, such as granite, quartz, marble, engineered stone, or porcelain.

Gripping Method

For vacuum-based systems, make sure the surface is suitable for reliable suction.

Adjustment Functions

Consider whether you need horizontal pulling, surface leveling, or both functions.

Adjustment Range

The available movement should be suitable for the joint gaps and corrections normally encountered during installation.

Working Capacity

Always check that the equipment is suitable for the intended application and operating force.

Construction Quality

A professional tool should be durable enough for repeated workshop transportation, setup, adjustment, and job-site use.

Replacement Parts

For frequent professional use, easy access to compatible suction pads, seals, connectors, and other replacement parts can simplify maintenance.

Product application scenarios

Seam Setter Tool vs. Seam Puller vs. Seam Clamp

Buyers may see several different names when searching for countertop seam equipment. These terms can overlap, but the functions are not always identical.

When comparing products, focus on the actual adjustment functions instead of choosing only by product name.

Common Seam Setting Problems

There Is Still a Gap Between the Sections

Check the seam edges, countertop support, and initial positioning before applying more force. Poor edge preparation cannot always be corrected by pulling harder.

One Side Is Higher Than the Other

Check the cabinet level, support conditions, stone thickness, and countertop position. Correct the underlying problem before continuing the adjustment.

The Suction Cup Loses Grip

Stop the operation and inspect the surface, suction pad, seal, and vacuum condition before continuing.

Too Much Force Is Required

Do not force the countertop together if there is unusual resistance. Check for obstacles, incorrect support, or problems with the seam edges.

The Countertop Moves During Curing

Keep the countertop sections stable until the adhesive has reached the required curing stage.

Why Choose Speedone?

Speedone specializes in professional equipment for stone, glass, porcelain, tile, and countertop handling applications.

Our product range covers suction tools, panel handling equipment, slab lifters, and accessories designed for professional stone fabricators and installation teams.

• Professional stone and countertop solutions
• Equipment for granite, quartz, marble, porcelain, and glass
• Electric vacuum handling technology
• Heavy-duty suction solutions
• Products for fabrication shops and installation teams
• OEM and ODM customization support
• Application-focused product development

For countertop professionals, the best results come from using the right equipment for each stage: lifting the stone safely, positioning it correctly, making precise seam adjustments, and keeping the joint stable during bonding.

Frequently Asked Questions

What is a seam setter tool?

A seam setter tool is used to help pull together, position, align, and, depending on the design, level adjacent countertop sections during seam installation.

Can a seam setter tool be used for granite?

Yes. Suitable seam setters can be used for granite countertops when the gripping method and adjustment system are compatible with the stone and application.

Can I use a seam setter tool for quartz?

Yes. Suitable models can be used for quartz countertop joints when the surface and tool configuration meet the required working conditions.

Does a seam setter tool use suction cups?

Many professional models use vacuum suction cups to create temporary gripping points on smooth countertop surfaces.

What is the difference between a seam setter and a seam puller?

A seam puller mainly brings two countertop sections together, while a seam setter may also provide alignment and leveling adjustment. Some tools combine these functions.

Can a seam setter tool lift a stone countertop?

A seam setter should not be used as a primary lifting device unless the manufacturer specifically approves it for lifting. Heavy countertops should be moved with suitable lifting equipment.

How do I choose the right seam setter tool?

Consider the countertop material, surface condition, gripping method, adjustment functions, adjustment range, construction quality, and availability of replacement components.
