Cabinet Support Tool for Wall Cabinet Installation

Heavy Duty Cabinet Support Tool for Wall Cabinet Installation

What Is a Cabinet Support Tool?

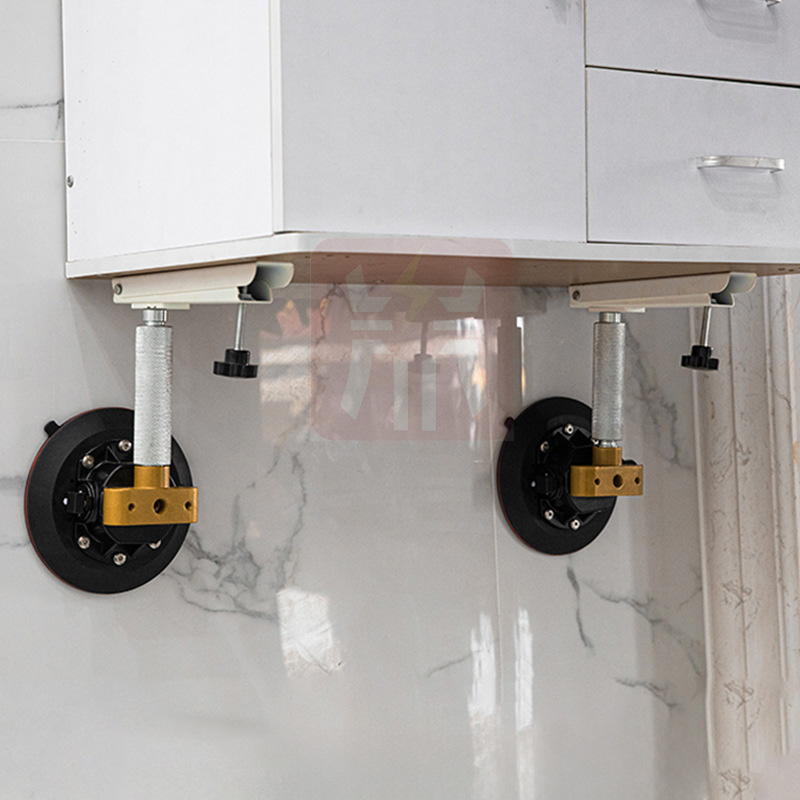

Product application scenario diagram

A Cabinet Support Tool is an adjustable installation aid used to temporarily support a cabinet while it is being positioned, leveled, and permanently secured.

Installing upper cabinets can be difficult because several jobs need to happen at the same time. The cabinet must be held at the correct height, aligned with nearby units, checked for level, and fixed securely to the wall.

Without temporary support, one installer may need to hold the cabinet while another person measures, aligns, and installs the fasteners.

A cabinet support tool creates a temporary support point under the cabinet so the installer can focus on:

• Cabinet height
• Horizontal alignment
• Level adjustment
• Wall fixing points
• Spacing between cabinets
• Final fastening

Similar products may also be described as a cabinet jack, cabinet support pole, third hand support pole, adjustable support prop, or cabinet installation stand.

Why Use a Cabinet Support Tool?

Upper cabinet installation involves both lifting and precision positioning.

Getting the cabinet close to the correct position is only the first step. The installer still needs time to check measurements, level the cabinet, align it with nearby units, and install permanent fixings.

Common installation challenges include:

• Holding the cabinet at the correct height
• Keeping both hands free for fastening
• Maintaining level during installation
• Matching adjacent cabinet heights
• Working in restricted kitchen spaces
• Preventing unwanted cabinet movement
• Making small height corrections

Temporary Hands-Free Support

The tool helps hold the cabinet in position so the installer can concentrate on measurement, leveling, drilling, and fastening.

Fine Height Adjustment

Suitable designs allow small height corrections to help match a level line or neighboring cabinet.

More Controlled Installation

Instead of continuously holding the cabinet by hand, the installer can work through the alignment and fastening process more systematically.

Useful in Restricted Spaces

Adjustable cabinet supports can be especially useful in kitchens and bathrooms where floor space is limited.

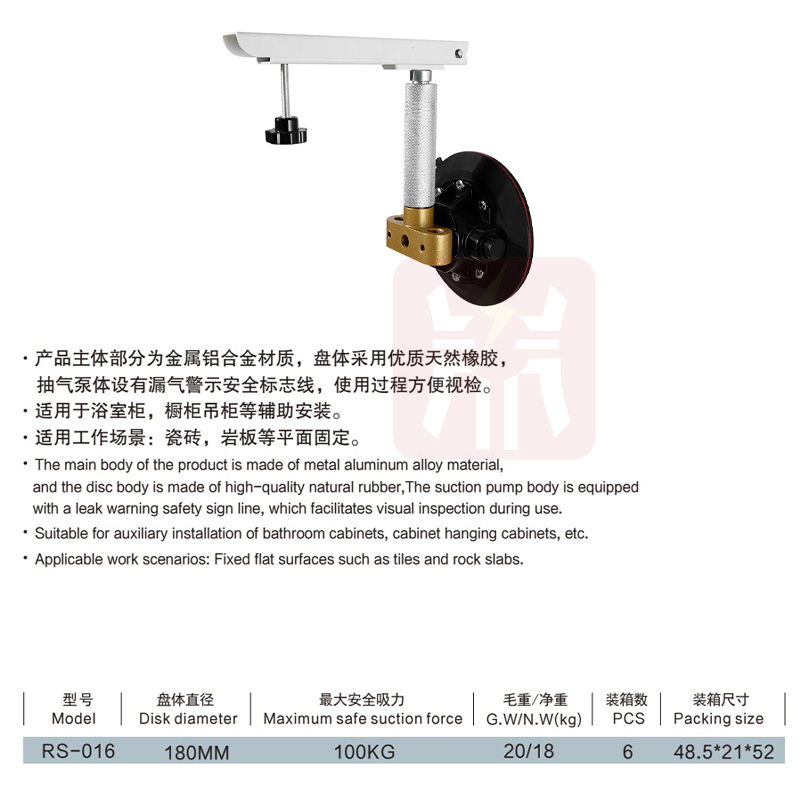

Product information parameters

How Does a Cabinet Support Tool Work?

Most cabinet support systems use an adjustable or telescopic structure positioned underneath the cabinet.

The lower end rests on a stable surface, while the upper pad supports the cabinet or installation component.

The installer adjusts the height until the cabinet is close to its final position.

Depending on the model, adjustment may include:

• Telescopic extension
• Quick locking
• Fine height adjustment
• Rotating adjustment handles
• Adjustable support pads

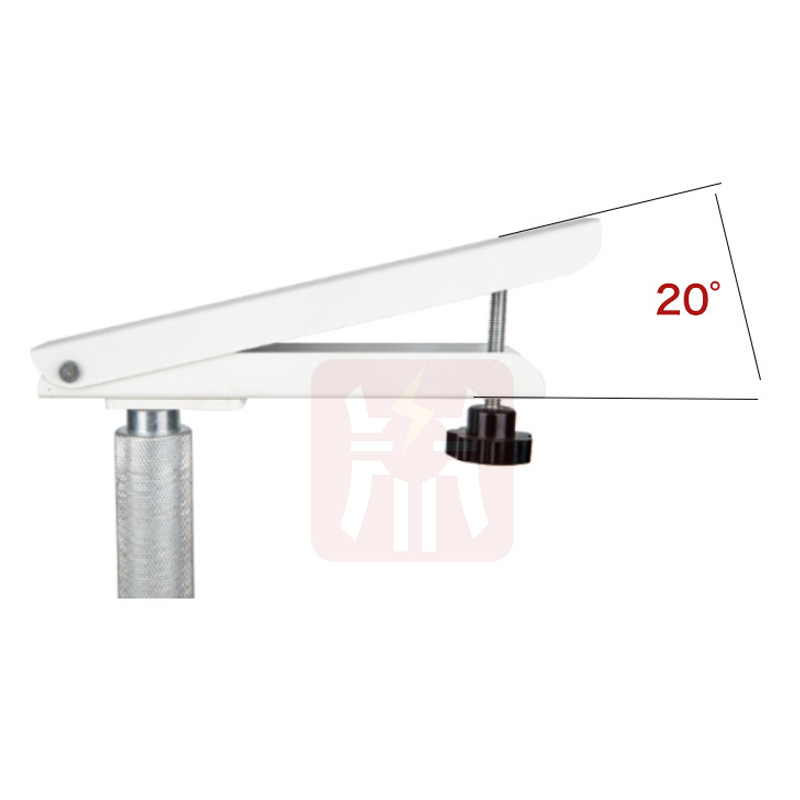

• Tilt adjustment
• Non-slip contact surfaces

The cabinet can then remain temporarily supported while the installer checks alignment and completes the permanent wall fixing.

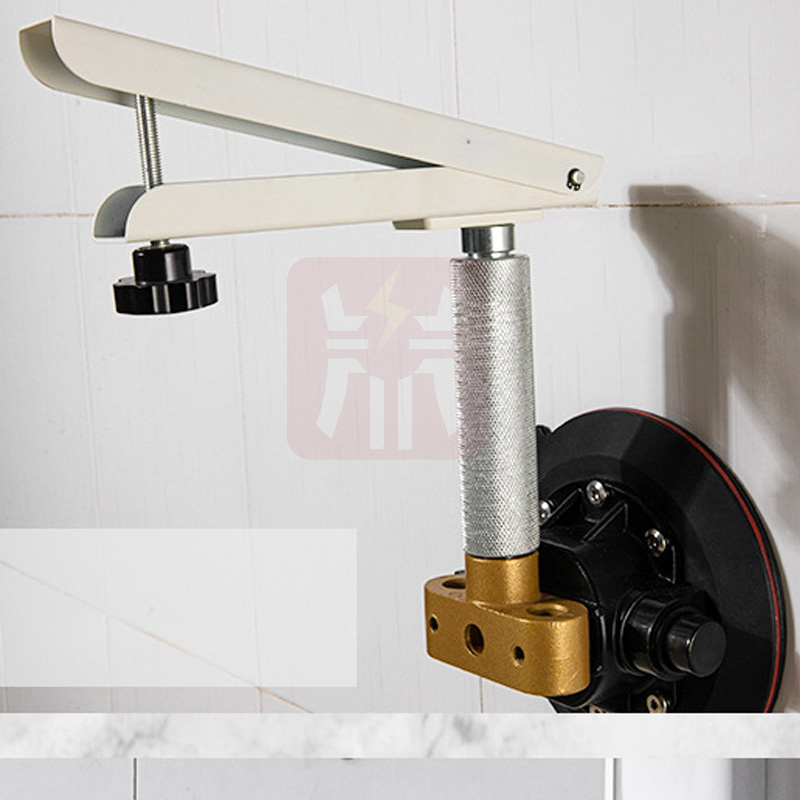

Cabinet Support Tool for Upper Wall Cabinets

Upper kitchen cabinets are one of the main applications for this type of support tool.

The installer needs to position the cabinet above the countertop or future worktop area while maintaining consistent height and spacing across several units.

A cabinet support pole can act as a temporary platform during:

• Initial cabinet positioning
• Corner cabinet installation
• Adjacent cabinet alignment
• Wall fixing preparation
• Level checking
• Cabinet-to-cabinet fastening
• Final height adjustment

The tool is intended for temporary installation support and should not replace permanent cabinet fixing.

Cabinet Support Tool for One-Person Installation

One reason installers use cabinet jacks and third hand support poles is to make positioning easier when fewer people are available.

The support tool acts as an additional temporary hand underneath the cabinet.

This gives the installer more freedom to:

• Check alignment
• Use a level
• Locate fixing points
• Drill pilot holes
• Install fasteners
• Make small height corrections

A practical workflow is:

Measure → Position → Support → Adjust → Level → Fix → Verify → Release

Whether one-person installation is suitable still depends on the cabinet size, weight, site conditions, and installation requirements.

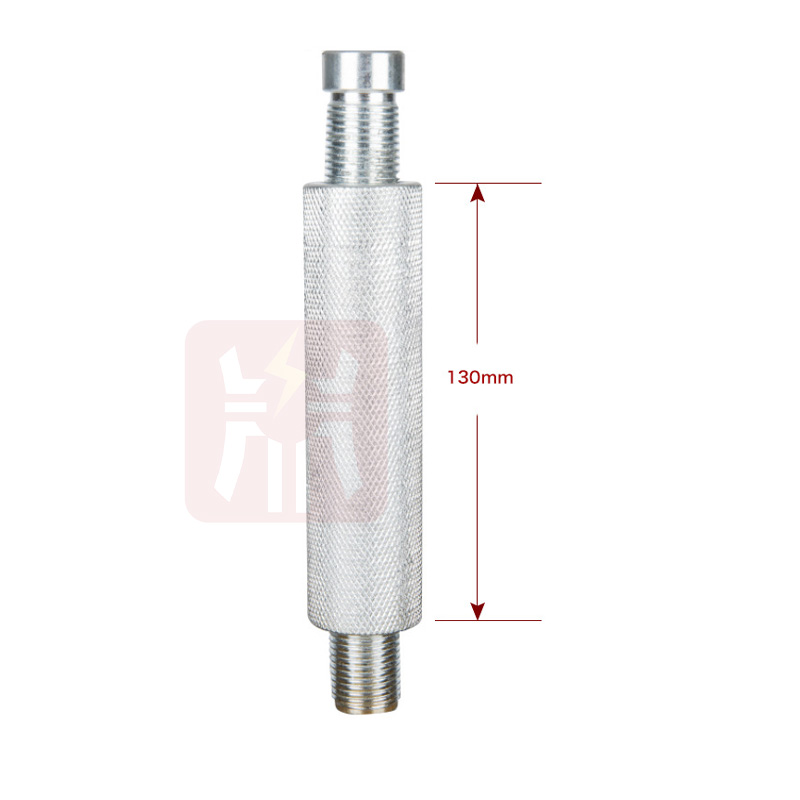

The size information of the product

Adjustable Cabinet Support Pole

Adjustability is one of the most important features of a professional cabinet support tool.

Different kitchens and bathrooms use different installation heights, floor levels, and cabinet layouts.

An adjustable support pole allows the installer to adapt the working height to each project.

Fast Height Adjustment

Coarse adjustment helps move the support quickly toward the required installation height.

Fine Adjustment

Fine adjustment is useful when the cabinet needs to move only a small distance to match a laser line or nearby unit.

Secure Locking

The selected position should be securely locked before the cabinet is supported.

Cabinet Support Tool vs. Manual Cabinet Installation

Cabinet Support Tool vs. Cabinet Jack

The terms Cabinet Support Tool and cabinet jack are often used for similar products.

A cabinet jack usually emphasizes lifting and height adjustment, while Cabinet Support Tool is a broader term for equipment that temporarily supports cabinets during installation.

Other related search terms include:

• Cabinet support pole
• Cabinet installation jack
• Third hand support pole
• Adjustable support prop
• Cabinet installation stand
• Telescopic support pole

When comparing products, buyers should focus on adjustment range, rated capacity, locking system, support-pad design, and intended use rather than only the product name.

Cabinet Support Tool for Bathroom Cabinets

Adjustable support tools can also be useful when installing compatible bathroom wall cabinets.

Bathroom work areas are often restricted by sinks, vanities, mirrors, plumbing fixtures, and limited floor space.

A temporary support system can help hold the cabinet while the installer checks:

• Height above the vanity
• Position relative to the mirror
• Horizontal level
• Wall anchor locations
• Clearance around fixtures

Always confirm that the support tool, cabinet, and contact surfaces are suitable for the intended installation.

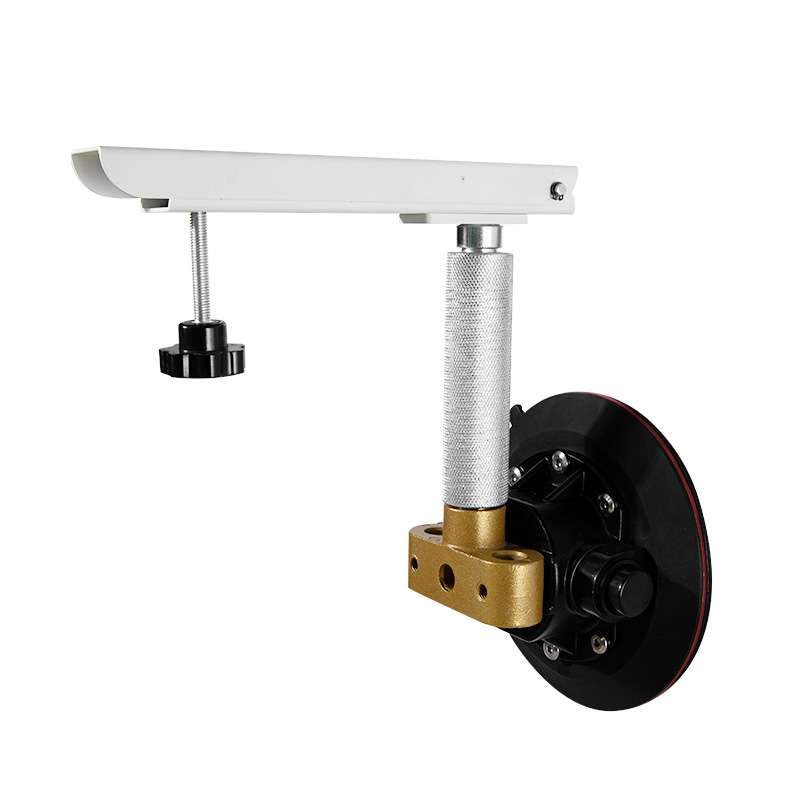

Product details presentation

Cabinet Support Tool for Range Hood Installation

Depending on the design and manufacturer instructions, adjustable support equipment may also assist with temporary positioning of compatible range hoods or similar components.

A typical workflow is:

Raise → Support → Align → Fix → Verify → Release

The tool should only be used within its stated capacity and intended working configuration.

Cabinet Support Tool for Shelves and Interior Installation

Some third hand support systems can be used for more than cabinet installation.

Depending on the design, possible applications may include:

• Wall shelves
• Trim
• Crown molding
• Interior panels
• Framing components
• Drywall
• Temporary bracing

Actual suitability depends on the specific model and manufacturer specifications.

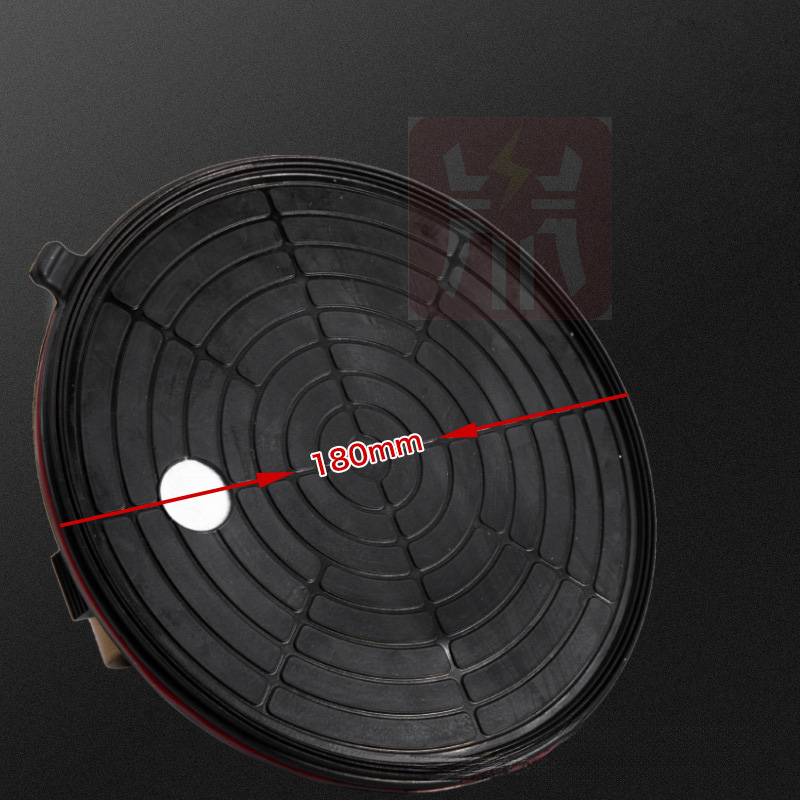

Non-Slip Contact Pads for Better Cabinet Support

The contact points between the support tool, cabinet, and floor are important for stability.

Suitable non-slip pads can help reduce unwanted movement and also reduce direct metal contact with finished surfaces.

Before use, check:

• Pad condition
• Floor stability
• Cabinet contact area
• Surface contamination
• Tool alignment
• Support orientation

Do not rely on an adjustable support pole on an unstable, wet, heavily sloped, or unsuitable surface.

Fine Adjustment for Cabinet Alignment

Cabinet installation often requires small corrections rather than large lifting movements.

Once the cabinet is close to the installation line, fine adjustment can help match:

• Laser reference lines
• Pencil layout lines
• Neighboring cabinet bottoms
• Top cabinet alignment
• Doors and filler panels
• Corner cabinet position

The support tool should not be used to force an incorrectly prepared cabinet into position. The wall, cabinet, and fixing points should already be properly prepared.

How to Use a Cabinet Support Tool

Check the Cabinet

Inspect the cabinet and confirm the planned installation position before supporting it.

Prepare the Wall

Locate suitable fixing points and follow the cabinet manufacturer’s installation requirements.

Inspect the Support Tool

Check the pole, locking system, adjustment mechanism, and contact pads before use.

Place the Tool on a Stable Surface

Make sure the lower support point is stable and suitable for the intended load.

Extend the Support Pole

Adjust the support close to the required cabinet height.

Position the Cabinet

Carefully place the cabinet onto the intended support area.

Make Fine Adjustments

Raise or lower the support gradually until the cabinet approaches the correct installation line.

Check Level and Alignment

Use a level, laser, or other measuring tools to confirm the cabinet position.

Secure the Cabinet

Install the permanent fixings according to the cabinet and wall-fixing requirements.

Verify the Installation

Make sure the cabinet is permanently secured before removing the temporary support.

Release Gradually

Reduce support carefully instead of suddenly dropping the pole away from the cabinet.

How to Choose the Right Cabinet Support Tool

Adjustment Range

The support tool should cover the working height required for the cabinets your team normally installs.

Rated Load Capacity

The cabinet and any supported material must remain within the manufacturer’s stated capacity and intended load direction.

Fine Adjustment

A practical fine-adjustment system makes leveling and final positioning easier.

Locking System

The selected height should remain secure while the cabinet is being aligned and fastened.

Support Pad Design

The upper and lower contact surfaces should be appropriate for the cabinet and supporting floor.

Non-Slip Contact Surfaces

Suitable pads can help improve stability on compatible surfaces.

Portability

Professional installers often work at several job sites, so transport and storage can be important.

Construction Quality

The pole, handles, locks, adjustment mechanism, and support surfaces should be suitable for repeated professional use.

Cabinet Support Tool in a Kitchen Installation Workflow

Cabinet installation is often one stage in a complete kitchen project.

A typical workflow may look like:

Cabinet Positioning → Cabinet Fixing → Worktop Installation → Stone Positioning → Seam Joining → Final Alignment

The Cabinet Support Tool mainly assists during cabinet positioning and fixing.

Once granite or quartz countertops are installed, different tools are used for precision stone joint work.

Related Tools for Countertop Installation

For kitchen contractors and fabrication teams that also install granite and quartz countertops, Speedone provides related tools for later stages of the installation workflow.

For vacuum-based countertop joint positioning, the Vacuum Seam Setter for Granite and Quartz Countertops provides controlled seam adjustment after the stone sections have been positioned.

For projects where a cleaner and more accurately aligned seam is required, installers can use the Seamless Seam Setter for Granite and Quartz Countertops.

For demanding professional fabrication work, the Heavy Duty Seam Setter Tool for Granite and Quartz Countertops provides another seam-setting option.

For worktop-focused markets, the Worktop Seam Setter for Granite and Quartz Countertops provides a related solution for precision worktop joint adjustment.

Fabrication workshops working with several stone materials can also use the Stone Seam Setter Tool for Granite and Quartz for final joint positioning.

Where the main task is drawing two granite sections together, Speedone’s Seam Puller for Granite Countertops and Joint Leveling provides a more specialized solution.

Cabinet Support Tool vs. Countertop Seam Tools

Common Cabinet Installation Problems

The Cabinet Moves While Drilling

Check that the support tool is correctly positioned and that all locking mechanisms are engaged.

The Cabinet Is Not Level

Use fine adjustment, suitable shimming, and normal cabinet installation procedures rather than relying only on visual alignment.

The Support Pole Slips

Stop work and check the floor, contact pads, support angle, and locking system before continuing.

The Cabinet Is Too Heavy

Do not exceed the stated capacity of the support equipment. Use additional installers or suitable lifting equipment when required.

The Cabinet Does Not Match Adjacent Units

Use a reference line or laser level and make small corrections before permanent fastening.

The Tool Cannot Reach the Required Height

Use a support tool with the correct working range instead of unstable improvised extensions.

Safety Tips for Cabinet Support Tools

A Cabinet Support Tool should always be treated as temporary installation equipment.

• Inspect the tool before use
• Follow the manufacturer’s rated capacity
• Use the tool on a stable supporting surface
• Check all locking mechanisms
• Keep the support correctly aligned
• Avoid shock loading
• Do not use damaged components
• Do not use temporary support as permanent cabinet fixing
• Confirm permanent fixings before releasing the tool
• Use additional installers or lifting equipment when required

Who Uses Cabinet Support Tools?

• Kitchen cabinet installers
• Cabinet makers
• Carpenters
• Kitchen renovation contractors
• Bathroom installers
• Interior fit-out contractors
• Furniture installers
• Construction companies
• Cabinet tool distributors
• Professional installation teams

Why Choose Speedone?

Speedone develops professional installation and material-handling tools for contractors, fabrication shops, and professional installation teams.

The purpose of a Cabinet Support Tool is simple: provide temporary and adjustable support so the installer can focus on accurate positioning and permanent fastening.

A practical workflow is:

Measure → Position → Support → Level → Align → Fix → Verify → Release

For contractors who also install granite and quartz worktops, the workflow can continue into stone positioning, seam pulling, and final joint leveling using dedicated countertop installation tools.

Frequently Asked Questions

What is a Cabinet Support Tool?

A Cabinet Support Tool is an adjustable installation aid designed to temporarily support a cabinet while the installer positions, levels, and permanently secures it.

Is a Cabinet Support Tool the same as a cabinet jack?

The terms are often used for similar equipment. Cabinet jack usually emphasizes the adjustable lifting and supporting function, while Cabinet Support Tool is a broader term for temporary cabinet-support equipment.

Can a Cabinet Support Tool be used for upper cabinets?

Suitable models can be used to assist with upper wall cabinet installation. The working range and rated capacity should match the cabinet and installation conditions.

Can one person install cabinets with a support tool?

A support tool can make some positioning and fastening tasks easier by providing temporary support. Whether one-person installation is suitable depends on cabinet size, weight, site conditions, and installation requirements.

Can a cabinet support pole be used for bathroom cabinets?

Suitable adjustable support tools may be used for compatible bathroom cabinets and similar wall-mounted units when the working range, load, and contact surfaces are appropriate.

Can Cabinet Support Tools be used for drywall or shelves?

Some third hand support poles are designed for several applications, including cabinets, drywall, shelving, trim, and panels. Always check the intended use of the specific model.

What should I look for when buying a Cabinet Support Tool?

Important factors include adjustment range, rated capacity, fine adjustment, locking system, support-pad design, non-slip surfaces, construction quality, and portability.

Is a Cabinet Support Tool a permanent cabinet support?

No. It is a temporary installation aid. The cabinet must be permanently fixed using the appropriate fastening system for the cabinet and supporting structure.
