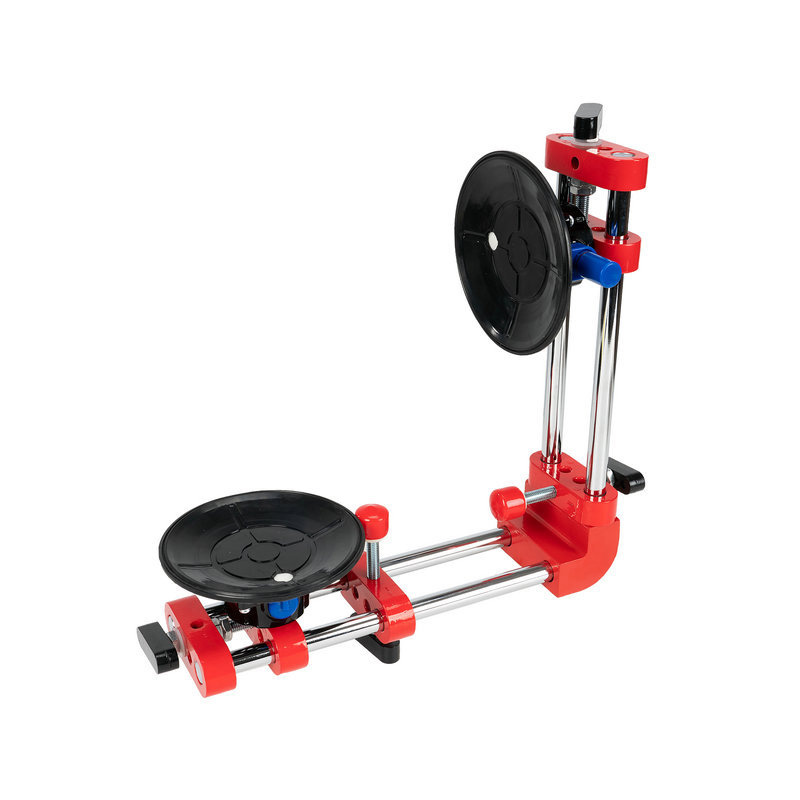

Vacuum Seam Setter for Granite & Quartz Countertops
vacuum seam setter

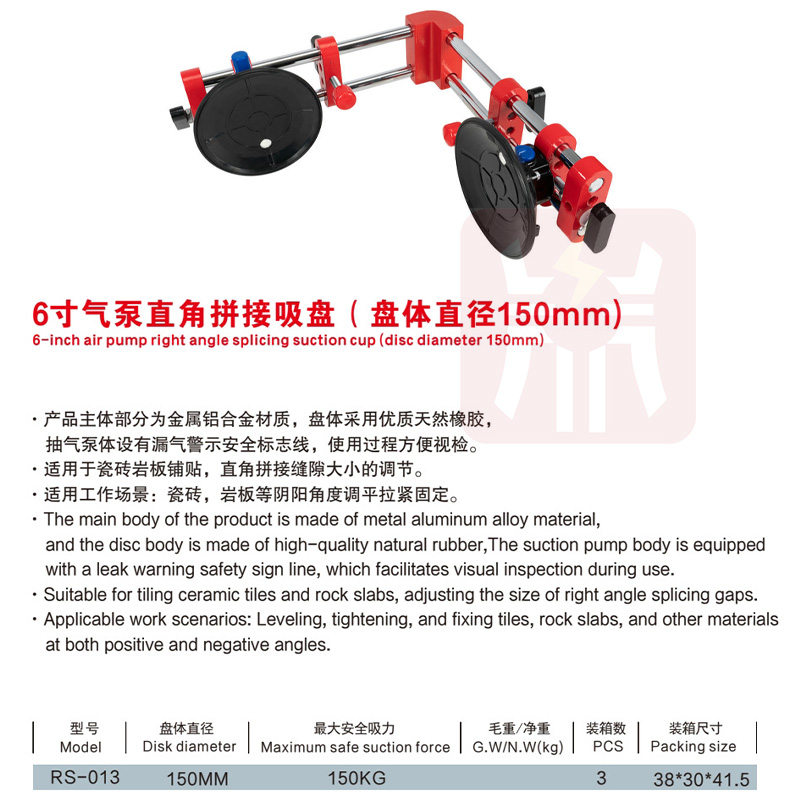

- Model : RS-013
- Disk diameter : 150mm
- Maximum safe suction force : 150kg
Product Description
Heavy Duty Vacuum Seam Setter for Granite & Quartz Countertop Joints
What Is a Vacuum Seam Setter?
|
 |
| Product parameters | |
A vacuum seam setter is a professional countertop installation tool that uses suction cups to grip two adjacent stone sections while an adjustment mechanism controls their position.
Large countertops are often made from several pieces because of slab size, transportation limits, kitchen layout, or restricted access to the installation site.
Even when the edges are accurately fabricated, the final seam can still look uneven if the two sections are not positioned correctly during installation.
A vacuum seam setter helps solve this problem by creating temporary gripping points on both sides of the joint and allowing the installer to make controlled adjustments.
Typical applications include:
- Granite kitchen countertops
- Quartz worktops
- Marble vanity tops
- Large kitchen islands
- Stone bar tops
- Reception counters
- Commercial countertop installations
Why Choose a Vacuum Seam Setter?
Countertop installers need a way to control heavy stone sections without drilling into the finished surface. Vacuum gripping provides a practical solution for many smooth and compatible materials.
Temporary Surface Gripping
The suction cups create temporary attachment points without permanently modifying the countertop surface.
Controlled Seam Closing
Once the cups are securely attached, the adjustment mechanism allows the installer to bring the two sections together gradually.
Better Positioning Accuracy
Small seam corrections can be made more easily than by manually pushing or pulling heavy stone pieces.
Reduced Manual Effort
Granite and quartz sections are difficult to move once they are resting on cabinets. A vacuum seam setter reduces unnecessary manual repositioning.
Stable Position During Bonding
Suitable models can help maintain the desired seam position while the adhesive cures.
How Does a Vacuum Seam Setter Work?
The operating principle combines two functions: vacuum gripping and mechanical adjustment.
First, suction cups are placed on opposite sides of the countertop joint. After secure vacuum attachment is confirmed, the adjustment mechanism is used to control the relationship between the two sections.
Depending on the design, the tool may support:
- Horizontal seam closing
- Fine left-to-right positioning
- Relative height adjustment
- Joint stabilization during bonding
A typical workflow is:
Position → Dry Fit → Vacuum Grip → Align → Close Seam → Level → Bond → Hold → Finish
Vacuum Seam Setter for Granite Countertops
Granite is one of the most common materials for vacuum seam-setting applications because it is heavy, rigid, and difficult to reposition once installed.
A granite vacuum seam setter places the gripping points close to the joint, allowing adjustment force to be applied where it is needed.
Common granite applications include:
- L-shaped kitchen countertops
- Granite kitchen islands
- Long countertop runs
- Granite bar tops
- Commercial stone counters
- Multi-section granite installations
Before fine seam adjustment begins, the stone sections may first need to be moved close to their final positions. For compatible materials, Speedone’s Professional Electric Tile Suction Cup with Automatic Vacuum Control provides a practical handling option for suitable porcelain, glass, and stone surfaces.
 |
 |

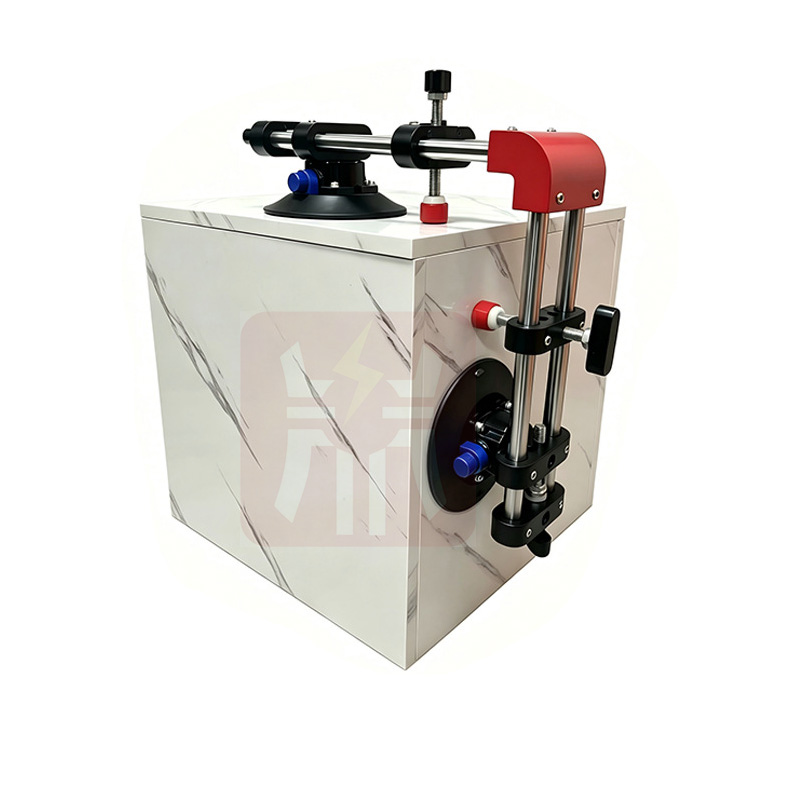

| Product details and application scenarios | |
Vacuum Seam Setter for Quartz Countertops
Quartz countertops have similar installation challenges. Large islands, long worktops, and U-shaped kitchens often require several fabricated sections.
Before using a seam setter, installers should check:
- Edge preparation
- Countertop support
- Initial joint position
- Surface height
- Suction pad contact area
- Adhesive working clearance
Once both pieces are properly supported and close to their final position, fine seam adjustment can begin.
For initial handling and positioning, Speedone’s Professional Electric Suction Cup for Glass, Stone and Porcelain Slab Handling can support suitable stone and panel-handling tasks before the precision seam-setting stage.
Vacuum Seam Setter vs. Manual Seam Setting
| Installation Factor | Manual Method | Vacuum Seam Setter |
|---|---|---|
| Gripping point | Hands or improvised methods | Vacuum attachment |
| Seam closing | Manual force | Controlled adjustment |
| Fine positioning | More difficult | Designed for small corrections |
| Heavy countertops | Greater physical effort | Reduced manual movement |
| Position during bonding | Harder to maintain | More stable on suitable systems |
What Surfaces Can a Vacuum Seam Setter Grip?
Vacuum performance depends on the surface. The suction pad must be able to create and maintain a suitable seal.
Compatible applications may include:
- Polished granite
- Quartz
- Engineered stone
- Marble
- Glass
- Porcelain slabs
- Other smooth, sufficiently non-porous surfaces
Rough, highly textured, porous, wet, dusty, damaged, or uneven surfaces may reduce suction performance.
Where a stable individual suction point is required, Speedone’s Heavy Duty Fixed Suction Cup for Glass and Stone provides another option for compatible smooth materials.
Key Components of a Vacuum Seam Setter
Vacuum Suction Cups
The suction cups create temporary gripping points on the countertop. Their condition and surface compatibility are critical for stable operation.

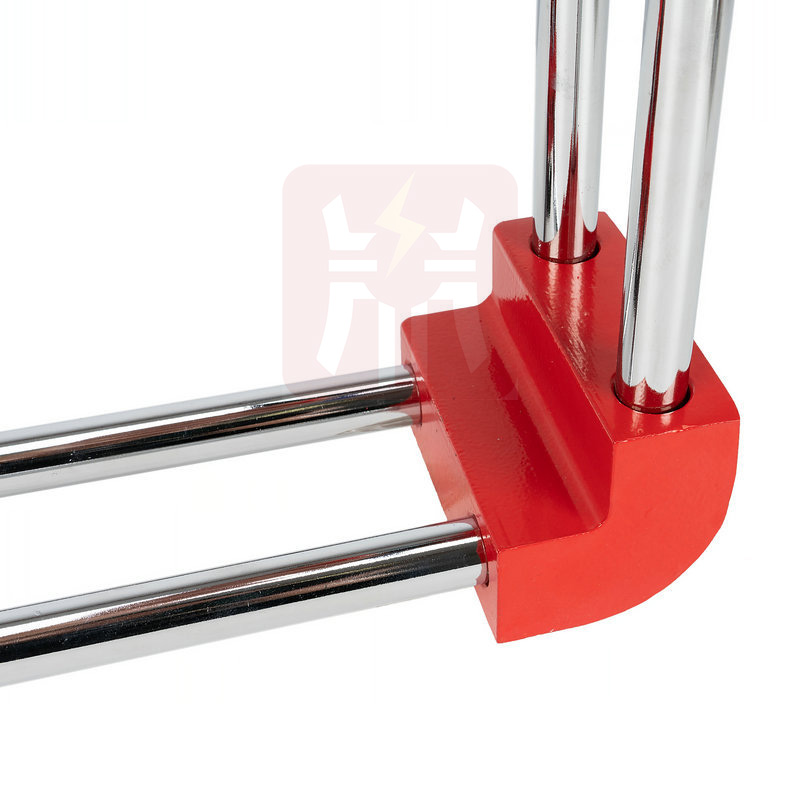

Connecting Structure
A rigid connection between the two gripping points helps transfer adjustment force in a controlled way.
Horizontal Adjustment Mechanism
This mechanism allows the installer to reduce the seam gap gradually instead of using sudden manual force.
Leveling Mechanism
Some models provide vertical adjustment to help correct small height differences across the seam.
Release Controls
A practical release mechanism allows the suction cups to be removed after the seam-setting process is complete.
Connecting Bars and Accessories
Some vacuum handling systems use connecting structures to combine multiple gripping points into a more stable setup.
Speedone also offers an Aluminum Bar for Grabo Suction Cup for compatible applications where suction cups need to be connected into a larger handling or positioning system.
Before combining components, always check:
- Connection dimensions
- Mechanical compatibility
- Working capacity
- Force direction
- Intended application
Vacuum Seam Setter vs. Vacuum Lifter
Both products use suction technology, but their main functions are different.
| Feature | Vacuum Seam Setter | Vacuum Lifter |
|---|---|---|
| Main purpose | Countertop seam adjustment | Material lifting and positioning |
| Seam closing | Primary function | Not the primary function |
| Fine alignment | Designed for this task | Limited |
| Heavy slab lifting | Not the main purpose | Primary function |
| Holding during bonding | Suitable on applicable models | Not the main purpose |
For suitable heavy stone, glass, and porcelain handling before seam adjustment, Speedone’s Heavy Duty Suction Lifter for Glass, Stone and Porcelain Slabs can support the lifting and positioning stage.
A practical workflow is:
Lift → Move → Position → Dry Fit → Vacuum Grip → Align → Bond → Finish
How to Use a Vacuum Seam Setter
Inspect the Countertop
Check both sections for damage and make sure the seam edges have been properly fabricated.
Check the Support
Both pieces should rest on stable and properly prepared support before fine adjustment begins.
Dry Fit the Joint
Bring the sections together without adhesive first and inspect how the fabricated edges meet.
Clean the Suction Areas
Remove dust, moisture, grease, polishing residue, and other contaminants from the intended gripping areas.
Position the Vacuum Cups
Place the suction cups at suitable locations on opposite sides of the seam.
Check the Vacuum Grip
Confirm secure attachment before applying any adjustment force.
Close the Seam Gradually
Use the adjustment mechanism in small steps and watch the joint continuously.
Check the Surface Level
Inspect the transition across the seam and use the leveling mechanism if the model provides one.
Apply the Adhesive
Use an adhesive suitable for the countertop material and follow the adhesive manufacturer’s instructions.
Maintain the Position
Keep the joint stable during the required bonding period.
Release and Finish
Carefully release the vacuum cups and complete the final seam cleaning and finishing.
How to Choose the Right Vacuum Seam Setter
Vacuum Holding Performance
The suction system should be suitable for the surfaces and working conditions your team normally handles.
Horizontal Pulling Control
Look for a system that allows gradual seam closing rather than abrupt movement.
Leveling Capability
If flush surface alignment is important, choose a model with suitable vertical adjustment.
Construction Quality
Professional equipment should be durable enough for repeated transport, setup, adjustment, and job-site use.
Adjustment Accessibility
The controls should remain easy to operate when the tool is positioned near walls, backsplashes, or other restricted areas.
Serviceable Components
Replacement suction pads, seals, and other wear parts can make long-term maintenance easier.
Vacuum Seam Setter vs. Seam Puller vs. Seam Clamp
Different suppliers may use different names for similar tools. Buyers should focus on the actual functions.
| Tool Type | Main Function | Typical Application |
|---|---|---|
| Vacuum Seam Setter | Vacuum gripping and seam adjustment | Granite and quartz countertop joints |
| Seam Puller | Pulling two sections together | Closing countertop seams |
| Seam Clamp | Holding pieces in position | Bonding and assembly |
| Leveling Setter | Correcting height differences | Flush countertop joints |
 |
 |

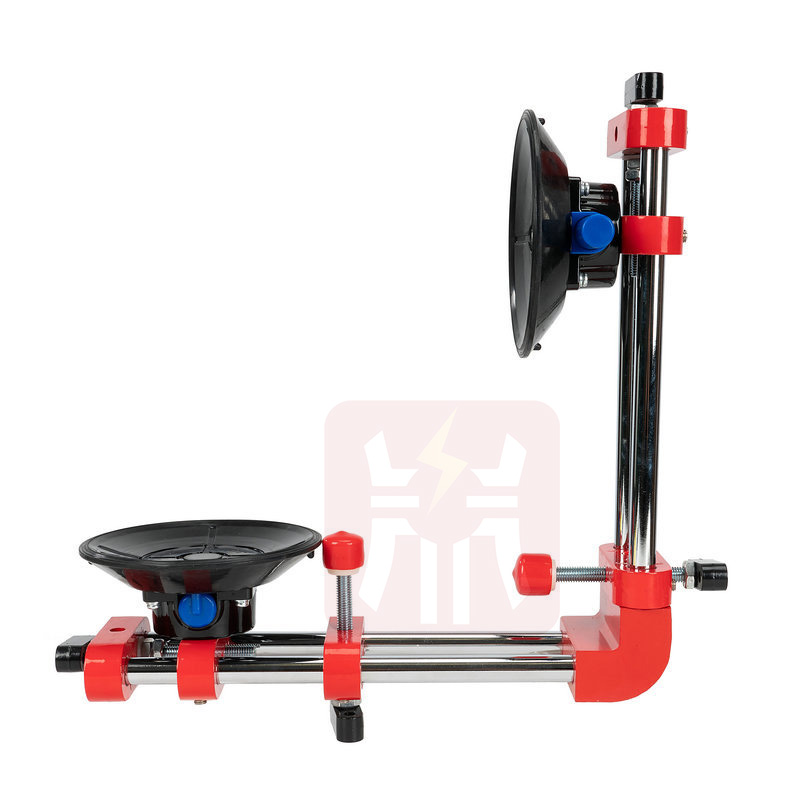

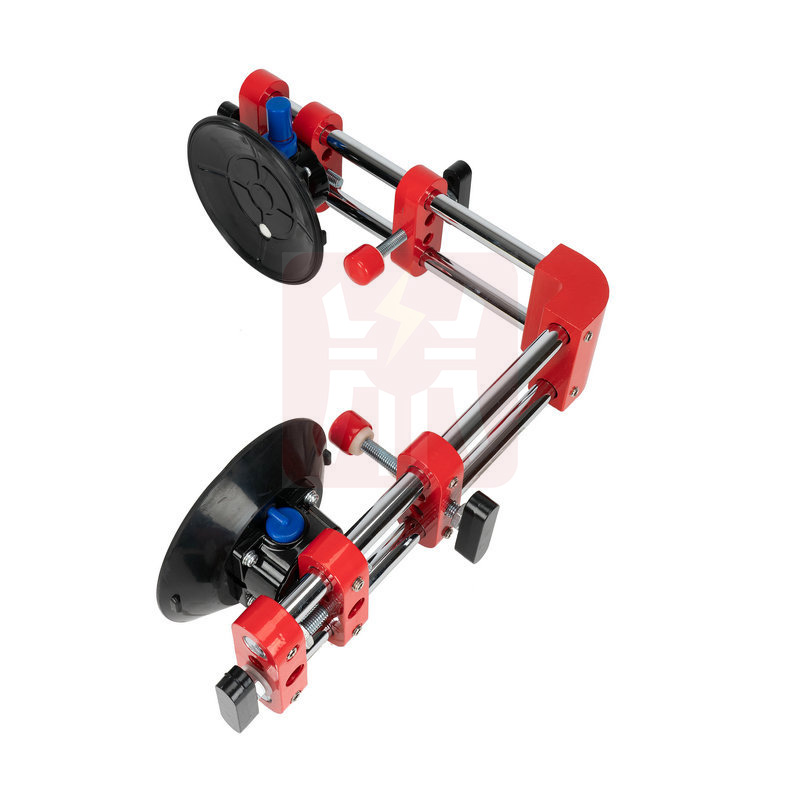

| Product multi-angle display | |
Common Vacuum Seam Setting Problems
Vacuum Cannot Be Established
Check whether the surface is clean, smooth, and compatible. Inspect the suction pad or seal for dirt, wear, or damage.
Vacuum Drops During Adjustment
Stop applying force and inspect the gripping system. Do not continue while the suction point is unstable.
The Joint Will Not Close
Check the edge shape, countertop support, nearby obstructions, and initial position before applying more force.
The Surfaces Are Not Flush
Check cabinet level, support height, stone thickness, and countertop position before relying on the leveling mechanism.
The Countertop Moves During Curing
Keep the seam stable for the bonding period specified by the adhesive manufacturer.
Who Uses Vacuum Seam Setters?
- Granite countertop fabricators
- Quartz countertop installers
- Stone fabrication shops
- Kitchen installation contractors
- Countertop installation teams
- Commercial fit-out companies
- Stone equipment distributors
- Professional installation tool suppliers
Why Choose Speedone?
Speedone specializes in professional equipment for stone, glass, porcelain, tile, and related material-handling applications.
Our product range supports different stages of countertop handling and installation, including electric suction tools, fixed suction systems, heavy-duty lifters, and compatible accessories.
- Solutions for stone and countertop professionals
- Equipment for granite, quartz, marble, glass, and porcelain
- Electric and fixed suction solutions
- Heavy-duty material-handling equipment
- Accessories for compatible suction systems
- Solutions for fabrication shops and installation teams
- OEM and ODM support
For professional installers, the best workflow separates heavy material handling from precision seam work. Use suitable lifting equipment to move the stone, then use the vacuum seam setter for controlled final alignment and bonding.
Frequently Asked Questions
What is a vacuum seam setter?
A vacuum seam setter is a countertop installation tool that uses suction cups to grip adjacent sections while an adjustment mechanism helps close, align, and, on suitable models, level the joint.
Can a vacuum seam setter be used for granite?
Yes. Suitable models can be used on compatible granite surfaces when the suction system, working capacity, and installation conditions meet the equipment requirements.
Can I use a vacuum seam setter on quartz countertops?
Yes. Quartz is a common application for suitable seam-setting systems, especially when controlled joint closing and alignment are required.
What is the difference between a vacuum seam setter and a suction lifter?
A vacuum seam setter is designed for precision seam adjustment between supported countertop sections. A suction lifter is mainly designed to lift, move, and position materials.
Why does a vacuum seam setter lose suction?
Possible causes include dust, moisture, rough texture, porosity, worn sealing components, incorrect cup position, or an unsuitable surface.
Can a vacuum seam setter level countertop joints?
Some models provide leveling adjustment to help correct small height differences between adjacent countertop sections.
Can a vacuum seam setter lift a granite slab?
A seam setter should not be used as a primary lifting device unless the manufacturer specifically approves it for that purpose. Heavy slabs should be handled with suitable lifting equipment.
