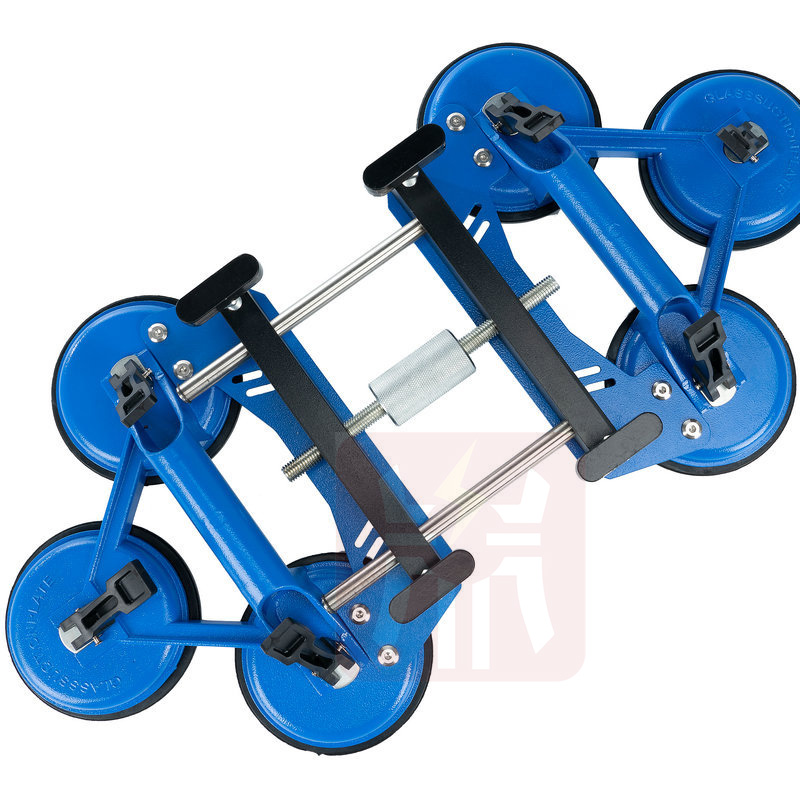

Quartz Seam Setter for Countertop Joining & Leveling

Heavy Duty Quartz Seam Setter for Countertop Joint Alignment & Leveling

What Is a Quartz Seam Setter?

Product Introduction

A quartz seam setter is a professional countertop installation tool used to position and align two quartz sections where they meet at a fabricated joint.

Quartz countertops are often made from more than one piece. Slab size, kitchen layout, transportation limits, sink and cooktop cutouts, building access, and large island designs can all make a single-piece installation impractical.

After the sections are placed on the cabinets or support structure, they still require final adjustment at the seam.

This may include:

• Reducing the joint gap
• Matching the front edges
• Correcting horizontal position
• Leveling the two quartz surfaces
• Keeping the joint stable during bonding

Because quartz sections can be large and heavy, moving the entire countertop repeatedly by hand is difficult. A dedicated seam setter allows the installer to make much smaller adjustments directly around the joint.

Why Use a Quartz Seam Setter?

A good quartz seam depends on more than accurate cutting. Even well-prepared edges can look uneven if the two countertop sections are not positioned correctly during installation.

Common problems include:

• Uneven seam width
• One section sitting higher than the other
• Misaligned front edges
• Visible lippage across the joint
• Movement while the adhesive cures
• Difficulty making small corrections by hand

A quartz seam setter gives installers better control during this final precision stage.

Controlled Seam Closing

The tool helps bring the two sections together gradually instead of relying entirely on manual pushing or pulling.

Fine Horizontal Alignment

Small side-to-side corrections can be made while the installer continues to check the seam and surrounding reference points.

Surface Leveling

Suitable models may provide vertical adjustment to reduce small height differences between the adjoining quartz surfaces.

Stable Position During Bonding

Once the required alignment is achieved, the tool can help maintain the position while the adhesive reaches the required curing stage.

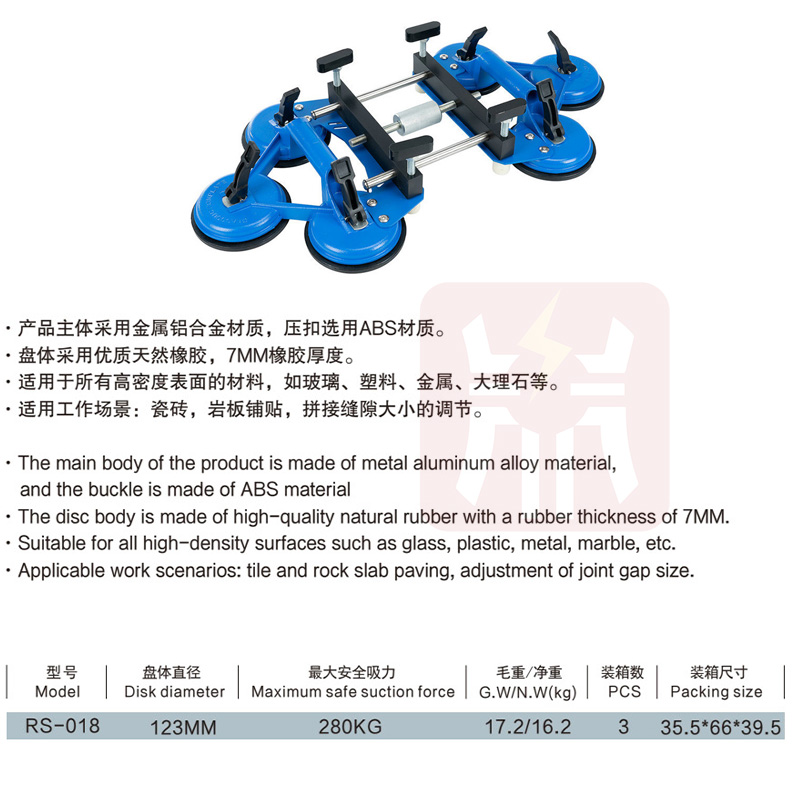

Product Details

How Does a Quartz Seam Setter Work?

Many professional seam-setting systems use vacuum suction cups positioned on opposite sides of the joint.

The cups create temporary gripping points on suitable smooth quartz surfaces. A connecting structure and adjustment mechanism then allow controlled force to be transferred between the two countertop sections.

Instead of moving the entire stone section, the installer can make gradual corrections close to the seam.

A practical workflow is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

For installers who specifically need vacuum-based seam adjustment, Speedone’s Vacuum Seam Setter for Granite and Quartz Countertops provides a related solution focused on suction gripping and controlled countertop alignment.

Quartz Seam Setter for Countertop Joint Closing

One of the main jobs of a quartz seam setter is to bring two fabricated sections together in a controlled way.

Professional seam setting is not about applying maximum force. Too much or uneven force can move the countertop out of position, disturb the front edge, or place unnecessary stress around cutouts.

The better approach is gradual adjustment.

Check the Initial Joint

Dry fit the countertop sections first so obvious fabrication or support problems can be identified before bonding.

Establish Secure Gripping

Position the seam setter on suitable areas on both sides of the joint and confirm that the gripping points are stable.

Apply Small Adjustments

Bring the sections together in small steps while monitoring the seam width.

Check the Front Edge

The visible countertop edge should remain correctly aligned throughout the adjustment process.

This controlled method makes it easier to correct problems before the adhesive starts curing.

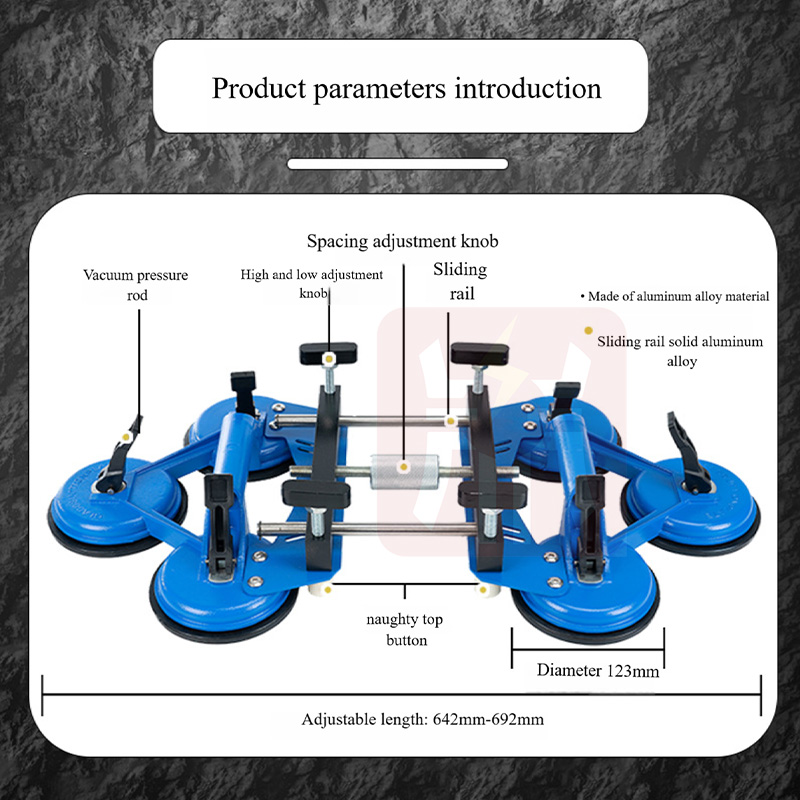

Quartz Seam Setter for Flush Surface Leveling

A narrow joint is only one part of a professional quartz installation. The surfaces on both sides of the seam should also transition as evenly as possible.

If one quartz section sits slightly higher than the other, the difference can be visible under lighting and can also be felt when a hand moves across the countertop.

Suitable seam setters may include a leveling mechanism for small vertical corrections.

Before using the setter for leveling, check whether the height difference is actually caused by:

• Uneven cabinetry
• Different support heights
• Incorrect shimming
• Debris beneath the countertop
• Material thickness variation
• Fabrication tolerance
• Incorrect initial placement

A seam setter is intended for fine adjustment. It should not be used to compensate for major support or fabrication problems.

For projects where a particularly smooth and refined seam is required, Speedone’s Seamless Seam Setter for Granite and Quartz Countertops provides another option for precision seam joining and leveling.

Quartz Seam Setter vs. Manual Countertop Alignment

Product details presentation

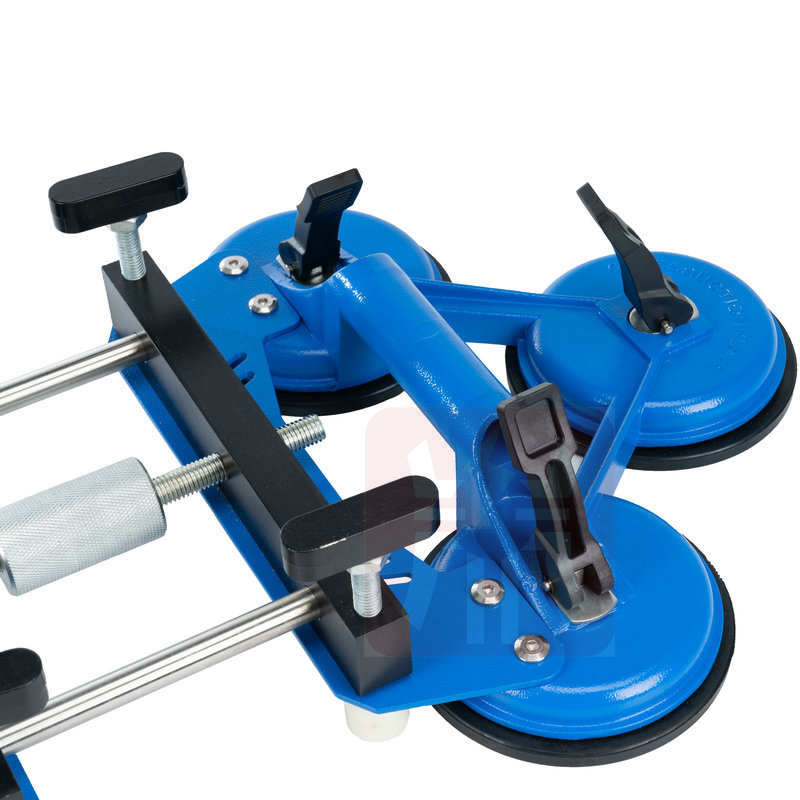

Vacuum Suction for Quartz Seam Setting

Vacuum gripping is commonly used on compatible quartz surfaces because polished finishes can often provide a suitable contact area for suction pads.

The suction cup creates a temporary gripping point without drilling into the finished countertop.

However, reliable suction depends on both the surface and the condition of the equipment.

Before using the seam setter, check:

• Surface cleanliness
• Surface finish
• Suction pad condition
• Seal condition
• Vacuum stability
• Material compatibility
• Tool condition
• Direction of applied force

Dust, water, polishing residue, oil, damaged pads, worn seals, and unsuitable textures can reduce suction performance.

If vacuum stability decreases during adjustment, stop the operation and inspect the gripping system before continuing.

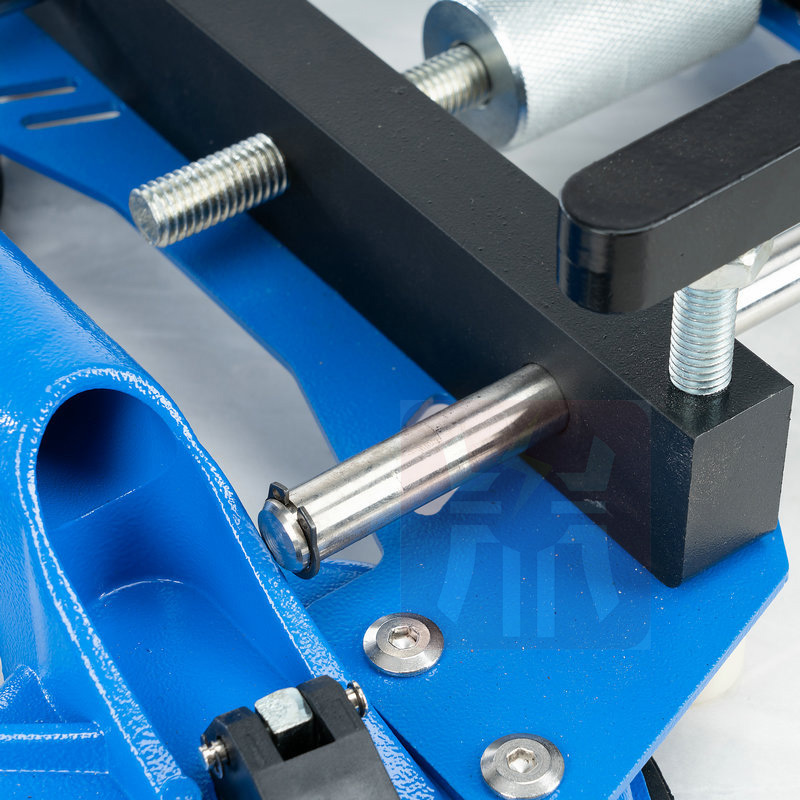

Heavy Duty Quartz Seam Setter for Professional Use

Professional countertop installers may use seam setters repeatedly in workshops, residential kitchens, renovation projects, and commercial installation sites.

For regular professional use, buyers should consider more than the appearance of the tool.

Important factors include:

• Frame rigidity
• Adjustment precision
• Reliable gripping
• Accessible controls
• Ease of positioning
• Replaceable suction components
• Material compatibility
• Suitability for repeated job-site use

For installers who need a heavy-duty solution for both quartz and granite, Speedone’s Heavy Duty Seam Setter Tool for Granite and Quartz Countertops provides another professional seam-setting option.

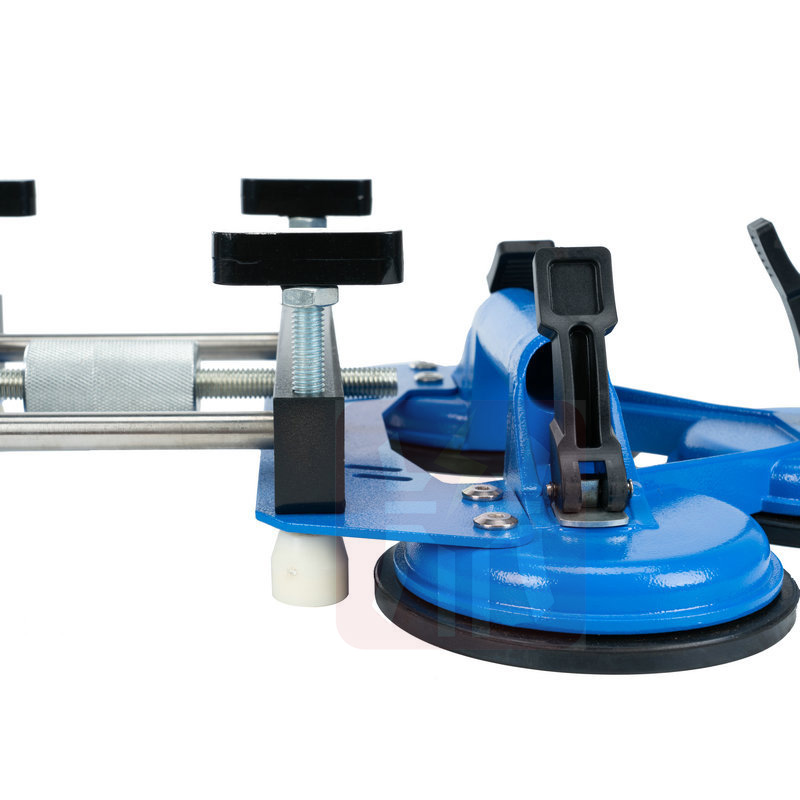

Quartz Seam Setter for Kitchen Countertops

Kitchen countertops are one of the most common applications for quartz seam-setting tools.

Seams may be required around:

• L-shaped corners
• U-shaped kitchens
• Sink sections
• Cooktop sections
• Long countertop runs
• Peninsulas
• Large kitchen islands
• Waterfall countertop assemblies

The seam setter becomes most useful after the major countertop sections have already been positioned safely and only require final precision adjustment.

Product details

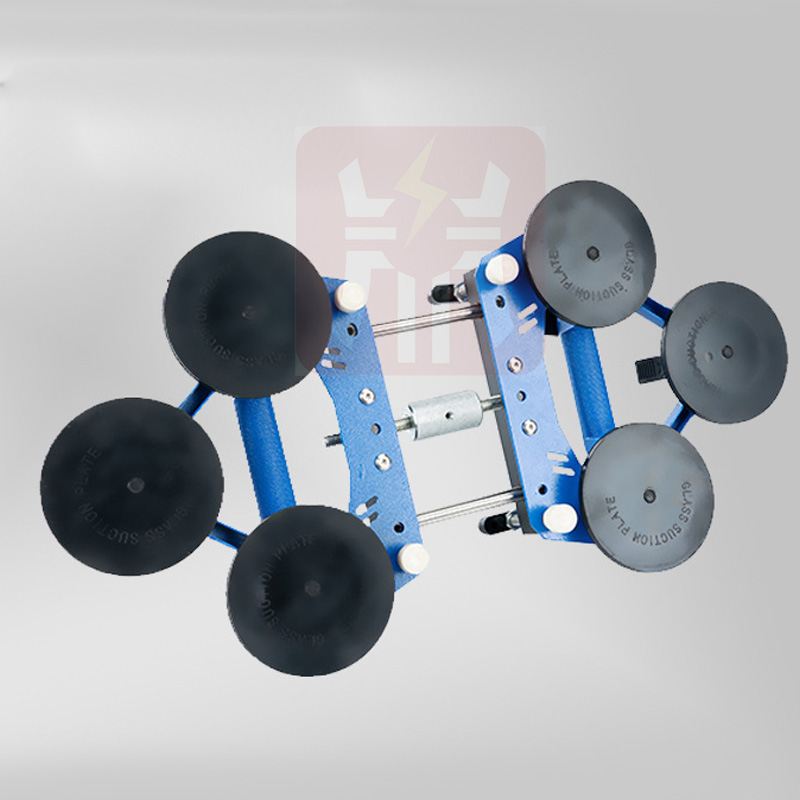

Quartz Seam Setter for Kitchen Islands

Large quartz islands can be difficult to manufacture, transport, and install as one continuous piece.

Depending on the project, several fabricated sections may be required because of slab dimensions, building access, or the final island design.

Because kitchen islands are highly visible from several directions, accurate seam positioning is especially important.

A quartz seam setter can help control:

• Joint gap
• Surface transition
• Front-edge alignment
• Relative surface height
• Position during bonding

Quartz Seam Setter for Worktop Installation

The terms countertop and worktop often refer to the same general application but are more common in different markets.

“Countertop” is widely used in North America, while “worktop” is common in the UK and several other markets.

The installation requirement remains the same: separate fabricated sections need to be accurately joined and held in position during bonding.

For distributors and contractors targeting worktop-related markets, Speedone’s Worktop Seam Setter for Granite and Quartz Countertops provides a related solution for professional worktop installation.

Quartz Seam Setter vs. Stone Seam Setter Tool

A quartz seam setter has a specific application focus: quartz countertop installation.

A stone seam setter tool is broader and may be useful for fabrication shops working with several compatible countertop materials.

For fabrication companies working with quartz, granite, and other materials, Speedone’s Stone Seam Setter Tool for Granite and Quartz provides a broader professional tool option.

Quartz Seam Setter vs. Countertop Seam Setter

The main difference is the application focus.

A quartz seam setter specifically targets quartz countertop installation, while a general countertop seam setter may be intended for several compatible materials.

Multi-material installers may work with:

• Quartz
• Granite
• Marble
• Engineered stone
• Other compatible countertop surfaces

For these applications, Speedone’s Heavy Duty Countertop Seam Setter for Granite and Quartz provides another option for broader countertop installation work.

Quartz Seam Setter vs. Seam Puller vs. Seam Leveler

How to Use a Quartz Seam Setter

Inspect the Fabricated Edges

Check both quartz sections for chips, contamination, damage, or fabrication problems before installation.

Check the Supporting Structure

Make sure the cabinets or other support structure are stable and correctly prepared.

Dry Fit the Quartz Sections

Bring the sections close together without adhesive and inspect the joint from several angles.

Clean the Vacuum Contact Areas

If suction cups are used, remove dust, water, oil, grease, and polishing residue from the gripping areas.

Position the Seam Setter

Place the gripping points on suitable areas on opposite sides of the seam.

Confirm Secure Vacuum

Make sure every suction cup has established a stable grip before mechanical adjustment begins.

Close the Joint Gradually

Use small adjustments while continuously checking seam spacing.

Check Horizontal Alignment

Make sure the visible countertop edges and other reference points remain correctly aligned.

Correct Minor Height Differences

If the model provides leveling adjustment, make small vertical corrections until the desired surface transition is achieved.

Apply the Seam Adhesive

Use a bonding system suitable for the countertop material and follow the adhesive manufacturer’s instructions.

Maintain the Position

Keep both quartz sections stable during the required bonding period.

Release and Finish

After the seam has become stable, carefully release the gripping system and complete the final cleaning and finishing.

How to Choose the Right Quartz Seam Setter

Quartz Surface Compatibility

Make sure the gripping system is suitable for the quartz finishes your company normally installs.

Reliable Gripping

A stable gripping system is important for predictable adjustment.

Fine Seam Adjustment

Professional seam work benefits from gradual and controlled movement rather than sudden pulling.

Leveling Capability

If flush joints are important, choose a configuration with suitable vertical adjustment.

Rigid Connecting Structure

A rigid structure helps transfer adjustment more consistently between the gripping points.

Accessible Controls

The adjustment controls should remain easy to operate near walls, sinks, backsplashes, corners, and other common obstacles.

Replaceable Suction Components

Suction pads and seals are working components and may need replacement during long-term professional use.

Multi-Material Compatibility

If your company also installs granite or engineered stone, consider whether one tool can support several compatible materials.

Common Quartz Seam Installation Problems

The Quartz Seam Will Not Close

Do not simply increase pulling force. Check the fabricated edges, countertop position, support conditions, adhesive space, and nearby obstructions first.

One Side Is Higher Than the Other

Check the cabinets, support, shims, material thickness, and countertop position before using the setter for fine leveling.

The Vacuum Cup Loses Suction

Stop adjustment and inspect the surface, suction pad, seal, and vacuum condition before continuing.

The Front Edges Become Misaligned

Reduce the adjustment force and reposition the countertop sections before continuing to close the joint.

The Joint Moves During Curing

Maintain the required position for the bonding period specified by the adhesive manufacturer.

Too Much Force Is Required

Do not use a seam setter to force together sections with major fabrication, support, or initial-positioning problems.

Who Uses Quartz Seam Setters?

• Quartz countertop fabricators
• Kitchen countertop installers
• Stone fabrication shops
• Residential installation contractors
• Commercial fit-out companies
• Countertop factories
• Stone equipment distributors
• Professional installation tool suppliers

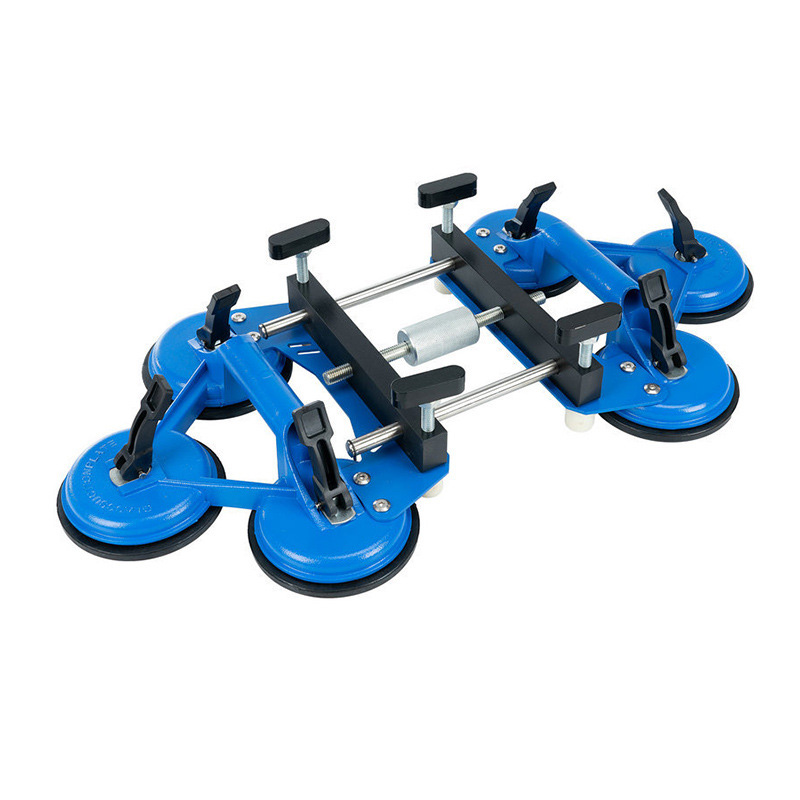

Why Choose Speedone?

Speedone develops professional equipment for stone fabrication, countertop installation, slab handling, glass, porcelain, and related material-handling applications.

For quartz countertop projects, seam setting works best as part of a complete installation process rather than as an isolated operation.

A practical workflow is:

Position → Dry Fit → Vacuum Grip → Pull → Align → Level → Bond → Finish

• Solutions for quartz countertop installation
• Equipment for granite and stone fabrication
• Vacuum-based gripping systems
• Professional countertop installation tools
• Solutions for fabrication shops and factories
• Heavy-duty professional applications
• OEM and ODM support
• Solutions for distributors and tool suppliers

Frequently Asked Questions

What is a quartz seam setter?

A quartz seam setter is a professional countertop installation tool used to help pull together, align, level, and stabilize adjoining quartz sections during seam installation.

What is a quartz seam setter used for?

It is mainly used for fine seam adjustment after quartz countertop sections have already been positioned close to their final installation location.

Does a quartz seam setter use vacuum suction cups?

Many professional seam setters use vacuum suction cups to create temporary gripping points on suitable smooth quartz surfaces.

Can a quartz seam setter level countertop joints?

Suitable models may provide vertical adjustment to help correct small height differences between adjoining countertop sections.

Can a quartz seam setter also be used for granite?

Some seam-setting systems are suitable for both quartz and granite. Always confirm the material compatibility, gripping system, surface condition, and working requirements of the specific model.

What is the difference between a quartz seam setter and a seam puller?

A seam puller mainly draws the countertop sections together, while a quartz seam setter may also provide horizontal alignment, leveling, and temporary stabilization.

Can I use a quartz seam setter to lift countertops?

A seam setter should not be used as primary lifting equipment unless the manufacturer specifically approves it for that purpose. Quartz sections should be moved with suitable handling equipment.

What should I look for when buying a quartz seam setter?

Important factors include reliable gripping, fine pulling control, leveling capability, structural rigidity, accessible adjustment controls, replacement suction components, and compatibility with the countertop materials you install.
