Large Format Tile Carrying System for Porcelain Slabs & Panels

What Is a Large Format Tile Carrying System?

Product information parameters

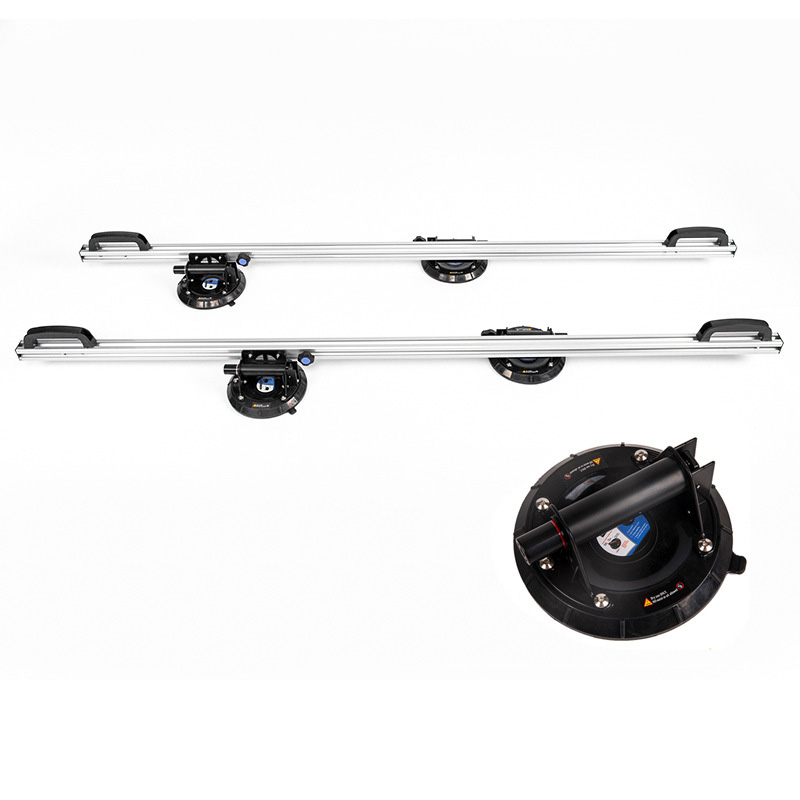

A Large Format Tile Carrying System is a frame-based handling tool designed for oversized ceramic and porcelain panels.

Unlike a single tile suction cup, the system normally extends across a much larger area of the panel. Several suction cups can be positioned along the frame, while handles give installers defined gripping points during movement.

A typical system may include:

• Aluminum or steel carrying rails
• Reinforcing crossbars
• Multiple vacuum suction cups
• Adjustable cup positions
• Carrying handles
• Extension handles
• Frame connectors and locking points
• Optional trolley compatibility
• Storage or transport accessories

The exact configuration depends on the selected model.

The purpose of the system is not simply to create more suction. Its main advantage is distributing gripping and operator control across a larger panel.

Why Large Format Tiles Need a Carrying System

Large-format porcelain is much more difficult to handle than conventional tile.

As panel dimensions increase, installers need to control not only the weight but also the long span of the material.

Common challenges include:

• Limited access to tile edges
• Long unsupported spans
• Panel flex during movement
• Difficult turning and rotation
• Limited access through doors and hallways
• Coordinating several installers
• Accurate placement on walls or floors

A professional tile carrying system creates several gripping points across the panel and gives the team a rigid structure to hold.

This can be especially useful for:

• Large porcelain tiles
• Thin porcelain slabs
• Large ceramic sheets
• Oversized floor tiles
• Large wall panels
• Sintered stone panels
• Compatible decorative panels
• Other approved large-format materials

Always confirm the actual material, dimensions, surface finish and working capacity before use.

How Does a Large Format Tile Carrying System Work?

The system combines a structural carrying frame with multiple suction gripping points.

First, the frame is adjusted to match the approximate size of the panel. The suction cups are then positioned on suitable areas of the tile.

Each suction cup is activated and checked before the panel is moved.

Once the gripping points are secure, the installers use the handles to lift and carry the complete panel.

A practical workflow is:

Inspect → Adjust Frame → Position Cups → Activate Suction → Verify Grip → Lift → Carry → Position → Support → Release

The frame, suction cups and installers work together as one handling system. A strong frame cannot compensate for an unsecured suction cup, and strong suction cups cannot replace proper frame control.

Large Format Tile Carrying System vs. Single Tile Suction Cup

A single suction cup and a full carrying system both help with tile handling, but they are designed for different levels of work.

A single suction cup is useful for many tile-installation tasks. However, when the panel becomes large enough that balance, flexibility and team coordination become major concerns, a carrying frame provides a more complete handling structure.

For large-panel suction gripping, Speedone also provides a tile suction cup for large-format porcelain and stone.

Main Components of a Large Format Tile Carrying System

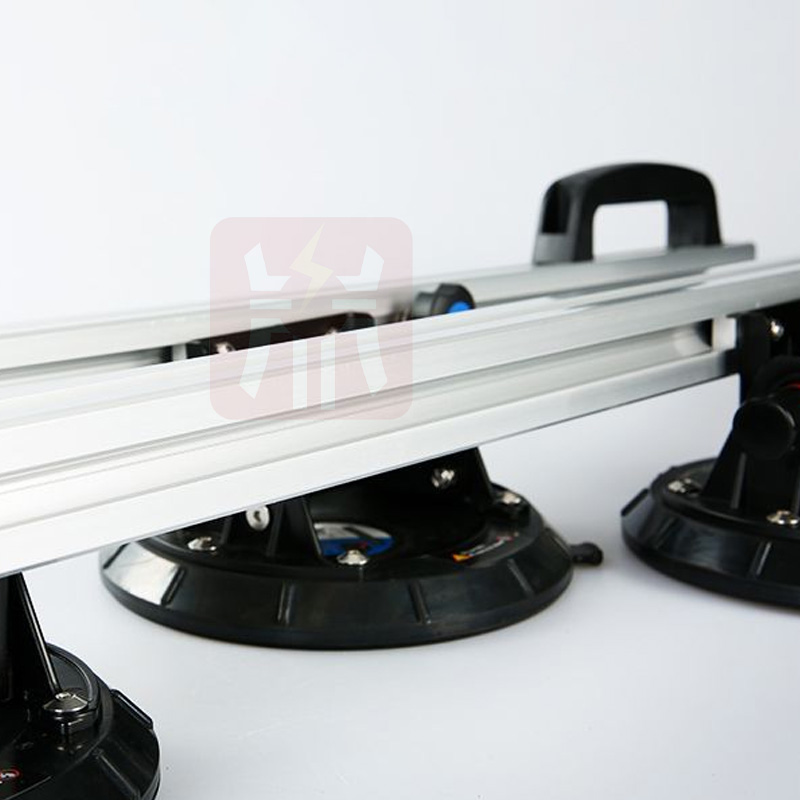

Adjustable Carrying Frame

The frame is the main structural part of the system.

It spans across the panel and provides mounting positions for suction cups, crossbars and handles.

An adjustable design can make one system suitable for several panel sizes within its approved working range.

Reinforcing Crossbars

Crossbars help connect the main rails and improve structural control.

They become especially useful when handling long panels where uncontrolled flex or movement can be a concern.

Vacuum Suction Cups

Multiple suction cups connect the carrying system to the panel surface.

The number, pad design and vacuum mechanism depend on the specific system.

Every suction point should be checked before the panel is lifted.

Carrying Handles

Handles provide defined positions for installers to control the frame.

Depending on the model, handles may be fixed, sliding, removable or extendable.

Connectors and Locking Mechanisms

Adjustable frames use connectors and locks to hold rails and crossbars in position.

All locking points should be fully engaged before loading the system.

Product details

Why Multiple Suction Cups Matter

A large tile needs more than one strong gripping point.

Several suction cups can help distribute gripping locations across the panel and reduce reliance on one small area.

This can improve control during:

• Lifting
• Carrying
• Turning
• Moving through restricted areas
• Positioning on walls or floors

However, more suction cups do not automatically mean higher permitted capacity.

The working capacity depends on the complete system, including:

• Frame strength
• Suction cup position
• Panel size
• Panel weight
• Surface compatibility
• Center of gravity
• Number of operators
• Handling direction

Always use the manufacturer’s rating for the complete carrying system.

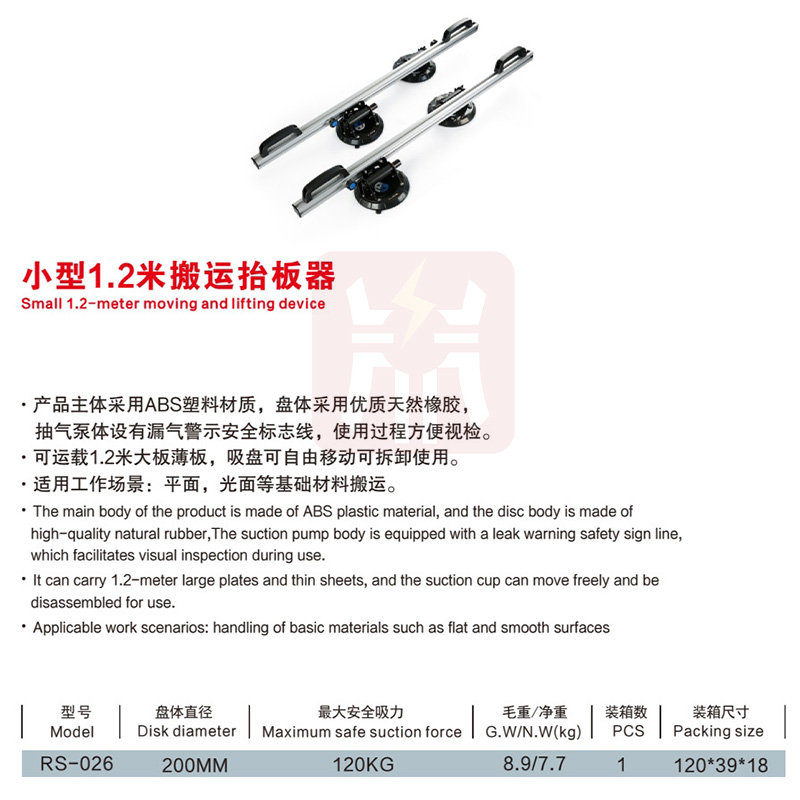

Large Format Tile Carrying System for Porcelain Slabs

Porcelain slabs are one of the main applications for large-format carrying systems.

Modern porcelain panels can be very long and wide while remaining relatively thin.

This makes them suitable for walls, floors, work surfaces and decorative applications, but it can also make them difficult to handle.

A carrying frame distributes gripping points across the panel and provides installers with defined positions for controlling the material.

This can help during movement from storage to fabrication equipment and from cutting areas to the final installation location.

Large Format Tile Carrying System for Thin Porcelain Panels

A thin porcelain panel is not necessarily easy to carry.

Even when the panel is relatively light for its size, its long span can flex during movement.

A suitable frame with several gripping points can help installers control the panel and reduce uncontrolled bending during transport.

Avoid sudden twisting, bending or rapid changes in direction.

The panel manufacturer’s handling recommendations should also be followed.

Large Format Tile Carrying System for Floor Tiles

Large floor tiles can be difficult to lower onto adhesive while maintaining alignment.

A carrying system gives several installers controlled gripping positions and helps the team guide the panel toward the floor.

After the panel reaches the installation area, installers can follow the required procedure for adhesive coverage, alignment and bedding.

The system should only be released after the tile is properly supported.

Large Format Tile Carrying System for Wall Tiles

Large wall panels create another challenge because installers must move the material from a carrying position toward a vertical surface.

A carrying system can help several installers coordinate this transition.

Typical applications include:

• Bathroom wall panels
• Shower areas
• Feature walls
• Large kitchen backsplashes
• Commercial interiors
• Retail projects
• Hotel interiors

The carrying frame only assists with handling and positioning. It does not replace the permanent adhesive or fixing system.

Large Format Tile Carrying System for Cutting and Fabrication

Large-format panel handling starts before installation.

A typical fabrication workflow may include:

Unpack → Inspect → Carry → Position → Cut → Drill → Finish → Transfer → Install

A carrying system can help move the panel between several of these stages.

After cutting, the shape and balance of the panel may change. Sink cutouts, cooktop openings and other fabricated areas can also affect panel strength and balance.

Extra care may therefore be required when moving a finished piece.

Large Format Tile Carrying System for Jobsite Transport

Moving a large tile through a jobsite can be one of the most difficult stages of installation.

The panel may need to pass through:

• Doorways
• Narrow hallways
• Elevators
• Stairs
• Finished rooms
• Commercial construction areas

A carrying frame gives the installation team defined gripping positions.

Before moving the panel, plan the complete route and confirm that the material can pass through all restricted areas.

The team should also know where the tile can be safely placed if movement needs to stop.

Carrying Frame vs. Tile Transport Trolley

A carrying frame and a transport trolley perform different jobs.

The frame grips and controls the panel during lifting and positioning.

A trolley supports the panel while it is rolled across a suitable floor.

The two tools can be used together.

A typical workflow may be:

Lift with Frame → Place on Trolley → Roll to Work Area → Lift Again → Install

A trolley can reduce how far workers physically carry the panel, while the frame remains important when the tile must be lifted on or off the trolley.

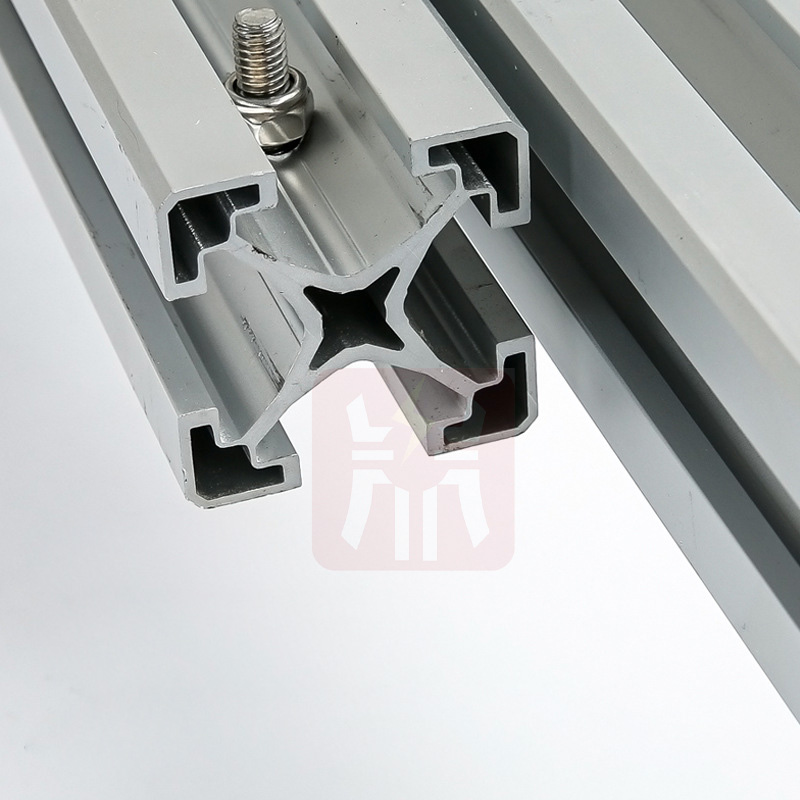

Aluminum vs. Steel Tile Carrying Frames

Aluminum Frames

Aluminum is commonly used for carrying systems because it can provide useful rigidity while keeping the tool weight manageable.

This can be valuable for installers who move equipment between jobsites frequently.

Steel Frames

Steel can provide high structural strength, although the complete system may be heavier depending on its design.

Professional buyers should compare the entire system rather than selecting only by frame material.

Frame geometry, crossbars, handles, locks and suction-cup arrangement are also important.

Fixed vs. Adjustable Large Format Tile Carrying System

Neither design is automatically better. The right choice depends on the panel sizes your team handles most often.

How to Position Suction Cups on a Large Tile

Suction cup position affects both grip and panel balance.

The cups should normally be distributed across suitable areas of the panel.

Avoid placing pads over:

• Panel edges
• Large cutouts
• Damaged areas
• Severe surface texture
• Areas not approved by the equipment instructions

Also consider the center of gravity.

A panel with a sink opening or other large cutout may balance differently from an uncut rectangular slab.

The goal is not to attach every available suction cup. The goal is to create a suitable and balanced gripping arrangement.

Large Format Tile Carrying System for Smooth and Textured Surfaces

Polished Porcelain

Smooth polished porcelain can provide favorable sealing conditions for compatible suction pads.

Smooth Ceramic Slabs

Smooth ceramic panels may also work well with suitable suction-cup designs.

Matte Porcelain

Matte finishes vary. Some are relatively smooth, while others have more noticeable surface structure.

Structured Tile

Deep texture can create air channels underneath conventional suction pads.

Specialized suction cups may therefore be required.

Porous Materials

Porous surfaces can make conventional vacuum gripping unsuitable.

The carrying frame cannot compensate for a suction cup that cannot form an adequate seal.

Large Format Tile Carrying System vs. Glass Handling Equipment

Tile carrying frames and glass handling systems can look similar because both may use multiple suction cups.

However, glass and porcelain do not always behave the same way.

Glass is normally smooth and non-porous, while porcelain is available in polished, matte and structured finishes.

For glazing applications, Speedone’s glass suction cups for vacuum lifting and handling provide a dedicated solution for compatible glass panels.

Do not assume that every tile carrying system is automatically suitable for glass.

Large Format Tile Carrying System vs. Countertop Seam Tool

Large porcelain panels are also used for countertops, which can create confusion between carrying equipment and seam-setting tools.

A carrying system moves and positions the panel.

A seam setter adjusts the joint between two countertop sections after they are safely supported.

For granite and quartz countertop work, Speedone’s countertop seam tool for granite and quartz is designed for joint alignment and seam adjustment.

The carrying frame should not be used as a substitute for a dedicated seam-setting tool.

Large Format Tile Carrying System in Countertop Installation

A countertop installation can involve several separate stages:

Fabrication → Carrying → Transport → Positioning → Support → Seam Setting → Finishing

The carrying system is mainly used during movement and positioning.

Once the countertop sections are properly supported, seam-setting equipment can be used.

For that stage, Speedone’s stone pro seam setter for granite and quartz countertops provides a dedicated precision-adjustment solution.

Large Format Tile Carrying System in Kitchen Installation

Modern kitchens may use large-format porcelain for floors, backsplashes, walls and work surfaces.

This means a single project can include tile handling, countertop installation and cabinet fitting.

Each task requires different equipment.

A carrying frame may help move a large porcelain backsplash or floor tile.

Upper wall cabinets require temporary vertical support during positioning and fastening.

For that stage, Speedone’s cabinet jack for upper cabinet installation provides a dedicated support solution.

Large Format Tile Carrying System in Bathroom Projects

Bathrooms can combine large porcelain wall panels, mirrors, shower glass, stone vanity tops and wall cabinets.

A carrying system may assist with suitable large porcelain panels, while glass and cabinetry require different tools.

For temporary cabinet support, Speedone’s cabinet support tool for wall cabinet installation serves a separate installation function.

How to Use a Large Format Tile Carrying System

1. Inspect the Panel

Check the tile for cracks, chips, cutouts and other conditions that could affect handling.

2. Inspect the Carrying System

Check the frame, crossbars, handles, connectors, suction cups and locking points.

Do not use damaged equipment.

3. Adjust the Frame

Set the system to suit the panel dimensions while staying within the approved adjustment range.

4. Position the Frame

Place the system on the panel according to the required gripping arrangement.

5. Position the Suction Cups

Place each pad on a suitable contact area.

6. Activate the Suction Cups

Operate the lever, pump or other vacuum mechanism according to the tool instructions.

7. Check Every Gripping Point

Confirm that all required suction cups are secure before lifting.

8. Coordinate the Installers

Make sure every operator understands the movement direction and their handle position.

9. Lift Gradually

Use coordinated movement and avoid sudden twisting, jerking or shock loading.

10. Carry and Position

Keep the panel controlled throughout the movement. Use a trolley or additional equipment when required.

11. Support the Panel

Make sure the tile is fully supported before releasing any suction point.

12. Release and Inspect

Release the cups using the intended mechanism and inspect the system before the next handling operation.

How to Choose the Right Large Format Tile Carrying System

Maximum Panel Dimensions

Start with the largest tiles or slabs your team normally installs.

Panel Weight

Use the actual panel weight rather than estimating from dimensions alone.

Frame Adjustment Range

Check the minimum and maximum approved frame dimensions.

Number of Suction Cups

More cups can provide more gripping points, but the complete system rating is more important than the number alone.

Suction Cup Design

Consider whether your panels are polished, matte or textured.

Frame Rigidity

Large panels need good structural control. Compare the complete rail and crossbar design.

Handle Configuration

Consider how many installers normally move the panels and where they need to stand.

Tool Weight

The carrying frame itself must be moved repeatedly, so tool weight can affect jobsite usability.

Trolley Compatibility

If panels need to travel long distances across the jobsite, trolley compatibility can improve the workflow.

Storage and Transport

Check whether the frame can be adjusted, collapsed or disassembled for transport between projects.

Common Large Format Tile Carrying Problems

The Frame Feels Unstable

Check all connectors, locking points and adjustment mechanisms.

Do not load the system until it is correctly assembled.

One Suction Cup Will Not Attach

Check the panel surface and pad condition.

Reposition the cup on a suitable approved area if necessary.

Do not carry the panel with an unsecured gripping point.

The Tile Flexes During Lifting

Review the gripping-point distribution, frame setup and panel manufacturer’s handling recommendations.

Additional support may be required.

The Tile Is Difficult to Balance

Check the center of gravity and cup positions.

Cutouts can significantly change panel balance.

Installers Cannot Coordinate Movement

Stop and establish clear movement commands and operator positions before continuing.

The Panel Is Too Large for the Frame

Never extend or modify the system beyond its approved range.

Choose equipment designed for the actual panel dimensions.

Large Format Tile Carrying System Maintenance

Professional carrying systems should be inspected regularly.

Pay attention to:

• Suction pad condition
• Vacuum mechanism
• Frame straightness
• Telescopic rail movement
• Crossbar connections
• Locking mechanisms
• Carrying handles
• Fasteners
• Protective contact surfaces
• Storage condition

Keep suction pads clean and protected from unnecessary deformation.

Do not allow slurry or cutting residue to build up inside moving parts.

Replace damaged components according to the manufacturer’s instructions.

Large Format Tile Carrying System Safety Tips

• Inspect the panel and carrying system before every use.
• Confirm that the panel is within the approved size and working capacity.
• Verify each suction cup before lifting.
• Use enough trained installers for the task.
• Avoid sudden movement, twisting and shock loading.
• Plan the carrying route before lifting the panel.
• Keep other people clear of the handling path.
• Use appropriate personal protective equipment.
• Do not stand beneath unsupported material.
• Do not connect a hand-carrying frame to a crane unless specifically approved.
• Support the panel before releasing the suction cups.

Who Uses Large Format Tile Carrying Systems?

• Large-format tile installers
• Porcelain slab fabricators
• Flooring contractors
• Bathroom contractors
• Kitchen installers
• Commercial interior contractors
• Stone and tile fabrication shops
• Construction companies
• Tile distributors
• Installation tool wholesalers

Why Choose Speedone?

Speedone supplies professional handling and installation equipment for tile, stone, glass and related materials.

A good Large Format Tile Carrying System should provide more than several suction cups. It should create a coordinated structure that helps installers control oversized panels through different stages of the job.

For professional buyers, product selection should follow a practical sequence:

Panel Size → Weight → Surface Finish → Frame Range → Suction Configuration → Operator Layout → Carrying Route → Installation Method

This makes it easier to select a system that matches the actual work instead of comparing products only by load capacity or number of suction cups.

Frequently Asked Questions

What is a Large Format Tile Carrying System?

A Large Format Tile Carrying System is a frame-based handling tool designed to help installers lift, carry and position oversized ceramic or porcelain panels using multiple controlled gripping points.

Why do large-format tiles need a carrying system?

Large panels can be difficult to balance and control because of their dimensions. A carrying system provides a rigid structure and several gripping points across the panel.

What materials can a Large Format Tile Carrying System handle?

Depending on the model, systems may be suitable for compatible porcelain, ceramic slabs and other approved panel materials. Always check the product specifications.

Does a Large Format Tile Carrying System use suction cups?

Many professional systems use several vacuum suction cups mounted on an adjustable or fixed carrying frame.

How many suction cups should a tile carrying system have?

There is no universal number. The correct configuration depends on panel size, weight, surface, balance and the design of the complete system.

Can one person use a Large Format Tile Carrying System?

Some smaller applications may allow specific handling methods, but large panels commonly require several installers. Follow the system and panel manufacturer’s instructions.

Can the system carry textured porcelain tiles?

That depends on the suction-pad design and actual tile surface. Certain textured finishes may require specialized suction cups.

Is a tile carrying system the same as a tile trolley?

No. A carrying system grips and controls the panel, while a trolley supports it during wheeled transport. The two tools can be used together.

Can a Large Format Tile Carrying System be used for wall installation?

Suitable systems can help carry and position compatible wall panels, but they do not replace the permanent adhesive or fixing system.

Can a Large Format Tile Carrying System be used for countertop slabs?

Some systems may handle compatible porcelain or other approved panels within their specifications. Heavy stone countertop sections may require different handling equipment.

Can a tile carrying frame be connected to a crane?

Only if the complete system is specifically designed and approved for mechanical lifting. A hand-carrying frame should not otherwise be attached to a crane or hoist.

What should I look for when buying a Large Format Tile Carrying System?

Check maximum panel dimensions, working capacity, frame adjustment range, suction-cup design, surface compatibility, handle arrangement, frame rigidity, trolley compatibility, maintenance and storage.
