Glass Suction Cups for Vacuum Lifting & Handling

Heavy Duty Glass Suction Cups for Lifting, Carrying & Positioning

What Are Glass Suction Cups?

Product information parameters

Glass suction cups are vacuum gripping tools used to create temporary attachment points on compatible glass surfaces.

Instead of gripping a glass panel only from its edges, installers can place one or more suction cups directly on the face of the panel.

This creates convenient handling points that can make lifting, carrying, rotating, and final positioning easier.

Common applications include:

• Window glass
• Architectural glass panels
• Tempered glass
• Laminated glass
• Mirrors
• Glass doors
• Shower glass
• Storefront glazing
• Interior glass partitions
• Compatible smooth stone and tile

Actual compatibility and working capacity depend on the design of the specific suction cup, the panel condition, and the handling method.

Why Use Glass Suction Cups?

Glass is difficult to handle because the surface is smooth and often provides very few natural gripping points.

As the panel becomes larger, controlling its balance and orientation can become just as important as supporting its weight.

Common handling challenges include:

• Limited access to panel edges
• Difficult grip on large sheets
• Accurate positioning requirements
• Moving glass through narrow openings
• Rotating panels during installation
• Controlling glass near frames and walls
• Reducing unnecessary contact with finished surfaces

Better Gripping Position

A suction cup creates a temporary handle directly on the glass surface, giving the installer more flexibility when controlling the panel.

Easier Positioning

The gripping point can also be useful when making small corrections near a frame, opening, wall, or final fixing position.

Improved Panel Control

Using suitable gripping points can make large panels easier to rotate and guide during movement.

Useful for Repeated Professional Work

For glaziers and installers who regularly handle panels, dedicated vacuum gripping tools can provide a more practical workflow than relying only on edge handling.

How Do Glass Suction Cups Work?

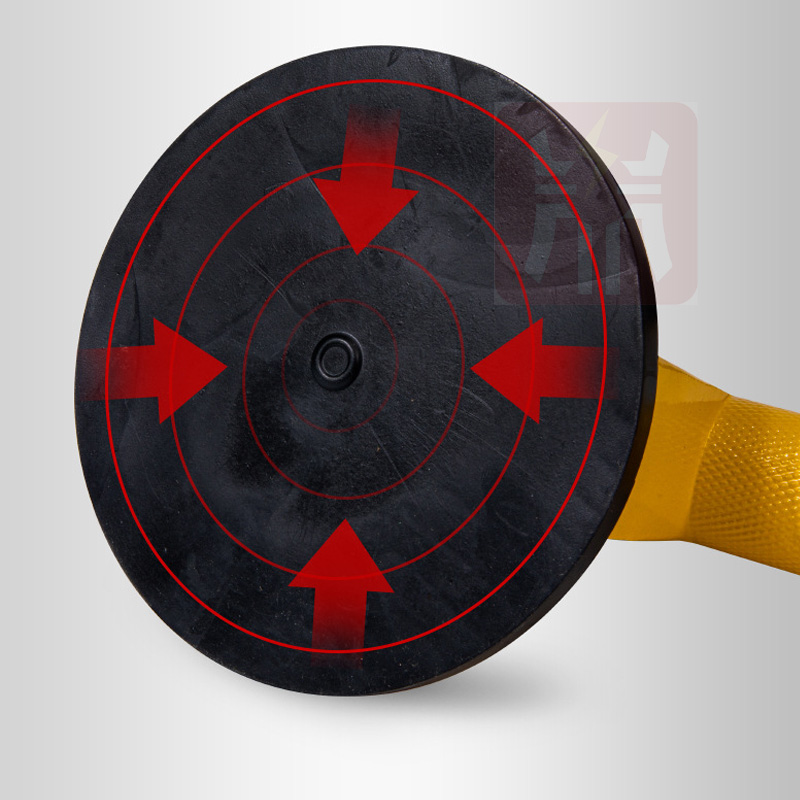

A glass suction cup works by reducing the air pressure between the suction pad and the glass surface.

When a suitable seal is created, atmospheric pressure helps hold the cup against the panel.

Different products create vacuum in different ways.

Common configurations include:

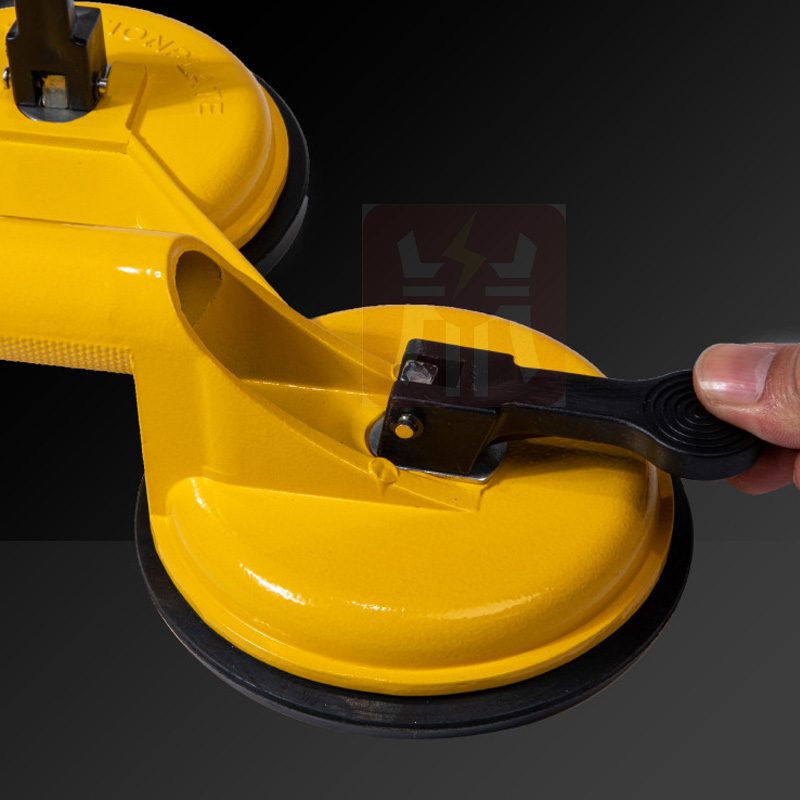

• Lever-operated suction cups
• Manual pump vacuum cups
• Vacuum gauge suction cups
• Battery-powered suction lifters
• Electric vacuum cups
• Multi-cup glass handling systems

The correct system depends on the panel size, weight, surface, working orientation, and frequency of use.

Product Usage Demonstration

Different Types of Glass Suction Cups

Single Glass Suction Cup

A single cup creates one temporary gripping point.

It can be useful for manageable glass pieces or positioning work where one handling point is sufficient.

However, the fact that a cup can attach to the glass does not automatically mean it is suitable for the full handling load.

Double Glass Suction Cups

A double-cup design uses two suction pads connected to one handle or frame.

The larger contact arrangement can provide additional control for suitable handling applications.

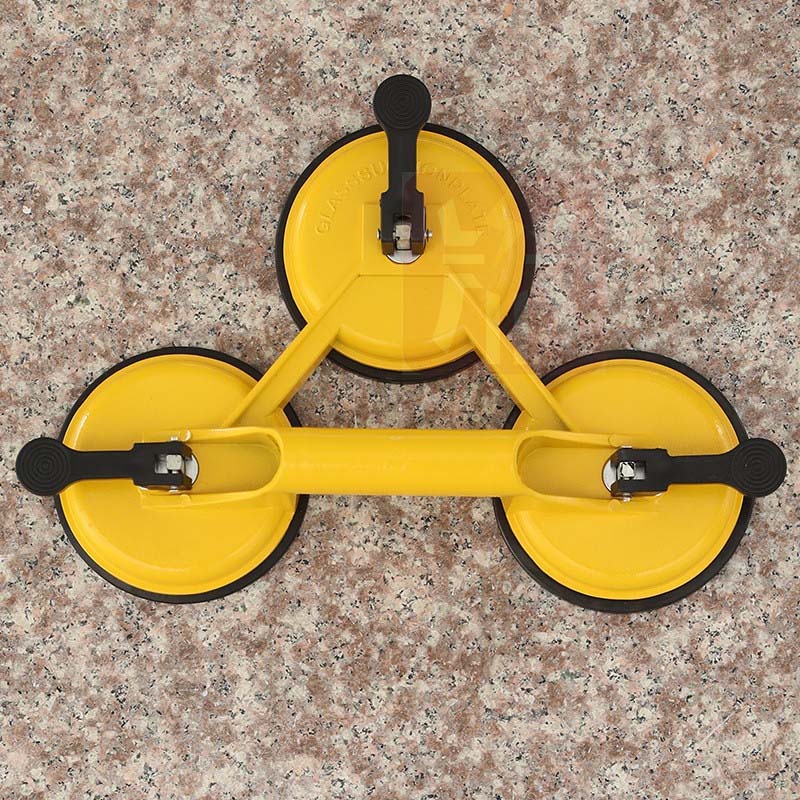

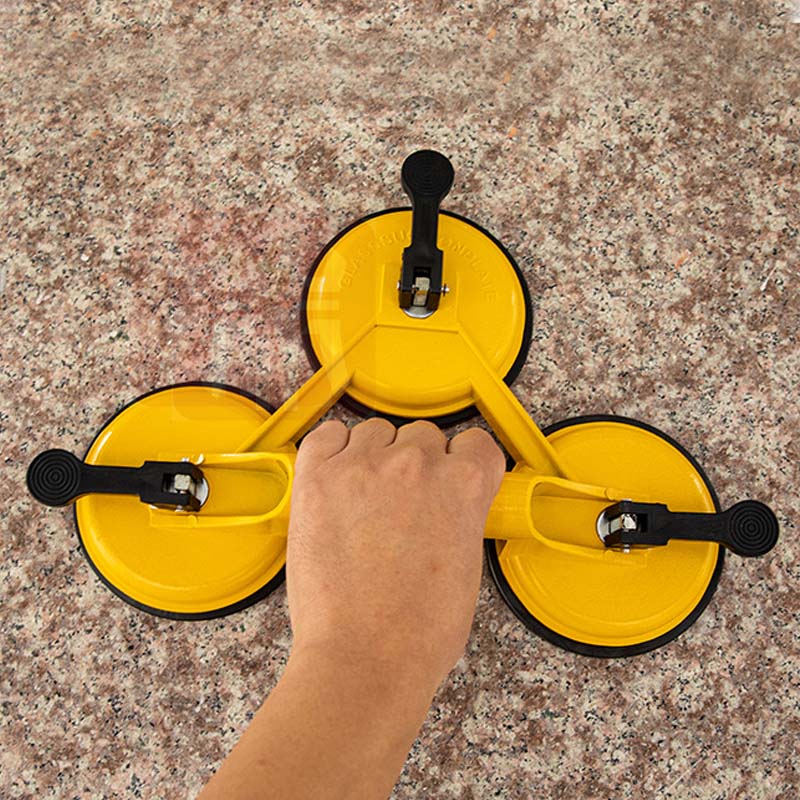

Triple Glass Suction Cups

Triple-cup systems provide several attachment points in one tool.

They are commonly used for compatible glass, tile, and other smooth panels where additional stability may be useful.

Manual Pump Glass Suction Cup

A manual pump system creates vacuum through repeated operation of a plunger or pump.

Some professional designs include a visual vacuum indicator to help the operator monitor the gripping condition.

Electric Glass Suction Cup

An electric system uses powered vacuum generation instead of relying entirely on manual pumping.

This can be convenient for installers who perform repeated handling operations throughout the working day.

Manual vs. Electric Glass Suction Cups

Glass Suction Cups for Window Installation

Window installation is one of the most common uses for professional glass suction equipment.

A suction cup creates a practical handling point while the installer moves the panel toward the opening and makes final positioning corrections.

Typical applications include:

• Residential windows
• Commercial glazing
• Replacement glass
• Large fixed windows
• Storefront glazing
• Glass partitions
• Glass doors

The number of gripping points should be selected according to panel dimensions, weight, working direction, installation conditions, and equipment ratings.

Glass Suction Cups for Large Glass Panels

Large panels require more planning than small pieces.

Even if the total weight appears manageable, the overall dimensions can make it difficult to control the panel orientation and balance.

Before choosing a handling setup, consider:

• Panel dimensions
• Panel weight
• Glass thickness
• Glass type
• Lifting orientation
• Number of operators
• Installation height
• Travel distance
• Building access

Oversized panels may require several suction cups, a dedicated handling frame, or powered lifting equipment rather than a single hand tool.

Product details presentation

Heavy Duty Glass Suction Cups

The term heavy duty glass suction cups is often used for professional products intended for demanding handling work.

However, buyers should not rely on the words “heavy duty” alone.

Important technical points to check include:

• Rated working capacity
• Permitted handling orientation
• Suction pad size
• Vacuum generation method
• Vacuum monitoring
• Handle construction
• Pad and seal condition
• Material compatibility
• Manufacturer operating instructions

Always use the actual product rating and intended working conditions when deciding whether a suction tool is suitable.

Glass Suction Cups for Mirrors

Large mirrors can also be difficult to grip from the edges, especially when they need to be positioned accurately against a wall or support structure.

A compatible suction cup can provide temporary handling points during:

• Mirror transportation
• Wall positioning
• Vanity mirror installation
• Commercial mirror fitting
• Decorative mirror placement

Always confirm that the finished surface and panel construction are suitable for the selected handling method.

Glass Suction Cups for Shower Glass

Frameless shower panels often require careful lifting, rotation, and alignment in a restricted working area.

A correctly selected suction tool can provide additional gripping points while the installer positions the glass near walls, fittings, and mounting hardware.

Because shower panels can be large and heavy, professional handling procedures and appropriately rated equipment remain essential.

Glass Suction Cups for Architectural Glass

Architectural glass projects may involve significantly larger panels than typical residential installations.

Applications can include:

• Curtain wall glass
• Storefront panels
• Large windows
• Glass façades
• Interior glass partitions
• Commercial entrance systems

In these applications, hand-held suction cups may be only one part of the overall handling system.

Mechanical or powered vacuum lifting equipment may be required depending on the size, weight, and installation conditions.

Glass Suction Cups for Accurate Positioning

Suction cups are useful not only for moving panels but also for final positioning.

When the glass reaches its installation area, the temporary handle gives the operator a convenient point for making small corrections.

This can help with:

• Moving the panel sideways
• Adjusting vertical position
• Rotating the glass
• Aligning the panel with a frame
• Holding temporary control before fixing

The suction cup should not replace permanent supports, fasteners, or installation systems.

Glass Suction Cups vs. Vacuum Seam Setter

Both tools can use vacuum technology, but they are designed for different jobs.

For fabrication shops that also work with granite and quartz countertops, Speedone’s Vacuum Seam Setter for Granite and Quartz Countertops is designed for precision joint adjustment after the countertop sections are already positioned.

Glass Suction Cups vs. Seamless Seam Setter

The main purpose of glass suction cups is material handling.

A seam setter performs a different job. It controls the relationship between two separate countertop sections during joint installation.

For granite and quartz work where the goal is controlled joint closing and alignment, Speedone’s Seamless Seam Setter for Granite and Quartz Countertops provides a dedicated seam-setting solution.

The term “seamless” does not mean that the physical joint automatically disappears. Proper fabrication, adhesive application, alignment, and finishing are still required.

Glass Suction Cups vs. Heavy Duty Seam Setter Tool

Professional fabrication companies may work with glass, stone, tile, porcelain, and engineered surfaces in the same workshop.

This makes it important to separate material-handling tools from precision joint-adjustment equipment.

Glass suction cups are mainly used for gripping and moving panels.

Speedone’s Heavy Duty Seam Setter Tool for Granite and Quartz Countertops, by comparison, is designed for controlled seam closing, alignment, and leveling during countertop installation.

Glass Suction Cups for Worktop and Countertop Fabrication

Fabrication shops may use suction equipment to move smooth panels during production or installation.

Once countertop sections reach their final position, the job changes from material movement to precision seam adjustment.

For this later stage, Speedone’s Worktop Seam Setter for Granite and Quartz Countertops provides more suitable control over final joint positioning.

Glass Suction Cups vs. Stone Seam Setter Tool

Stone fabrication shops also use vacuum gripping equipment for some materials.

Polished granite, engineered stone, and other sufficiently smooth surfaces may provide suitable gripping conditions for compatible vacuum tools.

However, a suction lifter should not automatically be used for precision seam adjustment.

When the task changes from moving material to accurately joining stone sections, Speedone’s Stone Seam Setter Tool for Granite and Quartz provides a dedicated solution for joint closing, alignment, and leveling.

Glass Suction Cups vs. Granite Seam Puller

Both products may use suction pads, but the force is used differently.

A glass suction cup creates temporary gripping points for material handling.

A granite seam puller uses gripping points as part of a system that draws two countertop sections together.

For granite projects that require controlled seam closing and joint leveling, Speedone’s Seam Puller for Granite Countertops and Joint Leveling provides a more specialized solution.

Glass Suction Cups for Smooth vs. Textured Surfaces

Surface condition has a major effect on vacuum performance.

Smooth Glass

Flat and smooth glass generally provides suitable sealing conditions for traditional vacuum cups designed for glass handling.

Coated Glass

Surface coatings can change the characteristics of the panel.

Compatibility should be checked before relying on the suction tool.

Patterned or Textured Glass

Deep texture can interrupt the airtight seal required by many conventional suction cups.

Specialized vacuum equipment may be required for these surfaces.

Dirty or Contaminated Glass

Dust, grease, water, sealant residue, or other contamination can reduce gripping performance and should be removed before attachment.

How to Use Glass Suction Cups

Inspect the Glass

Check the panel for cracks, edge damage, or other defects before handling.

Inspect the Suction Cup

Check the pad, seal, handle, pump, and other working components for wear, cuts, dirt, or damage.

Clean the Contact Area

Remove dust, water, grease, and other contaminants from the selected gripping area.

Position the Suction Cup

Place the cup on a suitable flat area while considering panel balance and the planned direction of movement.

Create the Vacuum

Operate the lever, manual pump, or powered vacuum system according to the manufacturer’s instructions.

Confirm the Grip

Make sure the suction cup has established a stable attachment before applying the full working load.

Begin Handling Gradually

Avoid sudden pulling, shock loading, or uncontrolled panel movement.

Monitor the Vacuum

If the tool includes a gauge or vacuum indicator, continue monitoring it during operation.

Support the Glass Before Release

Make sure the panel is securely supported at its destination before releasing the suction system.

Release the Cup Correctly

Use the designed release mechanism instead of pulling the suction pad away from the glass by force.

How to Choose the Right Glass Suction Cups

Panel Size

Larger panels may require several gripping points or a dedicated handling frame.

Glass Weight

Always compare the actual panel weight with the manufacturer’s rated working capacity and operating conditions.

Glass Thickness

Thickness can affect weight, flexibility, balance, and the overall handling method.

Surface Condition

Check whether the surface is smooth, coated, patterned, textured, or otherwise different from standard flat glass.

Manual or Electric Vacuum

Choose the system according to working frequency, job-site conditions, and handling requirements.

Vacuum Monitoring

A visible vacuum-loss indicator or gauge can provide useful information on compatible professional models.

Single or Multiple Suction Cups

Do not assume one cup is suitable for every panel. Large glass may require multiple gripping points.

Working Orientation

Do not assume that the same capacity applies to vertical, horizontal, and angled handling. Follow the manufacturer’s stated working limits.

Replacement Components

Professional users should consider whether suction pads, seals, and other wear parts are easy to inspect and replace.

Common Glass Suction Cup Problems

The Cup Will Not Seal

Check the glass for dirt, surface texture, damage, or contamination. Also inspect the suction pad and seal.

The Cup Slowly Loses Vacuum

Stop handling and place the glass in a safe supported position before inspecting the gripping system.

The Glass Is Too Large for One Cup

Use a suitable multi-point handling system rather than trying to compensate with additional manual force.

The Panel Rotates During Handling

Review the gripping positions, number of suction points, balance, and planned movement of the panel.

The Glass Surface Is Textured

A conventional suction cup may not create a reliable seal. Specialized equipment may be required.

The Suction Pad Is Damaged

Do not continue using a damaged pad simply because it still appears to attach. Worn working components should be serviced or replaced.

Safety Tips for Using Glass Suction Cups

Glass suction cups should always be treated as professional material-handling equipment.

• Inspect the tool before every use
• Check the glass surface before attachment
• Follow the rated working capacity
• Confirm the permitted working orientation
• Verify vacuum before movement
• Monitor vacuum during handling
• Use enough operators for the task
• Avoid sudden impacts and shock loading
• Do not use damaged suction pads
• Keep people clear of suspended glass
• Use appropriate personal protective equipment
• Use suitable mechanical lifting equipment where required

Who Uses Glass Suction Cups?

• Professional glaziers
• Window installers
• Glass fabrication companies
• Shower enclosure installers
• Mirror installers
• Curtain wall contractors
• Commercial glazing companies
• Stone and tile fabrication shops
• Construction contractors
• Glass tool distributors

Why Choose Speedone?

Speedone develops professional equipment for glass, stone, tile, porcelain, and countertop handling applications.

Professional vacuum gripping works best as part of a complete material-handling workflow rather than as a universal solution for every lifting or installation task.

A practical process is:

Inspect → Clean → Attach → Verify → Lift → Carry → Position → Support → Release

Different stages require different tools. Glass suction cups are mainly used for gripping and handling compatible panels, while seam setters and seam pullers are designed for precision countertop joint adjustment after material positioning.

• Glass panel handling solutions
• Window installation tools
• Mirror positioning equipment
• Large panel handling applications
• Tile and porcelain handling tools
• Stone fabrication equipment
• Professional construction applications
• OEM and ODM support
• Solutions for international distributors

Frequently Asked Questions

What are glass suction cups?

Glass suction cups are vacuum gripping tools that create temporary attachment points on compatible glass surfaces to assist with lifting, carrying, positioning, and installation.

What are glass suction cups used for?

They are commonly used for windows, glass panels, mirrors, shower glass, architectural glazing, and other compatible smooth materials.

Can glass suction cups lift large glass panels?

Suitable professional systems can assist with large panels, but the required number of gripping points and equipment configuration depend on the panel dimensions, weight, handling direction, and rated capacity of the equipment.

Are manual or electric glass suction cups better?

Neither type is always better. Manual cups can be simple and portable, while powered vacuum systems may be more convenient for frequent professional handling or certain larger systems.

Can glass suction cups be used on mirrors?

Suitable suction cups may be used on compatible smooth mirror surfaces. Always check the panel construction, surface condition, weight, and tool rating first.

Can glass suction cups work on textured glass?

Deep texture can interfere with the airtight seal required by conventional suction cups. Specialized equipment may be needed for textured surfaces.

Can glass suction cups also be used for stone or tile?

Some models are suitable for several compatible smooth materials, including glass, tile, polished stone, and similar panels. Always check the manufacturer’s material and working requirements.

What should I look for when buying glass suction cups?

Important factors include rated capacity, working orientation, vacuum generation method, vacuum monitoring, cup configuration, handle design, surface compatibility, replacement components, and the size and weight of the material being handled.
