Stone Pro Seam Setter for Granite & Quartz Countertops

Heavy Duty Stone Pro Seam Setter for Granite & Quartz Countertops

What Is a Stone Pro Seam Setter?

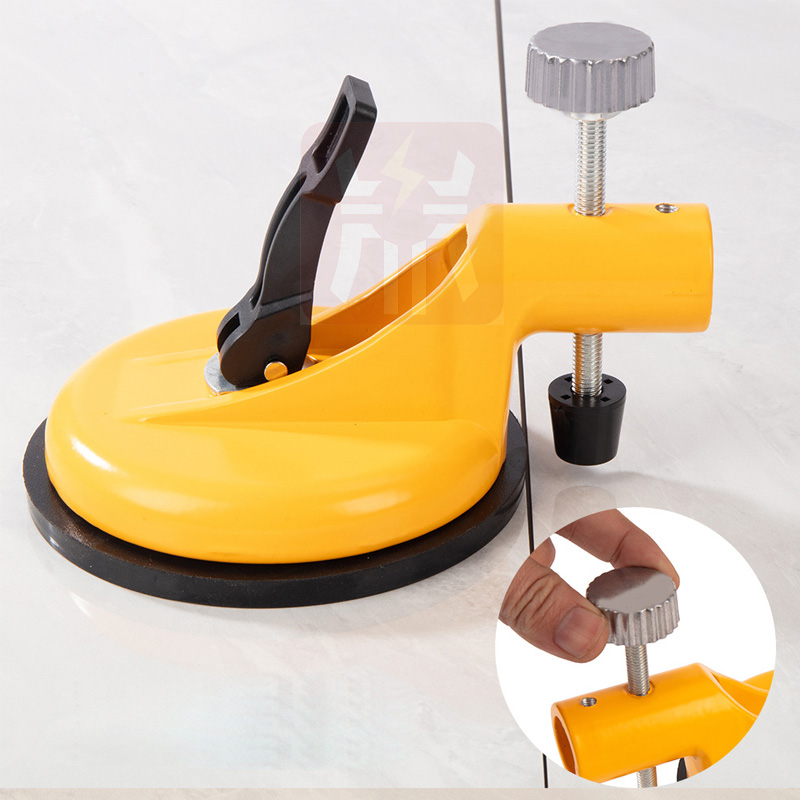

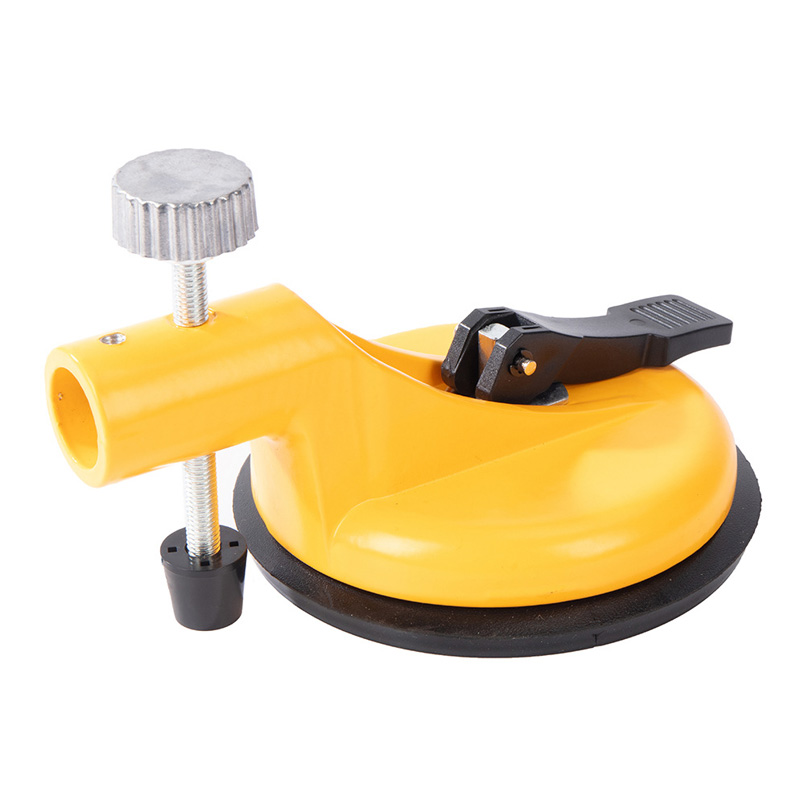

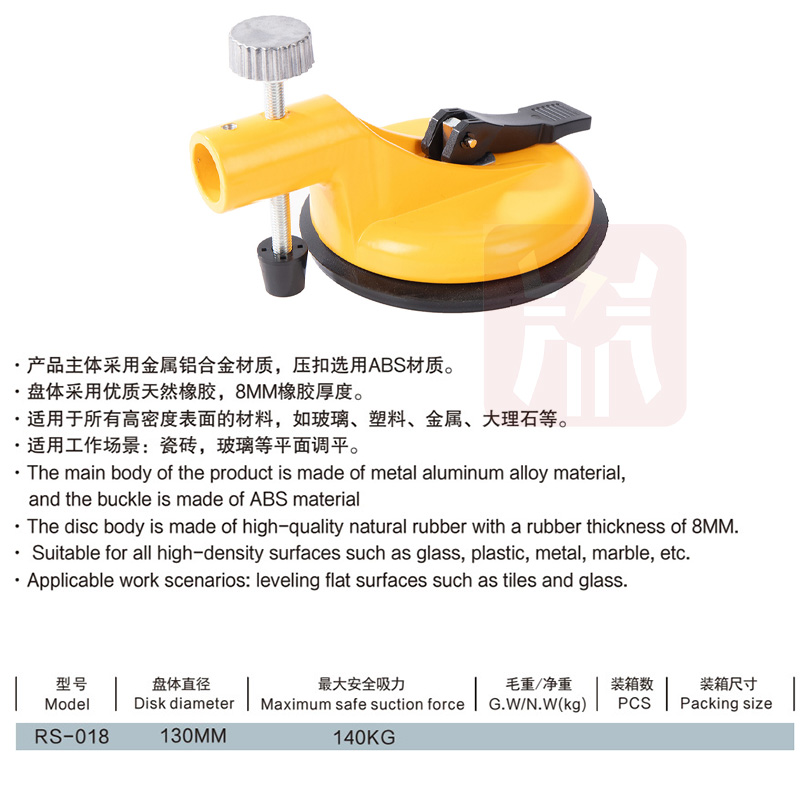

Product parameter information and application demonstration

A stone pro seam setter is a professional countertop installation tool used to join and align separate stone sections at a fabricated seam.

Large countertops are often made from several pieces because of slab size, transportation limits, kitchen layouts, sink cutouts, corners, stairs, elevators, or restricted access to the installation site.

After the sections are placed near their final positions, the seam still needs precise adjustment before bonding is complete.

A professional seam setter can help control:

• Seam width
• Horizontal joint closing
• Front-edge alignment
• Relative surface height
• Stone position during bonding
• Small corrections around the joint

The tool is designed for precision adjustment, not heavy slab lifting. The countertop sections should already be safely supported before seam setting begins.

Why Professional Stone Installers Use Seam Setters

Granite, quartz, and engineered stone can be difficult to reposition once they are resting on cabinets or other support structures.

Even a small alignment error can affect the finished appearance of the seam.

Common problems include:

• Uneven joint spacing
• Visible seam gaps
• One section sitting higher than the other
• Misaligned countertop edges
• Movement during adhesive curing
• Repeated manual repositioning
• Extra finishing caused by poor initial alignment

Controlled Seam Closing

The setter helps move two countertop sections together gradually instead of relying on sudden manual force.

Better Edge Alignment

Small adjustments allow the installer to keep visible edges and other reference points properly matched.

Surface Leveling

Suitable configurations may provide vertical adjustment to reduce minor height differences between adjoining sections.

Stable Bonding Position

Once the correct position is reached, the tool can help keep the seam stable during the required bonding stage.

How Does a Stone Pro Seam Setter Work?

Many professional seam setters use gripping points positioned on opposite sides of the countertop joint.

On suitable polished and non-porous surfaces, vacuum suction cups can create temporary attachment points without drilling into the finished material.

A mechanical connecting system then allows controlled force to be transferred between the two countertop sections.

Depending on the model, the tool may support:

• Horizontal seam closing
• Fine side-to-side adjustment
• Joint spacing control
• Vertical leveling
• Temporary stabilization during bonding

A practical workflow is:

Position → Dry Fit → Vacuum Grip → Pull → Align → Level → Bond → Finish

For buyers who mainly need suction-based adjustment, Speedone’s Vacuum Seam Setter for Granite and Quartz Countertops provides a related solution focused on vacuum gripping and controlled seam positioning.

Product Usage Instructions

Stone Pro Seam Setter for Granite Countertops

Granite countertop installation is one of the main applications for professional seam-setting equipment.

Granite sections can be difficult to move once they are positioned on the cabinets. Instead of repeatedly shifting the entire piece, a seam setter allows smaller corrections to be made close to the joint.

Typical applications include:

• L-shaped kitchen countertops
• Granite kitchen islands
• Long countertop runs
• Granite vanity tops
• Stone bar counters
• Reception counters
• Commercial countertop installations

Joint Closing

The adjustment mechanism helps bring neighboring granite sections together gradually.

Edge Alignment

The installer can monitor the visible front edges while closing the seam.

Surface Leveling

Suitable models may help correct small height differences between the two sections.

Holding During Bonding

After alignment is complete, the tool can help maintain the position while the adhesive cures.

Stone Pro Seam Setter for Quartz Countertops

Quartz countertops have similar installation challenges, especially on long worktops and large islands where more than one fabricated section may be required.

Before seam adjustment begins, installers should check:

• Fabricated edge condition
• Cabinet support
• Initial countertop position
• Relative surface height
• Vacuum contact areas
• Adhesive working space

Because quartz finishes vary, compatibility with the specific gripping system should always be checked before use.

Stone Pro Seam Setter for Tight Countertop Joints

A tight joint is not created by simply applying maximum pulling force.

Professional seam work requires gradual movement so the installer can continue checking seam width, edge position, and surface alignment.

Dry Fit First

Position the countertop sections without adhesive and check whether the fabricated edges meet correctly.

Grip Both Sections

Place the seam setter on suitable areas on both sides of the joint.

Adjust Gradually

Close the seam in small steps instead of forcing the sections together in one movement.

Inspect the Joint

Check the seam from several angles and make sure the visible edges remain correctly aligned.

For projects where a particularly refined surface transition is important, Speedone’s Seamless Seam Setter for Granite and Quartz Countertops provides another related option for precision seam joining.

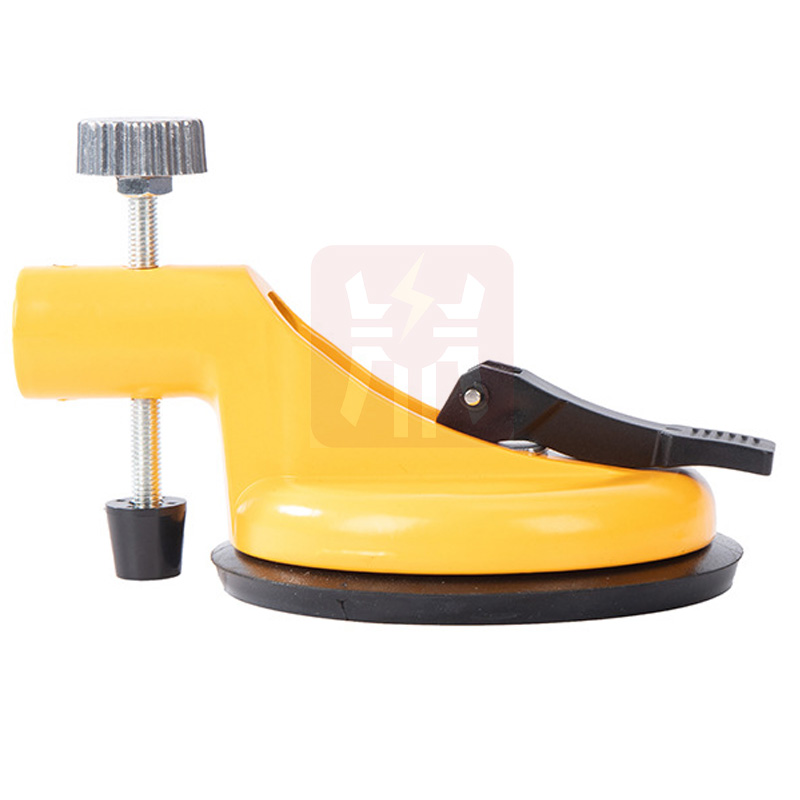

Product display

Stone Pro Seam Setter for Surface Leveling

One common seam problem is lippage, where one countertop section sits slightly higher than the other.

Even if the horizontal seam gap is small, a height difference can still make the joint easy to see and feel.

A suitable seam setter with vertical adjustment can help correct small height differences before bonding is complete.

Before using the leveling function, check whether the problem comes from:

• Uneven cabinetry
• Incorrect shimming
• Different support heights
• Stone thickness variation
• Fabrication tolerance
• Debris beneath the countertop
• Incorrect initial positioning

The tool should be used for fine adjustment rather than for correcting major structural or fabrication problems.

Stone Pro Seam Setter vs. Manual Countertop Alignment

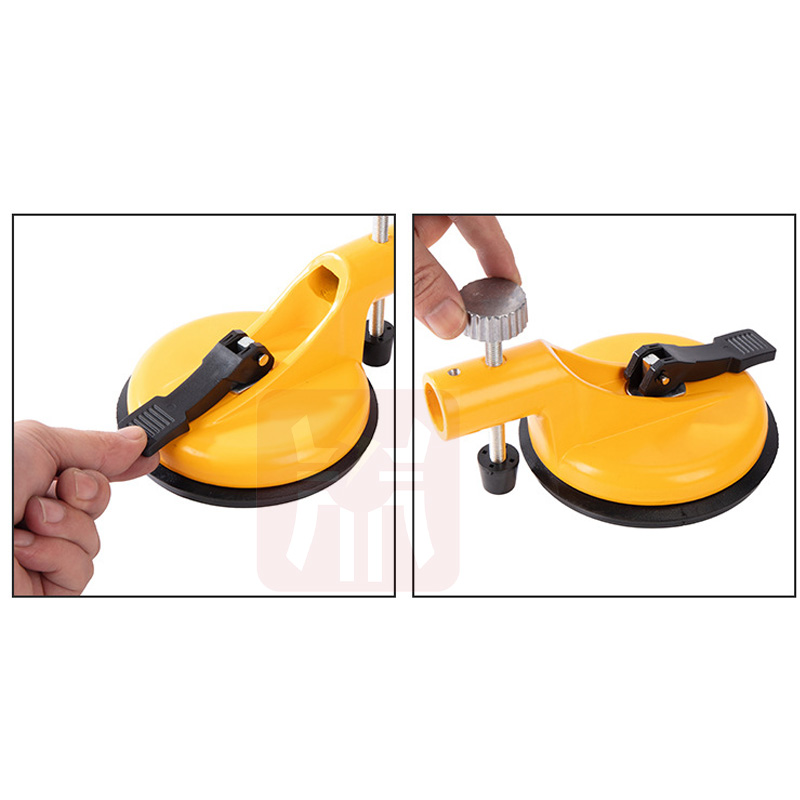

Vacuum Gripping for Professional Stone Seam Setting

Vacuum gripping is useful on compatible polished stone and engineered countertop surfaces.

The suction cups create temporary attachment points without drilling into or permanently changing the finished material.

Before applying adjustment force, installers should check:

• Surface cleanliness
• Surface smoothness
• Suction pad condition
• Seal condition
• Vacuum stability
• Material compatibility
• Tool condition
• Direction of applied force

Dust, water, oil, polishing residue, worn pads, damaged seals, and heavily textured surfaces can reduce suction performance.

If a gripping point becomes unstable, stop the adjustment and inspect the system before continuing.

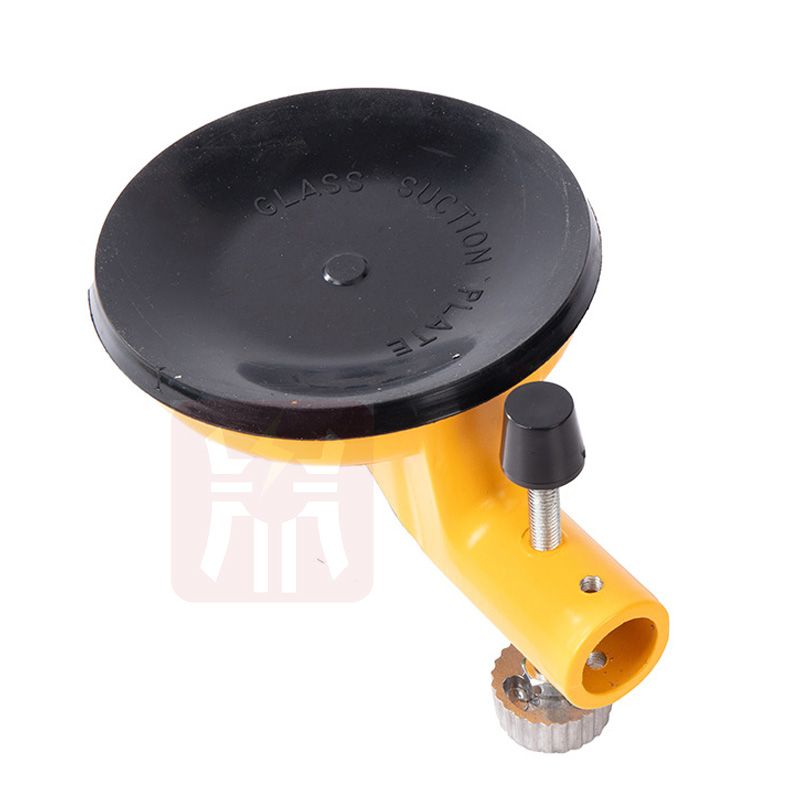

Heavy Duty Stone Pro Seam Setter for Professional Fabricators

Professional stone fabricators may use seam setters repeatedly in workshops, installation vehicles, residential kitchens, and commercial projects.

For frequent professional use, buyers should consider more than basic pulling capability.

Important factors include:

• Structural rigidity
• Fine adjustment control
• Reliable vacuum gripping
• Leveling capability
• Accessible controls
• Easy positioning
• Replaceable wear components
• Material compatibility

For demanding granite and quartz projects, Speedone’s Heavy Duty Seam Setter Tool for Granite and Quartz Countertops provides another professional option for repeated installation work.

Stone Pro Seam Setter vs. Worktop Seam Setter

The terms countertop and worktop often describe similar products but are more common in different markets.

“Countertop” is widely used in North America, while “worktop” is common in the UK and other regions.

The main installation requirements are similar:

• Close the joint
• Align the fabricated edges
• Correct small height differences
• Maintain position during bonding

For contractors and distributors serving worktop-focused markets, Speedone’s Worktop Seam Setter for Granite and Quartz Countertops provides a related option for professional worktop joint installation.

Stone Pro Seam Setter vs. Stone Seam Setter Tool

The term stone pro seam setter emphasizes professional countertop installation, while a general stone seam setter tool may cover a wider range of stone materials and fabrication environments.

For fabrication businesses working with several types of stone and engineered surfaces, Speedone’s Stone Seam Setter Tool for Granite and Quartz provides a broader seam-setting option.

Stone Pro Seam Setter vs. Seam Puller

A seam puller mainly focuses on drawing two countertop sections together horizontally.

A seam setter may provide a broader range of functions, including:

• Joint closing
• Horizontal positioning
• Edge alignment
• Vertical leveling
• Temporary stabilization

For buyers, the actual tool functions are more important than the product name alone.

For installers focused specifically on controlled joint pulling, Speedone’s Seam Puller for Granite Countertops and Joint Leveling provides another related option.

Stone Pro Seam Setter for Kitchen Countertops

Kitchen installation is one of the most common uses for professional seam setters.

Seams may be required around:

• L-shaped kitchen layouts
• U-shaped countertops
• Sink sections
• Cooktop sections
• Long wall runs
• Peninsulas
• Large kitchen islands
• Waterfall countertop assemblies

The seam setter becomes most useful after the large countertop sections have already been safely positioned and only fine adjustment remains.

Stone Pro Seam Setter for Kitchen Islands

Large granite or quartz islands may require several sections because of slab size, transportation restrictions, building access, or design requirements.

Since kitchen islands are often visible from several directions, poor seam alignment can be especially noticeable.

A suitable seam setter can help control:

• Joint spacing
• Front-edge alignment
• Surface transition
• Relative height
• Position during bonding

Stone Pro Seam Setter for Commercial Countertops

Commercial projects often include long countertop runs and repeated joints where consistent installation is important.

Typical applications include:

• Hotel reception counters
• Restaurant bar tops
• Retail counters
• Commercial kitchens
• Office reception areas
• Stone service counters
• Large vanity installations

A repeatable seam-setting process helps professional crews maintain more consistent results across multiple joints.

How to Use a Stone Pro Seam Setter

Inspect the Countertop Edges

Check the fabricated seam edges for chips, damage, contamination, or other problems.

Check the Support Structure

Make sure the cabinets, supports, and shims are stable and correctly prepared.

Dry Fit the Sections

Bring the countertop pieces together without adhesive and inspect the joint.

Clean the Vacuum Areas

Remove dust, water, grease, polishing residue, and other contaminants from the gripping surfaces.

Position the Seam Setter

Place the gripping points on suitable areas on opposite sides of the seam.

Confirm Secure Attachment

Make sure the suction cups or other gripping points are stable before applying adjustment force.

Close the Seam Gradually

Make small horizontal adjustments rather than forcing the joint closed quickly.

Check Edge Alignment

Monitor the visible front edges and other reference points while adjusting.

Adjust Surface Height

If the tool provides leveling capability, make small vertical corrections to reduce height differences.

Apply the Adhesive

Follow the adhesive manufacturer’s requirements for preparation, application, working time, and curing.

Maintain the Joint Position

Keep the countertop sections stable during the required bonding period.

Release and Finish

After the seam is ready, release the setter carefully and complete the required cleaning, polishing, or finishing work.

How to Choose the Right Stone Pro Seam Setter

Material Compatibility

Make sure the tool is suitable for the granite, quartz, engineered stone, or other surfaces your company installs.

Reliable Vacuum Gripping

For suction-based systems, stable gripping is important for predictable adjustment.

Fine Pulling Control

The adjustment mechanism should allow gradual and controlled joint closing.

Leveling Capability

If a flush surface is important, choose a model with suitable vertical adjustment.

Rigid Construction

A stable connecting structure helps transfer force more consistently between the gripping points.

Accessible Controls

The controls should remain easy to use near walls, sinks, backsplashes, and corners.

Replaceable Components

Suction pads, seals, adjustment hardware, and other working parts should be easy to inspect and replace.

Multi-Material Use

Fabrication companies working with both granite and quartz may benefit from equipment suitable for several compatible surfaces.

Common Stone Seam Setting Problems

The Seam Will Not Close

Check the fabricated edges, countertop position, support conditions, adhesive clearance, and nearby obstructions before increasing force.

One Section Is Higher

Check cabinet level, support height, shimming, material thickness, and initial position before making fine vertical adjustments.

The Vacuum Cup Loses Suction

Stop the operation and inspect the surface, suction pad, seal, contamination, and material compatibility.

The Edges Become Misaligned

Reduce adjustment force and correct the horizontal position before continuing.

The Joint Moves During Bonding

Maintain the required position for the period specified by the adhesive manufacturer.

Too Much Force Is Required

Do not use excessive adjustment force to compensate for major fabrication, support, or positioning problems.

Who Uses Stone Pro Seam Setters?

• Granite countertop fabricators
• Quartz countertop installers
• Stone fabrication workshops
• Kitchen installation contractors
• Commercial fit-out companies
• Countertop factories
• Stone equipment distributors
• Professional installation tool suppliers

Why Choose Speedone?

Speedone develops professional equipment for stone fabrication, countertop installation, suction handling, slab handling, glass, porcelain, and related material-handling applications.

Professional seam setting works best as one precision stage within a complete countertop installation workflow.

A practical process is:

Position → Dry Fit → Vacuum Grip → Pull → Align → Level → Bond → Finish

• Granite countertop installation solutions
• Quartz countertop fabrication tools
• Professional seam-setting equipment
• Vacuum-based gripping applications
• Solutions for stone fabrication workshops
• Commercial installation equipment
• OEM and ODM support
• Solutions for international distributors

Frequently Asked Questions

What is a stone pro seam setter?

A stone pro seam setter is a professional countertop installation tool used to help pull together, align, level, and stabilize adjoining stone sections during seam installation.

What materials can a stone pro seam setter be used on?

Suitable models may be used on compatible granite, quartz, engineered stone, and other sufficiently smooth surfaces. Actual compatibility depends on the gripping system and surface finish.

Does a stone pro seam setter use vacuum suction cups?

Many professional configurations use vacuum suction cups to create temporary gripping points on both sides of a countertop joint.

Can a stone pro seam setter level countertop joints?

Suitable models may provide vertical adjustment to help correct small height differences between adjoining sections.

What is the difference between a seam setter and a seam puller?

A seam puller mainly brings two countertop sections together, while a seam setter may also provide alignment, leveling, and temporary stabilization.

Can the same seam setter be used for granite and quartz?

Some professional systems can be used on both compatible granite and quartz surfaces. Always check the material, surface finish, gripping system, and working requirements before use.

Can a stone seam setter lift slabs?

A seam setter should not be used as primary lifting equipment unless the manufacturer specifically approves it for that purpose. Heavy stone sections should be moved with suitable lifting equipment.

What should I consider when buying a professional stone seam setter?

Important factors include material compatibility, gripping reliability, fine pulling control, leveling capability, structural rigidity, accessible controls, replacement components, and suitability for repeated professional use.
