Tile Suction Cup for Ceramic & Porcelain Tile Installation

What Is a Tile Suction Cup?

Information parameters

A tile suction cup is a tool that attaches temporarily to a suitable tile surface. It gives the installer a handle for moving or positioning the tile without relying only on its edges.

Most designs have a flexible suction pad and a handle. Some create suction through direct pressure, while others use a lever, manual pump or powered vacuum system.

A tile suction cup may be useful when:

• Moving a tile from a workbench to the installation area
• Placing a tile onto a prepared adhesive bed
• Positioning a tile near a wall or corner
• Adjusting its alignment with neighboring tiles
• Handling suitable tile samples or finished pieces

The tool must be suitable for the actual tile. A suction cup that works on smooth glazed ceramic may not work on deeply textured porcelain.

Why Use a Tile Suction Cup During Installation?

Tile installation involves more than carrying a tile to its final location. Installers also need to control the tile as they lower it into place, check the layout and make small adjustments.

Holding the tile only by its edges can become awkward, especially near walls, cabinets or neighboring tiles. A suction cup creates another gripping point on the face of the material.

Easier Tile Transfer

A suitable suction handle can help the installer move a tile between the cutting station, workbench and installation area.

More Controlled Placement

The handle gives the installer a practical way to guide the tile toward its intended position.

Help with Small Adjustments

Before the tile is fully installed, a suction cup may help with minor positioning corrections.

Less Dependence on Edge Gripping

When the tile edges are difficult to reach, a temporary grip on the tile face can make handling more convenient.

A suction cup is an installation aid. It does not replace proper lifting methods, tile spacers, leveling systems, adhesives or permanent support.

How Does a Tile Suction Cup Work?

A suction cup creates a pressure difference between the space under its pad and the surrounding air.

The pad is placed against a compatible tile surface. Air is then pushed out or removed to create a temporary attachment. The installer can use the handle for the handling task approved for that tool.

A typical workflow is:

Inspect → Clean → Attach → Check Grip → Move → Position → Support → Release

The contact surface needs to be suitable for the suction pad. Dust, grease, surface texture, pad damage and an uneven contact area can reduce gripping performance.

Always confirm the attachment before moving the tile. If the cup starts to slip or loses suction, stop the operation and place the material in a safe, supported position.

Types of Tile Suction Cups

Tile suction cups come in different designs. The right choice depends on the material and the type of installation work.

Manual Tile Suction Cup

Manual models do not normally need a battery. They may create attachment through direct pressure, a lever or a hand pump.

They can be practical for installers who need a portable gripping tool for compatible tiles.

Lever-Operated Tile Suction Cup

A lever-operated model has a mechanism for creating and releasing suction. The installer places the pad on the tile and operates the lever according to the tool instructions.

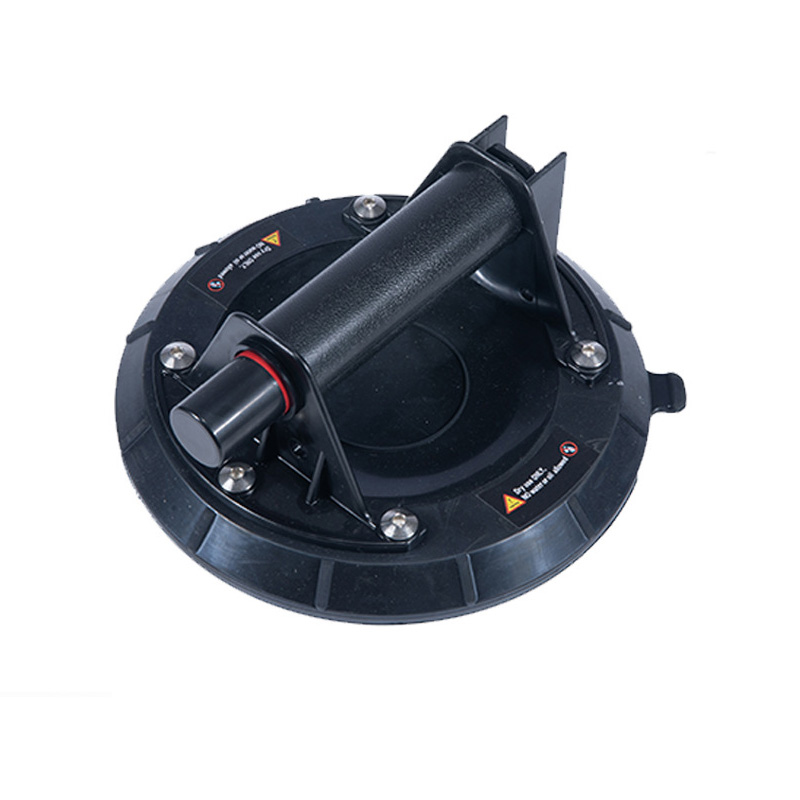

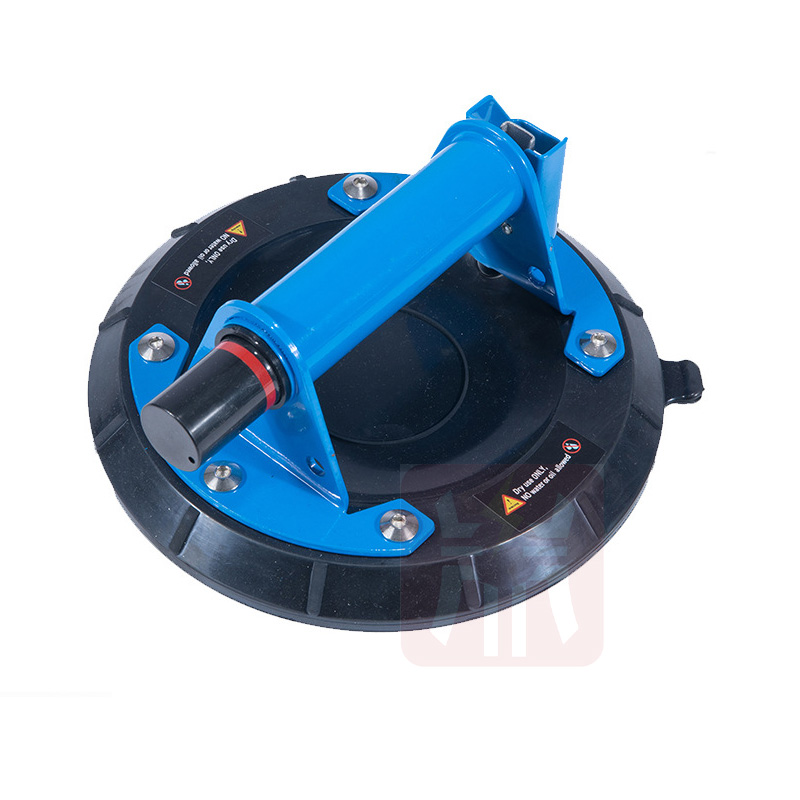

Pump-Action Tile Suction Cup

A pump-action model uses a small manual pump to create vacuum. Some designs include an indicator that helps the operator monitor the attachment.

Electric Tile Suction Cup

An electric model uses a powered vacuum pump. Depending on its design, it may also include battery information or vacuum-monitoring features.

Electric models can be convenient for repeated handling work, but powered operation does not automatically make a tool suitable for every tile surface.

Multi-Cup Tile Handling System

Larger tiles may need several gripping points or a dedicated carrying frame. The correct setup depends on the tile dimensions, weight, balance and the manufacturer’s instructions.

Do not assume that one hand-held suction cup is suitable for a large porcelain slab simply because it attaches to the surface.

Manual vs. Electric Tile Suction Cups

Select the tool according to your tile and working conditions rather than choosing by power source alone.

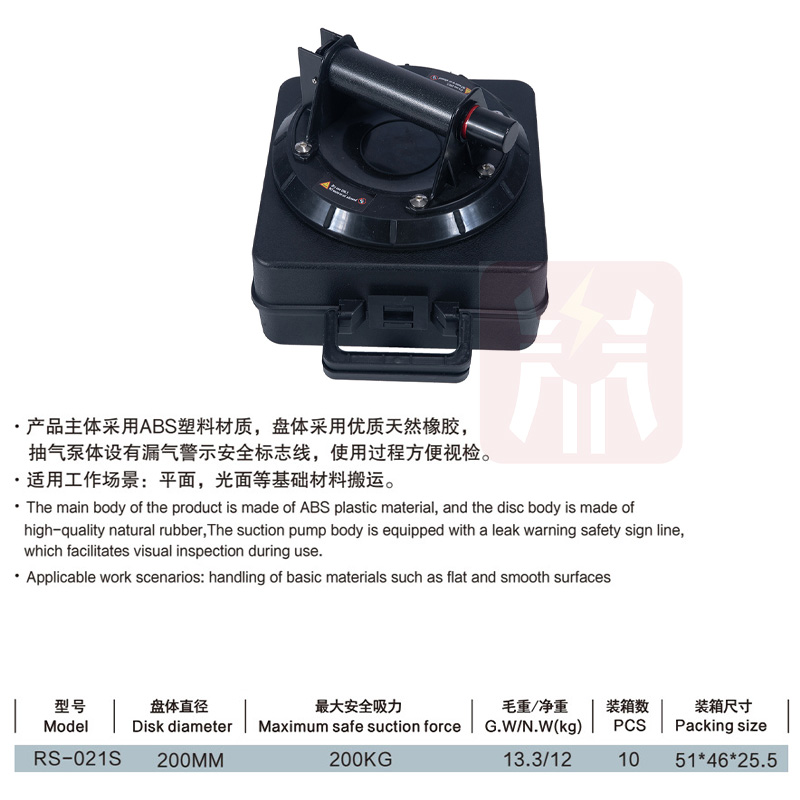

Tile Suction Cup for Ceramic Tile

Ceramic tiles are used on kitchen walls, bathroom walls, floors and decorative surfaces. A suitable suction cup can help the installer handle a tile when its face provides a reliable contact area.

Typical tasks include:

• Moving tiles after cutting
• Placing wall tiles
• Transferring floor tiles
• Positioning decorative ceramic pieces
• Making small corrections near corners or fixtures

Surface finish matters. Some smooth glazed tiles provide suitable conditions for suction, while heavily textured or porous tiles may require a different handling method.

Tile Suction Cup for Porcelain Tile

Porcelain tiles come in many sizes and finishes. Some have smooth polished surfaces. Others are matte, structured or textured.

A compatible porcelain tile suction cup may help with carrying, placement and final positioning. Before using one, check the actual tile rather than relying only on the material name.

Key questions include:

• Is the tile surface suitable for the suction pad?
• Can the full pad sit on a clean contact area?
• Is the tile weight within the tool’s rated capacity?
• Is the tool approved for the intended handling direction?
• Does the tile size require more than one gripping point?

These checks are especially important when moving from conventional tiles to larger porcelain panels.

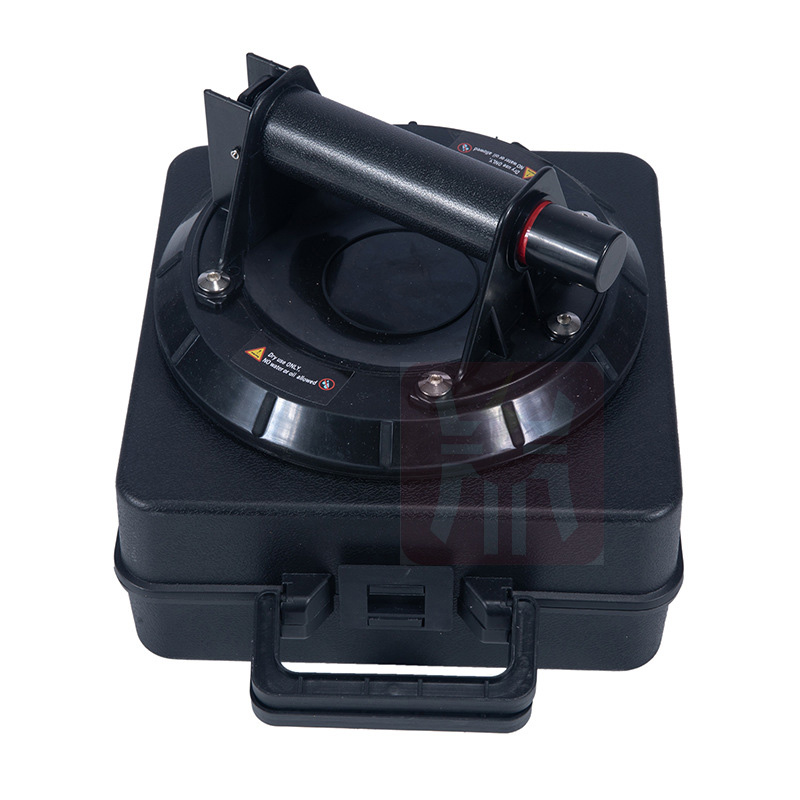

Product packaging

Tile Suction Cups for Smooth and Textured Tiles

A suction cup needs a suitable seal to maintain its grip. This makes surface finish one of the most important selection factors.

Smooth Glazed Tile

Clean, smooth and relatively non-porous surfaces can provide favorable contact conditions for suitable suction pads.

Polished Porcelain

Some polished porcelain surfaces may be compatible with professional suction cups. Dust, moisture and polishing residue can still affect attachment.

Matte Tile

A matte finish does not automatically mean a suction cup will or will not work. The actual texture and the tool’s approved applications matter.

Textured or Structured Tile

Deep texture may leave gaps beneath a conventional suction pad. Some specialized tools are designed for certain textured surfaces, but compatibility must be confirmed for the actual tile.

Porous or Irregular Tile

A porous or highly irregular surface may not allow a conventional suction cup to maintain a reliable seal. Use an approved alternative if the required attachment cannot be achieved.

Tile Suction Cup for Wall Tile Installation

Wall tiling can be awkward when a tile needs to be positioned near a corner, opening or fixture. A suitable suction handle gives the installer another way to guide the tile into place.

It may be useful when working around:

• Wall corners
• Kitchen backsplashes
• Bathroom fixtures
• Window openings
• Tiled niches
• Decorative wall features

After positioning, the tile must be installed and supported according to the tile, substrate and adhesive manufacturers’ instructions. A suction cup must not be used as permanent wall-tile support.

Tile Suction Cup for Floor Tile Installation

Floor tiling requires the installer to place each tile according to the planned layout while maintaining the correct position relative to neighboring tiles.

A suitable suction cup can help lower a compatible tile into place and provide a temporary handle for small positioning corrections.

It does not replace correct adhesive coverage, spacers, leveling methods or proper substrate preparation. Do not use the suction cup to force a tile through adhesive that has already hardened.

Tile Suction Cup for Tile Cutting and Transfer

A tile may be moved several times before installation. It can travel from storage to a cutting station, then to a workbench and finally to the installation area.

A suitable suction cup may help with these transfers when the tile surface and tool rating allow it.

A simple workflow is:

Measure → Mark → Cut → Inspect → Transfer → Position → Install

Before attaching the cup after cutting, remove loose debris and inspect the tile. Freshly cut edges may be sharp, so proper handling precautions are still necessary.

When Does a Tile Need a Larger Handling System?

Large-format porcelain panels require more planning than conventional ceramic tiles. Their overall dimensions can make them difficult to balance even when the weight appears manageable.

Depending on the panel, installers may need:

• Several gripping points
• A dedicated carrying frame
• Additional installers
• Other appropriately rated handling equipment

For this more specialized application, see Speedone’s tile suction cup for large-format porcelain and stone.

A suction cup suitable for a conventional tile should not automatically be used for a much larger porcelain panel.

Tile Suction Cups vs. Glass Suction Cups

Tile and glass suction cups use similar gripping principles, but their intended applications can differ.

Glass usually provides a smooth, non-porous contact surface. Ceramic and porcelain tiles are available in a wider range of finishes, including textures that may need specialized pads.

For glass-focused installation, explore Speedone’s glass suction cups for vacuum lifting and handling.

Use one suction tool across different materials only when the manufacturer approves those applications.

Tile Suction Cup vs. Countertop Seam Tool

A tile suction cup creates a temporary handle for moving and positioning a tile.

A countertop seam tool has a different purpose. It helps adjust the joint between two countertop sections after they have been safely positioned.

For granite and quartz installations that require seam closing and alignment, Speedone’s countertop seam tool for granite and quartz addresses that separate task.

Tile Handling and Stone Countertop Installation

Some contractors work with ceramic tile, porcelain and stone countertops on the same project. Although these materials may share certain handling methods, they should not automatically be treated as interchangeable.

A suitable tile suction cup can assist with tile placement. Once heavy granite or quartz countertop sections are positioned, a dedicated stone pro seam setter for granite and quartz countertops can help with precision joint adjustment.

Do not use a general tile suction cup to pull heavy countertop sections together unless that specific product is designed and approved for the task.

Tile Suction Cups in Kitchen Installation

A kitchen renovation may involve wall cabinets, backsplash tiles, glass panels and stone worktops. Each stage requires its own handling or support method.

A tile suction cup can help with compatible tile positioning. When installing upper wall cabinets, a cabinet jack for upper cabinet installation provides temporary vertical support while the cabinet is positioned and secured.

These tools solve different problems and should be used only for their intended applications.

Tile Suction Cups in Bathroom Renovation

Bathroom projects often combine ceramic wall tiles, porcelain floor tiles, mirrors and wall-mounted cabinets.

A tile suction cup may assist with compatible tile placement. For temporary support during wall cabinet fitting, Speedone’s cabinet support tool for wall cabinet installation serves a different purpose.

Choosing the appropriate tool for each installation stage helps keep the workflow clear and controlled.

How to Use a Tile Suction Cup

Inspect the Tile

Check for cracks, damage and surface defects that could affect handling.

Check the Tool

Inspect the suction pad, handle, lever or pump and other working parts. Do not use damaged equipment.

Confirm Compatibility and Capacity

Check that the tile’s weight, dimensions, surface finish and intended handling direction are within the tool’s approved limits.

Clean the Contact Area

Remove dust, grease and other contamination that could prevent a reliable seal.

Position the Suction Pad

Place the full pad on a suitable area of the tile. Avoid edges, joints, damaged areas and major surface irregularities unless the tool is specifically approved for them.

Create the Attachment

Press the pad, operate the lever or use the pump according to the selected model’s instructions.

Check the Grip

Confirm that a suitable attachment has been established before moving the tile.

Move the Tile Gradually

Avoid sudden pulling, impacts and uncontrolled movement. Use additional assistance or appropriate handling equipment when required.

Position and Support the Tile

Place the tile according to the installation plan and make sure it is adequately supported before releasing the tool.

Release and Inspect

Use the intended release mechanism. After use, check the pad for contamination or damage and store the tool as instructed.

How to Choose the Right Tile Suction Cup

Tile Material

Confirm whether the main application is ceramic tile, porcelain or another approved material.

Tile Size and Weight

Consider the actual tile dimensions and load. A larger panel may need more than one gripping point.

Surface Finish

Check whether the tile is glazed, polished, matte, textured or porous. The selected pad must be suitable for the actual finish.

Rated Working Capacity

Use the manufacturer’s stated rating for the intended working conditions. Do not estimate capacity from suction cup diameter alone.

Vacuum Generation Method

Choose direct-pressure, lever, manual pump or electric operation according to the installation task.

Contact Pad Design

The full pad should fit on a suitable part of the tile and form the seal required for the approved handling operation.

Handle Design

Choose a handle that provides practical control without interfering with nearby tiles, walls or fixtures.

Vacuum Monitoring

Where a gauge or indicator is provided, follow the manufacturer’s instructions for checking the attachment.

Maintenance and Replacement Parts

For regular professional use, consider whether pads, seals and other working parts can be inspected and replaced easily.

Common Tile Suction Cup Problems

The Suction Cup Will Not Attach

Check the tile finish, contact area, pad condition and suction mechanism. Do not proceed until a suitable attachment is established.

The Suction Cup Slips

Stop moving the tile and support it safely. Inspect the tool and contact surface before trying again.

The Tile Has a Textured Surface

A conventional pad may not form a reliable seal. Choose equipment approved for the actual tile finish or use another handling method.

The Tile Is Too Heavy

Do not exceed the rated working capacity. Use appropriately rated equipment or a different handling setup.

The Tile Is Difficult to Balance

Review the gripping-point position and the panel dimensions. Additional gripping points or a dedicated frame may be needed.

The Suction Pad Leaves Marks

Check pad cleanliness and compatibility with the tile finish. Test sensitive surfaces before full use.

Tile Suction Cup Safety Tips

A tile suction cup is a temporary handling aid. Safe use depends on the material, the complete handling setup and the manufacturer’s instructions.

• Inspect the tool before every use.
• Confirm compatibility with the tile surface.
• Follow the rated working capacity.
• Check the permitted handling direction.
• Use a suitable contact area.
• Verify the attachment before moving the tile.
• Avoid sudden movements and shock loading.
• Stop work if the grip becomes unstable.
• Keep people clear of material that could fall.
• Use appropriate personal protective equipment.
• Use additional installers or rated handling equipment when needed.
• Support the tile before releasing the suction cup.

Who Uses Tile Suction Cups?

• Ceramic tile installers
• Porcelain tile contractors
• Kitchen and bathroom renovation teams
• Interior finishing contractors
• Commercial tiling companies
• Flooring contractors
• Construction companies
• Tile fabrication workshops
• Tile and stone distributors
• Installation tool wholesalers

Why Choose Speedone?

Speedone supplies professional equipment for tile, glass, stone, countertop and related installation work.

A tile suction cup has a simple purpose: create a temporary gripping point that helps installers handle and position compatible tiles.

The right configuration depends on the job. A conventional glazed ceramic tile, a textured porcelain tile and a large-format panel may need different suction pads or handling systems.

When requesting a suitable product, share the tile material, dimensions, weight, surface finish and intended handling direction. These details help identify options for your installation work.

Frequently Asked Questions

What is a tile suction cup?

A tile suction cup is a temporary gripping tool that attaches to a compatible tile surface to help with lifting, carrying or positioning during installation.

What is a tile suction cup used for?

Suitable models can help installers move ceramic and porcelain tiles, transfer them between work areas and make controlled positioning adjustments.

Can a tile suction cup be used on porcelain tile?

Yes, if the selected tool is approved for the tile’s actual surface finish, weight, dimensions and handling direction.

Can a tile suction cup work on textured tile?

Some specialized tools are designed for certain textured surfaces. A conventional suction cup may not create a reliable seal, so compatibility must be checked.

What is the difference between manual and electric tile suction cups?

Manual models create attachment through pressure, a lever or a hand pump. Electric models use a powered vacuum pump. The appropriate choice depends on the tile, task and specific product features.

Can a tile suction cup be used for wall tiles?

Suitable models can help position compatible wall tiles. Permanent installation still requires the appropriate adhesive, fixing and support methods.

Can one tile suction cup lift a large porcelain slab?

Not necessarily. Large panels may require multiple gripping points, a dedicated carrying frame, additional installers or other approved handling equipment.

Can a tile suction cup be used on glass?

Some models are approved for both tile and glass. Check that the specific tool is suitable for the glass surface, weight and handling conditions.

How can I prevent a tile suction cup from slipping?

Use an approved tool on a compatible surface, inspect and clean the pad, check the attachment and follow the manufacturer’s capacity and handling instructions.

What should I check before buying a tile suction cup?

Check the tile material, size, weight, surface finish, rated working capacity, suction mechanism, pad design, handle and intended handling direction.

Can a tile suction cup replace a countertop seam setter?

No. Tile suction cups are mainly used for material gripping and handling. Countertop seam setters are designed to close, align and level joints between adjoining countertop sections.
