Countertop Seam Tool for Granite & Quartz

Heavy Duty Countertop Seam Tool for Granite & Quartz Joint Alignment

What Is a Countertop Seam Tool?

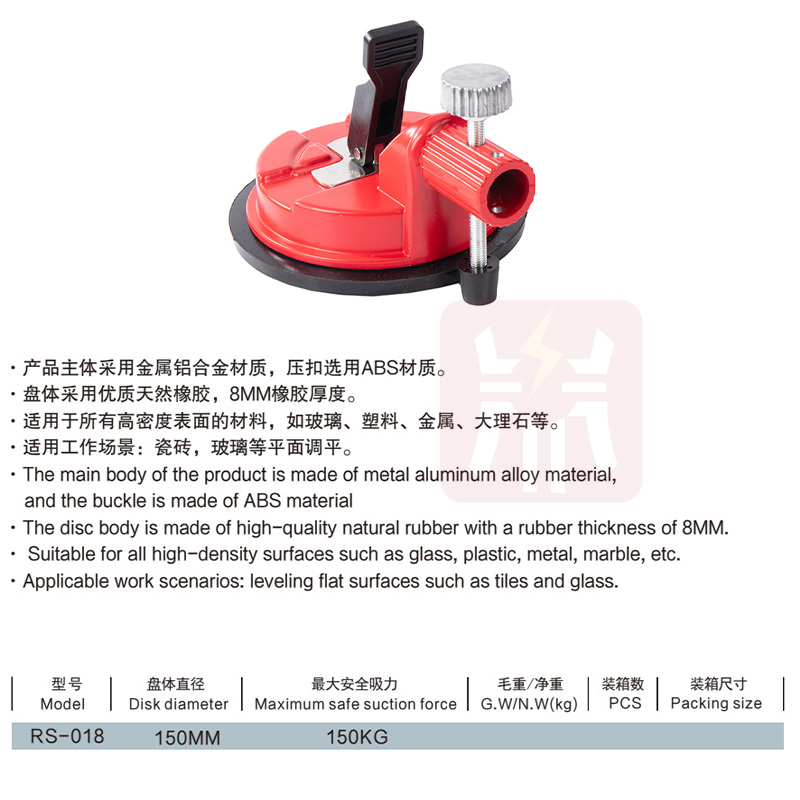

Product parameter information

A countertop seam tool is a professional installation device used to help join two separate countertop sections at a fabricated seam.

Large countertops are often made from several pieces because of slab size, transportation limits, kitchen layout, sink and cooktop openings, corners, long countertop runs, large islands, or restricted building access.

After the sections are safely positioned on the cabinets or support structure, the installer still needs to make final adjustments at the joint.

A professional seam tool can help control:

• Joint closing
• Seam spacing
• Front-edge alignment
• Horizontal position
• Minor surface-height differences
• Joint stability during bonding

Instead of repeatedly moving an entire heavy countertop section, the installer can focus on smaller and more precise corrections around the seam.

Why Use a Countertop Seam Tool?

Granite, quartz, engineered stone, and other countertop materials can be difficult to reposition once they are resting on cabinetry.

Even a small positioning error can make the finished seam more visible or increase the amount of correction required after bonding.

Common problems include:

• Wide seam gaps
• Uneven seam spacing
• Misaligned front edges
• One section sitting higher than the other
• Movement during adhesive curing
• Repeated manual repositioning
• Visible surface lippage

Controlled Seam Closing

The tool helps bring two countertop sections together gradually instead of relying on sudden manual pushing or pulling.

Better Edge Alignment

Small adjustments make it easier to keep the fabricated edges and visible front edges properly matched.

Surface Leveling

Suitable models may provide vertical adjustment to reduce minor height differences between adjoining surfaces.

Stable Bonding Position

Once the correct alignment is reached, the seam tool can help keep the sections stable during the bonding process.

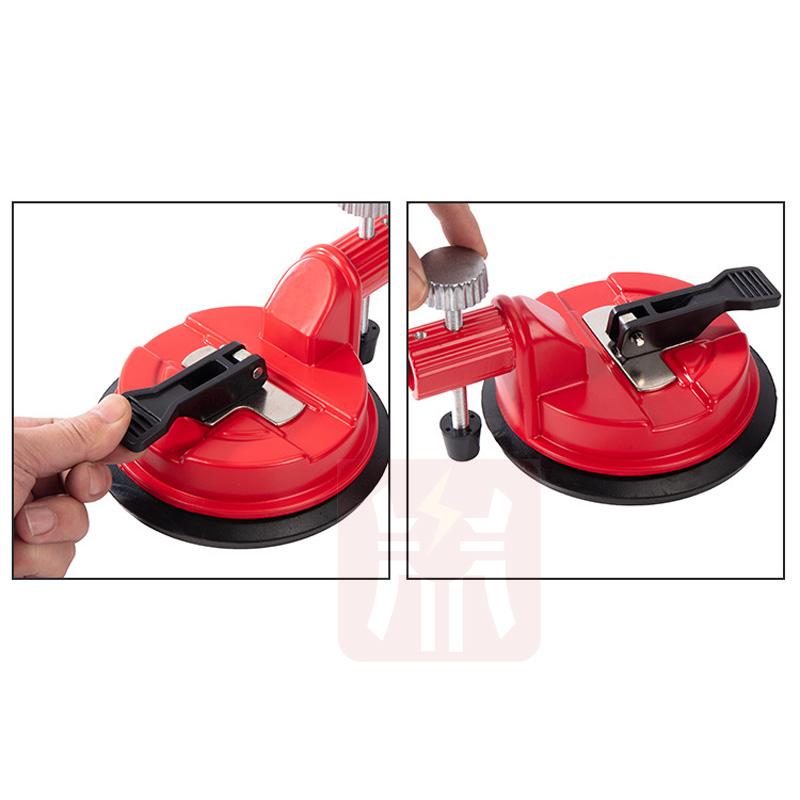

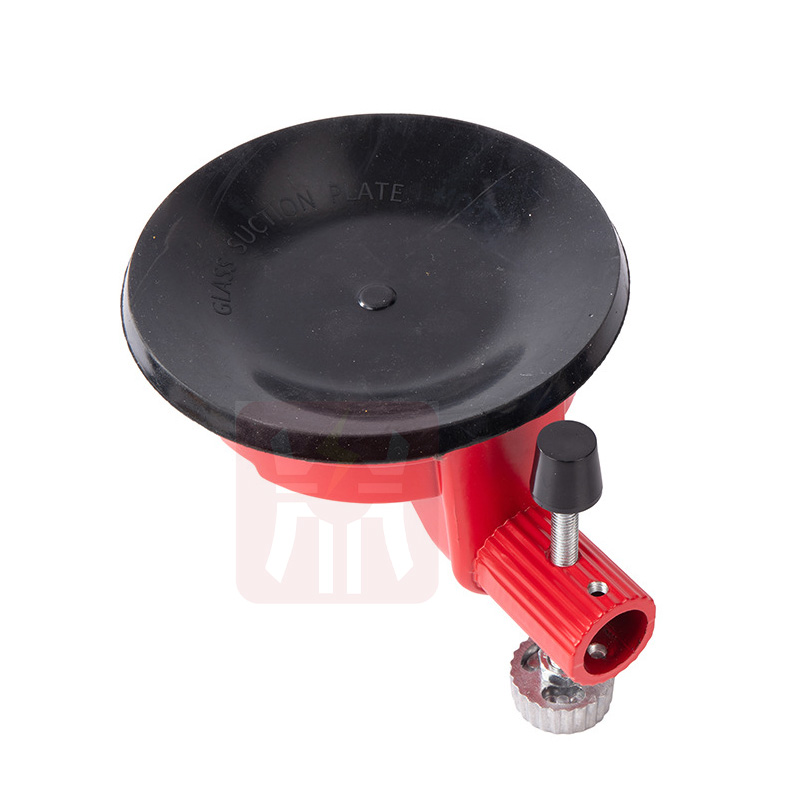

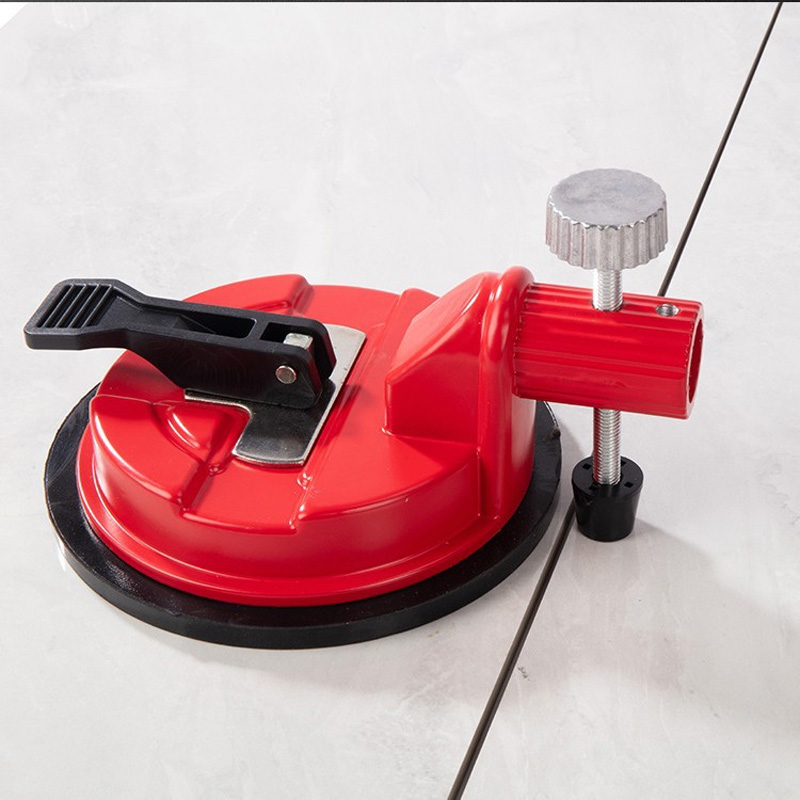

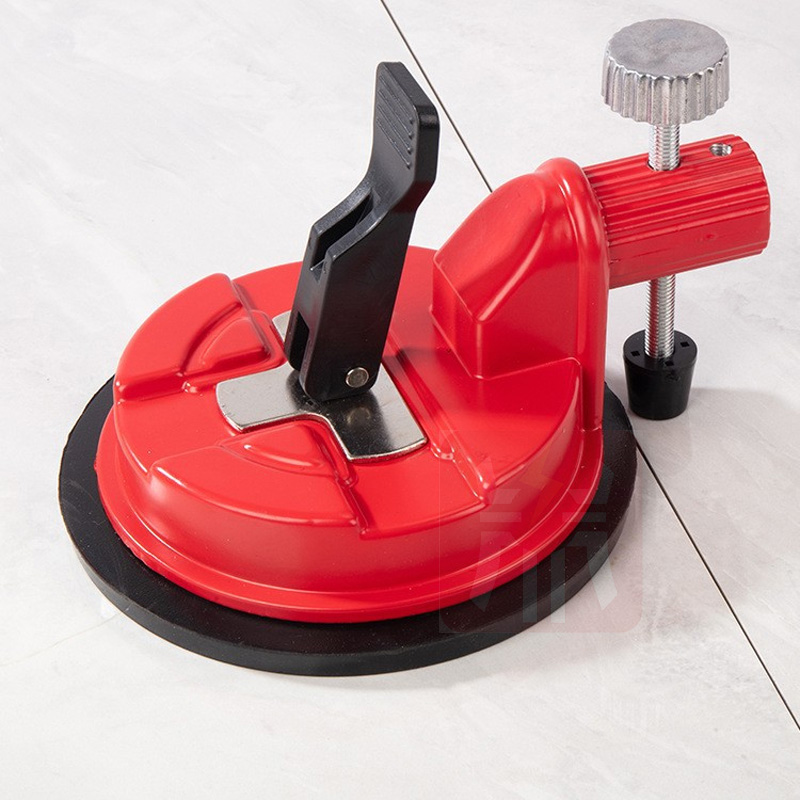

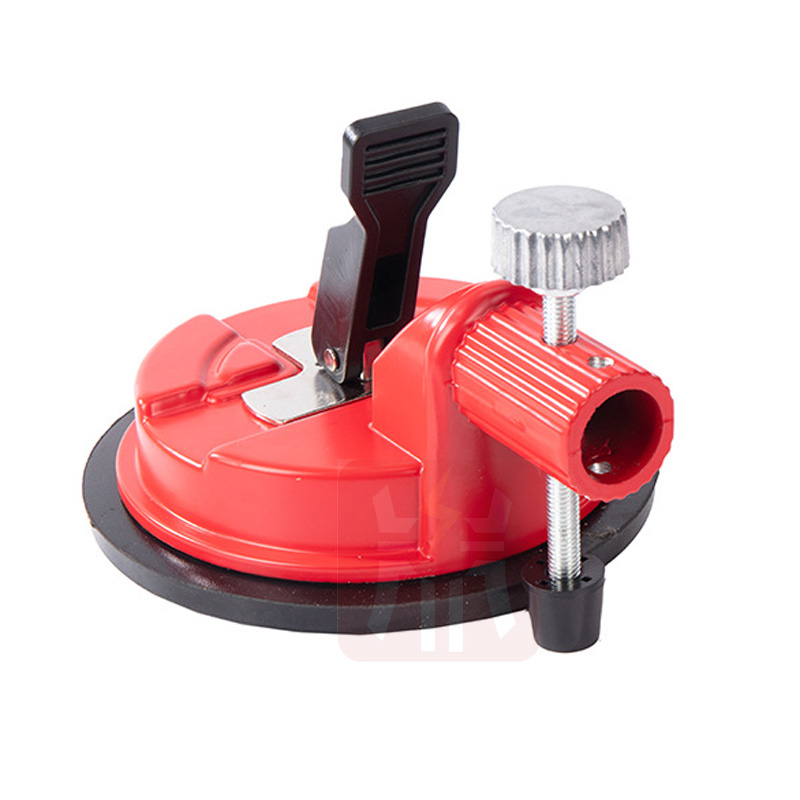

Product display

How Does a Countertop Seam Tool Work?

Many professional countertop seam tools use gripping points positioned on opposite sides of the joint.

On compatible smooth surfaces, vacuum suction cups can create temporary attachment points without drilling into or permanently fastening the finished countertop.

A connecting mechanism then allows controlled adjustment between the two sections.

Depending on the design, the tool may support:

• Horizontal seam pulling
• Controlled joint closing
• Side-to-side positioning
• Edge alignment
• Vertical leveling
• Temporary seam stabilization

A practical installation workflow is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

For installers who specifically need a vacuum-based system, Speedone’s Vacuum Seam Setter for Granite and Quartz Countertops provides a related solution focused on suction gripping and fine joint adjustment.

Countertop Seam Tool for Granite

Granite is one of the most common materials used with professional seam-setting tools.

Once a large granite section is resting on cabinetry, moving it even a small distance can require significant effort. A seam tool allows these corrections to be made closer to the actual joint.

Typical granite applications include:

• L-shaped kitchen countertops
• U-shaped kitchen layouts
• Long countertop runs
• Granite kitchen islands
• Bathroom vanity tops
• Stone bar counters
• Commercial countertops
• Reception counters

The seam tool should be used after the major lifting, transportation, and initial positioning work has already been completed safely.

Countertop Seam Tool for Quartz

Quartz countertops have similar seam-setting requirements, especially on long worktops and large kitchen islands.

Where several quartz sections meet, the installer needs to control both the joint width and the relative position of the surfaces.

A professional countertop seam tool can help with these fine adjustments while the installer continues to check the seam visually.

Before using a vacuum-based system, always make sure the quartz surface is suitable for the selected gripping method.

Product Application Demonstration

Countertop Seam Tool for Seam Joining

One of the main functions of a countertop seam tool is controlled joint closing.

The goal is not to apply maximum force. The sections should be brought together gradually so the installer can keep checking the seam.

Dry Fit First

Position the countertop sections without adhesive and check whether the fabricated edges meet correctly.

Establish Secure Gripping

Place the tool on suitable areas on both sides of the seam and confirm a stable grip.

Close the Seam Gradually

Make small adjustments instead of forcing the countertop sections together in one movement.

Monitor Edge Alignment

Check the front edges and other important reference points as the seam closes.

For installations where a cleaner and more refined seam is especially important, Speedone’s Seamless Seam Setter for Granite and Quartz Countertops provides another precision-focused option.

Countertop Seam Tool for Surface Leveling

A narrow seam can still look poor if one countertop section sits higher than the other.

This difference is often called lippage. Even a small height difference can be visible under lighting or felt when a hand moves across the surface.

Suitable seam-setting tools may include vertical adjustment for fine leveling.

Before using the leveling function, check whether the problem comes from:

• Uneven cabinetry
• Incorrect support
• Improper shimming
• Material thickness variation
• Debris beneath the countertop
• Fabrication tolerance
• Incorrect initial positioning

A countertop seam tool should be used for fine correction rather than for hiding major fabrication or support problems.

Countertop Seam Tool vs. Manual Alignment

Vacuum Countertop Seam Tool

Vacuum gripping is commonly used in professional seam-setting equipment because many polished granite, quartz, glass, and other sufficiently smooth surfaces can provide suitable contact conditions for compatible suction cups.

The suction cups create temporary gripping points while the adjustment mechanism controls the position of the countertop sections.

Before using a vacuum seam tool, check:

• Surface cleanliness
• Surface finish
• Suction pad condition
• Seal condition
• Vacuum stability
• Material compatibility
• Tool condition
• Direction of applied force

Dust, moisture, grease, polishing residue, worn seals, damaged pads, and unsuitable textures can reduce suction performance.

If suction becomes unstable, stop the adjustment and inspect the gripping system before continuing.

Heavy Duty Countertop Seam Tool for Professional Fabricators

Professional fabrication shops may use seam-setting tools repeatedly in residential kitchens, commercial installations, workshops, and renovation projects.

For repeated professional use, buyers should consider more than basic pulling ability.

Important factors include:

• Rigid construction
• Controlled seam adjustment
• Reliable vacuum gripping
• Fine horizontal positioning
• Surface leveling capability
• Accessible controls
• Replaceable suction components
• Compatibility with common countertop materials

For teams looking for a broader professional configuration, Speedone’s Heavy Duty Seam Setter Tool for Granite and Quartz Countertops provides another option for demanding countertop installation work.

Countertop Seam Tool vs. Seam Setter

The terms countertop seam tool and countertop seam setter are closely related, but countertop seam tool is the broader phrase.

A countertop seam tool may refer to equipment used for pulling, positioning, leveling, clamping, or finishing.

A seam setter more specifically describes equipment used to control the position of adjoining countertop sections during installation.

Depending on the design, a seam setter may combine:

• Seam pulling
• Horizontal positioning
• Joint-gap adjustment
• Vertical leveling
• Temporary stabilization

For buyers, the actual functions are more important than the product name alone.

Countertop Seam Tool vs. Seam Puller

A seam puller mainly focuses on drawing two countertop sections together horizontally.

A more complete seam tool may combine pulling with additional positioning and leveling functions.

For installers focused specifically on controlled joint pulling, Speedone’s Seam Puller for Granite Countertops and Joint Leveling provides a related solution.

Countertop Seam Tool vs. Worktop Seam Setter

The difference between countertop and worktop is often regional rather than technical.

“Countertop” is especially common in North America, while “worktop” is widely used in the UK and other markets.

In both applications, professional installers may need to:

• Close the seam
• Align fabricated edges
• Control joint spacing
• Correct small height differences
• Hold the sections stable during bonding

For worktop-oriented markets, Speedone’s Worktop Seam Setter for Granite and Quartz Countertops provides another related option for professional worktop installation.

Countertop Seam Tool vs. Stone Seam Setter Tool

A countertop seam tool focuses on the installation application, while a stone seam setter focuses more on the type of material being handled.

Stone fabrication shops may work with:

• Granite
• Quartz
• Marble
• Engineered stone
• Other compatible countertop surfaces

For businesses working with several stone materials, Speedone’s Stone Seam Setter Tool for Granite and Quartz provides a more material-focused seam-setting option.

Countertop Seam Tool for Kitchen Countertops

Kitchen installation is one of the main applications for countertop seam-setting equipment.

Seams may be required around:

• L-shaped corners
• U-shaped kitchens
• Sink sections
• Cooktop sections
• Long countertop runs
• Peninsulas
• Kitchen islands
• Waterfall countertop installations

After the countertop sections are safely positioned, the seam tool allows the installer to focus on final precision adjustment.

Countertop Seam Tool for Kitchen Islands

Large kitchen islands can be difficult to manufacture, transport, and install as one continuous piece.

Depending on slab size, building access, and project design, several sections may be required.

Because islands are often visible from several directions, accurate seam alignment is especially important.

A suitable seam tool can help control:

• Joint width
• Front-edge position
• Surface transition
• Relative countertop height
• Position during bonding

Countertop Seam Tool for Commercial Installation

Commercial projects may include longer countertop runs and more repeated seams than typical residential installations.

Common applications include:

• Hotel reception counters
• Restaurant bar tops
• Commercial kitchens
• Retail counters
• Office reception areas
• Stone service counters
• Large vanity installations

A repeatable seam-setting process helps professional teams follow a more consistent installation workflow across multiple joints.

How to Use a Countertop Seam Tool

Inspect the Fabricated Edges

Check both countertop edges for chips, damage, dirt, or fabrication problems.

Check the Support Structure

Make sure cabinets, supports, and shims are stable and correctly prepared.

Dry Fit the Countertop

Position the sections near their final locations without adhesive and inspect how the joint closes.

Clean the Gripping Areas

Remove dust, water, grease, polishing residue, and other contamination from the suction-contact surfaces.

Position the Seam Tool

Place the gripping points on suitable areas on opposite sides of the joint.

Confirm Secure Gripping

Make sure all suction cups or other gripping points are stable before adjustment begins.

Close the Seam Gradually

Make small horizontal adjustments while continuously checking the joint.

Align the Countertop Edges

Check the front edges and other visual reference points as the seam closes.

Level the Joint

If the tool provides vertical adjustment, make small corrections to reduce height differences.

Apply the Adhesive

Use a suitable bonding system and follow the adhesive manufacturer’s preparation, application, and curing instructions.

Maintain the Position

Keep the joint stable during the required bonding period.

Release and Finish

After the seam is ready, release the tool carefully and complete the final cleaning, polishing, or finishing process.

How to Choose the Right Countertop Seam Tool

Material Compatibility

Make sure the tool is suitable for the granite, quartz, engineered stone, or other countertop materials your business normally installs.

Reliable Gripping

For suction-based systems, stable gripping is important for predictable seam adjustment.

Fine Seam Control

A professional tool should allow gradual rather than sudden joint movement.

Leveling Capability

If reducing surface lippage is important, choose a configuration with suitable vertical adjustment.

Rigid Construction

A stable connecting structure helps transfer adjustment force more consistently between the gripping points.

Accessible Controls

The controls should remain easy to operate near walls, sinks, backsplashes, cooktops, and corners.

Replaceable Components

Suction pads, seals, adjustment hardware, and other working parts should be easy to inspect and replace.

Multi-Material Use

Fabricators working with both granite and quartz may benefit from one seam-setting system suitable for several compatible surfaces.

Common Countertop Seam Problems

The Seam Will Not Close

Check the fabricated edges, initial position, support conditions, adhesive clearance, and nearby obstructions before increasing force.

One Section Is Higher

Check cabinet level, support height, shimming, material thickness, and initial positioning before making fine leveling adjustments.

The Suction Cup Loses Grip

Stop adjustment and inspect surface cleanliness, suction pad condition, seals, and material compatibility.

The Front Edges Become Misaligned

Reduce adjustment force and correct the horizontal position before continuing.

The Joint Moves During Curing

Maintain the required joint position according to the adhesive manufacturer’s instructions.

Too Much Force Is Required

Do not use excessive force to compensate for major fabrication, support, or positioning problems.

Who Uses Countertop Seam Tools?

• Granite countertop fabricators
• Quartz countertop installers
• Stone fabrication workshops
• Kitchen installation contractors
• Commercial fit-out companies
• Countertop factories
• Stone equipment distributors
• Professional installation tool suppliers

Why Choose Speedone?

Speedone develops professional equipment for stone fabrication, countertop installation, vacuum gripping, slab handling, glass, porcelain, and related material-handling applications.

For professional countertop installers, seam setting works best as a precision stage within the complete installation process.

A practical sequence is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

• Granite countertop installation solutions
• Quartz countertop fabrication tools
• Kitchen and worktop installation equipment
• Vacuum-based gripping applications
• Solutions for stone fabrication workshops
• Professional installation equipment
• OEM and ODM support
• Solutions for international distributors

Frequently Asked Questions

What is a countertop seam tool?

A countertop seam tool is a professional installation device used to help join, align, level, and stabilize adjoining countertop sections during seam installation.

What does a countertop seam tool do?

Depending on the design, it can help close the joint, adjust horizontal position, correct small surface-height differences, and keep the countertop aligned during bonding.

Can a countertop seam tool be used on granite?

Suitable seam-setting systems can be used on compatible polished granite surfaces. Always check the surface condition and gripping requirements before use.

Can a countertop seam tool be used on quartz?

Many professional systems are suitable for compatible granite and quartz surfaces. Material and surface compatibility should be confirmed for the specific model.

Does a countertop seam tool use vacuum suction cups?

Many professional models use vacuum suction cups to create temporary gripping points on opposite sides of the countertop joint.

What is the difference between a countertop seam tool and a seam puller?

A seam puller mainly draws countertop sections together, while a more complete seam tool may also provide alignment, leveling, and temporary stabilization.

Can a countertop seam tool lift stone countertops?

A seam tool should not be used as primary lifting equipment unless the manufacturer specifically approves it for that purpose. Heavy countertop sections should be moved with suitable lifting equipment.

What should I look for when buying a countertop seam tool?

Important factors include material compatibility, reliable gripping, fine seam adjustment, leveling capability, structural rigidity, accessible controls, replaceable parts, and suitability for repeated professional use.
