Granite Seam Tool for Countertop Joining & Leveling

Heavy Duty Granite Seam Tool for Countertop Joint Alignment & Leveling

What Is a Granite Seam Tool?

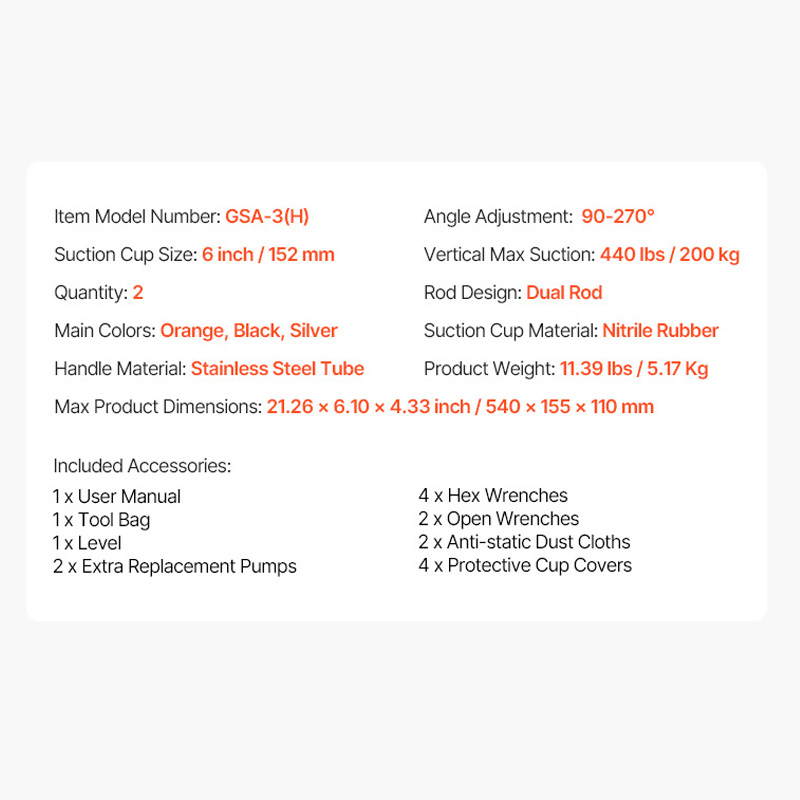

Product parameters

A granite seam tool is a professional countertop installation tool used to bring two granite sections into accurate alignment before the seam adhesive finishes curing.

Large granite countertops are often made from several pieces because of slab size, kitchen layout, transportation limits, corners, sink cutouts, doorways, stairs, or other site restrictions.

After the granite pieces are placed close to their final positions, the installer still needs to control several details at the joint.

• Seam width
• Horizontal alignment
• Front-edge position
• Relative surface height
• Adhesive working space
• Stability during curing

Because granite is heavy, making these small adjustments by hand can be difficult. A dedicated seam tool gives the installer better control without repeatedly moving the entire countertop section.

Why Use a Dedicated Granite Seam Tool?

Granite combines high weight with a rigid structure. Once the stone is resting on cabinets, even a small correction can require significant effort.

A few millimeters of incorrect movement can also become visible across the finished countertop.

Common problems include:

• Uneven seam gaps
• One section sitting higher than the other
• Front edges not lining up
• Stone moving while adhesive cures
• Too much manual force being required
• Difficulty making very small adjustments

The main purpose of a granite seam tool is therefore precision positioning, not heavy lifting.

Controlled Seam Closing

The tool helps bring the two granite sections together gradually instead of relying on sudden pushing or pulling.

Fine Horizontal Alignment

Small side-to-side corrections make it easier to keep the fabricated edges and front edges properly matched.

Surface Leveling

Suitable models may provide vertical adjustment to reduce small height differences across the seam.

Stable Position During Bonding

After the desired position is reached, the tool can help maintain the joint while the adhesive cures.

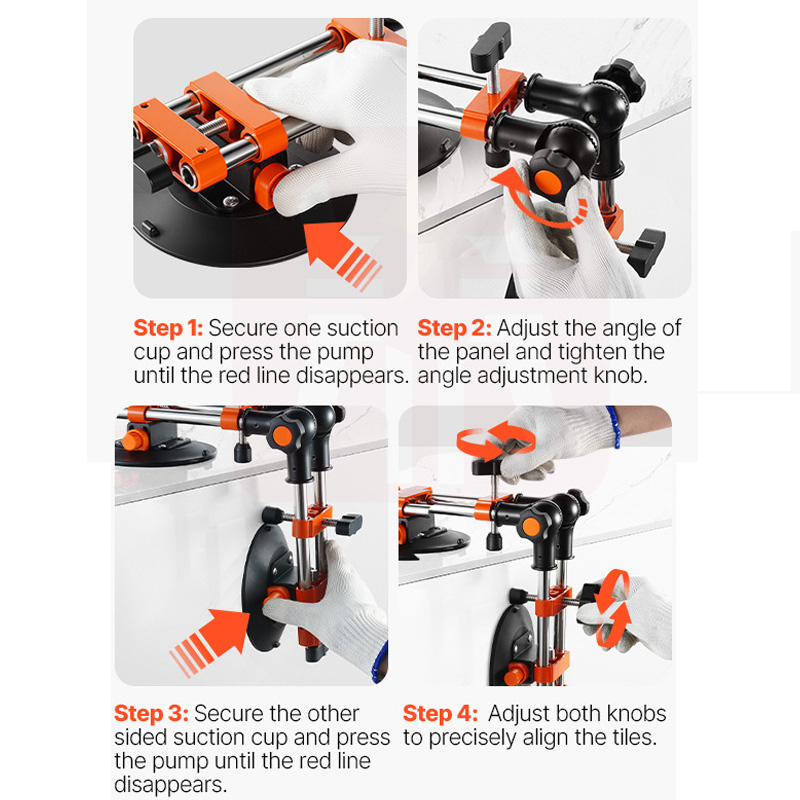

Product usage instructions

How Does a Granite Seam Tool Work?

Many professional granite seam systems use gripping points on opposite sides of the joint.

On suitable polished granite, vacuum suction cups are commonly used because they create temporary gripping points without drilling into the finished stone.

A connecting structure then transfers controlled adjustment force between the two countertop sections.

Depending on the design, the tool may help with:

• Pulling stone sections together
• Reducing the seam gap
• Correcting horizontal position
• Adjusting relative surface height
• Holding the joint during bonding

For applications focused specifically on suction-based adjustment, Speedone’s Vacuum Seam Setter for Granite and Quartz Countertops provides a related solution for vacuum gripping and controlled seam alignment.

Granite Seam Tool for Countertop Joint Closing

Closing a granite joint requires control rather than maximum pulling force.

The two sections should move gradually so the installer can continue checking how the edges meet.

A practical workflow is:

Position → Inspect → Adjust → Recheck → Align → Bond

Controlled Pulling

The adjustment mechanism moves the granite sections together in smaller and more predictable steps.

Seam Gap Control

The installer can watch the remaining gap and stop adjusting when the joint reaches the required position.

Front Edge Alignment

The visible countertop edges should stay matched while the seam is being closed.

Stable Bonding Position

Once the correct joint position is reached, suitable seam-setting equipment can help keep it stable during bonding.

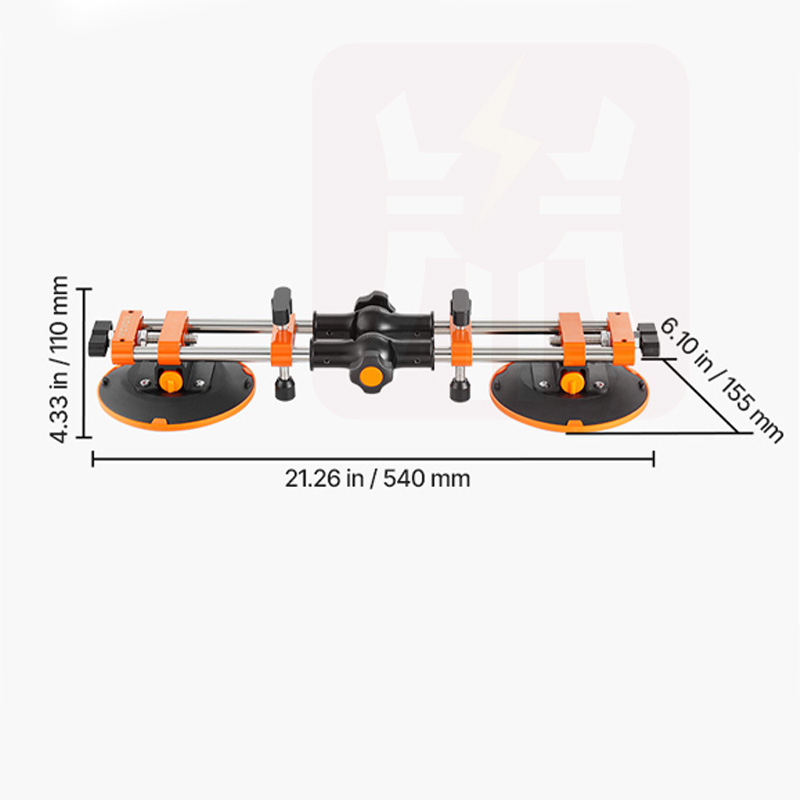

Product size specification

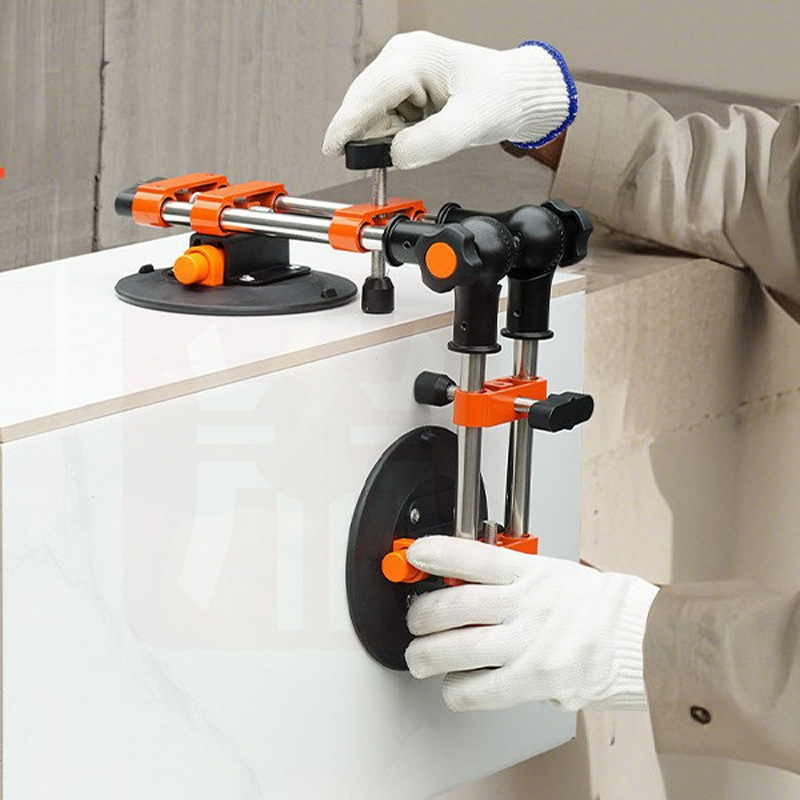

Granite Seam Tool for Surface Leveling

A narrow seam does not always mean the joint is properly finished.

If one granite section sits slightly higher than the other, the transition can still be visible and noticeable by touch.

Some professional seam tools therefore include a leveling function.

Before using vertical adjustment, check whether the height difference comes from:

• Uneven cabinets
• Incorrect shimming
• Different support heights
• Granite thickness variation
• Fabrication tolerance
• Debris beneath the stone
• Incorrect initial positioning

A seam tool should be used for fine correction. It should not be used to hide major support or fabrication problems.

For projects where a smoother and less noticeable joint is especially important, Speedone’s Seamless Seam Setter for Granite and Quartz Countertops provides another option for precision countertop seam work.

Granite Seam Tool vs. Manual Seam Adjustment

Heavy Duty Granite Seam Tools for Professional Use

Professional countertop installers may use seam tools repeatedly in fabrication shops, residential kitchens, commercial projects, and job sites.

For this reason, buyers should consider more than basic pulling capability.

Important factors include:

• Structural rigidity
• Adjustment accuracy
• Reliable gripping
• Simple setup
• Accessible controls
• Easy repositioning
• Replaceable wear parts
• Compatibility with different countertop materials

For demanding professional applications, Speedone’s Heavy Duty Seam Setter Tool for Granite and Quartz Countertops provides another related solution for fabrication and installation work.

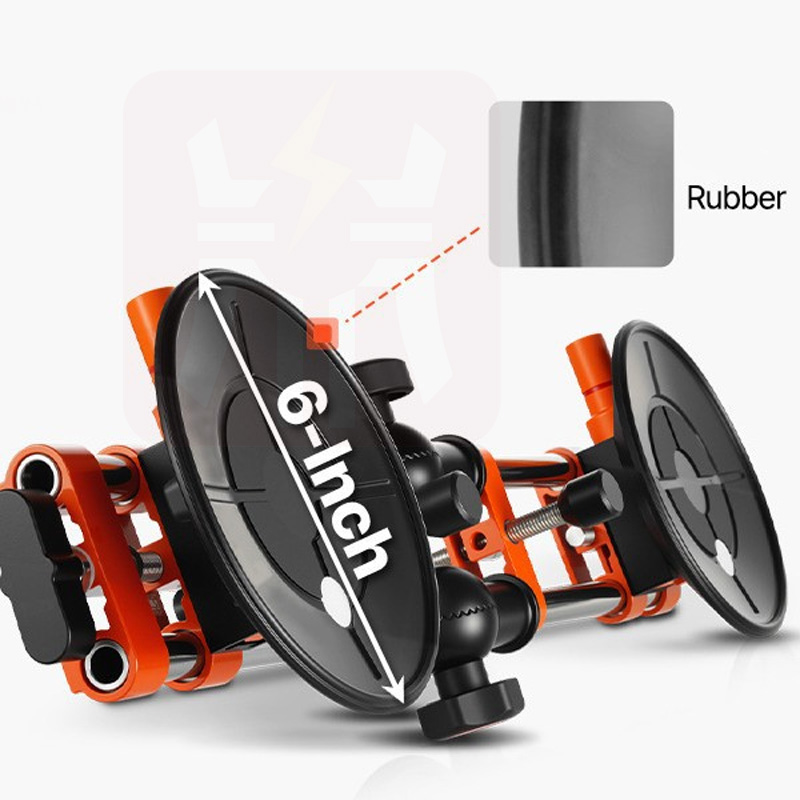

Vacuum Gripping for Polished Granite

Vacuum suction is commonly used with polished granite because suitable surfaces can provide a stable temporary gripping area.

This allows the tool to grip the countertop without drilling holes or permanently modifying the finished surface.

Before applying adjustment force, check:

• Surface cleanliness
• Granite texture
• Suction pad condition
• Seal condition
• Vacuum stability
• Stone finish
• Tool compatibility
• Direction of applied force

Dust, moisture, polishing residue, grease, damaged pads, or excessive surface texture can reduce suction performance.

If any gripping point becomes unstable, stop adjustment and check the cause before continuing.

Product parameter information

Granite Seam Tool vs. Worktop Seam Setter

The terms countertop and worktop often describe the same general application but are more common in different markets.

“Countertop” is widely used in North America, while “worktop” is common in the UK and some other markets.

For buyers, the actual tool functions are more important than the terminology.

For worktop installation applications, Speedone’s Worktop Seam Setter for Granite and Quartz Countertops provides a related option for stone worktop joint alignment.

Granite Seam Tool vs. Stone Seam Setter Tool

A granite seam tool is focused specifically on granite countertop installation.

A stone seam setter tool has a broader material range and may be suitable for granite, quartz, marble, engineered stone, and other compatible surfaces.

For fabrication companies working with several materials, Speedone’s Stone Seam Setter Tool for Granite and Quartz provides a broader seam-setting option.

Granite Seam Tool for Kitchen Countertops

Kitchen installation is one of the most common uses for granite seam tools.

Seams may be required around:

• L-shaped corners
• U-shaped kitchens
• Sink sections
• Cooktop sections
• Long countertop runs
• Large kitchen islands
• Waterfall island assemblies
• Bar and peninsula counters

The seam tool becomes most useful after the granite sections have already been safely positioned on the cabinets and only need final precision adjustment.

Granite Seam Tool for Islands and Long Countertops

Large kitchen islands and long countertop runs may be difficult to fabricate, transport, or install as one piece.

They are therefore often divided into smaller sections.

When these sections are joined, the seam becomes an important part of the finished appearance.

A granite seam tool can help control:

• Joint spacing
• Surface transition
• Front-edge position
• Alignment during adhesive curing

Countertop Seam Setter for Multi-Material Projects

Some contractors install granite on one project and quartz or engineered stone on another.

For these businesses, using equipment that works with several compatible materials may be more practical.

Speedone’s Heavy Duty Countertop Seam Setter for Granite and Quartz provides a broader option for professional multi-material countertop installation.

How to Use a Granite Seam Tool

Inspect the Granite Edges

Check both fabricated edges for chips, dirt, contamination, or other problems that may affect the joint.

Check the Countertop Support

Make sure the cabinets and support structure are stable and correctly prepared before fine adjustment begins.

Dry Fit the Sections

Move the granite pieces close to their final positions without adhesive and check how the edges meet.

Clean the Gripping Areas

For vacuum-based systems, clean and dry the areas where the suction cups will contact the granite.

Position the Granite Seam Tool

Place the gripping points on suitable areas on both sides of the joint.

Confirm a Secure Grip

Check that all suction cups or other gripping mechanisms are properly attached.

Start Horizontal Adjustment

Bring the granite sections together gradually instead of applying excessive force at once.

Check Edge Alignment

Watch the front edge and other reference points while the joint is being closed.

Adjust Surface Height

If the model supports leveling, make small vertical corrections until the required surface position is reached.

Apply the Adhesive

Use an adhesive suitable for granite and follow the adhesive manufacturer’s application and curing instructions.

Maintain Alignment

Keep the granite sections stable during the required bonding period.

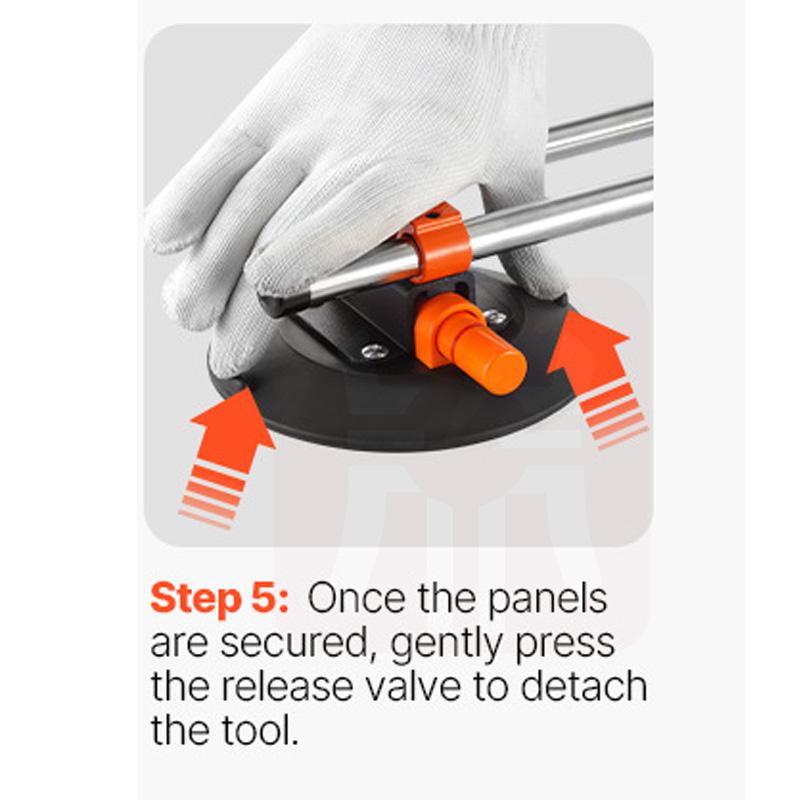

Release and Finish

After the seam has stabilized, release the tool carefully and complete the final cleaning and finishing process.

How to Choose the Right Granite Seam Tool

Gripping System

Make sure the gripping method is suitable for the granite finish and installation conditions.

Fine Adjustment

A professional tool should allow gradual and predictable movement.

Leveling Capability

If a flush transition is important, choose a model with suitable height adjustment.

Structural Rigidity

A rigid frame or connecting structure can help make adjustments more predictable.

Accessible Controls

The controls should remain easy to use near walls, sinks, backsplashes, corners, and other common obstacles.

Replaceable Components

Suction pads, seals, knobs, and other working parts may need replacement over time.

Material Compatibility

If your company installs granite, quartz, and engineered stone, check whether the selected system can support all required applications.

Granite Seam Tool vs. Seam Puller vs. Seam Clamp

Common Problems When Setting Granite Seams

The Joint Does Not Close

Check the fabricated edges, countertop position, support structure, and nearby obstructions before applying more force.

One Granite Section Is Too High

Check the cabinetry, shimming, stone thickness, and support condition before relying on the leveling mechanism.

The Vacuum Cup Loses Suction

Stop adjustment and check surface cleanliness, suction pad condition, seal integrity, and material compatibility.

Too Much Force Is Required

Do not force incorrectly positioned or poorly fabricated granite pieces together. Find the cause of the resistance first.

The Seam Moves During Bonding

Maintain stable alignment throughout the working and curing period specified by the adhesive manufacturer.

Who Uses Granite Seam Tools?

• Granite fabrication shops
• Countertop installers
• Kitchen contractors
• Stone installation teams
• Commercial fit-out companies
• Countertop fabrication factories
• Stone equipment distributors
• Professional tool suppliers

Why Choose Speedone?

Speedone develops professional tools and equipment for stone fabrication, countertop installation, slab handling, glass, porcelain, and related applications.

For countertop professionals, seam setting works best as part of a complete installation process rather than as an isolated operation.

A practical workflow is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

• Solutions for granite and quartz installation
• Professional stone fabrication equipment
• Vacuum-based gripping solutions
• Heavy-duty professional configurations
• Tools for workshops and job sites
• OEM and ODM support
• Solutions for installers and distributors

Frequently Asked Questions

What is a granite seam tool?

A granite seam tool is a professional countertop installation device used to help pull together, align, level, and stabilize adjacent granite sections during seam installation.

What is a granite seam tool used for?

It is mainly used during the final positioning stage of granite countertop installation to control joint spacing, horizontal alignment, and, on suitable models, relative surface height.

Does a granite seam tool use vacuum suction cups?

Many professional models use suction cups to create temporary gripping points on suitable polished granite surfaces.

Can a granite seam tool level countertops?

Suitable models can provide height adjustment to help correct small differences between adjacent countertop sections.

Can a granite seam tool be used on quartz?

Some models are suitable for both granite and quartz. Material, surface, gripping, and working-capacity compatibility should be checked before use.

What is the difference between a granite seam tool and a seam puller?

A seam puller mainly draws the sections together, while a granite seam tool may combine pulling, alignment, leveling, and stabilization functions.

Can a granite seam tool lift slabs?

A seam tool should not be used as primary slab lifting equipment unless the manufacturer specifically approves it for that purpose. Granite slabs should be lifted and transported with suitable lifting equipment.
