Hydraulic Natural Stone Splitter for Granite, Marble & Split Face Stone

What Is a Natural Stone Splitter?

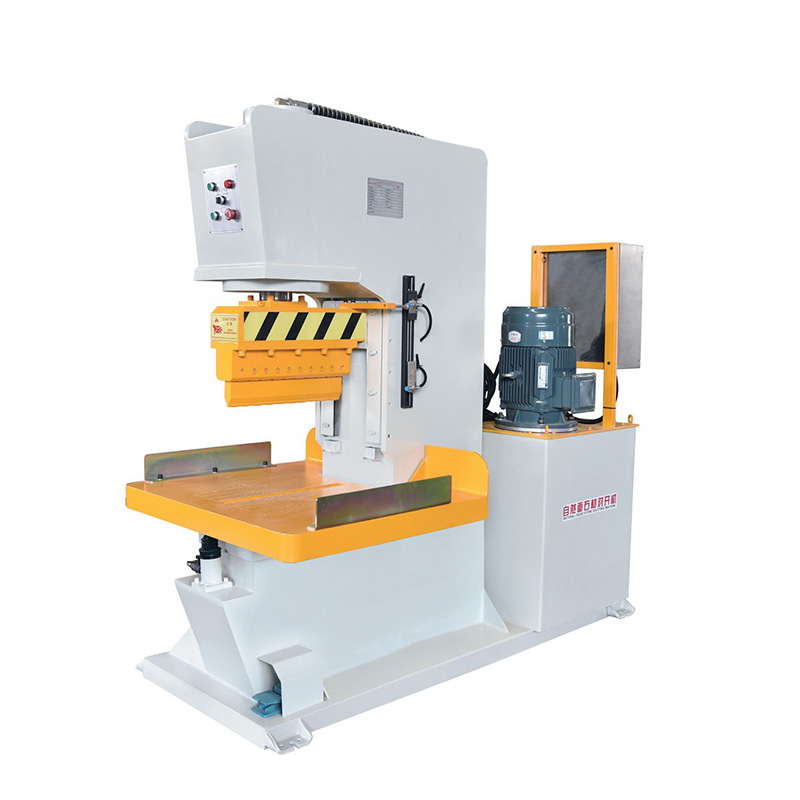

Product display and size indication

A natural stone splitter is industrial equipment used to divide natural stone by applying concentrated mechanical force. Professional machines commonly use hydraulic power because it can provide strong and controlled pressure during repeated production.

The stone is positioned on the working table and aligned with the splitting tools. The hydraulic system then drives the splitting head toward the material until the stone fractures along its natural structure.

Unlike a diamond saw, a splitter does not normally create a perfectly smooth surface. Instead, it exposes the internal texture of the stone and produces the natural appearance required for many architectural and landscaping products.

Typical products include:

• Natural split-face wall stone
• Stone veneer
• Granite paving
• Cobblestones
• Landscape stone
• Building stone
• Garden wall stone
• Architectural cladding
• Rustic masonry stone
• Stone cubes
• Decorative natural stone
• Secondary products made from suitable offcuts

Why Use a Hydraulic Natural Stone Splitter?

Natural stone has traditionally been split with hammers, wedges and chisels. These methods can still work for low-volume masonry, repairs and handcrafted stone products.

Factory production is different. When many pieces must be processed every shift, a hydraulic natural stone splitter provides a more repeatable and organized way to apply force.

Potential advantages include:

• Reduced dependence on manual hammering
• Controlled hydraulic splitting force
• Natural fractured surfaces
• Faster repetitive processing
• Compatibility with several natural stone types
• Production of wall, paving and landscape products
• Potential integration with roller tables and conveyors
• Ability to process selected stone offcuts
• Reduced need for full-depth sawing when a natural finish is required

The purpose of the machine is not simply to break stone. It is to convert prepared material into commercially useful stone products with a repeatable production process.

How Does a Natural Stone Splitter Work?

A typical workflow is:

Load → Position → Align → Apply Hydraulic Force → Split → Release → Remove → Inspect

The workpiece is placed on the machine table and aligned with the splitting tools. Hydraulic pressure then moves the splitting head toward the stone.

As pressure increases, force becomes concentrated in the selected area. Once the internal stress becomes greater than the stone can resist, the material separates.

The finished fracture depends on several factors:

• Stone type
• Grain structure
• Veins
• Bedding direction
• Existing cracks
• Workpiece width
• Workpiece thickness
• Splitting-tool geometry
• Stone positioning
• Hydraulic force
• Tool condition

This is why two pieces with the same dimensions may not split in exactly the same way. The machine controls the force, while the natural structure of the stone influences the final fracture.

Natural Stone Splitter for Granite

Granite is one of the most common materials processed with hydraulic stone splitters. Its durability makes it suitable for building, paving and landscaping applications.

Typical granite products include:

• Wall stone
• Building stone
• Granite pavers
• Cobblestones
• Landscape blocks
• Garden stone
• Architectural cladding
• Stone cubes

Different granite varieties can behave differently during splitting. Fine-grained granite, coarse-grained granite and stone containing natural microcracks can require different machine settings and tooling.

A practical selection process is:

Granite Type → Width → Thickness → Finished Product → Required Output → Machine Configuration

If your factory also processes larger granite and marble pieces, Speedone’s stone splitting machine for granite and marble provides a broader solution for general stone splitting applications.

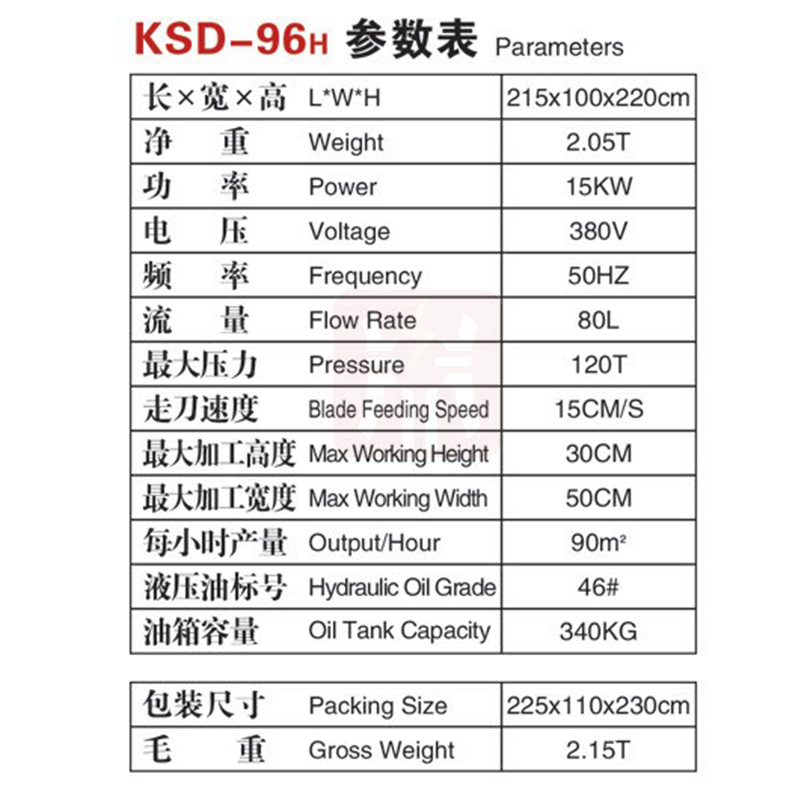

Product display and parameter table

Natural Stone Splitter for Marble

Marble can also be processed with suitable hydraulic splitting equipment. However, marble often contains visible veins and directional structure, which can influence how the stone fractures.

Correct stone orientation is therefore particularly important.

Possible marble products include:

• Split-face marble
• Marble veneer
• Decorative wall stone
• Landscape pieces
• Architectural cladding
• Rustic marble products

If you need both natural splitting and decorative mould pressing, Speedone’s marble splitting machine for split face and stamping is designed for applications where both processing methods may be required.

Natural Stone Splitter for Limestone

Limestone is widely used for architecture, landscaping and traditional masonry. Suitable hydraulic splitters can process limestone into several different products.

• Wall stone
• Building stone
• Stone veneer
• Garden stone
• Paving
• Masonry units
• Landscape products

Limestone varies significantly in strength. Some materials split relatively easily, while denser limestone can require more force or a different tool configuration.

For this reason, the actual stone should be considered when selecting a machine rather than relying only on the general material name.

Natural Stone Splitter for Sandstone

Sandstone often contains natural bedding planes. These layers can strongly influence the direction of the fracture.

Important factors include:

• Bedding direction
• Stone thickness
• Desired split line
• Natural cracks
• Finished-product dimensions

Correct orientation can make sandstone splitting more predictable and can help reduce unwanted breakage.

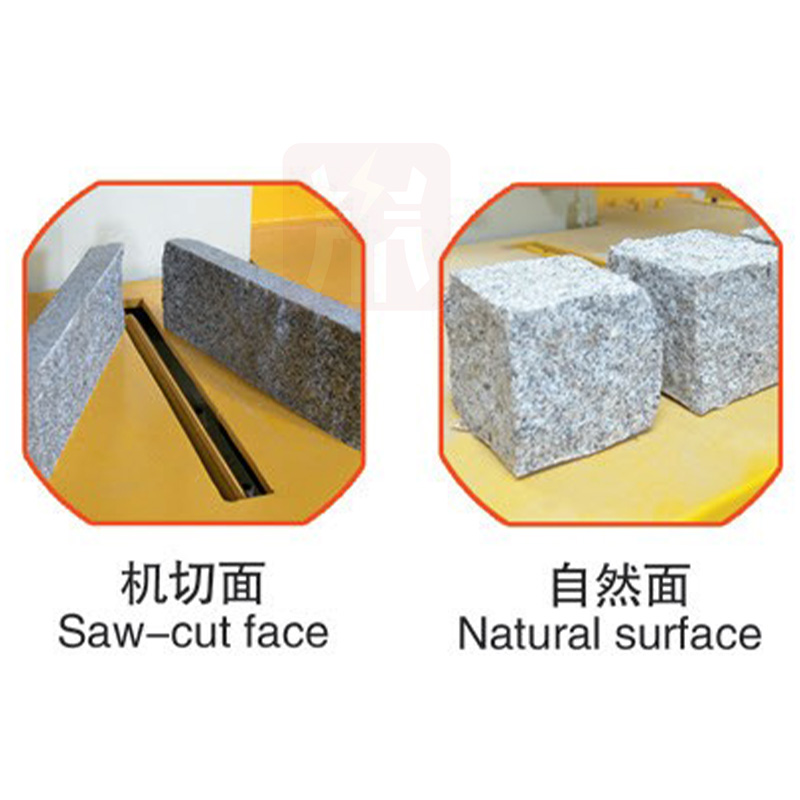

Natural Stone Splitter for Split-Face Stone

Split-face stone is one of the clearest applications for a natural stone splitter.

A diamond saw creates a relatively flat surface. Hydraulic splitting creates a natural fractured surface with depth and variation.

This type of finish is commonly used for:

• Exterior wall cladding
• Interior feature walls
• Landscape walls
• Garden walls
• Rustic facades
• Stone veneer
• Architectural masonry
• Decorative stone panels

The irregular three-dimensional texture is part of the finished design and is one of the main reasons stone processors choose splitting rather than only sawing.

Natural Stone Splitter for Stone Veneer

Stone veneer production often combines sawing and splitting.

The stone is first prepared to a suitable size. The splitter is then used to expose a natural face.

A typical process is:

Natural Stone → Pre-Sizing → Hydraulic Splitting → Face Inspection → Sorting → Packaging

For veneer production, pay particular attention to:

• Required face appearance
• Stone thickness
• Workpiece width
• Tool contact
• Fracture consistency
• Finished-product handling

A machine with higher tonnage does not automatically produce better veneer. Tool design, stone characteristics and positioning are also important.

Natural Stone Splitter for Building Stone

Building stone can include many different products, from relatively thin wall pieces to thick structural and landscape blocks.

Common applications include:

• Retaining-wall blocks
• Masonry pieces
• Rustic wall stone
• Garden wall stone
• Building facade stone
• Architectural blocks
• Landscape stone

The correct machine depends heavily on the finished product size. A splitter used for thin wall stone can require a different working opening and tooling arrangement from one used for heavy building blocks.

For broader granite and building-stone applications, Speedone’s stone splitter for granite and building stone provides another suitable reference.

Natural Stone Splitter for Paving Products

Natural stone splitting is also widely used for paving products.

Possible finished products include:

• Granite pavers
• Cobblestones
• Stone cubes
• Garden paving
• Plaza paving
• Walkway stone
• Landscape paving

The stone is often first cut into strips and then divided into smaller pieces with a hydraulic splitter.

A typical workflow is:

Stone Block → Sawing → Stone Strip → Hydraulic Splitting → Sorting → Packing

When many paving pieces are produced every shift, feeding and unloading efficiency can become just as important as the hydraulic splitting speed.

Natural Stone Splitter vs. Hydraulic Stone Splitting Machine

These terms can describe similar equipment, but they emphasize different parts of the application.

A natural stone splitter focuses on processing granite, marble, limestone, sandstone and other natural stone into useful products. A hydraulic stone splitting machine is a broader description of the industrial equipment itself.

For more information about hydraulic-system structure and industrial configurations, see Speedone’s hydraulic stone splitting machine.

Natural Stone Splitter vs. Stone Stamping Machine

Stone splitting and stone stamping create different results.

A natural stone splitter fractures the material and exposes its natural surface. A stamping machine uses a mould to create a more controlled decorative shape or pattern.

If you need repeatable decorative shapes, Speedone’s stone stamping machine for granite and marble may be more suitable.

Natural Stone Splitter vs. Diamond Saw

A splitter and diamond saw perform different jobs and often work together in the same factory.

In many factories, the saw provides dimensional control and the splitter creates the final natural surface.

Natural Stone Splitter vs. Manual Splitting

Main Components of a Natural Stone Splitter

Machine Frame

The frame carries the loads generated during splitting. Structural rigidity helps maintain alignment between the hydraulic system, splitting tools and stone.

Hydraulic Cylinder

The cylinder converts hydraulic pressure into linear movement and drives the splitting head toward the material.

Hydraulic Power Unit

The hydraulic unit supplies the pressure required during the splitting cycle.

Splitting Head

The splitting head transfers force from the hydraulic system into the workpiece.

Splitting Tools

Depending on machine configuration, the splitter may use:

• Splitting blades
• Chisels
• Splitting teeth
• Upper and lower tools

Working Table

The working table supports the stone while the operator or feeding system positions it for splitting.

Control System

The machine controls allow the operator to manage the splitting cycle.

Why Splitting Tool Design Matters

The hydraulic system generates force, but the splitting tools determine how that force contacts the stone.

This is particularly important because natural stone surfaces are not always perfectly flat.

Poor tool contact can contribute to:

• Uncontrolled fracture
• Excessive chipping
• Uneven splitting
• Reduced finished-product quality

Some splitter configurations use multiple or segmented contact points to better follow irregular stone surfaces.

When comparing machines, consider the complete splitting head and tool configuration rather than hydraulic tonnage alone.

How Much Splitting Force Do You Need?

There is no single force rating suitable for every stone and every product.

Required splitting force depends on:

• Stone type
• Material strength
• Workpiece width
• Workpiece thickness
• Geological structure
• Splitting-tool geometry
• Finished product

A better selection process is:

Stone → Dimensions → Finished Product → Required Force → Machine

Choosing the largest available machine can increase investment and floor-space requirements without improving daily production.

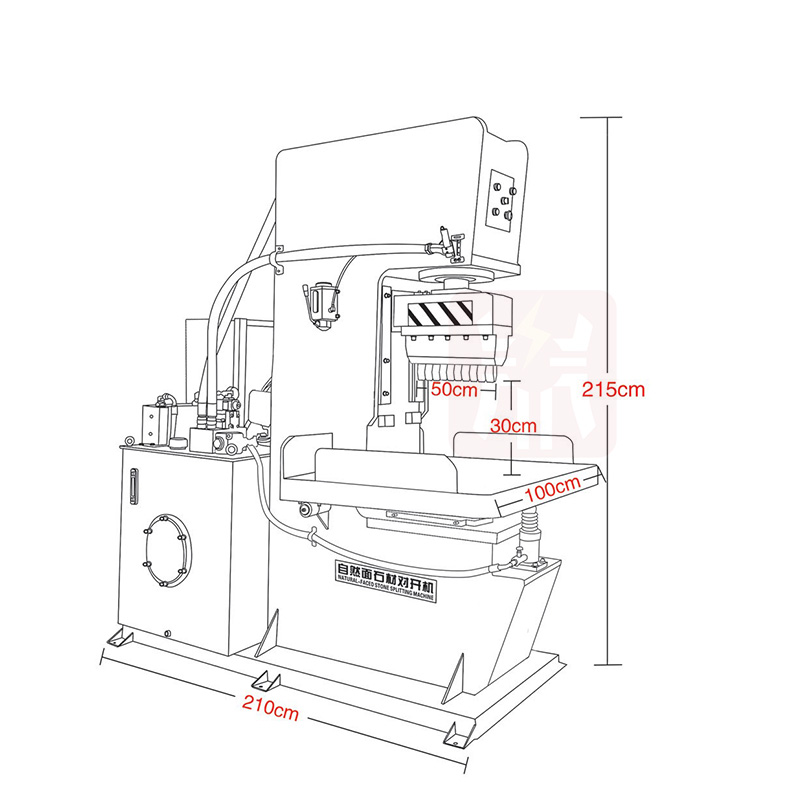

Working Width and Working Height

Two of the most important machine specifications are working width and working height.

Working Width

This determines the maximum width of stone that can fit under the splitting head.

Working Height

This determines the maximum thickness or block height the machine can accept.

When requesting a quotation, provide both:

Typical Dimensions + Maximum Dimensions

The machine should be selected primarily around your normal production requirements.

Natural Stone Splitter with Multiple Splitting Teeth

Rough natural stone can have uneven upper and lower surfaces.

Some splitter designs may use multiple splitting teeth or segmented contact systems to improve contact with irregular material.

Potential advantages can include:

• Better contact with uneven surfaces
• Improved fracture control
• More suitable processing of rough material
• Better adaptation to different stone profiles

The exact tooling arrangement should always be confirmed for the machine being purchased.

Standalone Natural Stone Splitter vs. Production Line

A standalone splitter can be suitable for factories producing several different stone products.

A more integrated production line may be useful when output is higher and product dimensions remain relatively consistent.

A typical line may be:

Stone Preparation → Feeding → Splitting → Outfeed → Sorting → Packing

Why Material Handling Matters

Machine speed alone does not determine factory output.

The complete production cycle includes:

Pick Up → Load → Position → Split → Remove → Sort

If loading takes much longer than the hydraulic cycle, increasing splitting speed may provide little practical improvement.

Depending on stone dimensions and production volume, factories may use:

• Roller tables
• Conveyors
• Stone manipulators
• Forklifts
• Overhead lifting equipment
• Organized staging areas

Natural Stone Splitter for Stone Offcuts

Stone factories often generate leftover material during primary cutting and fabrication.

Suitable offcuts may still be converted into useful secondary products, including:

• Wall stone
• Landscape pieces
• Small paving blocks
• Decorative natural-face stone
• Garden products

A possible workflow is:

Offcut → Inspection → Pre-Sizing → Hydraulic Splitting → Sorting

Not every offcut is suitable. Pieces with serious structural cracks or unsuitable geometry should be evaluated before processing.

Natural Stone Splitting in Countertop Factories

Countertop fabrication is not the main application for a natural stone splitter. Countertops normally require precision sawing, CNC machining, polishing and installation.

However, granite and natural-stone countertop production can generate usable offcuts.

Those pieces may follow a secondary production path:

Slab → Countertop → Offcut Selection → Natural Stone Splitting → Secondary Product

The finished countertop follows a completely different workflow.

During installation, Speedone’s Stone Pro seam setter for granite and quartz countertops is used for positioning and seam adjustment rather than stone splitting.

How to Operate a Natural Stone Splitter

1. Inspect the Stone

Check for visible cracks, loose material and major structural defects.

2. Confirm Workpiece Dimensions

Make sure the stone falls within the approved machine range.

3. Inspect the Hydraulic System

Check hoses, fittings and visible hydraulic components.

4. Inspect the Splitting Tools

Look for excessive wear, misalignment or damage.

5. Load the Stone

Use appropriate handling equipment where required.

6. Position the Split

Align the desired fracture area with the splitting tools.

7. Clear the Working Area

Keep hands and personnel away from the splitting zone.

8. Start the Splitting Cycle

Operate the machine according to the manufacturer’s instructions.

9. Allow the Split to Complete

Do not reposition the stone while hydraulic force is being applied.

10. Release the Working Head

Wait until the machine returns to the correct safe position.

11. Remove the Finished Stone

Use suitable handling methods according to stone size and weight.

12. Inspect the Result

Check dimensions, fracture quality and finished surface appearance.

How to Choose the Right Natural Stone Splitter

1. Define the Stone Material

Determine whether you mainly process granite, marble, limestone, sandstone or another compatible natural stone.

2. Define Input Dimensions

Provide both normal and maximum workpiece dimensions.

3. Define the Finished Product

Specify whether you need wall stone, veneer, paving products, building blocks or landscape stone.

4. Define Required Output

Estimate a realistic production target per shift.

5. Determine Suitable Splitting Force

Match hydraulic capacity to the actual material and workpiece dimensions.

6. Evaluate Splitting Tools

The tooling should suit the stone surface and required finished product.

7. Check Working Width and Height

The machine opening should match normal daily production.

8. Consider Material Feeding

Decide whether manual loading, roller tables, conveyors or other handling equipment are appropriate.

9. Evaluate Machine Structure

Frame rigidity and tool alignment are important for repeated production.

10. Plan Factory Space

Allow room for loading, unloading, inspection and maintenance.

11. Ask About Spare Parts

Confirm availability of splitting tools and hydraulic components.

12. Check Supplier Support

Technical documentation, replacement parts and responsive communication are important for industrial equipment.

Information to Send Speedone for a Quotation

To help Speedone evaluate a suitable natural stone splitter, prepare:

1. Stone type
2. Photos of the raw stone
3. Typical stone dimensions
4. Maximum stone dimensions
5. Approximate workpiece weight
6. Required finished product
7. Photos of the finished product
8. Required production volume
9. Current processing method
10. Preferred loading method
11. Factory voltage and frequency
12. Available installation space

These details make it easier to match the machine to your real production requirement.

Common Natural Stone Splitting Problems

Stone Splits in the Wrong Direction

Natural grain, veins or internal cracks may redirect the fracture. Check stone orientation before processing.

Excessive Edge Chipping

Inspect stone positioning, tool contact and splitting-tool condition.

The Stone Requires Too Much Pressure

Confirm that the material and dimensions are within the approved machine capacity. Do not exceed manufacturer-rated hydraulic settings.

The Finished Surface Is Inconsistent

Some natural variation is expected, but tool alignment and material orientation should still be checked.

Splitting Tools Wear Unevenly

Inspect tool alignment and contact with the workpiece.

Production Is Too Slow

Measure the complete process. Loading, positioning and unloading may be the real bottlenecks.

Natural Stone Splitter Maintenance

Routine inspection should include:

• Hydraulic oil
• Hydraulic pump
• Hydraulic cylinder
• Hoses
• Fittings
• Control valves
• Pressure system
• Splitting tools
• Tool guides
• Working table
• Machine frame
• Electrical controls
• Safety systems

Hydraulic leaks should be checked promptly, and damaged components should not remain in normal operation.

Natural Stone Splitter Safety

• Only trained personnel should operate the machine.
• Inspect the equipment before production.
• Keep hands away from the splitting area.
• Never bypass safety systems.
• Inspect hydraulic hoses regularly.
• Use suitable methods for moving heavy stone.
• Wear appropriate personal protective equipment.
• Keep other personnel clear of the working area.
• Follow lockout procedures during maintenance.
• Do not exceed approved workpiece dimensions.
• Do not exceed rated hydraulic settings.
• Replace damaged splitting tools.
• Keep the factory area clean and organized.

Natural stone can fracture unpredictably, so operators should also consider the possibility of stone fragments during splitting.

Who Uses Natural Stone Splitters?

• Granite factories
• Marble processors
• Natural stone factories
• Stone veneer manufacturers
• Building stone producers
• Landscape stone manufacturers
• Paving stone factories
• Architectural stone companies
• Quarry processing facilities
• Stone equipment distributors

Why Choose Speedone?

Speedone supplies professional equipment for stone processing, stone handling and installation workflows.

When choosing a natural stone splitter, start with the material and finished product rather than maximum hydraulic tonnage.

A practical selection sequence is:

Stone Type → Input Dimensions → Finished Product → Splitting Force → Tooling → Material Handling → Production Target → Factory Layout

This helps avoid choosing a machine that is too small, unnecessarily large or poorly matched to your actual production.

When comparing equipment, also consider:

• Machine structure
• Hydraulic-system configuration
• Working width
• Working height
• Splitting-tool design
• Material feeding
• Spare-part availability
• Technical documentation
• Customization requirements
• Supplier communication

Frequently Asked Questions

What is a natural stone splitter?

A natural stone splitter is equipment that applies concentrated force to fracture granite, marble, limestone, sandstone and other suitable natural stone into finished or semi-finished products.

Is a natural stone splitter hydraulic?

Industrial natural stone splitters commonly use hydraulic systems because they provide strong and controlled splitting force.

What materials can a natural stone splitter process?

Depending on machine configuration, suitable splitters may process granite, marble, limestone, sandstone and other compatible natural stones.

Can a natural stone splitter process granite?

Yes. Suitable machines can process granite when the workpiece dimensions and material characteristics fall within the machine’s approved capacity.

Can it split marble?

Yes. Suitable machines can split marble, although natural veins and internal structure can influence the fracture direction.

Can it make natural split-face stone?

Yes. Split-face wall stone, veneer and architectural stone are major applications for natural stone splitters.

Can a natural stone splitter produce paving stones?

Yes. Suitable machines can produce pavers, stone cubes and cobblestones from appropriately prepared natural stone.

What is the difference between stone splitting and stone cutting?

Splitting fractures the stone and creates a natural surface, while cutting uses a saw, wire or abrasive system to create a smoother and more controlled surface.

How much splitting force is required?

Required force depends on stone type, strength, width, thickness, tooling and finished-product requirements.

Can a natural stone splitter process stone offcuts?

Suitable offcuts may be processed into secondary wall, paving or landscape products when their dimensions and structural condition are appropriate.

Can a natural stone splitter be integrated into a production line?

Suitable industrial machines can be combined with feeding equipment, conveyors and sorting systems depending on the required configuration.

What information should I provide when requesting a quotation?

Provide stone type, raw-material photos, typical and maximum dimensions, finished-product requirements, target output, factory power supply and preferred loading method.
