Hydraulic Paving Stone Splitter for Granite, Cobblestone & Pavers

What Is a Paving Stone Splitter?

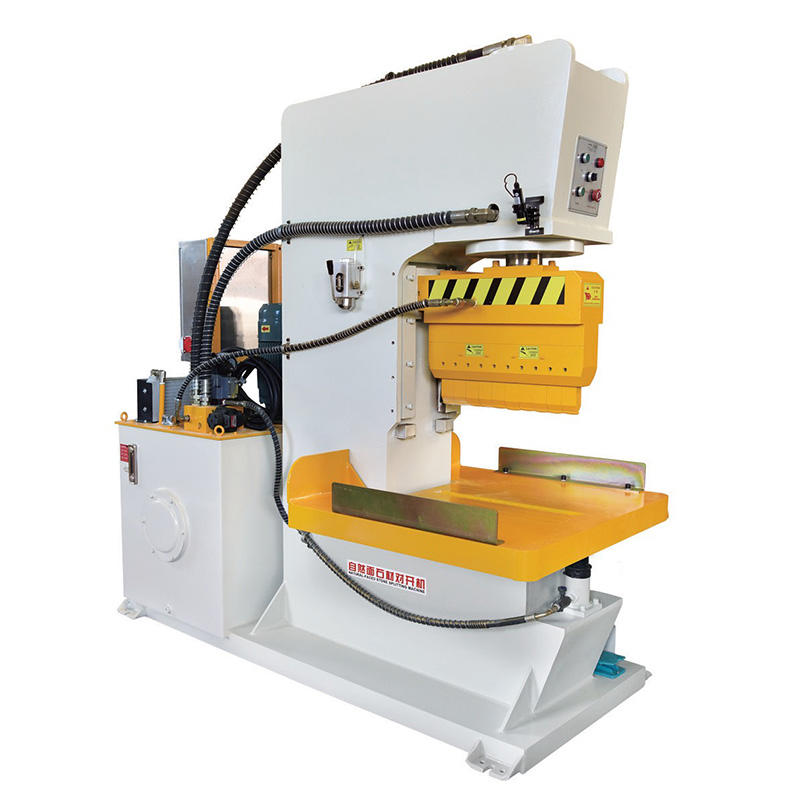

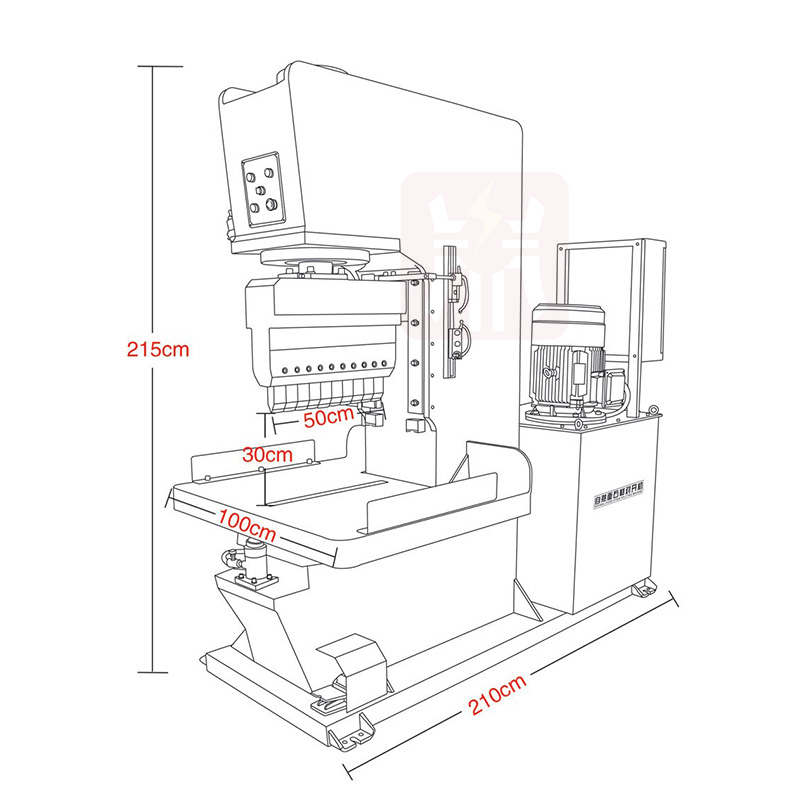

Product display and size indication

A paving stone splitter is a stone-processing machine used to divide natural stone into paving blocks, stone cubes, cobblestones and related landscape products.

Industrial machines normally use hydraulic pressure to generate the force needed to split the stone.

Unlike a diamond saw, which removes material with a blade, a hydraulic splitter applies concentrated pressure until the stone fractures.

The resulting surface keeps the natural texture of the stone.

This makes the machine especially suitable for products such as:

• Granite paving blocks
• Cobblestones
• Stone cubes
• Driveway pavers
• Garden paving
• Courtyard pavers
• Plaza paving
• Landscape stone
• Walkway pavers
• Natural-face paving

A paving stone splitter can be used as a standalone machine or as part of a larger paving production line.

The best configuration depends on the size of the incoming stone, the dimensions of the finished paver and the required production volume.

Why Use a Hydraulic Paving Stone Splitter?

Paving stones can be split manually with hammers and chisels, but this becomes labor-intensive when a factory needs to process large quantities every day.

A hydraulic paving stone splitter provides controlled mechanical force through a hydraulic system.

This makes repetitive paving production easier to organize.

Potential advantages include:

• Controlled hydraulic splitting
• Reduced repeated manual hammering
• Faster repetitive processing
• Natural split surfaces
• Processing of granite and other compatible natural stone
• Different paving dimensions
• Compatibility with roller tables
• Compatibility with conveyors
• Potential production-line integration

However, the machine should not be selected only by maximum hydraulic force.

For paving production, finished product size, feeding speed, unloading efficiency and sorting workflow can have just as much influence on real output.

How Does a Paving Stone Splitter Work?

A typical paving production process is:

Raw Stone → Sawing / Pre-Sizing → Stone Strip → Positioning → Hydraulic Splitting → Sorting → Packing

Large stone is usually cut into strips or rectangular blanks before entering the splitter.

The prepared blank is then positioned between the splitting tools.

The hydraulic system moves the working head toward the stone.

As the pressure increases, the stone fractures along the selected splitting area.

The finished pieces are removed, inspected and sorted according to size and appearance.

The splitting result can be affected by:

• Stone type
• Grain structure
• Natural cleavage
• Existing cracks
• Input dimensions
• Finished paver dimensions
• Tool geometry
• Tool condition
• Stone orientation
• Hydraulic force

Hydraulic pressure provides the force, but natural stone still has its own fracture characteristics.

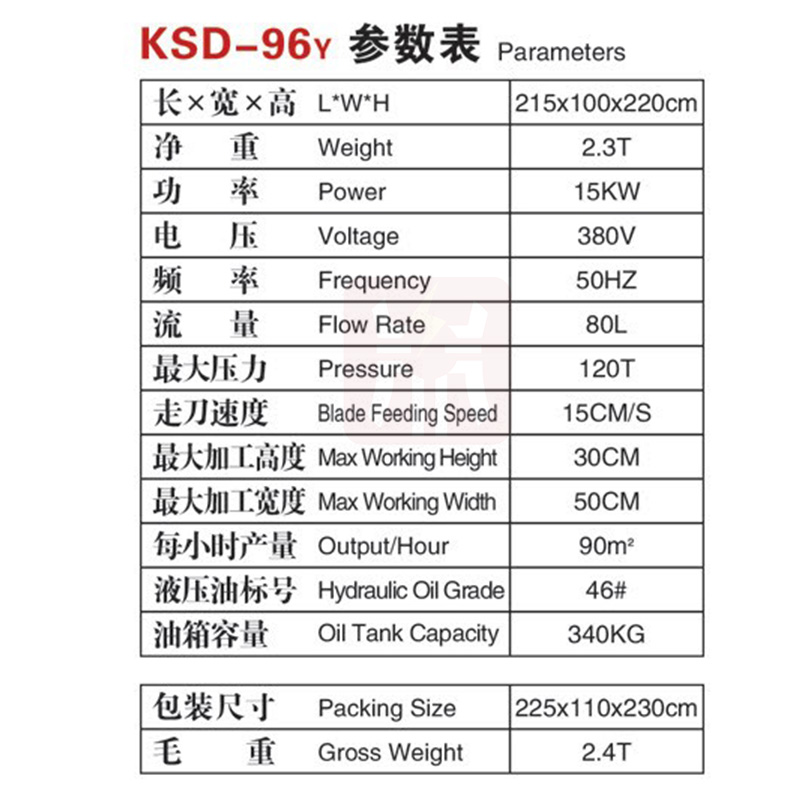

Product finished product display and parameter information

Paving Stone Splitter for Granite

Granite is one of the most common materials used for natural paving.

Its durability and natural appearance make it suitable for residential, commercial and public outdoor projects.

A suitable granite paving stone splitter can be used to produce:

• Granite cubes
• Cobblestones
• Driveway paving
• Courtyard pavers
• Plaza paving
• Garden paving
• Landscape blocks
• Pathway stone

Different granite varieties can split differently.

Coarse grain, fine grain, mineral structure and natural cracks can all influence fracture behavior.

A practical machine-selection sequence is:

Granite Type → Input Width → Input Thickness → Finished Paver Size → Required Output → Machine Configuration

If your factory also processes larger granite or marble pieces, Speedone’s stone splitting machine for granite and marble provides a broader solution for general stone splitting applications.

Paving Stone Splitter for Cobblestones

Cobblestone production is one of the most important applications for a paving stone splitter.

Cobblestones are usually much smaller than building-stone blocks.

Because of this, production efficiency depends on more than splitting force.

The factory also needs efficient loading, positioning, unloading and sorting.

Important factors include:

• Input strip dimensions
• Finished cobblestone dimensions
• Number of splitting cycles
• Operator position
• Material feeding
• Finished-product removal
• Sorting space

A very large splitter may not be the most efficient machine for small cobblestones.

For repetitive production, the machine should be optimized around the product dimensions used every day.

Paving Stone Splitter for Stone Cubes

Stone cubes are widely used for:

• Historic streets
• Pedestrian areas
• Driveways
• Public plazas
• Gardens
• Landscape architecture
• Commercial developments

Stone cube production often requires a larger strip to be split more than once.

A common process may be:

Saw-Cut Strip → First Split → Rotate / Reposition → Second Split → Stone Cube → Inspection

The exact process depends on the starting dimensions and the required finished cube size.

This is why machine accessibility and workpiece positioning are important for real production efficiency.

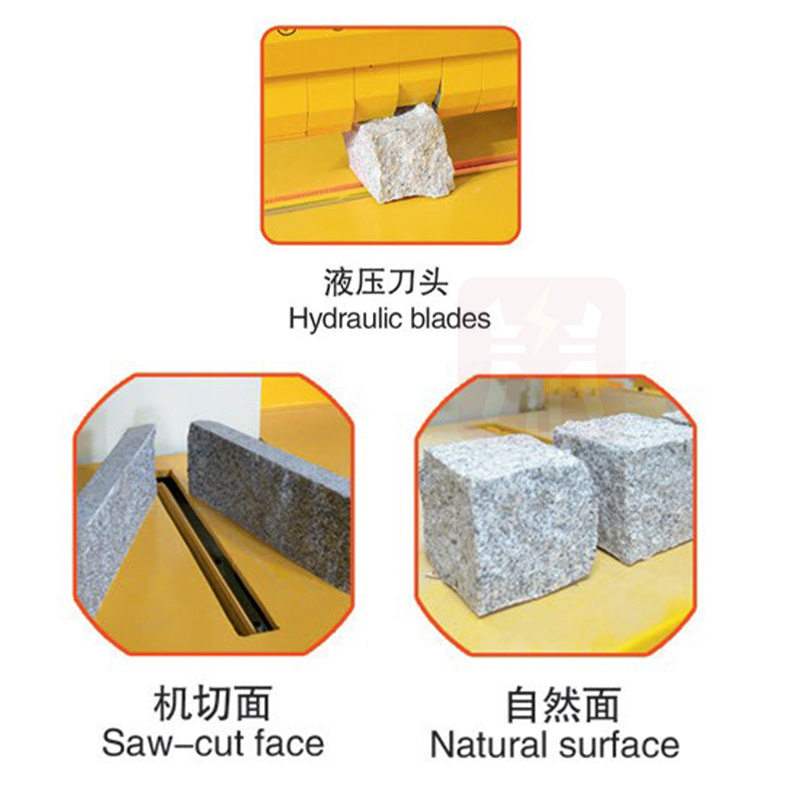

Natural Split Surface for Paving Stone

One of the main reasons to use a paving stone splitter instead of relying only on saw cutting is the finished surface.

A diamond saw leaves a relatively smooth surface.

Hydraulic splitting exposes the internal stone structure and creates a more natural texture.

This appearance is often preferred for:

• Historic-style paving
• Traditional streets
• Rustic outdoor spaces
• Garden paths
• Natural stone courtyards
• Landscape architecture
• Architectural plazas

Natural variation between individual pieces is normal.

The objective is a controlled split, not a perfectly identical fracture surface on every paver.

Hydraulic Paving Stone Splitter vs. Manual Splitting

Manual splitting can still be practical for occasional work.

For continuous factory production, hydraulic equipment is usually easier to integrate into a repeatable workflow.

Paving Stone Splitter vs. General Stone Splitter

A general stone splitter may be used for many different stone products.

A paving stone splitter is more strongly focused on repeated production of smaller pavers, cubes and cobblestones.

For larger building-stone applications, Speedone’s stone splitter for granite and building stone covers a wider range of stone splitting requirements.

Paving Stone Splitter vs. Hydraulic Stone Splitting Machine

The two machines can use similar hydraulic principles.

The main difference is application focus.

A general hydraulic stone splitting machine may be configured for:

• Large stone blocks
• Wall stone
• Building stone
• Paving stone
• Landscape stone
• Different workpiece dimensions

A paving stone splitter is more strongly optimized around pavers, cubes and cobblestones.

Speedone’s hydraulic stone splitting machine page provides more information about general hydraulic splitting configurations.

Paving Stone Splitter vs. Stone Stamping Machine

Paving products can be made using different processing methods.

Hydraulic splitting and stone stamping should not be confused.

A paving stone splitter creates a natural fracture.

A stamping machine uses a mould to create a more controlled shape or decorative pattern.

If your main goal is decorative mould-based stone products, Speedone’s stone stamping machine for granite and marble may be more suitable.

Paving Stone Splitter for Marble and Decorative Stone

Marble paving and decorative stone can require a different approach from granite paving cubes.

Some factories need both:

Natural Splitting + Decorative Stamping

In this case, a suitable multifunction configuration may be more practical than a paving splitter designed only for natural fracture.

Speedone’s marble splitting machine for split face and stamping is intended for applications where both processes may be relevant.

Paving Stone Splitter vs. Diamond Saw

A paving splitter and diamond saw often work together in the same production process.

A common paving workflow is therefore:

Saw First → Split Second

The saw prepares the stone into controlled strips.

The paving splitter then divides those strips into individual pieces with natural fractured surfaces.

What Stone Materials Can a Paving Stone Splitter Process?

Material compatibility depends on the machine configuration and workpiece dimensions.

Granite

Granite is widely used for durable paving blocks, cubes and cobblestones.

Sandstone

Sandstone is commonly used for paving, garden paths and traditional architectural projects.

Limestone

Limestone can be used for courtyards, gardens, walkways and architectural paving.

Marble

Marble is more common in decorative applications but may also be processed into suitable paving and landscape products.

Other Natural Stone

Suitability depends on material strength, fracture behavior and machine capacity.

Why Finished Paver Size Matters

One common mistake is selecting a machine only according to maximum input dimensions.

The finished paving size is also important.

For example, two factories may start with similar granite strips.

One factory may produce relatively large landscape pavers.

The other may produce small granite cubes.

The second factory can require:

• More splitting cycles
• Faster positioning
• Easier product removal
• More sorting
• Better feeding efficiency

This is why both input dimensions and finished product dimensions should be provided when selecting a paving stone splitter.

Working Width

The maximum working width determines the widest stone blank that can fit into the splitting area.

When requesting a quotation, provide:

Typical Width + Maximum Width

The machine should work efficiently with the stone you process every day.

Working Height

Working height determines the maximum stone thickness the machine can accept.

Stone thickness also influences the force required for splitting.

Provide:

Typical Thickness + Maximum Thickness

This helps avoid choosing a machine that is too small or unnecessarily oversized.

How Much Splitting Force Is Required?

There is no single correct tonnage for every paving stone splitter.

Required force depends on:

• Stone type
• Material strength
• Workpiece width
• Workpiece thickness
• Grain structure
• Splitting-tool design
• Finished paver dimensions

A practical selection process is:

Material → Dimensions → Finished Product → Required Force → Machine

Higher force is not automatically better.

An oversized machine may require more investment and floor space without improving the output of small paving products.

Why Splitting Tools Matter

The hydraulic system generates the force.

The splitting tools transfer that force into the stone.

Possible tool configurations include:

• Splitting blades
• Chisels
• Multiple splitting teeth
• Upper and lower splitting tools
• Adjustable tool assemblies

Paving blanks are not always perfectly flat.

Good tool contact can therefore affect splitting quality.

Worn or damaged tools can contribute to:

• Poor fracture quality
• Excessive chipping
• Uneven tool contact
• Inconsistent products

Paving Stone Splitter with Conveyor

For higher production volumes, conveyors can make the workflow more efficient.

A typical setup may be:

Infeed Conveyor → Positioning → Paving Stone Splitter → Outfeed Conveyor → Sorting

Potential advantages include:

• Reduced manual handling
• More consistent material flow
• Faster repeated production
• Easier factory organization
• Better connection with downstream sorting

The conveyor should still be selected according to actual stone dimensions and weight.

Standalone Paving Stone Splitter vs. Production Line

A standalone splitter can be suitable for factories producing several paving sizes or lower-to-medium volumes.

A complete line becomes more useful when production is repetitive and higher in volume.

How to Plan a Paving Stone Production Line

A paving line should be planned as one complete material flow.

A possible layout is:

Raw Stone Storage → Sawing → Strip Staging → Splitter Feeding → Hydraulic Splitting → Sorting → Palletizing

Every stage can become a bottleneck.

For example, a faster splitter will not improve total production if:

• Sawing cannot supply enough blanks
• Material is positioned too slowly
• Finished pieces accumulate around the machine
• Sorting cannot keep up
• Palletizing is too slow

The objective is smooth material flow from raw stone to finished paving product.

Why Material Handling Is Critical

The splitting stroke is only one part of the production cycle.

The complete process is:

Pick Up → Load → Align → Split → Remove → Sort → Reload

If loading takes longer than splitting, increasing hydraulic speed will provide limited improvement.

Depending on the production volume, useful equipment may include:

• Roller tables
• Powered conveyors
• Adjustable supports
• Stone manipulators
• Forklift staging
• Product bins
• Palletizing areas

Paving Stone Splitter for Stone Offcuts

Stone factories often produce leftover pieces from slab cutting and fabrication.

Selected offcuts may still be suitable for secondary paving products.

Possible products include:

• Small paving cubes
• Landscape stone
• Garden paving
• Wall stone
• Decorative split pieces

A possible workflow is:

Stone Offcut → Inspection → Pre-Sizing → Hydraulic Splitting → Sorting → Secondary Product

This can create additional value from suitable stone.

However, material with serious cracks or unsuitable geometry should be evaluated before processing.

Paving Stone Production from Countertop Offcuts

Granite countertop production can generate a large number of offcuts.

Some suitable pieces may be separated from general waste and used for smaller paving or landscape products.

This creates two different production paths:

Full Slab → Countertop

and

Suitable Offcut → Paving / Landscape Product

The finished countertop then continues to a different installation process.

At that stage, Speedone’s Stone Pro seam setter for granite and quartz countertops is used for seam positioning rather than paving-stone production.

How to Operate a Paving Stone Splitter

1. Inspect the Stone

Check the workpiece for major cracks, loose sections and obvious defects.

2. Confirm the Dimensions

Make sure the width and thickness are within the approved machine range.

3. Inspect the Machine

Check hydraulic components, controls and safety systems.

4. Check the Splitting Tools

Inspect the tools for wear, damage and alignment.

5. Load the Stone

Use suitable handling methods for the size and weight of the workpiece.

6. Position the Split

Align the stone according to the required paver dimension.

7. Clear the Splitting Area

Keep hands and personnel away from the processing zone.

8. Start the Splitting Cycle

Operate the machine according to the manufacturer’s instructions.

9. Allow the Split to Finish

Do not reposition the stone while pressure is being applied.

10. Return the Machine to the Safe Position

Wait until the working head has fully returned.

11. Remove the Finished Product

Move the split paving pieces to the sorting area.

12. Inspect and Sort

Separate products according to dimensions, appearance and quality requirements.

How to Choose the Right Paving Stone Splitter

1. Stone Material

Granite, sandstone, limestone and marble can behave differently during splitting.

2. Input Dimensions

Provide both typical and maximum workpiece dimensions.

3. Finished Paver Dimensions

This is especially important for cobblestones and small stone cubes.

4. Required Production Volume

Estimate how many pieces or how much finished product must be produced per shift.

5. Splitting Force

Select the hydraulic capacity according to the actual stone and dimensions.

6. Splitting Tools

Tool configuration should match the material and desired product.

7. Feeding Method

Decide whether manual loading, roller tables or conveyors are appropriate.

8. Product Removal

Small paving pieces need an efficient way to be removed and sorted.

9. Machine Structure

Frame rigidity and tool alignment are important for repeated production.

10. Factory Space

Allow room for feeding, unloading, sorting and maintenance.

11. Spare Parts

Ask about splitting tools, hydraulic components and other wear parts.

12. Supplier Support

Technical documentation and responsive communication are important for industrial machinery.

Information to Send Speedone for a Quotation

To help select the right paving stone splitter, prepare:

1. Stone type
2. Photos of the raw material
3. Typical input dimensions
4. Maximum input dimensions
5. Required finished paving size
6. Photos of the finished product
7. Required daily or shift output
8. Current production method
9. Preferred feeding method
10. Factory voltage and frequency
11. Available installation space
12. Whether conveyors are required

These details make it easier to match the machine to your real production process.

Common Paving Stone Splitting Problems

Pavers Break Unevenly

Check natural grain, stone orientation and existing defects.

Excessive Chipping

Inspect splitting-tool condition and stone positioning.

The Stone Is Difficult to Split

Confirm that the material and dimensions are within the approved machine capacity.

Do not exceed manufacturer-rated hydraulic settings.

Finished Pavers Vary Too Much

Check incoming blank dimensions, tool condition and positioning consistency.

Production Output Is Too Low

Measure the complete cycle rather than only the hydraulic splitting time.

Feeding, removal or sorting may be the real bottleneck.

The Hydraulic System Becomes Too Hot

Stop the machine and inspect it according to the manufacturer’s maintenance instructions.

Paving Stone Splitter Maintenance

Routine inspection should include:

• Hydraulic oil
• Hydraulic pump
• Hydraulic cylinder
• Valves
• Hoses
• Fittings
• Pressure controls
• Splitting tools
• Tool guides
• Working table
• Machine frame
• Electrical controls
• Conveyor components
• Safety systems
• Emergency controls

Hydraulic leaks should be checked promptly.

Damaged hoses or splitting tools should not remain in normal production.

Paving Stone Splitter Safety

• Only trained personnel should operate the machine.
• Inspect the machine before production.
• Keep hands away from the splitting area.
• Do not bypass safety guards.
• Inspect hydraulic hoses and fittings regularly.
• Use suitable equipment for moving heavy stone.
• Wear appropriate personal protective equipment.
• Keep unnecessary personnel outside the working zone.
• Follow lockout procedures during maintenance.
• Do not exceed approved workpiece dimensions.
• Do not exceed manufacturer-rated hydraulic settings.
• Replace damaged tooling.
• Keep the factory floor clean and organized.

Natural stone can fracture unpredictably, so operators should also consider possible chips and stone fragments during splitting.

Who Uses Paving Stone Splitters?

• Granite factories
• Paving stone manufacturers
• Cobblestone factories
• Landscape stone producers
• Building stone factories
• Natural stone processors
• Quarry processing facilities
• Architectural stone manufacturers
• Hardscape product suppliers
• Stone equipment distributors

Why Choose Speedone?

Speedone supplies professional stone-processing, stone-handling and installation equipment for factories, workshops and distributors.

When choosing a paving stone splitter, start with the product you want to manufacture.

A practical selection sequence is:

Stone Material → Input Dimensions → Finished Paver Size → Splitting Force → Tooling → Feeding Method → Production Target → Factory Layout

For professional paving production, the best machine is not necessarily the one with the highest hydraulic force.

A splitter designed around the normal paver size, feeding rhythm and required output can be more useful than an oversized machine.

When comparing equipment, also consider:

• Working width and height
• Hydraulic-system configuration
• Splitting-tool design
• Conveyor compatibility
• Loading and unloading method
• Spare-part availability
• Technical documentation
• Customization requirements
• Supplier communication

Frequently Asked Questions

What is a paving stone splitter?

A paving stone splitter is equipment designed to fracture natural stone into paving blocks, cubes, cobblestones and other paving products using controlled splitting force.

Is a paving stone splitter hydraulic?

Industrial paving stone splitters commonly use hydraulic systems, although other splitter types also exist.

What stone can a paving stone splitter process?

Depending on machine configuration, suitable equipment may process granite, limestone, sandstone, marble and other compatible natural stone.

Can a paving stone splitter make granite cubes?

Yes. Granite cubes and paving blocks are common applications for suitable hydraulic paving splitters.

Can it make cobblestones?

Yes. Cobblestone production is one of the main applications for paving stone splitting machines.

Does a paving stone splitter cut or split the stone?

It fractures the stone using concentrated splitting force rather than sawing completely through the material.

Why use a splitter instead of a saw?

A splitter creates a natural fractured surface, while a saw creates a smoother and more dimensionally controlled cut. Many factories use both processes.

Can a paving stone splitter be connected to conveyors?

Suitable industrial machines can be integrated with roller or powered conveyor systems.

How much splitting force do I need?

The required force depends on stone type, strength, width, thickness, tooling and finished-product dimensions.

Can paving stone splitters process stone offcuts?

Suitable offcuts may be processed into smaller paving or landscape products if their dimensions and structural condition are appropriate.

What is the difference between a paving stone splitter and a stone stamping machine?

A paving stone splitter creates a natural fracture, while a stamping machine uses moulds to create selected shapes or decorative patterns.

What information should I provide when requesting a quotation?

Provide stone type, raw-material photos, input dimensions, finished paver dimensions, target output, factory power supply, preferred material-handling method and available installation space.
