Strong Suction Cups for Glass, Tile & Stone Handling

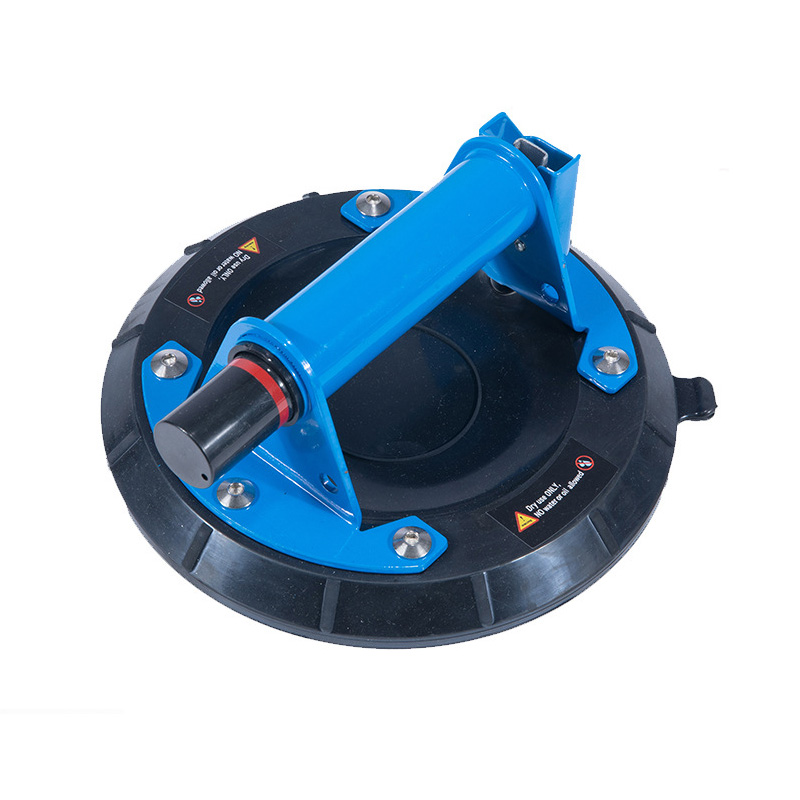

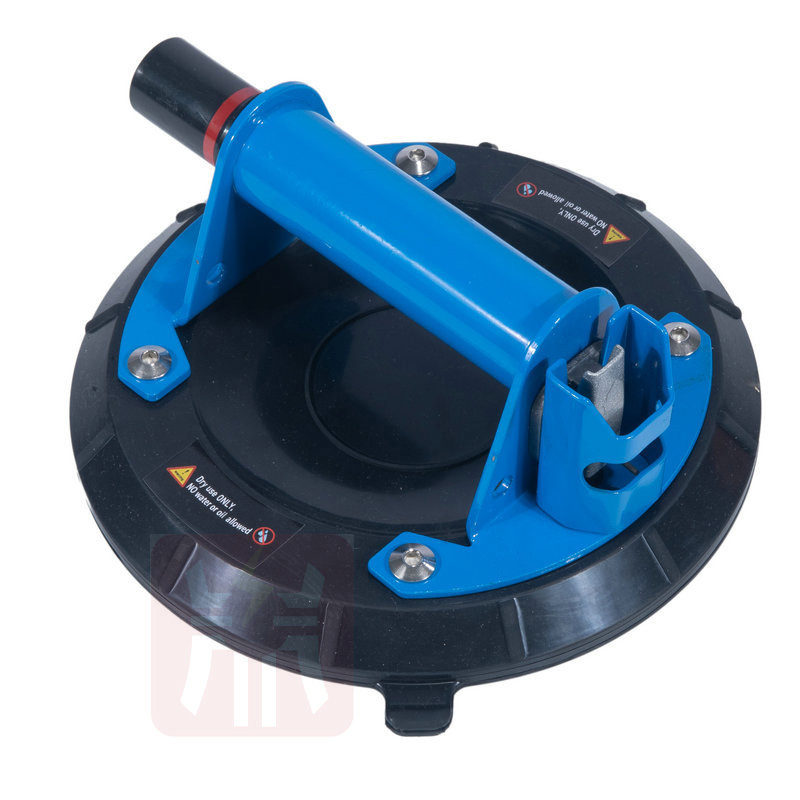

What Are Strong Suction Cups?

Product information parameters

Strong suction cups are vacuum gripping tools designed to attach temporarily to suitable material surfaces. Professional models include a handle that lets an installer grip, carry or position a compatible panel.

They are different from ordinary suction accessories used to hang lightweight household items. A professional suction cup lifter is designed for specific handling tasks and should have clear working-load information.

Depending on the model, strong suction cups may be suitable for:

• Window glass and glass panels
• Mirrors and shower glass
• Smooth ceramic and porcelain tiles
• Compatible polished granite and engineered stone
• Other smooth materials approved for the tool

The word “strong” does not define a standard lifting capacity. Two products with similar names may have different pad sizes, handles, vacuum mechanisms and operating limits. Always use the specifications of the actual model when deciding whether it is suitable for a job.

What Makes a Suction Cup Strong?

A suction cup works by reducing the air pressure beneath its pad. The higher pressure outside the pad helps hold it against the material.

That basic principle is simple, but reliable handling depends on several factors working together.

A suction cup may grip clean glass firmly but perform differently on textured porcelain or porous stone. This is why the right product is not always the one with the highest advertised suction force.

Why Use Strong Suction Cups for Professional Handling?

Large or smooth panels can be awkward to hold by their edges. A suitable suction cup creates a temporary handle on the face of the material, giving the installer another way to control it.

More Convenient Gripping

Installers can grip a suitable area on the panel face instead of relying only on accessible edges.

Better Control During Positioning

A defined handle can help the operator guide a compatible panel toward its installation position.

Help with Small Adjustments

After a tile, mirror or glass panel reaches its installation area, a suction handle may help with final positioning before the material is permanently supported or fixed.

Useful for Different Installation Tasks

Suitable models can assist with glass fitting, tile placement and approved stone-handling work. Each application must still fall within the selected tool’s rated limits.

A suction cup does not reduce the material’s weight. Large or heavy panels may still require additional installers or dedicated lifting equipment.

Types of Strong Suction Cups

Manual Lever Suction Cups

A lever-operated suction cup uses a mechanical lever to create and release attachment. These models are usually portable and do not need a battery.

They can be useful for approved glass, tile and other smooth-surface handling tasks.

Manual Pump Suction Cups

A pump-action suction cup uses a hand pump to remove air from beneath the pad.

Some professional models have a vacuum indicator that helps the operator check the attachment. Follow the instructions for the specific indicator and tool.

Electric Suction Cups

An electric suction cup uses a powered vacuum pump. Depending on the model, it may also include vacuum monitoring, automatic pump operation or a battery display.

Electric operation can be convenient for repeated handling work. However, it does not automatically make a tool suitable for heavier loads or every material surface.

Double and Multi-Cup Lifters

Some tools combine two or more suction pads in one assembly. Multiple gripping points can provide additional control for certain approved handling tasks.

Always use the rated capacity of the complete assembly. Do not calculate the permitted working load by simply adding the advertised capacities of individual pads.

Manual vs. Electric Strong Suction Cups

Choose the mechanism that suits your workflow, but make the final decision using the tool’s approved materials, capacity and handling conditions.

Strong Suction Cups for Glass Handling

Glass is a common material for professional suction handling because many glass surfaces are smooth and relatively non-porous.

During installation, a worker may need to carry a panel toward a frame, turn it and make small positioning adjustments. A suitable suction cup provides an accessible gripping point on the glass face.

Typical applications include:

• Window installation
• Glass door fitting
• Mirror handling
• Shower enclosure installation
• Interior glass partitions
• Storefront glazing

Before handling glass, check its dimensions, weight, condition and balance. Large panels may require several gripping points or dedicated vacuum lifting equipment instead of a single hand-held tool.

For glass-focused projects, explore Speedone’s glass suction cups for vacuum lifting and handling.

Strong Suction Cups for Ceramic and Porcelain Tile

Tile installers often move material from a cutting area to a wall or floor and then make small positioning adjustments.

A compatible suction cup creates a temporary handle on the tile face. This can be useful when the tile’s edges are difficult to reach.

The surface finish is especially important:

• Smooth glazed ceramic may provide suitable contact conditions for some suction pads.
• Certain polished porcelain surfaces may also be compatible.
• Matte tile must be checked according to its actual texture.
• Deeply textured or porous tile may require specialized gripping equipment.

Always check the selected model’s approved surface, capacity and handling direction. A tool that works on a conventional smooth tile should not automatically be used for a large textured porcelain panel.

For larger-format applications, see Speedone’s tile suction cup for large-format porcelain and stone.

Product packaging

Strong Suction Cups for Granite and Polished Stone

Stone fabrication and installation teams may use suitable suction equipment to grip and position compatible polished stone pieces.

Possible applications include handling approved granite components, moving smooth engineered-stone pieces and making controlled positioning adjustments.

Stone can be heavy even when a piece appears relatively small. Before choosing a suction cup for stone, check:

• Actual material weight
• Panel dimensions and balance
• Surface finish and porosity
• Approved handling direction
• Manufacturer-rated working capacity
• The complete handling arrangement

A portable suction cup should not be treated as a replacement for a rated stone slab lifter, lifting clamp or dedicated handling system.

Can Strong Suction Cups Work on Textured Surfaces?

A dependable grip starts with a suitable seal between the pad and the material.

Smooth Glass and Glazed Tile

Clean, flat and relatively non-porous surfaces can provide favorable contact conditions for compatible suction pads.

Polished Stone

Some polished stone surfaces may be suitable for vacuum gripping. Natural texture, surface treatments, dust and moisture can affect attachment.

Matte and Textured Porcelain

A matte finish does not automatically mean a suction cup will or will not work. Some matte tiles are relatively smooth, while others have pronounced texture.

Deep texture can create gaps under a conventional pad and prevent a reliable seal.

Porous Materials

Porous surfaces may allow air leakage beneath the pad. Use equipment specifically approved for the material or choose another handling method.

If the tool cannot establish the required attachment, do not attempt to compensate by pulling harder on the handle.

How to Check Suction Cup Holding Strength

Advertised suction force and rated working capacity are not necessarily the same specification.

A suction-force figure alone does not show whether a tool is suitable for a particular material or handling direction. Before purchasing, confirm the following.

Rated Working Capacity

Use the manufacturer’s documented working limit for the intended application. Do not replace the equipment rating with a theoretical calculation.

Material Compatibility

Check whether the specific model is suitable for the actual glass, tile, stone or other surface.

Handling Direction

Horizontal and vertical handling can place different forces on a suction cup. Confirm which operations the product is approved to perform.

Attachment Verification

Check how the operator confirms that the required vacuum or attachment condition has been reached.

Complete Panel Handling

Consider the panel dimensions, balance, number of gripping points and planned movement. A large panel may need a different system even when its weight appears manageable.

Strong Suction Cups vs. Ordinary Suction Accessories

Not every suction cup is designed to lift construction materials. Ordinary suction accessories may be intended for hanging lightweight objects rather than handling glass, tile or stone.

Never use a general-purpose suction accessory to lift glass, tile or stone unless it is specifically designed and rated for that task.

Strong Suction Cups vs. Countertop Seam Tools

Some countertop installation tools also use suction pads, but they perform a different job.

A strong suction cup provides temporary gripping for an approved handling task. A countertop seam tool uses gripping points and an adjustment mechanism to bring two adjoining countertop sections into alignment.

After granite or quartz countertop sections are safely positioned, Speedone’s countertop seam tool for granite and quartz can be used for the joint-adjustment stage.

For related precision seam-setting work, installers can also explore the Stone Pro seam setter for granite and quartz countertops.

Do not use a general suction handle to pull heavy countertop sections together unless the complete product is specifically designed and approved for that operation.

Related Tools for Kitchen and Bathroom Installation

Kitchen and bathroom projects may involve cabinets, glass panels, tiles and stone countertops. Each stage needs a suitable tool.

Strong suction cups may assist with approved glass, tile or stone handling. Wall cabinets, however, require temporary vertical support while they are positioned and permanently fixed.

For upper cabinets, Speedone offers a cabinet jack for upper cabinet installation.

For related wall cabinet positioning work, see the cabinet support tool for wall cabinet installation.

These tools serve different purposes and should not be treated as interchangeable.

How to Use Strong Suction Cups

The exact method depends on whether the tool uses a lever, hand pump or powered vacuum system. Always follow the instructions for the selected model.

1. Inspect the Material

Check the panel for visible damage. Confirm its weight, dimensions and suitability for the planned handling task.

2. Inspect the Tool

Check the suction pad, handle, seal, pump and other working parts. Do not use damaged equipment.

3. Confirm the Working Limits

Verify material compatibility, rated capacity and the permitted handling direction.

4. Prepare the Contact Surface

Clean the intended gripping area according to the tool instructions. Remove contamination that could affect the seal.

5. Position the Pad

Place the pad on a suitable, approved contact area. Consider the panel’s balance and planned movement.

6. Create the Vacuum

Operate the lever, hand pump or powered system as instructed.

7. Verify the Grip

Confirm that the required attachment has been established before moving the material.

8. Move the Material Gradually

Avoid sudden pulling, impact and uncontrolled changes in direction.

9. Monitor the Attachment

Follow the manufacturer’s monitoring requirements. If the grip becomes unstable, use the prescribed procedure to bring the material to a safe, supported position.

10. Support and Release

Make sure the material is securely supported before releasing the suction cup. Use the intended release mechanism and inspect the tool after use.

How to Choose the Right Strong Suction Cups

Material and Surface Finish

Confirm whether the tool will be used mainly for glass, ceramic tile, porcelain or polished stone. Check for texture, porosity, coatings and contamination.

Rated Working Capacity

Use the manufacturer’s stated limit for the intended load and handling direction.

Pad Size and Design

The full pad must fit on a suitable contact area and be compatible with the material surface.

Vacuum Generation Method

Choose a lever, hand-pump or electric model according to the work performed.

Grip Monitoring

If the model has a vacuum indicator, make sure operators understand how to use it correctly.

Handle and Tool Construction

The complete tool must be suitable for the intended load and handling method.

Maintenance

For regular professional use, check how the pads and seals are inspected and whether replacement parts are available.

Common Strong Suction Cup Problems

The Suction Cup Will Not Attach

Check the surface finish, cleanliness, pad condition and vacuum mechanism. Do not begin handling until a suitable attachment is established.

The Grip Becomes Weaker

Stop the operation and safely support the material. Inspect the pad, seal and contact surface before further use.

The Surface Is Too Textured

A conventional pad may not form a reliable seal. Use equipment approved for the surface or choose another handling method.

The Panel Is Too Heavy

Do not exceed the rated working capacity. Use appropriately rated equipment and additional personnel when required.

The Panel Is Difficult to Balance

Review the gripping-point position, panel dimensions and complete handling arrangement. A different tool or dedicated lifting system may be needed.

The Pad Leaves Marks

Check pad condition and compatibility with the material finish. Test sensitive surfaces before full use.

Strong Suction Cup Safety Tips

A strong attachment does not make a handling operation safe unless the complete tool and working method are suitable.

• Inspect the suction pad and tool before use.
• Confirm material and surface compatibility.
• Follow the rated working capacity.
• Check the permitted handling direction.
• Verify the attachment before moving the material.
• Avoid sudden movements and impact loads.
• Use the approved number and arrangement of gripping points.
• Stop work if the grip becomes unstable.
• Keep people clear of material that could fall.
• Use appropriate personal protective equipment.
• Do not connect hand-held tools to lifting machinery unless specifically approved.
• Use additional operators or dedicated lifting equipment when required.
• Support the material securely before releasing the suction cup.

Who Uses Strong Suction Cups?

• Glass installers and glaziers
• Tile contractors
• Stone fabrication workshops
• Mirror installers
• Kitchen and bathroom contractors
• Interior fit-out teams
• Renovation companies
• Construction contractors
• Professional installation-tool distributors

Why Choose Speedone?

Speedone supplies professional tools and equipment for glass, tile, stone and related installation work.

When choosing strong suction cups, the important question is not simply which product has the highest advertised suction force. It is whether the selected model suits the material, load, surface condition and planned movement.

For a product enquiry, share the material type, panel dimensions, actual weight, surface finish and intended handling direction. These details help identify a suitable tool configuration.

Frequently Asked Questions

What are strong suction cups?

Strong suction cups are vacuum gripping tools that create temporary attachment to compatible material surfaces. Suitable professional models can help handle approved glass, tile, stone and other panels.

What are strong suction cups used for?

Depending on the model, they can help lift, carry and position compatible glass panels, porcelain tiles, polished stone and other approved materials.

Can strong suction cups lift heavy glass?

Suitable professional equipment can handle glass within its approved working capacity. The handling method must also account for panel size, balance, surface condition and lifting direction.

Can strong suction cups be used on porcelain tile?

Yes, if the model is approved for the tile’s actual surface finish, weight, dimensions and intended handling operation.

Can strong suction cups be used on granite?

Some models are suitable for compatible polished granite surfaces. Check the material, rated capacity and complete handling arrangement before use.

Do bigger suction cups always have stronger suction?

Not necessarily. Gripping performance depends on the complete tool, vacuum level, effective pad area, surface compatibility and handling direction. Use the manufacturer’s rated working capacity when selecting equipment.

What is the difference between manual and electric strong suction cups?

Manual models use a lever or hand pump, while electric models use a powered pump. Choose according to the material, working conditions and the specific tool’s approved capabilities.

Can strong suction cups work on textured surfaces?

Some specialized models are suitable for certain textured materials. Conventional pads may not form a reliable seal, so compatibility must be confirmed for the actual surface.

How can I prevent a suction cup from losing its grip?

Use a tool approved for the material and load, inspect the pad, prepare the contact surface, establish the required vacuum and follow the manufacturer’s monitoring instructions.

Can strong suction cups replace a countertop seam setter?

No. General suction cup lifters are used for approved material handling. Countertop seam setters are designed to adjust joints between adjoining countertop sections.

What should I check before buying strong suction cups?

Check material compatibility, surface finish, rated working capacity, pad design, vacuum generation method, attachment monitoring, handling direction and maintenance requirements.
