Granite Countertop Seam Setter for Precise Seam Joining

Professional Granite Countertop Seam Setter for Joint Alignment & Leveling

What Is a Granite Countertop Seam Setter?

Parameter information

A granite countertop seam setter is a professional installation tool used to control the position of two granite countertop sections while they are being joined.

Large granite countertops are often made from several pieces because of slab size, kitchen layout, transportation limits, corners, sink openings, or restricted access to the installation site.

After the pieces are placed on the cabinets, they still need small final adjustments before bonding. Because granite is heavy and rigid, even moving a section a few millimeters can be difficult by hand.

A seam setter gives installers a more controlled way to make these adjustments.

Typical applications include:

• Granite kitchen countertops
• L-shaped granite worktops
• Large kitchen islands
• Granite vanity tops
• Bar countertops
• Reception counters
• Commercial stone installations
• Multi-piece granite projects

Why Granite Countertop Seam Alignment Matters

A clean granite seam depends on more than accurate cutting. Even well-prepared edges can look uneven if the two countertop sections are not positioned correctly during installation.

Common seam problems include:

• Visible gaps between sections
• One side sitting higher than the other
• Misaligned front edges
• Uneven seam width
• Movement while the adhesive cures
• Difficult manual repositioning

A professional granite seam setter focuses on this final precision stage rather than heavy slab lifting.

Controlled Seam Closing

The adjustment mechanism helps bring the two granite sections together gradually instead of relying on sudden manual force.

Better Horizontal Alignment

Small left-to-right corrections help keep the seam edges and visible front edges properly matched.

Surface Leveling

Suitable models can provide vertical adjustment to reduce small height differences between the two countertop surfaces.

Stable Position During Bonding

Once the seam is correctly positioned, the tool can help keep the granite sections stable while the adhesive cures.

How Does a Granite Countertop Seam Setter Work?

Most professional seam setters create gripping points on opposite sides of the countertop joint. A connecting mechanism then allows controlled adjustment between the two granite sections.

For polished granite, vacuum suction cups are commonly used because they can grip suitable surfaces without drilling into the finished stone.

Depending on the design, a granite seam setter may help with:

• Horizontal seam closing
• Fine side-to-side adjustment
• Joint gap control
• Surface leveling
• Holding the joint during bonding

A practical installation workflow is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

For installers who specifically need a suction-based system, Speedone’s Vacuum Seam Setter for Granite and Quartz Countertops provides a related solution focused on vacuum gripping and controlled seam adjustment.

Granite Countertop Seam Setter for Tight Joint Closing

Closing the joint is one of the most important steps during granite countertop installation.

However, more pulling force does not always produce a better seam. The sections should be moved gradually while the installer continues to check the gap, front edge, and surface position.

Controlled Pulling

The setter allows gradual movement, making it easier to avoid sudden shifts in the countertop.

Seam Gap Adjustment

Small adjustments help the installer control the joint width while leaving suitable space for the bonding system.

Front Edge Alignment

The visible front edges of neighboring countertop sections should stay properly aligned while the seam is being closed.

Bonding Stability

After the final position is reached, the setter can help maintain the joint while the adhesive reaches the required curing stage.

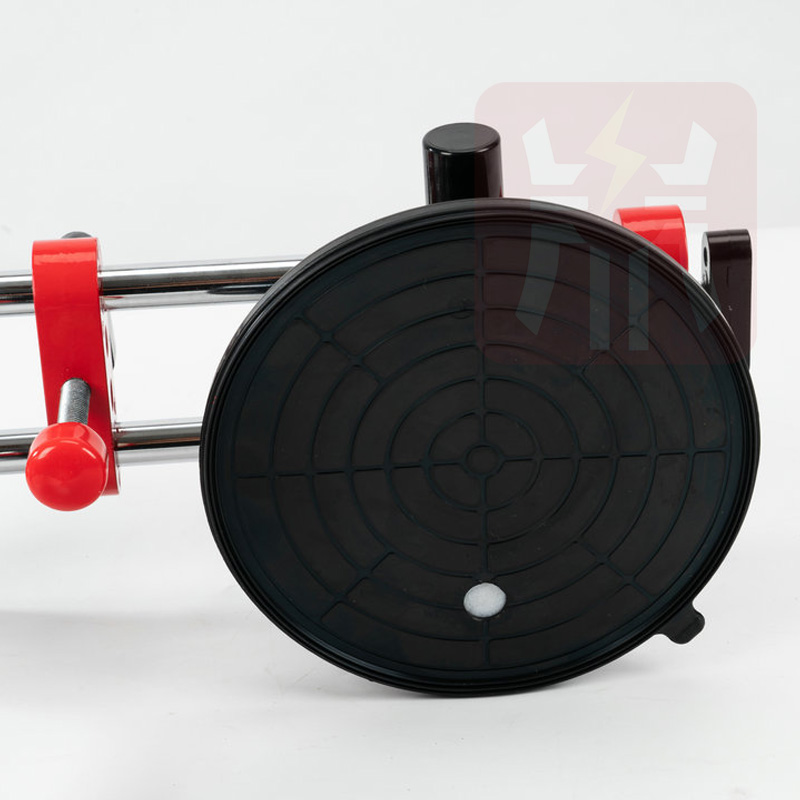

Granite Countertop Seam Leveling

A narrow seam is not enough if one countertop section sits higher than the other. Even a small height difference can be easy to see and feel.

Suitable seam setters may provide vertical adjustment for fine leveling.

Before using the leveling mechanism, installers should first check whether the height difference comes from:

• Uneven cabinetry
• Incorrect countertop support
• Granite thickness variation
• Fabrication tolerance
• Incorrect slab position
• Debris beneath the countertop

A seam setter is designed for fine adjustment. It should not be used to hide major support or installation problems.

For projects where a flatter and less noticeable transition is especially important, the Speedone Seamless Seam Setter for Granite and Quartz Countertops provides another option for precision joint work.

heavy-duty-granite-countertop-seam-setter

Granite Countertop Seam Setter vs. Manual Adjustment

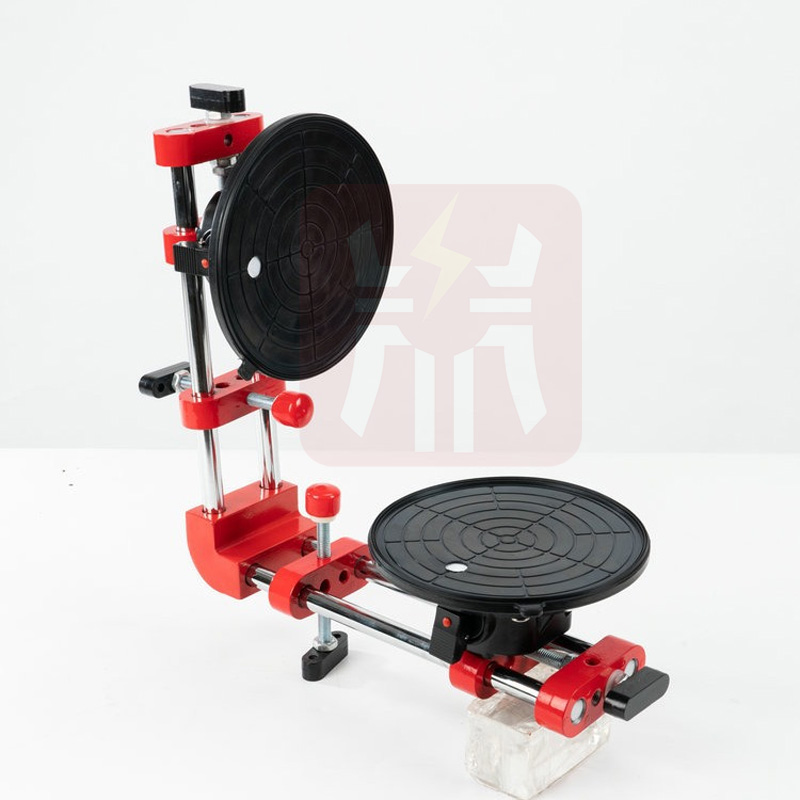

Heavy Duty Seam Setting for Professional Installers

Professional fabricators may use seam-setting equipment every day in workshops, residential kitchens, commercial projects, and installation sites.

For regular professional use, buyers should consider more than the appearance of the tool.

Important factors include:

• Structural rigidity
• Adjustment precision
• Vacuum holding performance
• Ease of setup
• Accessible adjustment controls
• Replacement component availability
• Compatibility with common stone materials

For installers who need a stronger professional configuration, the Speedone Heavy Duty Seam Setter Tool for Granite and Quartz Countertops provides another solution for demanding countertop projects.

Countertop Seam Setter vs. Worktop Seam Setter

The terms countertop and worktop often describe the same type of product but are more common in different markets.

“Countertop” is widely used in North America, while “worktop” is more common in the UK and some other markets.

The important point is the actual function of the equipment, not the product name.

For buyers targeting worktop installation markets, the Speedone Worktop Seam Setter for Granite and Quartz Countertops provides a related solution for stone worktop joint installation.

Stone Seam Setter Tool for Multi-Material Fabricators

Many fabrication shops work with more than granite. Quartz, marble, porcelain slabs, sintered stone, and engineered surfaces may all be processed in the same workshop.

For these users, choosing equipment with broader material compatibility can be more practical.

The Speedone Stone Seam Setter Tool for Granite and Quartz provides a broader option for fabricators working with several countertop materials.

Countertop Seam Setter for Broader Applications

Some installation teams prefer one seam-setting system for granite, quartz, marble, and other countertop surfaces.

In this case, a general countertop seam setter may offer more flexibility than a granite-only solution.

The Speedone Heavy Duty Countertop Seam Setter for Granite and Quartz provides another professional option for broader countertop installation applications.

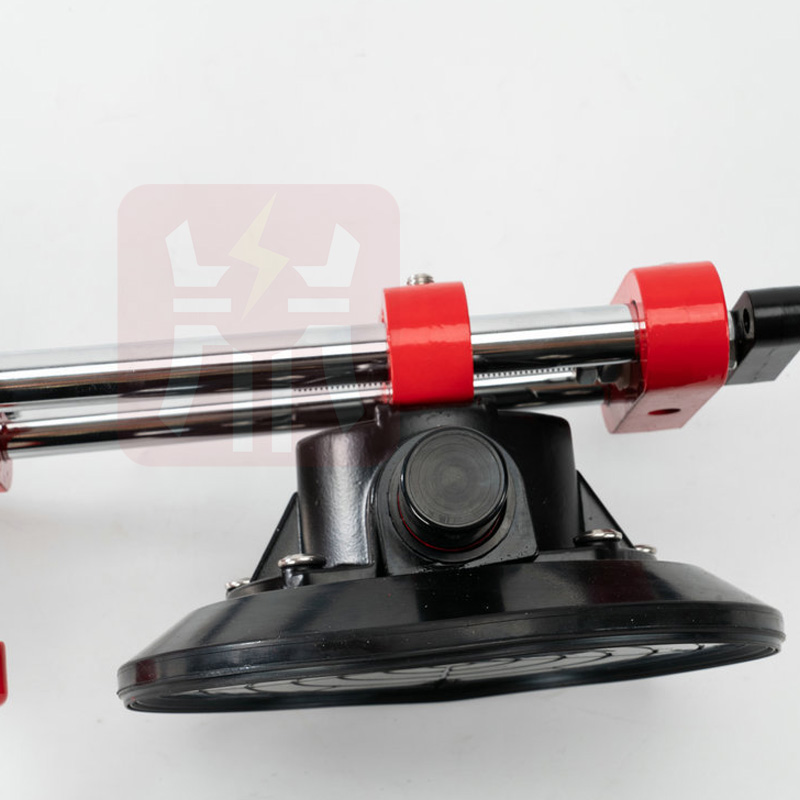

Vacuum Gripping on Polished Granite

Many granite seam setters use vacuum suction cups to create temporary gripping points on polished stone.

For reliable performance, both the suction pad and granite surface should be in suitable condition.

Before applying force, check:

• Surface cleanliness
• Surface smoothness
• Vacuum pad condition
• Seal condition
• Granite finish
• Suction stability
• Tool compatibility
• Direction of applied force

Dust, water, oil, polishing residue, damaged seals, and unsuitable surface textures can reduce vacuum holding performance.

If a suction point becomes unstable, stop the adjustment and inspect the cause before continuing.

Product details

How to Use a Granite Countertop Seam Setter

Prepare the Granite Edges

Check both edges for chips, dirt, polishing residue, or other problems that may affect the joint.

Check the Countertop Support

Make sure the cabinetry and support structure are stable before fine adjustment begins.

Dry Fit the Granite

Bring the two sections close together without adhesive and check how the edges meet.

Clean the Gripping Areas

If the system uses vacuum suction, clean and dry the areas where the pads will contact the granite.

Position the Seam Setter

Place the gripping points on suitable locations on both sides of the joint.

Check the Grip

Confirm that the suction or other gripping system is secure before applying adjustment force.

Close the Seam Gradually

Make small adjustments and continue checking the seam gap and countertop position.

Check the Front Edge

Make sure the visible front edges remain aligned while the joint is being closed.

Level the Surface

Where supported by the tool, make small vertical adjustments to correct minor height differences.

Apply the Adhesive

Use the appropriate stone adhesive and follow the adhesive manufacturer’s instructions.

Maintain the Position

Keep both sections stable during the required curing period.

Release and Finish

After the joint has become stable, carefully remove the equipment and complete the final cleaning and finishing work.

Product display

How to Choose the Right Granite Countertop Seam Setter

Reliable Gripping

The gripping system should be suitable for the granite finish and working conditions.

Fine Pulling Control

The tool should allow gradual movement rather than sudden seam closing.

Leveling Adjustment

If a flush seam is important, choose a model with suitable vertical adjustment.

Structural Rigidity

A rigid frame helps maintain predictable movement between the two gripping points.

Accessible Controls

The adjustment controls should remain easy to operate near walls, sinks, backsplashes, and other common obstacles.

Replaceable Suction Components

Suction pads and seals are wear parts. Easy replacement can reduce downtime during long-term use.

Multi-Material Compatibility

Fabricators who also work with quartz or engineered stone should check whether the selected model is suitable for those surfaces.

Granite Countertop Seam Setter vs. Seam Puller vs. Seam Clamp

Common Granite Seam Installation Problems

The Granite Seam Will Not Close

Check the fabricated edges, countertop position, support structure, and nearby obstructions before applying more force.

One Countertop Section Is Higher

Check whether the problem comes from cabinetry, support height, granite thickness, fabrication tolerance, or incorrect positioning.

The Suction Cup Loses Grip

Stop adjustment and inspect the suction pad, granite surface, seal, and vacuum condition before continuing.

Too Much Force Is Required

Do not use the seam setter to force together incorrectly positioned or poorly fabricated sections. Identify the cause first.

The Joint Moves During Curing

Keep the countertop sections in position until the adhesive reaches the curing stage recommended by its manufacturer.

Who Uses Granite Countertop Seam Setters?

• Granite fabrication shops
• Countertop installers
• Kitchen installation contractors
• Stone fabrication factories
• Commercial fit-out contractors
• Stone installation crews
• Tool distributors
• Stone equipment suppliers

Why Choose Speedone?

Speedone develops professional equipment for stone fabrication, countertop installation, glass handling, porcelain slabs, and related material-handling applications.

For granite installers, a seam setter works best as part of a complete installation workflow rather than as an isolated tool.

A practical process is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

• Professional stone installation solutions
• Equipment for granite and quartz fabrication
• Vacuum-based gripping systems
• Heavy-duty tool configurations
• Solutions for workshops and job sites
• OEM and ODM support
• Products for fabricators, installers, and distributors

Frequently Asked Questions

What is a granite countertop seam setter?

A granite countertop seam setter is a professional installation tool designed to help pull together, align, level, and stabilize adjacent granite countertop sections during seam installation.

How does a granite countertop seam setter work?

Most models create gripping points on both sides of the seam and use an adjustment mechanism to control the seam gap, horizontal position, and, on suitable designs, relative surface height.

Does a granite countertop seam setter use suction cups?

Many professional models use vacuum suction cups because polished granite can provide a suitable temporary gripping surface. Actual compatibility depends on the tool and granite finish.

Can a granite countertop seam setter level the joint?

Suitable models can provide vertical adjustment to help correct small height differences between neighboring countertop sections.

Can I use a granite countertop seam setter on quartz?

Some seam setters are suitable for both granite and quartz. Always check material compatibility, surface condition, gripping method, and working capacity.

What is the difference between a granite seam setter and a seam puller?

A seam puller mainly draws the two granite pieces together, while a seam setter can also provide horizontal alignment and surface leveling on suitable models.

Can a granite countertop seam setter lift slabs?

A seam setter should not be used as primary slab lifting equipment unless the manufacturer specifically approves it for that purpose. Heavy granite slabs should be handled with suitable lifting equipment.
