Solid Surface Seam Setter for Countertop Seams

Heavy Duty Solid Surface Seam Setter for Countertop Joint Alignment & Leveling

What Is a Solid Surface Seam Setter?

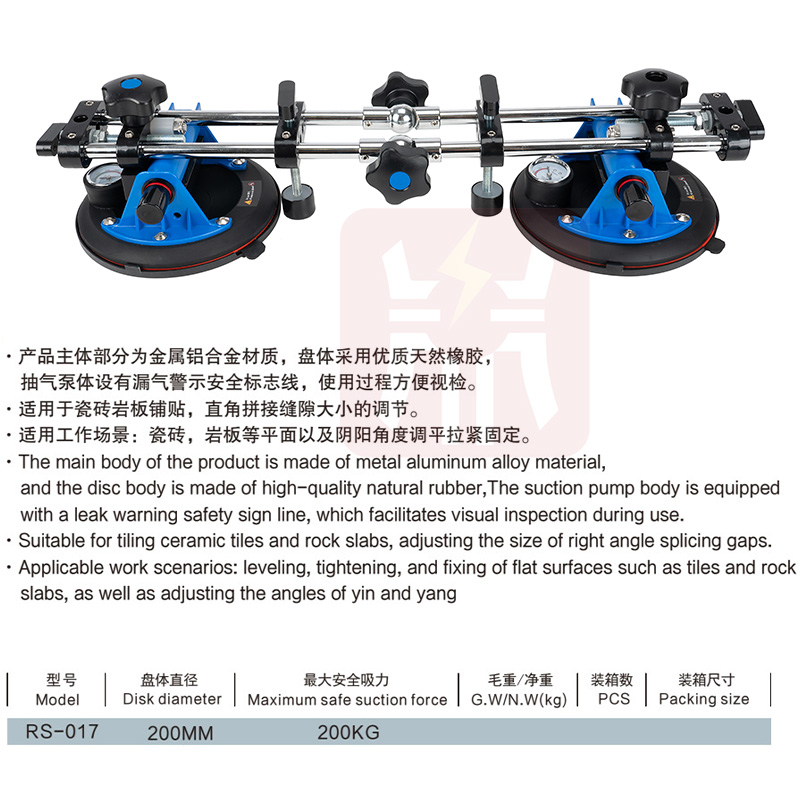

Product parameter information

A solid surface seam setter is a professional fabrication and installation tool used to bring two separate countertop or panel sections together at a joint.

Solid surface countertops are often made from several sections because of material size, transportation limits, kitchen layout, sink openings, corners, long runs, or restricted installation access.

After the pieces are placed near their final positions, the seam still needs careful adjustment before the adhesive finishes curing.

A professional seam setter can help control:

• Seam spacing
• Horizontal alignment
• Visible edge position
• Relative surface height
• Joining pressure
• Joint stability during curing

The goal is to make small and predictable corrections around the joint instead of repeatedly moving the entire countertop section by hand.

Why Use a Seam Setter for Solid Surface Countertops?

Solid surface materials are popular because properly fabricated joints can create a clean and refined appearance. However, accurate fabrication alone does not guarantee a good finished seam.

The two sections still need to be positioned correctly during bonding.

Common problems include:

• Uneven seam width
• One section sitting higher than the other
• Misaligned countertop edges
• Movement during adhesive curing
• Uneven joining pressure
• Extra sanding caused by poor alignment

Controlled Joint Closing

The setter helps bring the two countertop sections together gradually rather than relying only on manual pushing or clamping.

Better Horizontal Alignment

Small adjustments make it easier to keep the fabricated edges and visible front edges properly matched.

Surface Leveling

Suitable models may provide vertical adjustment to reduce small height differences between adjoining surfaces.

More Stable Bonding

Once the correct joint position is reached, the tool can help keep the sections stable while the adhesive cures.

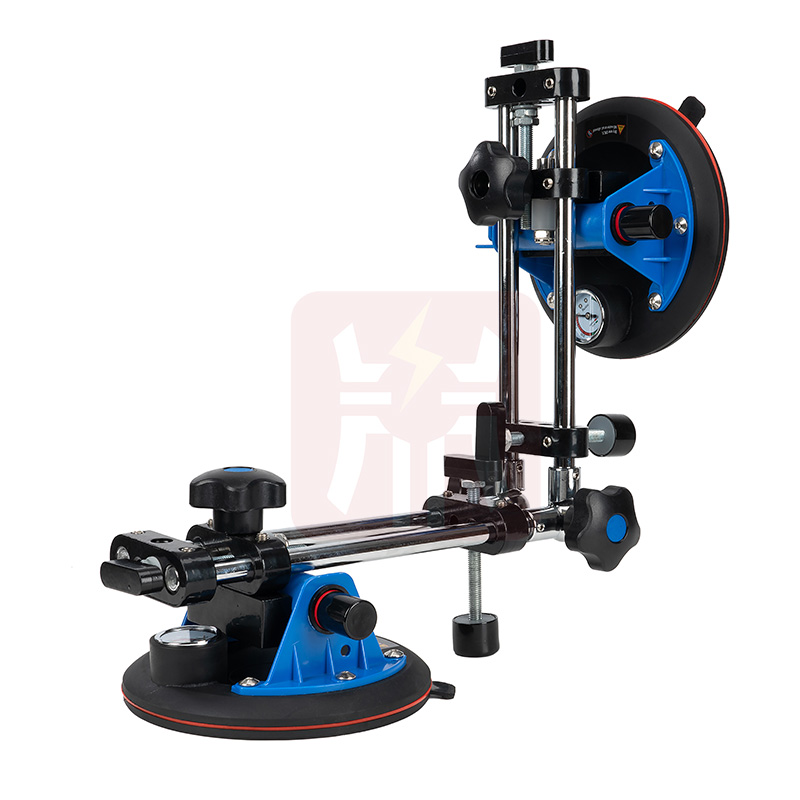

Product display

How Does a Solid Surface Seam Setter Work?

Many seam-setting systems use two gripping points positioned on opposite sides of the joint.

On compatible smooth and non-porous surfaces, vacuum suction cups can provide temporary attachment without drilling into or permanently fastening the finished countertop.

A connecting mechanism then allows controlled adjustment between the two sections.

Depending on the design, the setter may support:

• Horizontal seam closing
• Fine seam spacing
• Side-to-side alignment
• Vertical leveling
• Temporary joint stabilization

A practical workflow is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

For installers who specifically need a vacuum-based system, Speedone’s Vacuum Seam Setter for Granite and Quartz Countertops provides a related solution for controlled suction gripping and countertop seam adjustment.

Solid Surface Seam Setter for Seam Joining

One of the main functions of a seam setter is bringing two fabricated countertop sections together in a controlled way.

The goal is not to apply as much pulling force as possible. Good seam joining requires gradual adjustment while continuously checking how the two edges meet.

Dry Fit the Joint

Before bonding, position both sections and inspect the fabricated seam.

Establish Secure Gripping

Place the seam setter on suitable areas on both sides of the joint and confirm that the gripping points are secure.

Close the Seam Gradually

Make small adjustments instead of pulling the joint closed suddenly.

Check Alignment Continuously

Monitor seam width, visible edges, and surrounding reference points throughout the process.

This gives the installer more time to correct problems before the adhesive reaches an advanced curing stage.

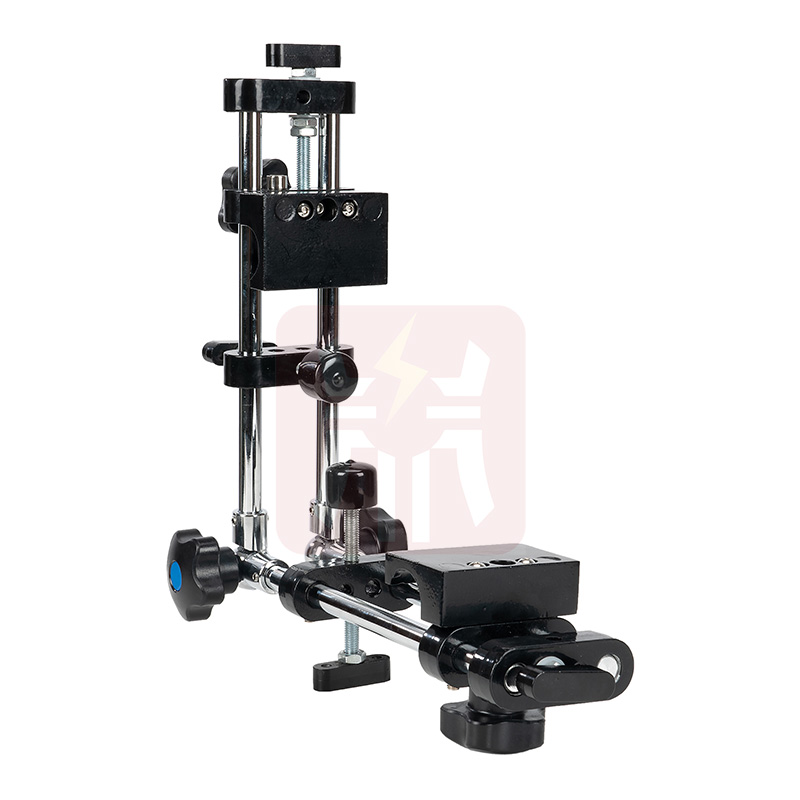

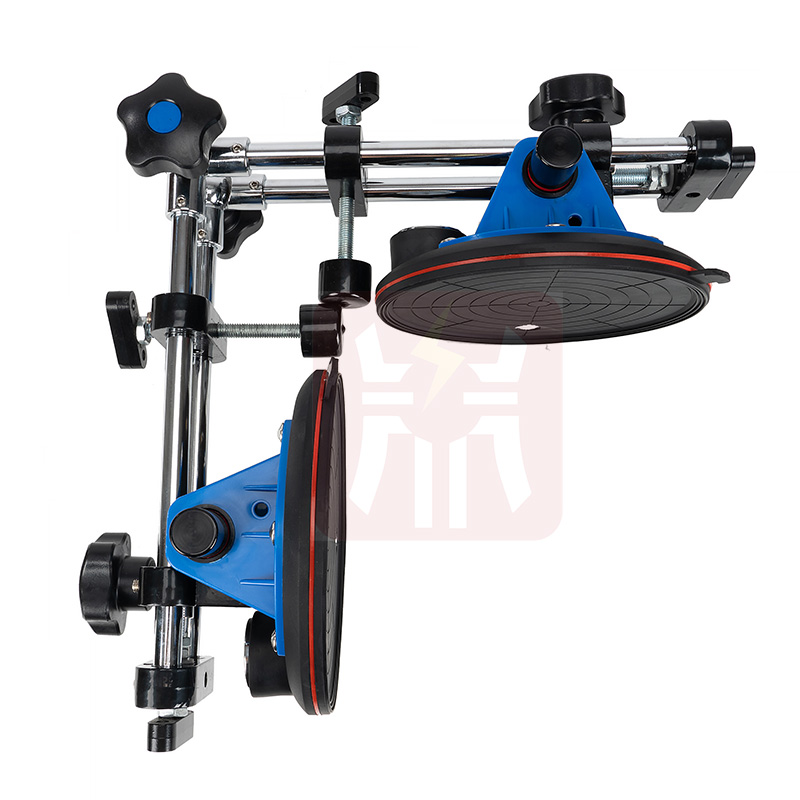

Product multi-angle display

Solid Surface Seam Setter for Countertop Leveling

A narrow seam can still require excessive finishing if one countertop section sits higher than the other.

Small height differences can increase the amount of sanding and finishing required after bonding.

Suitable seam setters may provide vertical adjustment to help bring adjoining surfaces closer to a flush position.

Before using the tool for leveling, check whether the height difference comes from:

• Uneven cabinet support
• Incorrect shimming
• Debris beneath the countertop
• Material thickness variation
• Fabrication inaccuracies
• Incorrect initial positioning

A seam setter should be used for fine correction rather than for hiding major fabrication or support problems.

For projects where a cleaner and more closely aligned joint is especially important, Speedone’s Seamless Seam Setter for Granite and Quartz Countertops provides another related option for precision seam joining and leveling.

Solid Surface Seam Setter vs. Manual Seam Joining

Vacuum Gripping for Solid Surface Materials

Vacuum gripping works best on compatible smooth and sufficiently non-porous surfaces.

The suction pad needs a suitable contact area to create and maintain a stable seal.

Before using a vacuum seam setter, check:

• Surface cleanliness
• Surface porosity
• Surface texture
• Suction pad condition
• Seal condition
• Vacuum stability
• Tool compatibility
• Direction of applied force

Dust, moisture, adhesive residue, oil, damaged seals, and textured surfaces can reduce holding performance.

If suction becomes unstable, stop the adjustment and inspect the gripping system before continuing.

Solid Surface Seam Setter for Corian-Type Countertops

Manufactured solid surface materials are widely used for kitchen counters, vanity tops, commercial counters, healthcare surfaces, and reception areas.

Long or complex designs often require more than one fabricated section.

A seam setter can help bring these sections together while maintaining controlled alignment during bonding.

Typical applications include:

• L-shaped countertops
• Long wall-to-wall worktops
• Kitchen islands
• Bathroom vanity tops
• Reception counters
• Commercial service counters
• Healthcare work surfaces
• Custom fabricated panels

Because solid surface formulations and finishes vary, vacuum compatibility should always be checked before use.

How Accurate Leveling Can Reduce Finishing Work

Solid surface seams often require sanding and finishing after bonding.

The amount of correction needed can depend on how accurately the sections were positioned before the adhesive cured.

If one section is noticeably higher than the other, more material may need to be removed during finishing.

Better pre-bond alignment can therefore help create a more efficient finishing process.

The seam setter does not remove the need for normal finishing, but it can reduce unnecessary correction caused by poor initial positioning.

Heavy Duty Solid Surface Seam Setter for Professional Fabricators

Professional fabrication shops need tools that can be used repeatedly across different countertop projects.

Important purchasing factors include:

• Rigid connecting structure
• Reliable vacuum gripping
• Fine seam adjustment
• Leveling capability
• Easy-to-use controls
• Replaceable suction components
• Simple job-site setup
• Compatibility with common countertop surfaces

For professional workshops that also process granite and quartz, Speedone’s Heavy Duty Seam Setter Tool for Granite and Quartz Countertops provides another option for demanding seam-setting applications.

Solid Surface Seam Setter vs. Worktop Seam Setter

The words countertop and worktop often describe similar fabricated surfaces but are more common in different markets.

“Countertop” is widely used in North America, while “worktop” is common in the UK and several other regions.

The required seam-setting functions are generally similar:

• Bring adjoining pieces together
• Control seam spacing
• Align visible edges
• Level adjoining surfaces
• Maintain the position during bonding

For contractors and distributors targeting worktop-related markets, Speedone’s Worktop Seam Setter for Granite and Quartz Countertops provides another related solution for professional worktop seam adjustment.

Solid Surface Seam Setter vs. Stone Seam Setter Tool

The main difference is the material focus.

A solid surface seam setter is focused on manufactured solid surface and other compatible non-porous countertop materials, while a stone seam setter is generally used for granite, quartz, marble, and related stone surfaces.

For fabrication shops working with granite and quartz alongside solid surface materials, Speedone’s Stone Seam Setter Tool for Granite and Quartz provides a broader stone-focused seam-setting option.

Solid Surface Seam Setter vs. Seam Puller

A seam puller mainly describes a tool or function used to draw two countertop sections together horizontally.

A seam setter can provide a broader range of adjustment functions, including:

• Joint closing
• Horizontal alignment
• Relative height correction
• Temporary stabilization

For professionals interested in the pulling-focused side of countertop seam installation, Speedone’s Seam Puller for Granite Countertops and Joint Leveling provides a useful related reference for controlled countertop joint closing.

Solid Surface Seam Setter for Kitchen Countertops

Kitchen fabrication is one of the main applications for solid surface seam setters.

Seams may be required around:

• L-shaped corners
• U-shaped kitchens
• Sink sections
• Cooktop sections
• Long countertop runs
• Peninsulas
• Kitchen islands
• Custom countertop layouts

After the sections are placed on the cabinets, the seam setter helps control the final joint position before the adhesive cures.

Solid Surface Seam Setter for Commercial Fabrication

Commercial projects often include long runs and custom shapes that require multiple fabricated sections.

Typical applications include:

• Hotel counters
• Retail counters
• Reception desks
• Restaurant service surfaces
• Healthcare worktops
• Laboratory surfaces
• Office reception areas

A repeatable seam-setting process can be especially valuable when a fabrication team needs consistent results across several joints or installation sites.

How to Use a Solid Surface Seam Setter

Inspect the Fabricated Edges

Check both sections for edge damage, dirt, contamination, or fabrication problems before bonding.

Check the Supporting Surface

Make sure the countertop sections are correctly supported and already close to their final positions.

Dry Fit the Joint

Bring the sections together without adhesive and inspect how the seam closes.

Clean the Vacuum Areas

Remove dust, water, oil, adhesive residue, and other contamination from the intended gripping areas.

Position the Seam Setter

Place the gripping points on suitable areas on opposite sides of the seam.

Confirm Secure Vacuum

Make sure each suction cup is stable before mechanical adjustment begins.

Close the Joint Gradually

Use small adjustments while continuously checking the seam width.

Check Horizontal Alignment

Inspect visible edges and other reference points as the joint closes.

Correct Minor Height Differences

If the tool provides leveling capability, make small vertical adjustments.

Apply the Recommended Adhesive

Follow the material and adhesive manufacturer’s instructions for preparation, application, working time, and curing.

Maintain the Joint Position

Keep the countertop sections stable during the required bonding period.

Release and Finish

After the joint is ready, carefully release the setter and complete the required sanding, polishing, or finishing process.

How to Choose the Right Solid Surface Seam Setter

Surface Compatibility

Make sure the gripping system can maintain a suitable seal on the materials and finishes your workshop normally uses.

Reliable Gripping

Stable suction is important for predictable seam adjustment.

Fine Seam Closing

The pulling mechanism should allow small and controlled movements rather than abrupt closing.

Leveling Capability

If reducing surface lippage is important, choose a model with suitable vertical adjustment.

Structural Rigidity

A stable connecting structure helps transfer force more consistently between the gripping points.

Accessible Controls

The adjustment controls should remain practical near sinks, walls, corners, backsplashes, and other common installation restrictions.

Replaceable Components

Suction pads, seals, adjustment parts, and other wear components should be easy to inspect and replace.

Multi-Material Capability

Fabricators working with solid surface, quartz, granite, and other materials should consider whether one system can support several compatible applications.

Common Solid Surface Seam Problems

The Joint Will Not Close

Check the fabricated edges, countertop position, support condition, adhesive clearance, and nearby obstructions before increasing pulling force.

One Surface Is Higher Than the Other

Check support height, shimming, material thickness, and initial position before relying on fine leveling adjustment.

The Vacuum Cup Loses Suction

Stop the operation and inspect the surface, suction pad, seal, contamination, and material compatibility.

The Joint Moves During Bonding

Maintain the required position according to the adhesive manufacturer’s instructions.

Too Much Sanding Is Required

Review the pre-bond leveling, edge preparation, support conditions, and fabrication accuracy. Better alignment before curing can reduce unnecessary finishing work.

Too Much Pulling Force Is Required

Do not force incorrectly fabricated or positioned sections together. Identify and correct the underlying problem first.

Who Uses Solid Surface Seam Setters?

• Solid surface fabricators
• Countertop fabrication shops
• Kitchen countertop installers
• Commercial fit-out contractors
• Bathroom vanity fabricators
• Interior construction companies
• Countertop equipment distributors
• Professional installation tool suppliers

Why Choose Speedone?

Speedone develops professional equipment for countertop installation, stone fabrication, suction handling, slab handling, glass, porcelain, and related material-handling applications.

For professional fabricators, seam setting works best as a precision stage within the complete countertop installation process.

A practical workflow is:

Position → Dry Fit → Grip → Pull → Align → Level → Bond → Finish

• Professional countertop fabrication solutions
• Solid surface joint installation tools
• Granite and quartz seam-setting equipment
• Vacuum-based gripping applications
• Solutions for fabrication shops
• Professional installation equipment
• OEM and ODM support
• Solutions for international distributors

Frequently Asked Questions

What is a solid surface seam setter?

A solid surface seam setter is a professional fabrication and installation tool used to bring adjoining countertop sections together and help control seam alignment, spacing, leveling, and position during bonding.

What materials can a solid surface seam setter be used on?

Suitable vacuum-based tools can be used on compatible smooth and sufficiently non-porous surfaces. Actual compatibility should always be checked for the specific material and finish.

Can a solid surface seam setter be used on Corian-type countertops?

Many solid surface seaming tools are designed for compatible non-porous manufactured countertop materials. Always confirm that the specific tool and gripping system are suitable for the surface.

Does a solid surface seam setter use vacuum cups?

Many professional models use vacuum cups to create temporary gripping points on both sides of the seam.

Can a solid surface seam setter level countertop joints?

Suitable models may provide vertical adjustment to help correct small height differences before the adhesive cures.

What is the difference between a seam setter and a seam puller?

A seam puller mainly draws two countertop sections together, while a seam setter may also provide alignment, leveling, and temporary stabilization.

Can the same seam setter be used for quartz and granite?

Some professional seam-setting systems are suitable for several compatible materials. Buyers should check surface compatibility, gripping performance, and working requirements before use.

Can a solid surface seam setter eliminate all finishing work?

No. Good seam setting can improve alignment and reduce unnecessary correction, but normal adhesive removal, sanding, polishing, or finishing may still be required.
