Vacuum Suction Cups for Glass, Tile & Stone

Vacuum Suction Cups for Glass, Tile & Stone Handling

What Are Vacuum Suction Cups?​

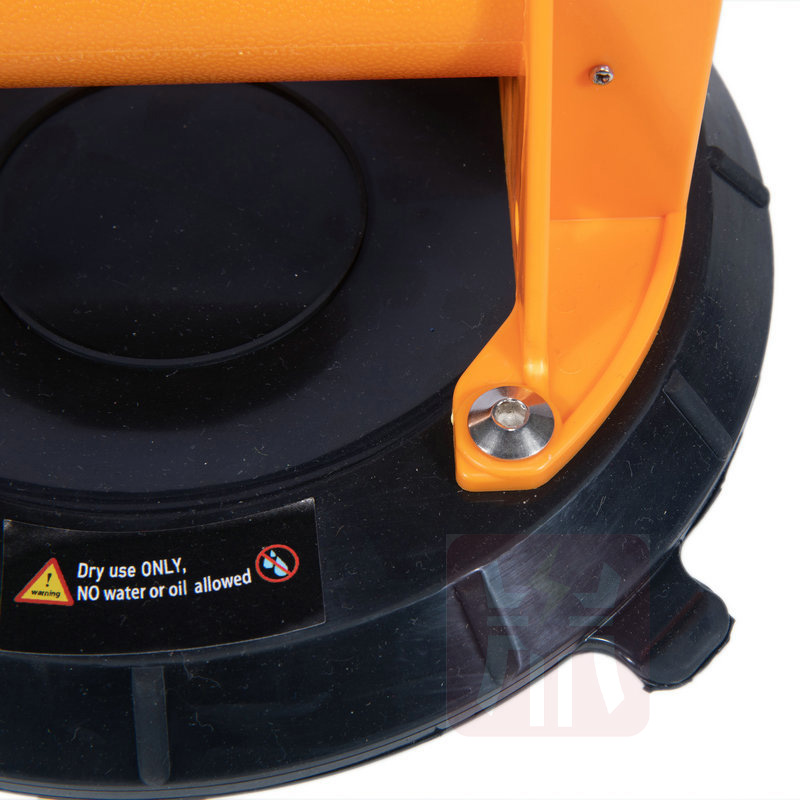

Product packaging and product information parameters

Vacuum suction cups are gripping tools that attach temporarily to a suitable material surface. They create a pressure difference between the suction pad and the surrounding air, allowing the user to hold or move a panel through the tool’s handle.

For installers, this means they can grip the face of a large sheet instead of relying only on its edges.

Depending on the model, vacuum suction cups may be suitable for:

• Window glass and glass panels
• Mirrors and glass doors
• Large-format porcelain tile
• Compatible ceramic tile
• Polished granite and stone
• Engineered stone panels
• Other smooth materials approved for the tool

Not every suction cup works on every surface. A tool designed for smooth glass may not provide a reliable grip on deeply textured tile or porous stone. Always check the intended application before use.

Why Use Vacuum Suction Cups?

Large panels can be difficult to move even when their weight is manageable. Their size makes them awkward to grip, turn and position.

A suitable suction cup creates a temporary handle on the panel surface. This can make common installation tasks easier to control.

Practical Gripping Points

Installers can hold the material from a suitable area on its face rather than depending entirely on accessible edges.

Better Control During Movement

The handle gives the operator a defined gripping point when carrying or rotating a compatible panel.

More Accurate Positioning

Once the panel is close to its final location, the suction cup can help with small adjustments before fixing or bonding.

Useful for Different Materials

Professional installers often work with glass, tile and stone on the same project. The appropriate suction tools can support different handling tasks, provided each tool is approved for the material and working conditions.

How Do Vacuum Suction Cups Work?

A vacuum suction cup normally has a contact pad, a handle and a mechanism that removes air from the space between the pad and the material.

When the pad forms a suitable seal, the pressure difference helps keep it attached to the surface.

The vacuum may be created by a lever, a hand pump or a powered pump. The operator then uses the handle to move or position the material within the tool’s rated working limits.

A typical handling process is:

Inspect → Clean → Attach → Create Vacuum → Check Grip → Move → Position → Support → Release

A reliable seal is essential. Dust, surface texture, damaged pads, worn seals and unsuitable working conditions can reduce gripping performance.

Types of Vacuum Suction Cups

Lever-Operated Suction Cups

A lever-operated suction cup is a compact manual tool. The user places the pad on a compatible surface and operates the lever to create the grip.

These models do not normally need a battery and can be practical for general handling and positioning work.

Manual Pump Suction Cups

A manual pump model creates vacuum through repeated pumping. Some professional versions include an indicator that helps the operator check the vacuum condition.

They can be useful for suitable glass, polished stone and other smooth-panel applications.

Electric Vacuum Suction Cups

An electric vacuum suction cup uses a powered pump. Depending on the model, it may also include a vacuum indicator, battery display or automatic pump activation when vacuum decreases.

Electric models can be convenient for installers who handle panels repeatedly. Available functions should be confirmed for the specific product.

Multi-Cup Handling Systems

Large panels may need several gripping points or a dedicated handling frame. The correct arrangement depends on the panel’s size, weight, balance and the equipment manufacturer’s instructions.

Adding more individual cups does not automatically make a lifting operation suitable. The complete handling setup must be appropriate for the material.

Manual vs. Electric Vacuum Suction Cups

Choose the type that matches your working needs. An electric model is not automatically suitable for a heavier load or a more textured surface.

Vacuum Suction Cups for Glass Handling

Glass has a smooth surface, but large sheets can be difficult to grip safely from their edges. A suitable suction cup can provide a temporary handling point for moving and positioning the panel.

Common applications include:

• Window installation
• Glass door fitting
• Shower enclosure installation
• Mirror positioning
• Glass partition installation
• Commercial glazing
• Storefront glass handling

Before selecting a tool, check the glass type, panel dimensions, weight, working orientation and installation conditions. Large panels may require a dedicated lifting system rather than a portable hand cup.

For glass-focused projects, explore Speedone’s glass suction cups for professional lifting and handling.​

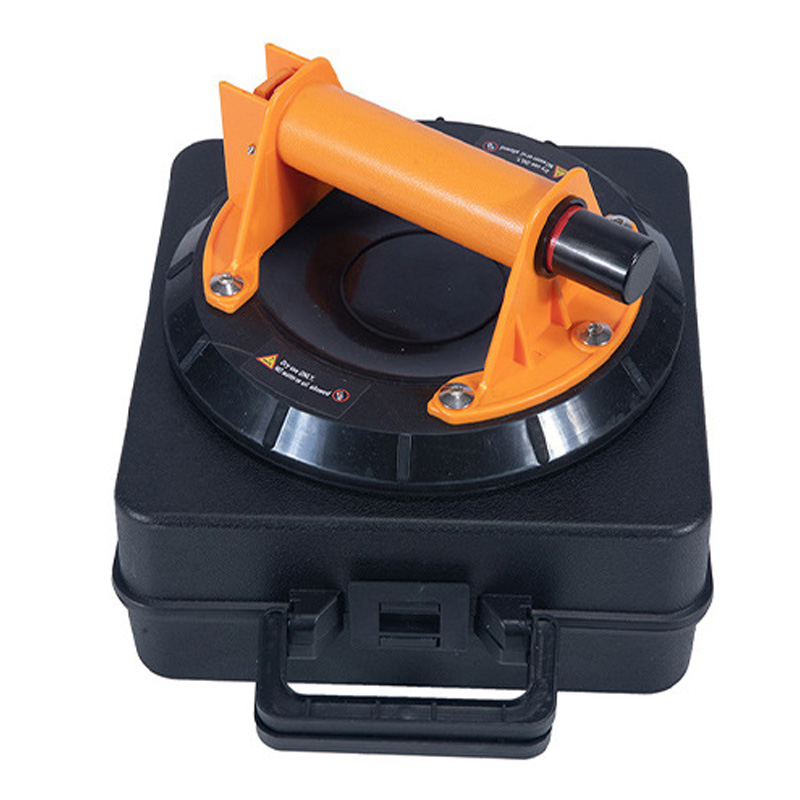

Product display

Vacuum Suction Cups for Large-Format Tile

Large-format porcelain tile can be difficult to carry and position because of its overall dimensions. A compatible suction cup provides a gripping point on the tile face, helping the installer guide the panel into place.

Typical tasks include:

• Removing tile from suitable packaging
• Carrying panels to the installation area
• Positioning large wall tiles
• Placing porcelain floor tiles
• Making small adjustments before bonding

The tile finish is especially important. Smooth porcelain and heavily textured porcelain may need different gripping systems.

For a tile-specific option, see Speedone’s tile suction cup for large-format porcelain and stone.

Vacuum Suction Cups for Granite and Stone

Stone fabrication and installation teams may also use vacuum gripping tools on compatible polished granite, engineered stone and other approved surfaces.

However, stone handling needs careful planning. A panel’s weight, dimensions, thickness, surface finish and balance all affect the handling method.

Before choosing a suction tool for stone, check:

• Material type and finish
• Panel dimensions and weight
• Rated working capacity
• Permitted handling direction
• Number and position of gripping points
• Required supporting equipment

Do not assume a portable suction cup can replace a dedicated slab lifter or mechanical stone-handling system.

Vacuum Suction Cups for Smooth and Textured Surfaces

A suction cup needs a suitable seal to maintain its grip. Surface finish is therefore one of the first things to check when choosing a tool.

Smooth, Non-Porous Surfaces

Clean, flat glass and some polished materials can provide favorable contact conditions for conventional suction pads. The specific material must still be approved for the selected tool.

Lightly Textured Surfaces

Some specialized suction systems can work on limited surface texture. Suitability depends on the pad design and the actual material.

Deeply Textured or Porous Surfaces

A conventional pad may not form a reliable seal on deeply textured or porous materials. Use equipment approved for that surface or select a different handling method.

Coated or Delicate Surfaces

Some finishes can be sensitive to pad contact. Check compatibility with the material supplier and the tool manufacturer before use.

Vacuum Suction Cups for Accurate Panel Positioning

Handling does not end when a panel reaches the installation area. The installer may still need to move it slightly before permanent fixing or bonding.

Depending on the material and approved application, a suction handle can help with:

• Aligning a window inside its frame
• Positioning a mirror against a wall
• Adjusting a large tile before bonding
• Guiding a glass partition into place
• Making small corrections to a compatible stone panel

The suction cup remains a temporary gripping tool. It does not replace permanent supports, fasteners or adhesives.

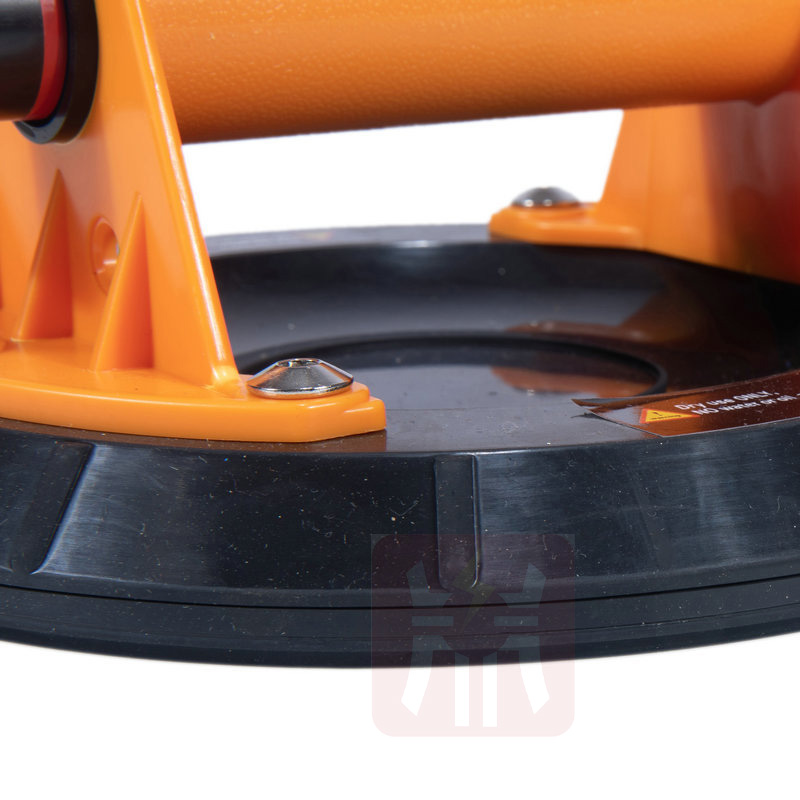

Product details presentation

Vacuum Suction Cups vs. Countertop Seam Tools

Both products may use suction, but they perform different jobs.

A vacuum suction cup helps an installer grip and handle a panel. A countertop seam tool adjusts the position of two adjoining countertop sections after they have been safely supported.

When the job changes from moving stone to adjusting a countertop joint, Speedone’s countertop seam tool for granite and quartz</a provides the purpose-built adjustment function.

Using the Right Tool for Stone Seam Setting

Some workshops handle glass, porcelain and stone within the same project. Although vacuum gripping may be useful for moving suitable panels, seam joining is a separate precision task.

Once granite or quartz sections are safely positioned, a dedicated stone pro seam setter for granite and quartz countertops can help with controlled joint closing and alignment.

Use each tool only for its intended purpose. A suction cup designed for handling should not automatically be used as a seam setter.

Vacuum Suction Cups in Kitchen Installation

Kitchen installation may involve cabinets, glass, tile and stone. Different materials require different handling and support tools.

Vacuum suction cups may help with approved glass, tile or panel-handling tasks. Wall cabinets, by comparison, need temporary support while they are positioned and permanently fixed.

For upper cabinets, Speedone’s cabinet jack for upper cabinet installation provides adjustable temporary support.

Installers can also explore the cabinet support tool for wall cabinet installation for related positioning work.

How to Use Vacuum Suction Cups

Inspect the Material

Check the panel for visible damage and confirm that its surface is suitable for the intended handling method.

Inspect the Tool

Check the suction pad, seal, handle, pump and other working parts. Do not use damaged equipment.

Check the Working Limits

Confirm that the panel weight, handling direction and operating conditions are within the tool manufacturer’s approved limits.

Clean the Contact Area

Prepare the surface according to the tool instructions. Remove contaminants that could interfere with the seal.

Position the Suction Cup

Place the pad at a suitable location while considering panel balance and the planned movement.

Create the Vacuum

Operate the lever, manual pump or electric system according to the product instructions.

Verify the Grip

Confirm that the required attachment has been established before moving the material.

Move the Panel Gradually

Keep the material under control. Avoid sudden pulling, impact or abrupt changes in direction.

Monitor the Attachment

Where the tool includes a gauge or vacuum indicator, monitor it as instructed. If the grip becomes unstable, stop the operation and safely support the panel.

Support and Release

Make sure the material is securely supported at its destination before using the release mechanism.

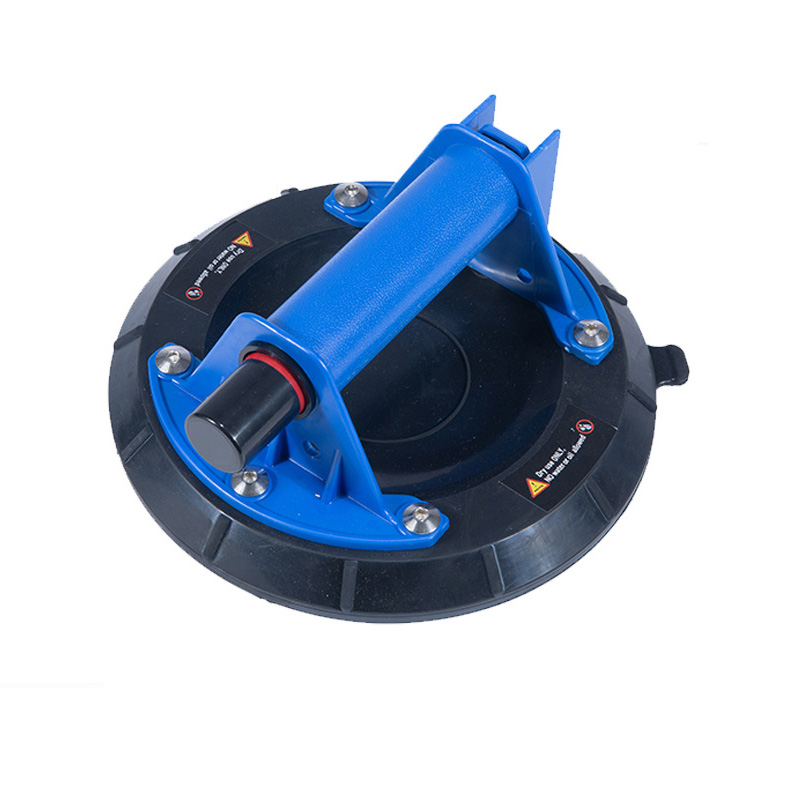

Product details

How to Choose the Right Vacuum Suction Cups

Material Compatibility

Identify the materials you handle most often. Glass, porcelain and polished stone may need different pad designs or approved working conditions.

Rated Working Capacity

Check the actual panel weight against the tool rating for the intended material and handling direction.

Surface Finish

Confirm whether the surface is smooth, polished, coated, matte, textured or porous. Do not assume one cup works on every finish.

Panel Size and Balance

A large panel may require multiple gripping points even when its weight falls within the capacity of an individual cup.

Vacuum Generation Method

Choose a lever, manual pump or electric model according to your handling tasks and frequency of use.

Vacuum Monitoring

For professional use, consider whether a gauge or indicator would help the operator monitor the attachment.

Handle Design

The handle should offer practical control without interfering with the panel or installation area.

Replaceable Components

For repeated use, check whether replacement pads, seals and other service parts are available.

Common Vacuum Suction Cup Problems

The Cup Will Not Attach

Check the surface finish, cleanliness, pad condition, seal and vacuum mechanism. Do not proceed without a suitable grip.

The Vacuum Slowly Drops

Stop handling and safely support the panel before inspecting the equipment.

The Panel Is Difficult to Balance

Review the position and number of gripping points. A larger panel may need a dedicated handling frame.

The Material Is Too Large for One Cup

Use an appropriately rated multi-point system rather than relying on an unsuitable single gripping point.

The Surface Is Too Textured

A conventional suction pad may not maintain a seal. Choose equipment approved for the material or use another handling method.

The Pad Leaves Marks

Check pad cleanliness and surface compatibility. Test sensitive finishes before full use.

Safety Tips for Vacuum Suction Cups

Vacuum suction cups are handling tools, not universal lifting devices. Safe use depends on the complete handling setup.

• Inspect the tool before every use.
• Confirm the material and surface are suitable.
• Follow the manufacturer’s rated working capacity.
• Check the permitted handling direction.
• Verify the grip before moving the material.
• Avoid sudden movements and shock loading.
• Use the appropriate number of gripping points.
• Stop work if vacuum becomes unstable.
• Keep people clear of suspended material.
• Use appropriate personal protective equipment.
• Use additional operators or rated lifting equipment when required.
• Never use a portable suction cup as permanent support.

Who Uses Vacuum Suction Cups?

• Glass installers and glaziers
• Large-format tile contractors
• Porcelain slab installers
• Stone fabrication workshops
• Kitchen and bathroom contractors
• Commercial glazing companies
• Interior fit-out teams
• Construction companies
• Material-handling equipment distributors
• Professional installation tool suppliers

Why Choose Speedone?

Speedone supplies professional tools and equipment for glass, tile, stone, countertop and related installation work.

Different jobs need different gripping systems. A small glass panel, a large porcelain tile and a heavy stone section should not automatically be handled with the same suction cup.

When comparing Speedone options, buyers should identify the material, panel dimensions, surface finish, working direction and intended application. This information helps determine which tool configuration is suitable for the job.

For a practical selection discussion, share your material type, panel size, weight, surface finish and handling method when requesting a quotation.

Frequently Asked Questions

What are vacuum suction cups?

Vacuum suction cups are tools that create temporary gripping points on compatible surfaces by forming a pressure difference between the suction pad and the surrounding air.

What are vacuum suction cups used for?

Suitable models can help professionals grip, lift, carry and position glass, tile, polished stone and other compatible panels.

Can vacuum suction cups be used on glass?

Yes. Many models are designed for suitable glass surfaces. Always check the glass type, panel size, weight and permitted handling direction.

Can vacuum suction cups handle large-format porcelain tiles?

Suitable systems can assist with large-format porcelain handling. The correct setup depends on panel dimensions, weight, surface texture and equipment ratings.

Can vacuum suction cups be used on granite?

Some models are suitable for compatible smooth granite surfaces. Confirm the material, finish, rated capacity and intended use before handling stone.

What is the difference between manual and electric vacuum suction cups?

Manual models use a lever or hand pump, while electric models use a powered pump. Choose according to the material, working conditions and frequency of use.

Can vacuum suction cups work on textured surfaces?

Some specialized models can work on certain textured materials. Conventional cups may not form a reliable seal, so compatibility must be confirmed.

How many suction cups are needed for a large panel?

There is no universal number. Panel size, weight, balance, handling direction and the manufacturer’s approved lifting method determine the required setup.

Are vacuum suction cups the same as vacuum lifters?

The terms can overlap. A suction cup may refer to a gripping component or portable tool, while a vacuum lifter may describe a more complete lifting system with several pads or a dedicated frame.

Can vacuum suction cups replace countertop seam setters?

No. Vacuum suction cups are mainly used for material handling. Countertop seam setters are designed to close, align and level joints after countertop sections have been positioned.

What should I check before buying vacuum suction cups?

Check material compatibility, rated capacity, surface finish, panel dimensions, vacuum generation method, handling direction, monitoring features and replacement-part availability.
