Hydraulic Granite Splitter for Pavers, Cobblestones & Wall Stone

What Is a Granite Splitter?

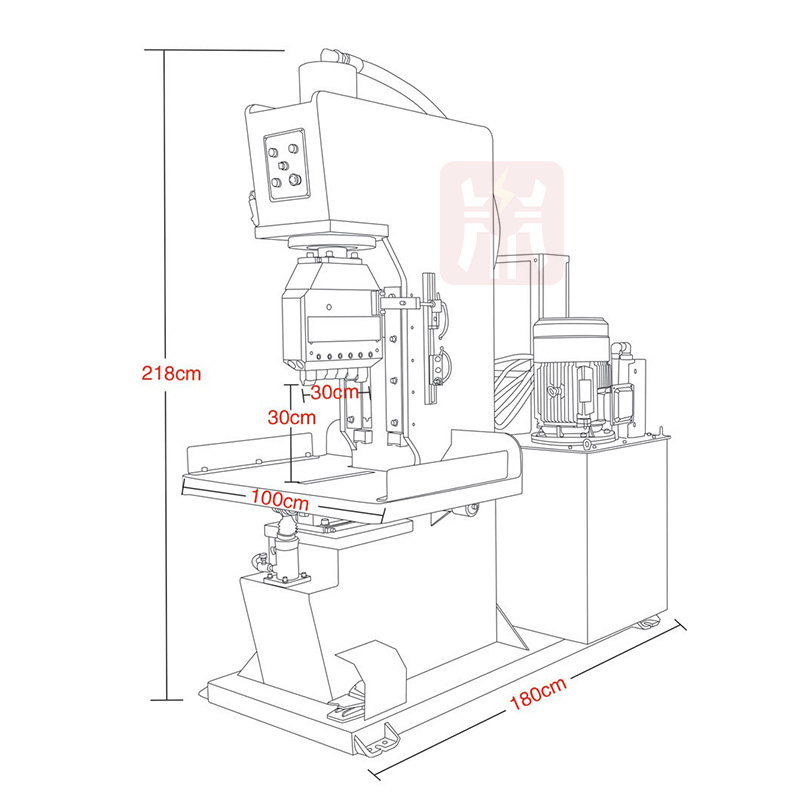

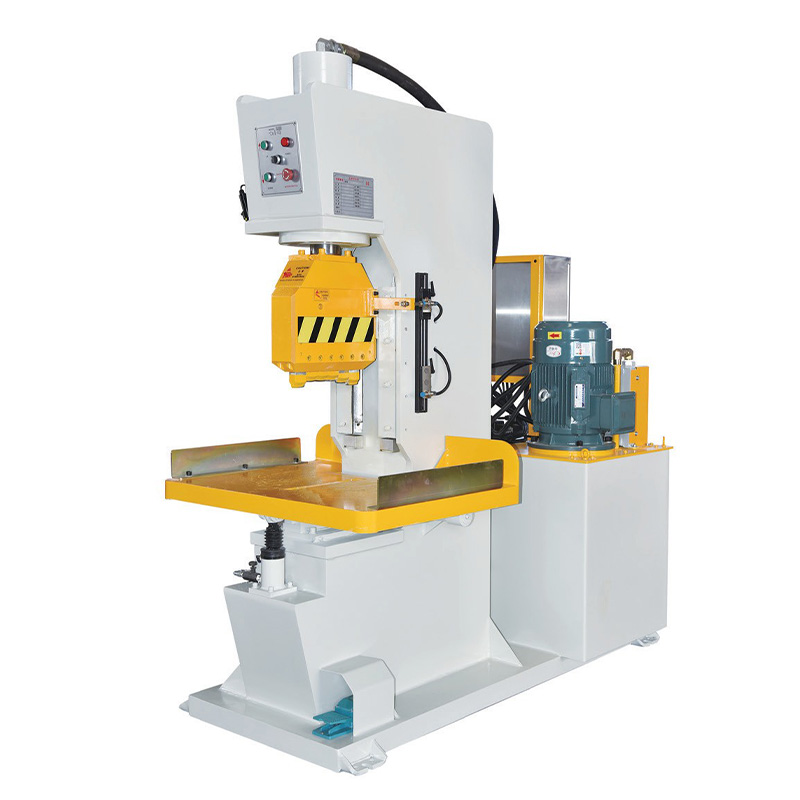

Product display

A granite splitter is industrial stone-processing equipment used to fracture granite with concentrated mechanical force.

Professional machines commonly use hydraulic power because it provides strong and controlled pressure during repeated production.

The granite is placed on the worktable beneath the splitting head. Hydraulic pressure then moves the splitting tools toward the stone until the material separates.

Unlike a diamond saw, a splitter does not normally create a smooth sawn surface. Instead, it exposes the internal crystalline structure of the granite and produces a natural fractured face.

This makes a granite splitter suitable for products such as:

• Granite paving blocks
• Cobblestones
• Granite cubes
• Wall stone
• Building stone
• Landscape stone
• Garden stone
• Split-face veneer
• Rustic architectural stone
• Natural-face cladding
• Selected curbstone products
• Secondary products made from suitable granite offcuts

The purpose is not simply to break granite into smaller pieces. The goal is to turn prepared granite into commercially useful products with the required natural surface and dimensions.

Why Use a Hydraulic Granite Splitter?

Granite is dense and durable. It can be shaped manually with hammers, wedges and chisels, but repetitive factory production usually requires a more efficient process.

A hydraulic granite splitter can provide:

• Strong controlled splitting force
• Reduced repeated manual hammering
• Faster repetitive processing
• Natural split-face production
• Processing of thick granite on suitable models
• Production of cubes and cobblestones
• Wall and landscape stone production
• Better integration into factory workflows
• Potential use with roller tables or conveyors
• Secondary processing of suitable granite offcuts

However, hydraulic tonnage should not be the only buying factor.

The machine also needs suitable:

• Working width
• Working height
• Splitting tools
• Frame structure
• Working table
• Stone positioning space
• Loading and unloading method

A larger machine is not automatically a better granite splitter.

How Does a Granite Splitter Work?

A typical production cycle is:

Inspect → Load → Position → Align → Apply Hydraulic Force → Split → Release → Remove → Inspect

The granite workpiece is first placed on the supporting table.

The required fracture line is positioned beneath the splitting tools.

The hydraulic system then supplies pressure to the cylinder and moves the splitting head toward the granite.

As pressure increases, force becomes concentrated through the stone until the granite fractures.

The final result can be influenced by:

• Granite type
• Grain size
• Mineral composition
• Existing cracks
• Workpiece width
• Workpiece thickness
• Stone orientation
• Splitting-tool geometry
• Tool contact
• Hydraulic force

Granite is a natural geological material, so two pieces with similar outside dimensions may still behave differently during splitting.

Why Granite Needs the Right Splitter Configuration

Granite is generally stronger and denser than many common building stones.

Before selecting a machine, answer these questions:

• What type of granite do you process?
• Is the granite fine-grained or coarse-grained?
• Is the material rough or pre-sawn?
• What is the typical stone width?
• What is the maximum width?
• What is the typical thickness?
• What is the maximum thickness?
• What finished product do you need?
• How many pieces must be produced per shift?

If your factory processes both granite and other stones such as marble, Speedone’s stone splitting machine for granite and marble provides a broader overview of stone splitting equipment.

Granite Splitter for Paving Stone

Granite paving is one of the main applications for hydraulic splitting equipment.

Typical products include:

• Granite pavers
• Driveway paving
• Plaza paving
• Courtyard paving
• Garden paving
• Pedestrian paving
• Landscape paving

Granite is often cut into strips or rectangular blanks before splitting.

A typical production flow is:

Granite Block → Sawing → Granite Strip → Hydraulic Splitting → Sorting → Packing

The saw gives the material its initial dimensions. The splitter then creates the final natural fractured surfaces.

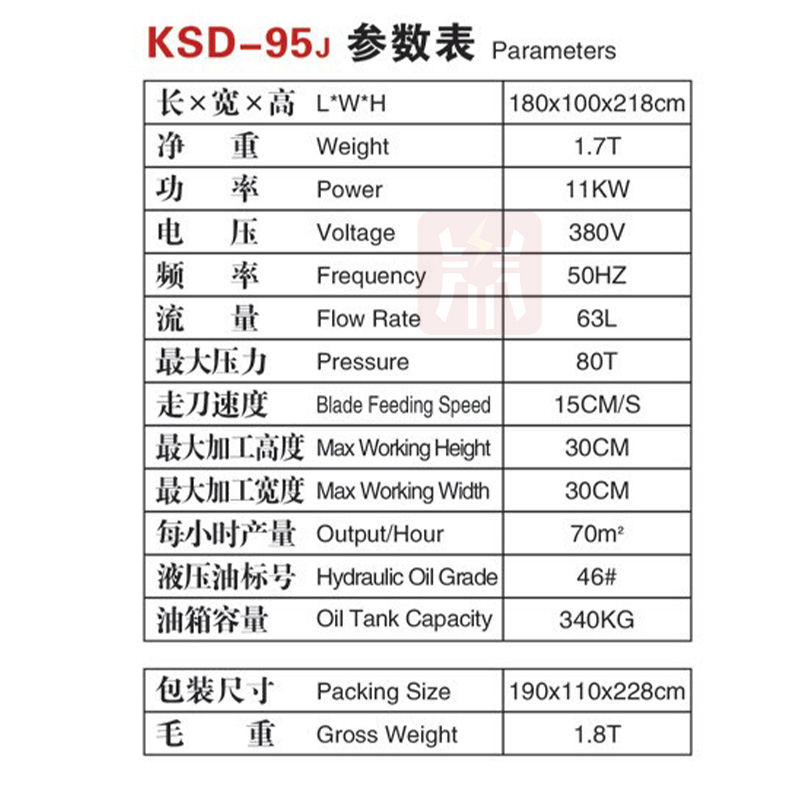

Product finished product display and parameter information

Granite Splitter for Cobblestone Production

Cobblestone production usually requires many repeated splitting cycles.

The process may start with pre-sawn granite bars that are repeatedly divided into smaller pieces.

Important factors include:

• Granite bar width
• Granite bar thickness
• Finished cobblestone size
• Required splitting frequency
• Loading speed
• Stone positioning
• Finished-product removal
• Sorting efficiency

For cobblestone production, hydraulic force is only one part of productivity.

A fast splitter can still have low output if every small piece takes too long to position, remove and sort.

Granite Splitter for Stone Cubes

Granite cubes are widely used for:

• Historic streets
• Public plazas
• Residential driveways
• Landscape projects
• Pedestrian areas
• Garden paths
• Commercial developments

Stone cubes may require more than one split.

A typical sequence can be:

Granite Strip → First Split → Reposition → Second Split → Granite Cube

For this application, worktable access is important because the operator may need to turn and reposition the granite several times.

Granite Splitter for Wall Stone

Granite wall stone is another important application.

Hydraulic splitting exposes the natural crystal structure of the granite and produces a rougher surface than sawing.

Possible applications include:

• Retaining walls
• Landscape walls
• Garden walls
• Exterior facades
• Rustic masonry
• Decorative wall cladding
• Architectural stonework

For factories producing both granite wall stone and other building-stone products, Speedone’s stone splitter for granite and building stone covers the wider application.

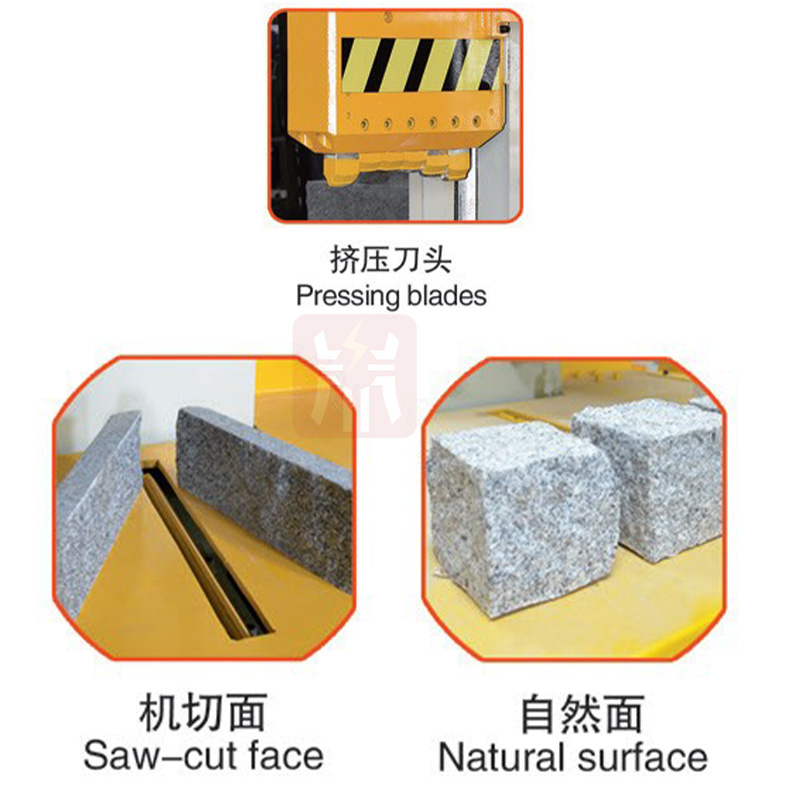

Granite Splitter for Natural Split Face

A natural split face is one of the main reasons to choose hydraulic splitting rather than relying entirely on sawing.

A saw produces a relatively smooth surface.

A granite splitter fractures the internal structure and can reveal:

• Crystalline texture
• Natural depth
• Irregular relief
• Rustic character
• Variation between individual pieces

This type of finish is widely used in architecture and landscaping.

The goal is not perfect visual uniformity. Natural variation is part of the finished appearance.

Granite Splitter for Stone Veneer

Hydraulic splitting can also be used to create the natural front face of granite veneer.

A possible workflow is:

Granite Material → Pre-Sizing → Hydraulic Splitting → Face Inspection → Thickness Processing if Required → Sorting → Packing

The splitter mainly creates the natural fractured face.

If tightly controlled veneer thickness is required, additional sawing or secondary fabrication may be necessary.

Important factors include:

• Face dimensions
• Required thickness
• Granite grain
• Desired texture
• Stone orientation
• Sorting requirements

Granite Block Splitter for Larger Stone

Granite blocks vary greatly in size.

A splitter suitable for paving strips is not automatically suitable for large blocks.

For larger granite pieces, consider:

• Maximum working width
• Maximum working height
• Workpiece weight
• Required splitting force
• Machine-frame structure
• Loading method
• Stone stability

As workpiece size increases, material handling also becomes more important.

Support equipment may include:

• Forklifts
• Overhead cranes
• Roller tables
• Stone manipulators

The entire loading, splitting and unloading process should be evaluated together.

Granite Splitter vs. General Stone Splitter

A granite splitter belongs to the wider stone splitter category, but it is selected specifically around the requirements of granite.

Granite Splitter vs. Hydraulic Stone Splitting Machine

A granite splitter is usually a type of hydraulic stone splitting machine configured for granite-processing applications.

For granite buyers, the most important questions are practical:

• Can the machine accept my normal granite dimensions?
• Can it create the products I need?
• Is the tooling suitable for granite?
• Can the material be loaded efficiently?
• Can finished products be removed quickly?

Speedone’s hydraulic stone splitting machine page provides more information about general hydraulic systems, machine structures and line configurations.

Granite Splitter vs. Marble Splitting Machine

Granite and marble can both be split hydraulically, but the materials do not behave in exactly the same way.

For applications that combine marble splitting with decorative pressing, see Speedone’s marble splitting machine for split face and stamping.

Granite Splitter vs. Stone Stamping Machine

Splitting and stamping are different processes.

A granite splitter creates a natural fracture. A stamping machine uses a mould or die to produce a more controlled form or pattern.

For mould-based decorative stone products, Speedone’s stone stamping machine for granite and marble may be more suitable.

Granite Splitter vs. Diamond Saw

Granite splitters and diamond saws perform different jobs and are often used together.

A common workflow is:

Saw for Size → Split for Natural Finish

Granite Splitter vs. Manual Granite Splitting

Main Components of a Granite Splitter

Machine Frame

The frame carries the mechanical loads generated during splitting and helps maintain alignment between the hydraulic system and splitting tools.

Hydraulic Cylinder

The cylinder converts hydraulic pressure into movement and drives the splitting head toward the granite.

Hydraulic Power Unit

The hydraulic unit supplies the oil flow and pressure required for operation.

Splitting Head

The splitting head transfers force into the stone.

Splitting Tools

Depending on machine design, tooling may include:

• Blades
• Chisels
• Individual splitting teeth
• Upper and lower tool assemblies

Working Table

The table supports and positions the granite during splitting.

Control System

The control system allows the operator to manage the machine cycle.

Why Granite Splitting Tools Matter

Hydraulic pressure creates the force, but the tools determine how that force enters the granite.

Tool design can influence:

• Contact area
• Pressure concentration
• Fracture initiation
• Edge chipping
• Finished surface

Granite surfaces are not always perfectly flat.

Some machine configurations may therefore use several contact points or segmented tooling to improve contact with uneven material.

When comparing machines, ask about the splitting-head design rather than comparing only hydraulic tonnage.

How Granite Grain Affects Splitting

Granite is not completely uniform.

Its splitting behavior can be influenced by:

• Crystal size
• Mineral distribution
• Natural microcracks
• Weathering
• Quarry direction
• Existing internal stress

A granite that splits consistently in one orientation may behave differently when rotated.

If you are introducing a new granite variety into production, representative samples can help determine the most suitable machine configuration and working method.

How Much Splitting Force Does a Granite Splitter Need?

There is no single correct tonnage for all granite.

Required force depends on:

• Granite type
• Granite strength
• Workpiece width
• Workpiece thickness
• Grain structure
• Splitting-tool design
• Finished product

A better selection sequence is:

Granite Type → Dimensions → Finished Product → Required Force → Machine

Choosing the largest available machine can increase equipment cost, factory footprint and material-handling complexity without improving production of smaller products.

Granite Splitter Working Width

Working width determines the widest granite piece that can fit in the processing area.

Provide both:

Typical Working Width + Maximum Working Width

The typical production size is especially important.

If almost all your material is small, selecting a machine around one rare oversized workpiece may result in unnecessary cost and size.

Granite Splitter Working Height

Working height determines the maximum granite thickness that can fit beneath the splitting head.

Thickness also affects the force required for splitting.

Provide:

Typical Thickness + Maximum Thickness

Why Worktable Design Matters

The worktable supports the granite and gives the operator room to position the workpiece correctly.

Important factors include:

• Table dimensions
• Stone access
• Support stability
• Operator access
• Loading direction
• Finished-product removal

This becomes especially important when granite pieces must be repositioned repeatedly to produce cubes or other multi-split products.

Granite Splitter with Conveyor

For higher-volume paving and cobblestone production, conveyors can help improve material flow.

A typical setup may be:

Infeed → Position → Split → Outfeed → Sort

Potential benefits include:

• Reduced manual handling
• More consistent material flow
• Faster repeated production
• Easier integration with sorting
• Better production-line organization

Conveyor suitability depends on granite size, weight and the exact machine configuration.

Standalone Granite Splitter vs. Granite Splitting Line

If your factory produces standardized cobblestones or paving blocks continuously, a more integrated line may improve material flow.

If you produce different wall-stone sizes and custom products, a standalone machine may offer more flexibility.

Why Material Handling Matters

The hydraulic splitting stroke is only one part of the production cycle.

The full workflow is:

Pick Up → Load → Position → Split → Remove → Sort → Repeat

If loading and repositioning take much longer than the split itself, increasing hydraulic speed will have limited effect on total output.

Factories should also plan:

• Raw granite staging
• Roller tables
• Conveyors
• Forklift access
• Overhead lifting
• Finished-product bins
• Palletizing areas

Granite Splitter for Stone Offcuts

Granite factories often generate offcuts from:

• Slab cutting
• Countertop fabrication
• Dimension-stone production
• Step production
• Architectural fabrication

Some suitable offcuts may still be processed into:

• Small paving pieces
• Wall stone
• Landscape stone
• Decorative split-face pieces
• Garden stone

A possible workflow is:

Granite Offcut → Inspect → Pre-Size → Hydraulic Split → Sort → Secondary Product

Not every offcut is suitable. Material with severe cracks or unsuitable geometry should be rejected.

Granite Offcuts from Countertop Production

Countertop fabrication can produce useful granite offcuts.

Suitable pieces may be separated from general waste and directed into secondary processing.

This creates two production paths:

Granite Slab → Countertop Fabrication → Finished Countertop

and

Suitable Granite Offcut → Hydraulic Splitting → Secondary Stone Product

The finished countertop then moves to installation, where different equipment is used.

Speedone’s Stone Pro seam setter for granite and quartz countertops is designed for countertop positioning and seam adjustment rather than granite splitting.

How to Operate a Granite Splitter

1. Inspect the Granite

Check for obvious cracks, loose material and structural defects.

2. Confirm the Dimensions

Make sure the granite is within the machine’s approved working width and height.

3. Inspect the Hydraulic System

Check visible hoses, fittings and hydraulic components.

4. Inspect the Splitting Tools

Look for excessive wear, damage or poor alignment.

5. Load the Granite

Use suitable material-handling equipment where manual loading is not appropriate.

6. Position the Workpiece

Align the intended fracture line beneath the splitting tools.

7. Clear the Splitting Zone

Keep hands and personnel away from the working area.

8. Start the Hydraulic Cycle

Operate the machine according to the approved instructions.

9. Allow the Split to Complete

Do not attempt to reposition the granite while hydraulic force is applied.

10. Release the Machine

Wait until the machine returns to the correct unloading position.

11. Remove the Granite

Use suitable handling methods for the size and weight of the finished pieces.

12. Inspect the Finished Product

Check dimensions, fracture quality and natural-face appearance.

How to Choose the Right Granite Splitter

1. Define the Granite Type

Different granite varieties can behave differently during splitting.

2. Provide Typical Input Dimensions

Normal daily dimensions are important for selecting a practical machine.

3. Provide Maximum Dimensions

The machine must still accept the largest routine workpieces.

4. Define the Finished Product

Specify whether you produce pavers, cobblestones, cubes, wall stone, veneer or landscape stone.

5. Provide Finished-Product Dimensions

This is particularly important for repeated paving and cobblestone production.

6. Define Your Production Target

Estimate the number of pieces or other practical output required per shift.

7. Evaluate Splitting Force

Choose hydraulic capacity according to the granite and workpiece dimensions.

8. Evaluate the Splitting Tools

Tool design should suit granite and the required finished surface.

9. Plan Material Feeding

Decide whether manual loading, roller tables, conveyors or other equipment will be used.

10. Plan Product Removal

Small cubes and cobblestones may need efficient sorting and collection areas.

11. Ask About Spare Parts

Check the availability of splitting tools and hydraulic components.

12. Evaluate Supplier Support

Technical documentation, replacement parts and responsive communication are important for industrial machinery.

Information to Send Speedone for a Quotation

To help Speedone evaluate a suitable granite splitter, provide:

1. Granite type
2. Photos of the raw material
3. Typical input width
4. Maximum input width
5. Typical thickness
6. Maximum thickness
7. Approximate workpiece weight
8. Finished-product dimensions
9. Photos of the desired finished product
10. Required production volume
11. Current processing method
12. Preferred loading method
13. Factory voltage and frequency
14. Available installation space

Photos are especially useful because they show grain, surface condition and workpiece geometry that measurements alone cannot fully describe.

Common Granite Splitting Problems

Granite Splits in an Unexpected Direction

Natural grain, cracks or mineral structure can redirect the fracture.

Excessive Chipping

Inspect the splitting tools, stone orientation and contact position.

The Granite Requires More Pressure Than Expected

Confirm that the material and dimensions are within the approved machine capacity.

Do not exceed the manufacturer’s rated hydraulic pressure.

Finished Pieces Vary Too Much

Check incoming material dimensions and positioning consistency.

Some variation will remain because granite is a natural material.

The Splitting Tools Wear Unevenly

Check tool alignment and the way the granite contacts the splitting head.

Production Is Too Slow

Measure the complete workflow, not only the hydraulic splitting time.

Loading, repositioning, unloading and sorting may be the actual bottlenecks.

Granite Splitter Maintenance

Routine inspection should include:

• Hydraulic oil
• Hydraulic pump
• Electric motor
• Hydraulic cylinder
• Hoses
• Fittings
• Control valves
• Pressure controls
• Splitting head
• Splitting tools
• Tool guides
• Working table
• Machine frame
• Electrical controls
• Safety systems

Hydraulic leaks should be investigated promptly.

Damaged hoses should not remain in normal service.

Splitting tools should be monitored regularly for wear or damage.

Granite Splitter Safety

Granite splitting equipment generates substantial mechanical force and should only be operated by trained personnel.

• Inspect the machine before operation.
• Inspect the granite before loading.
• Keep hands away from the splitting area.
• Do not bypass guards or safety systems.
• Use suitable stone-handling equipment.
• Wear appropriate personal protective equipment.
• Keep unauthorized personnel outside the processing area.
• Follow lockout procedures during maintenance.
• Do not exceed approved stone dimensions.
• Do not exceed manufacturer-rated hydraulic pressure.
• Replace damaged tools.
• Keep the working area clean and organized.

Granite can fracture unpredictably and may release chips or fragments during splitting.

Who Uses Granite Splitters?

A professional granite splitter may be suitable for:

• Granite factories
• Paving stone manufacturers
• Cobblestone producers
• Building stone factories
• Wall stone manufacturers
• Landscape stone suppliers
• Architectural stone processors
• Natural stone yards
• Quarry processing facilities
• Hardscape manufacturers
• Stone equipment distributors

Why Choose Speedone?

Speedone supplies professional equipment for stone processing, stone handling and installation.

When choosing a granite splitter, start with the granite and the finished product rather than maximum hydraulic tonnage.

A practical selection process is:

Granite Type → Input Dimensions → Finished Product → Splitting Force → Tooling → Feeding Method → Production Target → Factory Layout

When comparing equipment, also consider:

• Machine structure
• Hydraulic system
• Working width
• Working height
• Splitting-head design
• Worktable accessibility
• Material feeding
• Finished-product handling
• Spare-part availability
• Technical documentation
• Supplier communication

The objective is to build a practical production process that turns granite into commercially useful pavers, cobblestones, cubes, wall stone and natural-face products.

Frequently Asked Questions

What is a granite splitter?

A granite splitter is a machine that applies concentrated mechanical force to fracture granite into paving blocks, cobblestones, wall stone, cubes and other natural split-stone products.

Is a granite splitter hydraulic?

Professional industrial granite splitters commonly use hydraulic systems because hydraulic power provides strong and controlled splitting force.

What can a granite splitter produce?

Suitable machines can produce granite pavers, cobblestones, cubes, wall stone, landscape stone, veneer and natural split-face products.

Can a granite splitter make cobblestones?

Yes. Cobblestone production is one of the common applications for suitable hydraulic granite splitting equipment.

Can it make granite paving blocks?

Yes. Prepared granite strips or blanks can be hydraulically split into paving blocks and cubes.

Can a granite splitter produce natural-face wall stone?

Yes. Hydraulic splitting exposes the natural internal granite texture and is widely used for wall, landscape and architectural stone products.

Is splitting granite better than sawing it?

The two processes serve different purposes. Sawing provides higher dimensional precision and a smooth surface, while splitting creates a natural fractured finish.

How much force does a granite splitter need?

The required force depends on granite type, width, thickness, grain structure, splitting-tool design and finished-product requirements.

Can a granite splitter process irregular granite?

Suitable machines may process irregular granite when the workpiece is within the approved machine capacity and can be positioned safely.

Can granite splitters be used with conveyors?

Suitable industrial models can be combined with roller or powered conveyor systems depending on workpiece size, production volume and machine configuration.

Can granite offcuts be processed with a splitter?

Suitable granite offcuts may be converted into smaller paving, wall or landscape products when their dimensions and structural condition are appropriate.

What information should I provide for a granite splitter quotation?

Provide granite type, raw-material photos, typical and maximum dimensions, approximate workpiece weight, finished-product dimensions, target production output, factory power supply and preferred material-handling method.
